YTZ10S · 3 min read
YTZ10S Battery: Dimensions, Polarity and Equivalents
Dimensions, polarity, what the code means, similar battery codes and the replacement battery.

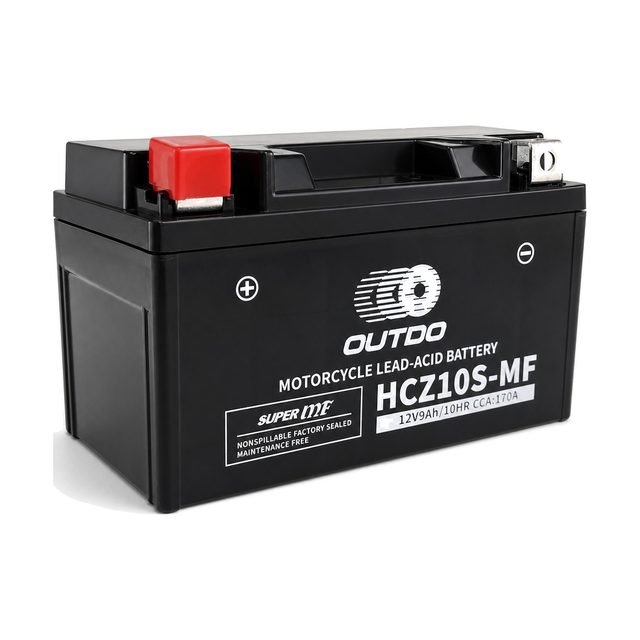

High-performance AGM · YTZ10S
OUTDO HCZ10S-MF
12 V, 9 Ah battery with 170 A cold cranking amps, replacing the YTZ10S. Factory-activated and charged, ready to fit. Positive terminal on the left.
- ✓ Factory-activated
- 12 V · 9 Ah
- 170 A CCA
- + left
€32.48 VAT included · Satkit price checked on 7 October 2026
Where to buyfrom €32.48
Prices incl. VAT checked on 7 October 2026; they may change.
-
Ready to fitSupplied with the acid inside and charged
-
PolarityPositive terminal on the left with the label facing you
Specifications
- Equivalent to
- YTZ10S
- Voltage
- 12 V
- Capacity
- 9 Ah (10 h)
- Cold cranking amps (CCA)
- 170 A at −18 °C
- Dimensions
- 150 × 87 × 93 mm
- Polarity
- Positive terminal on the left (label facing you)
- Technology
- Sealed, maintenance-free AGM
- Supplied as
- Factory-activated and charged
- Weight
- 3.2 kg
- Same format as
- GTZ10S by GS, ETZ10S by Exide, BTZ10S by BS Battery
- Warranty
- 24 months
About this battery
It is a direct replacement for the YTZ10S: the same voltage, polarity and case as that battery part number. It leaves the factory with the electrolyte inside and charged, so there is no acid pack and no waiting: check the voltage and fit it.
It delivers 9 Ah at the 10-hour rate, more than the 8.6 Ah of the original battery part number: giving you more headroom when starting and while the motorcycle is parked.
Use a smart motorcycle battery charger to charge it: the recommended current is around 0.9 A (capacity divided by 10), and never more than 3 A.
Dimensions, terminal diagram and similar battery codes: YTZ10S battery part number page.
