YB4L-B · 3 min read
YB4L-B Motorcycle Battery: Dimensions and Alternatives
Dimensions, polarity, what the battery code means, similar codes and the battery that replaces it.
Replacement for conventional battery · YB4L-B
YB4L-B Gel Motorcycle Battery
12 V, 3.5 Ah battery with 60 A CCA, replacing the YB4L-B. Sealed gel technology, maintenance-free. Positive terminal on the right.
- 12 V · 3.5 Ah
- 60 A CCA
- + right
€18.45 VAT included · Satkit price checked on 7 October 2026
Where to buyfrom €18.45
Prices incl. VAT checked on 7 October 2026; they may change.
-
Maintenance-freeSealed: never needs topping up
-
PolarityPositive terminal on the right with the label facing you
Specifications
- Equivalent to
- YB4L-B
- Voltage
- 12 V
- Capacity
- 3.5 Ah
- Cold cranking amps (CCA)
- 60 A at −18 °C
- Dimensions
- 113 × 70 × 86 mm
- Polarity
- Positive terminal on the right (label facing you)
- Technology
- Sealed gel, maintenance-free
- Weight
- 1.6 kg
About this battery
Sealed battery for the YB4L-B battery compartment: it never needs topping up and has no vent tube.
The original YB4L-B is a conventional flooded battery. A sealed battery replaces it without maintenance, provided the motorcycle's voltage regulator charges between 14.0 and 14.8 V (measure at the terminals with the engine running at 3000–4000 rpm). For older motorcycles that charge below this range, stick with a conventional flooded battery.
It is slightly smaller than the original battery part number in length (8 mm shorter) and height (7 mm shorter): it fits in the compartment, and you can use a foam block to fill the gap and stop it moving. Check that the cables reach the terminals.
Use a smart motorcycle battery charger to charge it: the recommended current is around 0.3 A (capacity divided by 10), and never more than 3 A.
Dimensions, terminal diagram and similar battery codes: YB4L-B battery part number page.
Related guide
Buying guide · The basics · 16 min read
How to choose a motorcycle battery: code, dimensions and type
To get it right, you need four details: the battery part number, dimensions, which side the positive terminal is on, and cold cranking amps and capacity that match or exceed the original. Here’s how to find each one, which battery type suits your motorcycle, and how to look after it so it lasts.
Other batteries in the same family
Replacement for conventional battery · 12N12A-4A-1
Motorcycle Battery 12N12A-4A-1
12 V, 12 Ah battery to replace the 12N12A-4A-1. Positive terminal on the left.
- 12 V · 12 Ah
- + left
from€24.60
Replacement for conventional battery · YB3L-B
YB3L-B gel motorcycle battery
12 V, 3 Ah battery with 35 A cold cranking amps, replacing the YB3L-B. Sealed gel technology, maintenance-free. Positive terminal on the right.
- 12 V · 3 Ah
- 35 A CCA
- + right
from€15.99
Replacement for conventional battery · YB5L-B

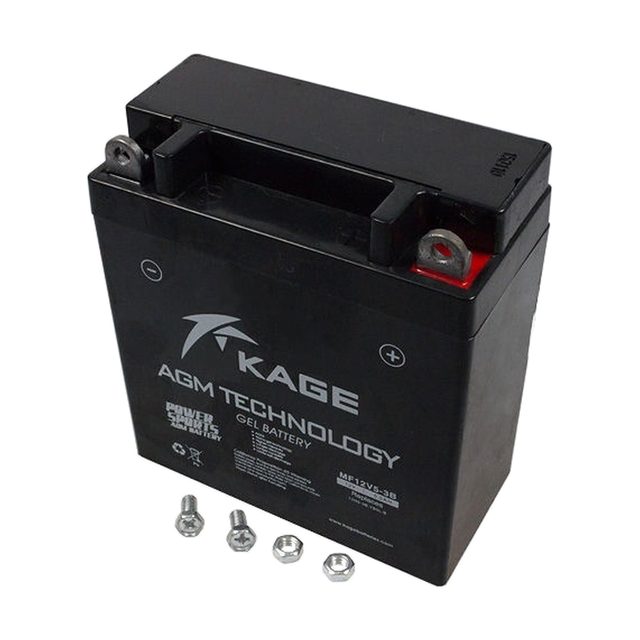

YB5L-B Gel Motorcycle Battery
