YTX20-BS · 3 min read
YTX20-BS Motorcycle Battery: Dimensions, Polarity and Equivalents
Dimensions, polarity, what the battery code means, similar codes and the battery that replaces it.
Maintenance-free AGM · YTX20-BS

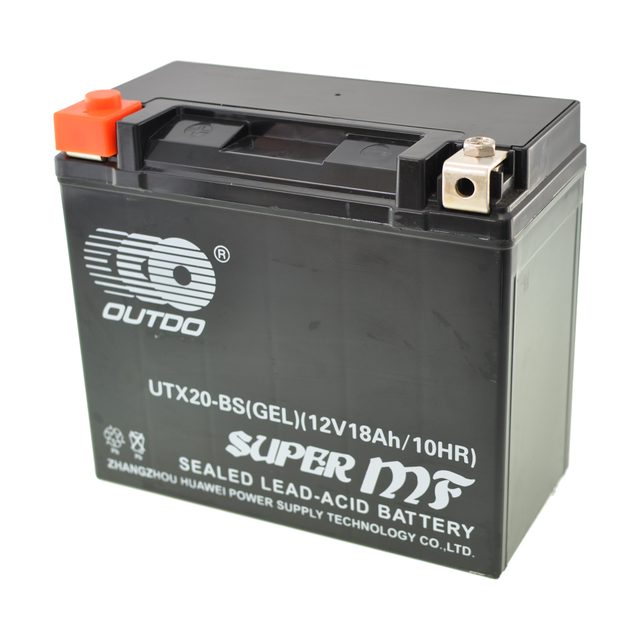

YTX20-BS gel battery
12 V, 18 Ah battery with 300 A CCA, replacing the YTX20-BS. Sealed gel technology, maintenance-free. Positive terminal on the left.
- 12 V · 18 Ah
- 300 A CCA
- + left
€39.36 VAT included
Where to buyfrom €39.36
-
Maintenance-freeSealed: never needs topping up
-

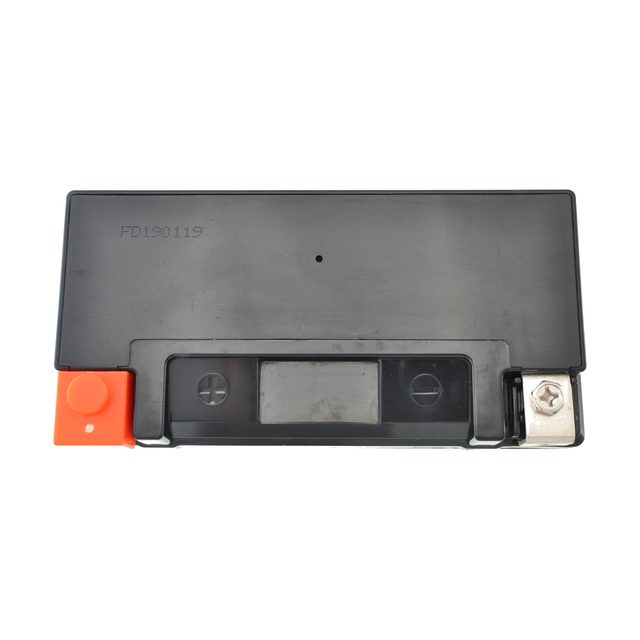

PolarityPositive terminal on the left when viewed with the label facing you
Specifications
- Equivalent to
- YTX20-BS
- Voltage
- 12 V
- Capacity
- 18 Ah
- Cold cranking amps (CCA)
- 300 A at −18 °C
- Dimensions
- 175 × 87 × 155 mm
- Polarity
- Positive terminal on the left (label facing you)
- Technology
- Sealed gel, maintenance-free
- Weight
- 5 kg
About this battery
Sealed battery for the YTX20-BS battery compartment: it never needs topping up and has no vent tube.
Use a smart motorcycle battery charger. The recommended charge current is around 1.8 A (capacity divided by 10), and must never exceed 3 A.
Dimensions, terminal diagram and similar battery codes: YTX20-BS battery part number page.
