In short
- 12 V · 12 Ah · 120 A EN
- 134 × 80 × 160 mm · positive terminal on the left
- Replacement at Satkit: 12N12A-4A-1 Motorcycle Battery
The 12N12A-4A-1 is a 12 V conventional flooded motorcycle battery with a capacity of 12 Ah, 120 A cold cranking amps (CCA, EN) and a case measuring 134 × 80 × 160 mm. It has the positive terminal on the left when viewed with the label facing you.
Dimensions and specifications
| 12N12A-4A-1 | 12N12A-4A-1 Motorcycle Battery | |
|---|---|---|
| Voltage | 12 V | 12 V |
| Capacity | 12 Ah (10-hour rate) · 12.6 Ah (20-hour rate) | 12 Ah |
| Cold cranking amps (CCA) | 120 A (EN) | — |
| Length × width × height | 134 × 80 × 160 mm | 134 × 80 × 160 mm |
| Polarity | Positive terminal on the left | Positive terminal on the left |
| Technology | Conventional flooded | — |
| Delivery | — | — |
| Weight | — | 3.5 kg |
The battery part number column gives the specifications from Yuasa's product listing, as Yuasa is the brand associated with this battery code. The other column gives the details of the battery sold by Satkit. Capacity is always compared using the same hourly rate, and starting current using the same standard.
What does 12N12A-4A-1 mean?
- 12N: a standard 12 V conventional battery.
- 12: here, it does correspond closely to the capacity: the 12N12A-4A-1 has a capacity of 12 Ah at the 10-hour rate.
- -4A-1: the code for the terminal and case layout. There is no general rule across manufacturers, so check the drawing on the product listing.
Battery codes that are easy to mix up with the 12N12A-4A-1
| Battery code | Dimensions | Polarity | Difference |
|---|---|---|---|
| YB12AL-A2 | 134 × 80 × 160 mm | Positive terminal on the right | Same case, opposite polarity: it will not fit even though the dimensions match. |
| YB12A-A | 134 × 80 × 160 mm | Positive terminal on the left | Almost the same case and the same polarity, but with higher starting current (150 A EN). Check that the terminals match. |
Satkit battery for the 12N12A-4A-1

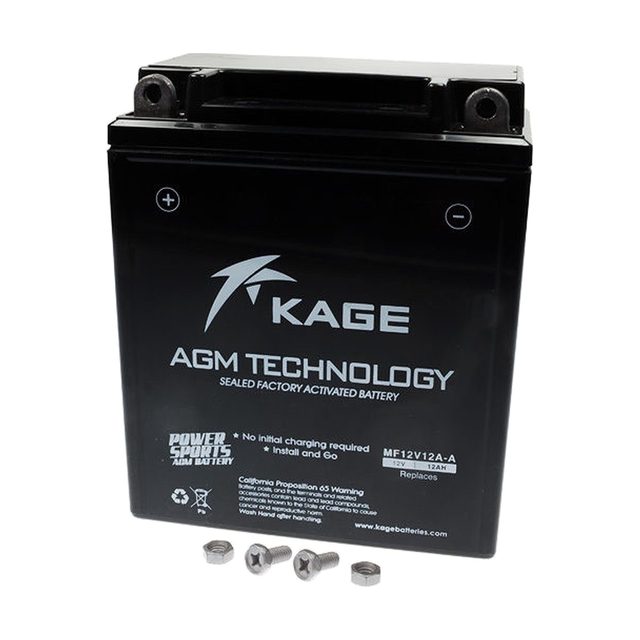

12N12A-4A-1 Motorcycle Battery: 12 V and 12 Ah.
Motorcycles that use the 12N12A-4A-1
Search for your motorcycle, scooter or ATV by model and year to find its battery code.
