YTX16-BS · 3 min read
YTX16-BS motorcycle battery: dimensions and equivalents
Dimensions, polarity, what the name means, similar battery codes and the replacement battery.
Maintenance-free AGM · YTX16-BS

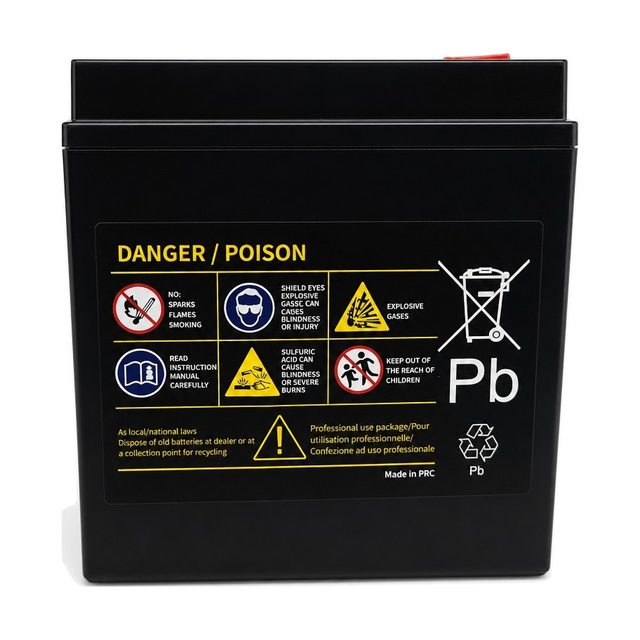

OUTDO UTX16-BS
12 V, 14 Ah battery with 230 A cold cranking amps, replacing the YTX16-BS. Factory-activated and charged, so it’s ready to fit. Positive terminal on the left.
- ✓ Factory-activated
- 12 V · 14 Ah
- 230 A CCA
- + left
€41.63 VAT included · Satkit price checked on 7 October 2026
Where to buyfrom €41.63
Prices incl. VAT checked on 7 October 2026; they may change.
-
Ready to fitSupplied with the acid inside and charged
-
PolarityPositive terminal on the left when viewed with the label facing you
Specifications
- Equivalent to
- YTX16-BS
- Voltage
- 12 V
- Capacity
- 14 Ah (10 h)
- Cold cranking amps (CCA)
- 230 A at −18 °C
- Dimensions
- 150 × 87 × 161 mm
- Polarity
- Positive terminal on the left (label facing you)
- Technology
- Sealed, maintenance-free AGM
- Supplied condition
- Factory-activated and charged
- Weight
- 5.1 kg
- Same format as
- GTX16-BS (GS), ETX16-BS (Exide) and BTX16-BS (BS Battery)
- Warranty
- 24 months
About this battery
This is a direct replacement for the YTX16-BS: the same voltage, polarity and case size. It leaves the factory with the electrolyte inside and is charged, so there’s no acid pack and no waiting: check the voltage and fit it.
Use a smart motorcycle battery charger: the recommended current is around 1.4 A (capacity divided by 10), and never more than 3 A.
Dimensions, terminal diagram and similar battery codes: YTX16-BS battery part number page.
