In short
- 12 V · 12 Ah · 210 A EN
- 150 × 70 × 145 mm · positive terminal on the left
- Satkit replacement: OUTDO YT14B-4
The YT14B-BS is a 12 V maintenance-free AGM motorcycle battery with a capacity of 12 Ah, 210 A cold cranking amps (CCA, EN) and a case measuring 150 × 70 × 145 mm. It has the positive terminal on the left when viewed with the label facing you.
Dimensions and specifications
| YT14B-BS | OUTDO YT14B-4 | |
|---|---|---|
| Voltage | 12 V | 12 V |
| Capacity | 12 Ah (10-hour rate) · 12.6 Ah (20-hour rate) | 12 Ah (10-hour rate) |
| Cold cranking amps | 210 A (EN) | 115 A at −18 °C |
| Length × width × height | 150 × 70 × 145 mm | 150 × 70 × 145 mm |
| Polarity | Positive terminal on the left | Positive terminal on the left |
| Technology | AGM | AGM |
| Supplied | With an acid bottle | Activated and charged |
| Weight | — | 3.8 kg |
The YT14B-BS column shows data from Yuasa, the brand behind the battery code; the other column shows data for the battery sold by Satkit. Capacity is always compared using the same hour rate, and starting current using the same standard.
What YT14B-BS means
- Y: Yuasa, the brand that created the naming system.
- YT (without X or Z): maintenance-free AGM with a different case family, narrower than the YTX range.
- 14: a size and power index, not the amp-hour capacity: the YT14B-BS has a capacity of 12 Ah at the 10-hour rate.
- B after the number: a case variant, different from the version without a letter.
- -BS: the original battery part number is supplied dry with an acid bottle (bottle supplied), to be filled before fitting.
Battery codes that are easy to mix up with the YT14B-BS
| Battery part number | Dimensions | Polarity | Difference |
|---|---|---|---|
| YT12B-BS | 150 × 69 × 130 mm | Positive terminal on the left | Different case: 15 mm shorter. |
| YTX14-BS | 150 × 87 × 145 mm | Positive terminal on the left | Different case: 17 mm wider. |

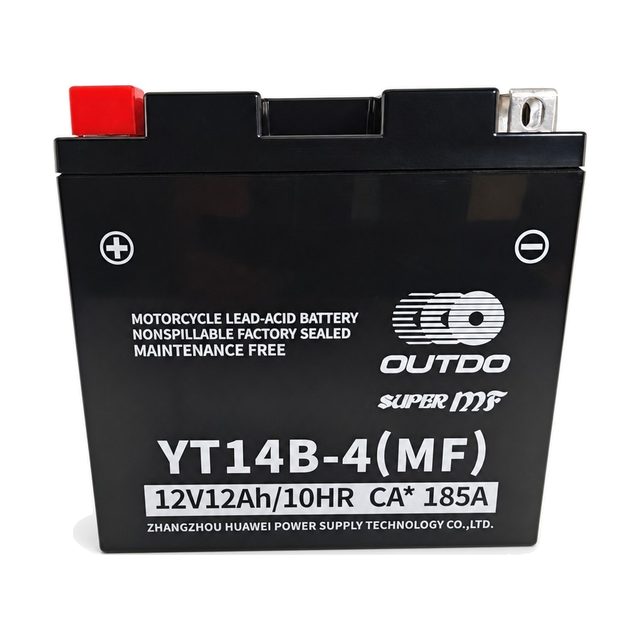

Satkit battery for YT14B-BS
OUTDO YT14B-4: 12 V and 12 Ah, 115 A starting current, sealed AGM, factory-activated and charged.
The Yuasa YT14B-BS is supplied with a separate acid bottle; Satkit's battery arrives already activated and charged, so you can skip the filling and initial charging.
