In short
- 12 V · 11 Ah · 210 A EN
- 150 × 87 × 110 mm · positive terminal on the left
- Satkit replacement: OUTDO HCZ12S-MF
The YTZ12S is a high-performance 12 V AGM motorcycle battery: 11 Ah, 210 A cold cranking amps (EN) and a case measuring 150 × 87 × 110 mm. With the label facing you, the positive terminal is on the left.
Dimensions and specifications
| YTZ12S | OUTDO HCZ12S-MF | |
|---|---|---|
| Voltage | 12 V | 12 V |
| Capacity | 11 Ah (10 h) · 11.6 Ah (20 h) | 11.2 Ah (10 h) |
| Cold cranking amps | 210 A (EN) | 190 A at −18 °C |
| Length × width × height | 150 × 87 × 110 mm | 150 × 87 × 110 mm |
| Polarity | Positive terminal on the left | Positive terminal on the left |
| Technology | AGM | AGM |
| Supplied | Factory-activated | Activated and charged |
| Weight | — | 3.85 kg |
The YTZ12S column lists data from Yuasa, the brand behind the battery code; the other column lists data for the battery sold by Satkit. Capacity is always compared using the same time basis, and starting current using the same standard.
What does YTZ12S mean?
- Y: Yuasa, the brand that created the naming system.
- TZ: the high-performance AGM series, offering more starting current in a compact case. These batteries are always factory-activated.
- 12: a size and power index, not the amp-hour rating: the YTZ12S has a capacity of 11 Ah at the 10-hour rate.
Battery codes that are easy to mix up with the YTZ12S
| Battery code | Dimensions | Polarity | Difference |
|---|---|---|---|
| YTZ14S | 150 × 87 × 110 mm | Positive terminal on the left | Almost the same case and the same polarity, but from a different family: check the terminals. |
| YTX9-BS | 152 × 87 × 107 mm | Positive terminal on the left | Same polarity and a similar case, but 2 mm longer: only suitable if your battery compartment has that clearance. |
| YTZ10S | 150 × 87 × 93 mm | Positive terminal on the left | A different case: 17 mm shorter in height. |
Satkit battery for the YTZ12S

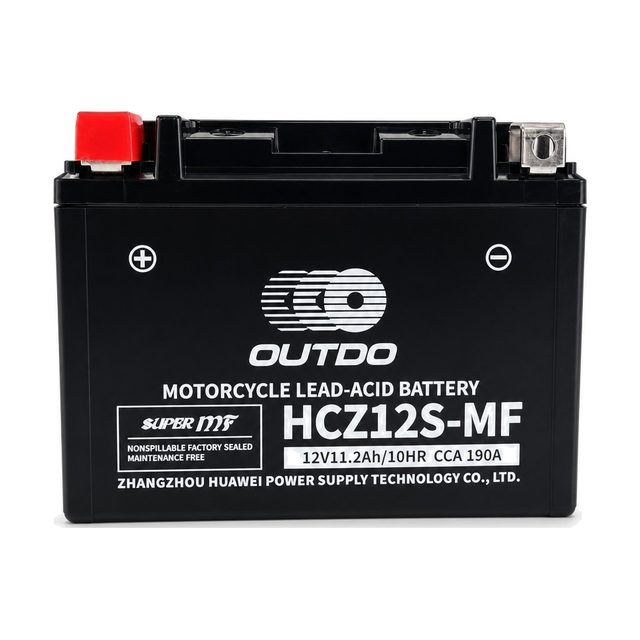

OUTDO HCZ12S-MF: 12 V and 11.2 Ah, 190 A starting current, sealed AGM, factory-activated and charged.
Motorcycles that use the YTZ12S
23 versions by make and model
- Forza 250 2005–2010
- Forza 300 2013–2017
- Forza 750 from 2021
- Integra 700 2012–2013
- NC700X 2012–2013
- NC750X RH09 2021–2024
- NC750X from 2025
- SH 300i NF02 2007–2014
- SH 300i 2015–2020
- SH 350i from 2021
- Silver Wing 600 2001–2012
- VFR800 RC46 2002–2013
- VFR800F RC79 from 2014
- X-ADV 750 2021–2024
- X-ADV 750 from 2025
- XL650V Transalp 2000–2007
- TMAX 530 2012–2019
- TMAX 560 2020–2024
- TMAX 560 from 2025
- XT1200Z Super Tenere 2010–2021
