In short
- 12 V · 11.2 Ah · 230 A EN
- 150 × 87 × 110 mm · positive terminal on the left
- Satkit replacement: OUTDO HCZ14S-MF
The YTZ14S is a high-performance 12 V AGM motorcycle battery with a capacity of 11.2 Ah and 230 A cold cranking amps (CCA) (EN), housed in a 150 × 87 × 110 mm case. The positive terminal is on the left when viewed with the label facing you.
Dimensions and specifications
| YTZ14S | OUTDO HCZ14S-MF | |
|---|---|---|
| Voltage | 12 V | 12 V |
| Capacity | 11.2 Ah (10 h) · 11.8 Ah (20 h) | 12 Ah (10 h) |
| Cold cranking amps | 230 A (EN) | 210 A at −18 °C |
| Length × width × height | 150 × 87 × 110 mm | 150 × 87 × 110 mm |
| Polarity | Positive terminal on the left | Positive terminal on the left |
| Technology | AGM | AGM |
| Supplied | Factory-activated | Activated and charged |
| Weight | — | 4.15 kg |
The YTZ14S column uses the figures from Yuasa’s product sheet; the other column gives the figures for the battery sold by Satkit. Capacity is compared at the same hourly rate, and starting current against the same standard.
What does YTZ14S mean?
- Y: Yuasa, the brand that created this naming system.
- TZ: the high-performance AGM series, providing more starting current in a compact case. These batteries are always factory-activated.
- 14: a size and power index, not the capacity in amp-hours: the YTZ14S has a capacity of 11.2 Ah at the 10-hour rate.
Battery codes that are easy to mix up with YTZ14S
| Battery code | Dimensions | Polarity | Difference |
|---|---|---|---|
| YTZ12S | 150 × 87 × 110 mm | Positive terminal on the left | Almost identical case and the same polarity, but a different family: check the terminals. |
| YTX9-BS | 152 × 87 × 107 mm | Positive terminal on the left | Similar case and the same polarity, but 2 mm longer: only suitable if your battery compartment has that extra clearance. |
| YTZ10S | 150 × 87 × 93 mm | Positive terminal on the left | A different case, 17 mm shorter in height. |
Satkit battery for YTZ14S

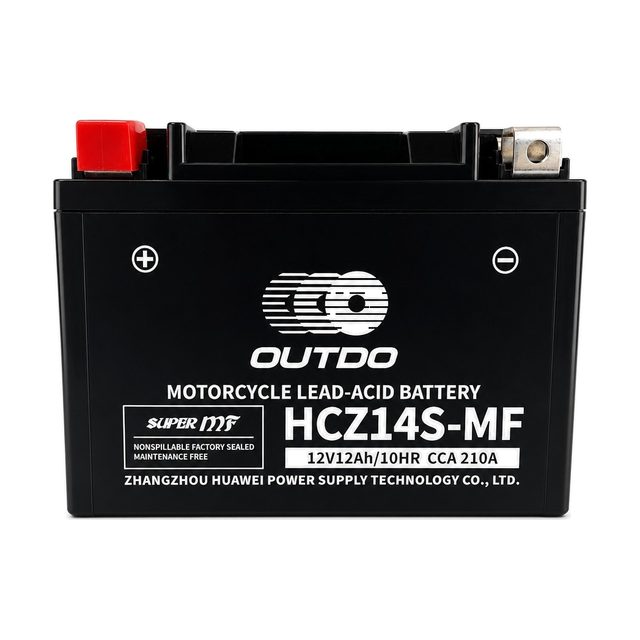

OUTDO HCZ14S-MF: 12 V and 12 Ah, 210 A starting current, sealed AGM, factory-activated and factory-charged.
Motorcycles that use the YTZ14S
42 versions by make and model
- CRF1000L Africa Twin 2016–2019
- Deauville 700 NT700V 2006–2013
- Integra 750 2014–2020
- NC750X RC72 2014–2015
- NC750X RC90 2016–2020
- NT1100 from 2022
- Rebel 1100 from 2021
- VT750 Shadow from 2004
- X-ADV 750 2017–2020
- XL700V Transalp 2008–2013
See 24 more
- 1190 Adventure 2013–2016
- 1290 Super Adventure S 2017–2020
- 1390 Super Duke R from 2024
- 990 Adventure 2006–2013
- AK 575 from 2024
- CV3 550 from 2022
- Downtown GT 350 from 2025
- DTX 360 from 2025
- Hayabusa GSX1300R from 2021
- V-Strom 1000 2017–2019
- V-Strom 1050 from 2020
- R 1200 GS LC K50 / K51 2013–2018
Fantic
- Caballero 700 from 2025
