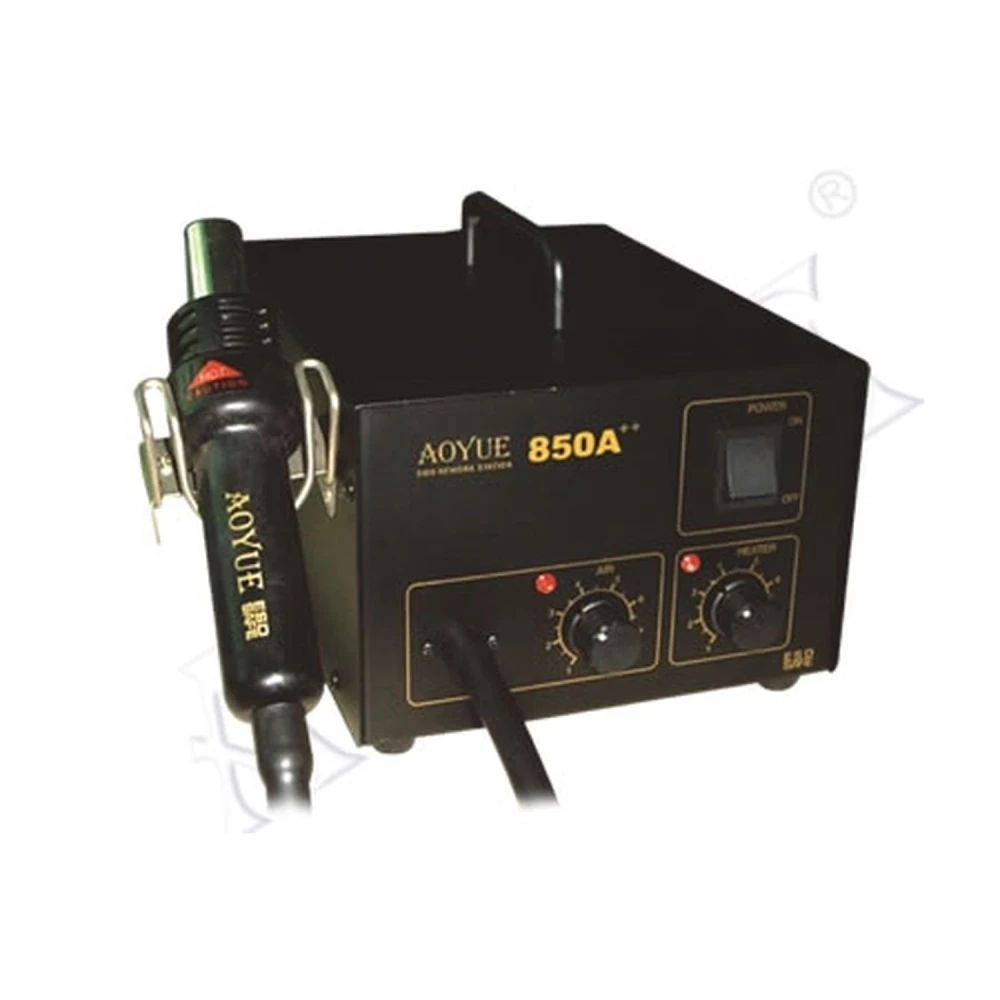

Aoyue 850a++ SMD soldering station with advanced temperature control
Brand: Aoyue
VAT included (Ex VAT: 82.80 €)
Product description
The Aoyue 850a++ SMD soldering station is a professional tool designed for precision soldering work on SMD and BGA electronic components. Its advanced temperature control system with closed-loop sensor ensures a constant temperature during the process, improving the quality and safety of repairs.
Main features
- Temperature control via closed-loop sensor for thermal stability.
- Adjustable temperature between 100°C and 550°C, suitable for various component types.
- Ideal for repairing BGAs, plastic connectors, mobile phone speakers and electronic components such as QFP, SOP, PLCC and SOJ.
- Cold air cooling system that extends the life of the heating element.
- Transport lock to protect the pump during equipment transport.
- Independent temperature and airflow control via two dials on the hand unit: "AIR" and "Heater".
Technical specifications
- Input power: 220 V
- Power consumption: 500 W
- Temperature range: 100°C - 550°C
- Heating element: metal core
- Motor/pump type: diaphragm pump
- Air capacity: up to 23 L/min
- Dimensions: 188 mm (width) x 127 mm (height) x 244 mm (depth)
- Weight: 3,7 kg
Uses and applications
This soldering station is especially useful for technicians and professionals working on the repair of electronic devices that require precision, such as games consoles, mobile phones and boards with SMD and BGA components. Its temperature control and adjustable airflow allow it to adapt to different types of soldering and delicate components.
Compatibility
Compatible with a wide variety of soldering tips and heating elements, although the heating element and tips are not covered by warranty. It is important to use compatible accessories to ensure the best performance and durability of the equipment.
Availability note
This product is currently out of stock. We recommend checking alternatives or contacting our customer service for information on restocking or similar products.
*** The heating element and tips are excluded from warranty ***
- Closed-loop sensor temperature control for precise stability
- Adjustable temperature range from 100°C to 550°C
- Ideal for repairing BGAs, plastic connectors and SMD components such as QFP, SOP, PLCC and SOJ
- Cold air cooling to extend the life of the heating element
- Transport lock to protect the pump during transit
- 220 V input power and 500 W consumption
- Diaphragm pump with 23 L/min air capacity
- Compact dimensions of 188x127x244 mm and weight of 3,7 kg
Customer Questions & Answers
What are the main materials of the station, its dimensions and the standard box contents?
The station is made with a durable metal casing and thermosetting plastic in contact areas. Its dimensions are 188 mm (width) x 127 mm (height) x 244 mm (depth), with an approximate weight of 3.7 kg. Standard contents include the main unit, hot air gun, air nozzles and manual; spare tips are not always included.
Is it compatible with 110 V electrical systems and what electrical safety features does it have?
The model is designed for 220 V AC; using it on 110 V systems requires a suitable transformer. It includes overheat protection and an automatic air-cooling function after use, which helps protect the heating element and reduce risks. It complies with basic electrical safety standards, but international certifications are not specified.
What care is recommended to extend the station's service life, and are there common maintenance limitations?
It is recommended to clean the air filters regularly, avoid blockages in the nozzles, and use the cooling function after each use. The heating element and tips are consumables and may require frequent replacement, especially with intensive use. No warranty is included for these components.
How does the thermal performance and airflow (23 L/min, 100–550 °C) compare with other popular SMD stations, and what operating tolerances would a technician consider advisable?
The temperature range (100–550 °C) and maximum airflow of 23 L/min are in line with mid-range professional SMD stations. Technically, a typical tolerance of ±5 °C in temperature and ±2 L/min in airflow is suitable for precise work. Some high-end models offer digital controls and superior thermal stability, but at a higher cost.
What types of components is the Aoyue 850a++ SMD soldering station suitable for?
It is ideal for repairing BGAs, plastic connectors, mobile phone speakers and SMD electronic components such as QFP, SOP, PLCC and SOJ.
What temperature range does this soldering station offer?
The adjustable temperature range is from 100°C to 550°C, allowing work with different types of soldering and components.
What type of motor or pump does the soldering station use?
It uses a diaphragm pump that provides a maximum air capacity of 23 litres per minute.
Are the heating element and tips covered by the warranty?
No, the heating element and tips are excluded from warranty according to the product specifications.
Is the Aoyue 850a++ SMD soldering station currently available?
The product is currently out of stock. It is recommended to check alternatives or contact customer service for more information.
