Aoyue 909 soldering station with independent control and anti-static design
Brand: Aoyue
VAT included (Ex VAT: 119.60 €)
The Aoyue 909 soldering station is a professional tool designed to provide precise and safe control in electronic soldering and repair processes. Its design includes independent control for both the soldering iron and the hot air gun, allowing temperature and airflow to be adjusted smoothly and analogically, adapting to the specific needs of each task.
Main features:
- Independent temperature control for the soldering iron and hot air gun.
- Safe diaphragm pump that ensures a constant flow of hot air.
- Includes cables for connection with crocodile clips, hook terminals and universal connectors for Motorola V50, Samsung A300 and Nokia.
- Automatic cooling of the heating element after unplugging to protect the hot air gun.
- Anti-static design that protects sensitive electronic components during soldering.
- Soft rubber feet on the base to ensure stability during operation.

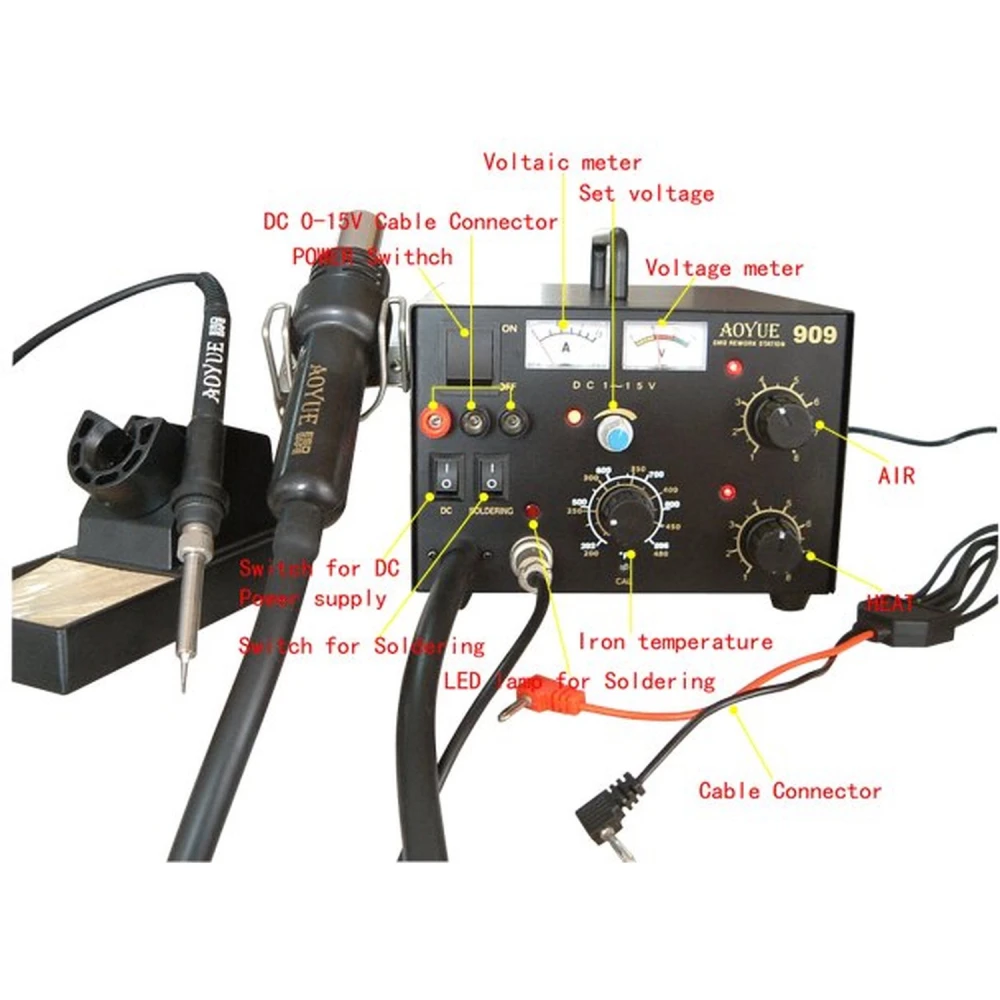

- 5 A safety device located on the rear panel for additional protection.
Technical specifications:
- Power supply: 220V
- Dimensions: 188 mm (width) x 126 mm (height) x 250 mm (depth)
- Weight: 4.8 kg
Soldering iron:
- Consumption: 35W
- Temperature range: 200 - 480 °C
- Ceramic heating element
- Output voltage: 24V
- Ground resistance: less than 2 ohms
- Ground potential: less than 2 mV
Hot air gun:
- Consumption: 450W
- Temperature range: 100 - 500 °C
- Motor/pump type: diaphragm pump
- Maximum air capacity: 23 litres/minute
Power supply:
- Total current: 1.5A
- DC output voltage: 0-15 V
This station is ideal for professionals and advanced hobbyists who need a reliable tool for soldering and repairing electronic components. Its anti-static design and automatic cooling system protect both the equipment and the components during work.
Compatibility and use:
Thanks to the various cables and connectors included, the Aoyue 909 station is compatible with a wide range of devices and electronic components, making repairs on mobile phones, electronic equipment and printed circuit boards easier.
Important note: Heating elements and tips are not covered by the product warranty.
- Independent control for the soldering iron and hot air gun
- Safe diaphragm pump for a constant air flow
- Includes cables with crocodile clips, hook terminals and universal connectors
- Automatic cooling to protect the hot air gun
- Anti-static design to protect electronic components
- Rubber feet for stability during operation
- 5 A safety device on the rear panel
- Soldering iron temperature: 200-480 °C, hot air temperature: 100-500 °C
- Soldering iron consumption: 35W, hot air consumption: 450W
- Soldering iron output voltage: 24V, air capacity: 23 L/min
Customer Questions & Answers
What advantages does independent temperature regulation for the soldering iron and hot air gun offer in the Aoyue 909 station?
Independent regulation allows you to adjust the temperature of each tool precisely according to the component or process required, optimising results and avoiding damage from excessive heat. This is especially useful for mixed tasks such as soldering and SMD rework.
What are the dimensions and weight of the Aoyue 909 station, and what items are included in the box?
The station measures 188 mm (width) x 126 mm (height) x 250 mm (depth) and weighs 4.8 kg. It includes the main unit, soldering iron, hot air gun, connection cables, cables with crocodile clips, cables with hook-type terminals, and different adapter cables for Motorola, Samsung and Nokia connectors.
Is the Aoyue 909 station compatible with 110V plugs, or does it only work at 220V?
This station is specified to work only with 220V power, so it is not directly compatible with 110V systems without using an external transformer that properly adapts the voltage.
What maintenance does the station require to ensure durability and consistent performance?
It is recommended to clean the nozzles, tips and filters of the hot air gun regularly, check the integrity of the cables, and ensure proper ventilation of the internal components. Use in clean, dry environments extends service life. The ceramic element in the soldering iron and the nozzles may require periodic replacement depending on use.
How does the temperature accuracy of the soldering iron and hot air gun compare with digital stations?
The analogue control of the Aoyue 909 offers smooth, continuous adjustment, but it may show slight variations from the temperature reading (±10-15 °C), less accurate than digital models fitted with PID and a display, which offer a tighter tolerance, typically ±2-5 °C.
Is the Aoyue 909 soldering station currently available?
Currently, the Aoyue 909 soldering station is out of stock and not available for immediate purchase.
What type of temperature control does the Aoyue 909 have?
The station has smooth analogue control for the temperature of the soldering iron and hot air gun, allowing precise control.
What accessories are included with the Aoyue 909 station?
It includes several connection cables: crocodile clips, hook terminals and universal connectors for Motorola V50, Samsung A300 and Nokia.
Is it safe for sensitive electronic components?
Yes, it has an anti-static design that protects components during soldering and an automatic cooling system to protect the hot air gun.
What is the power consumption of the station?
The soldering iron consumes 35W and the hot air gun 450W, with a total current of 1.5A and a 220V power supply.
