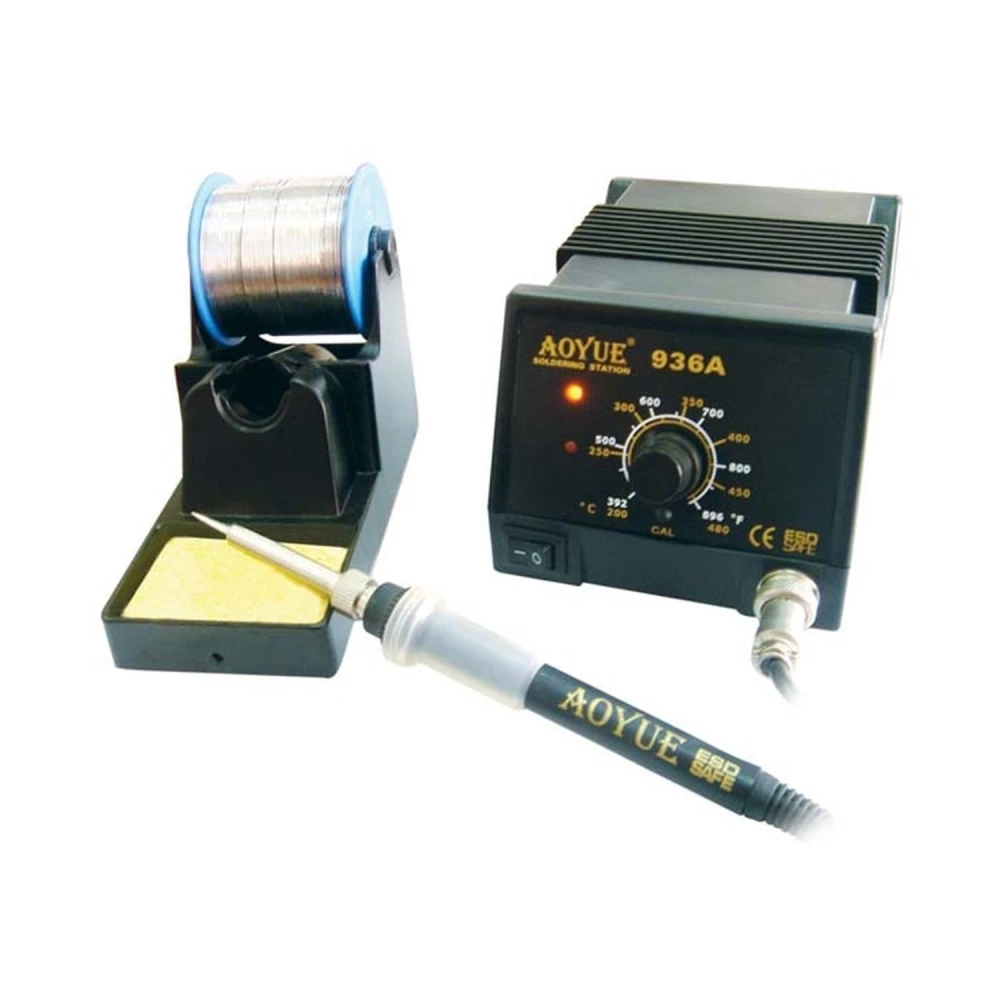

Aoyue 936a 60W soldering station with removable spares and external calibration
Brand: Aoyue
VAT included (Ex VAT: 57.39 €)
Product description
The Aoyue 936a 60W soldering station is an essential tool for electronics professionals and hobbyists looking for precision and safety in their soldering work. This station stands out for its fast heat-up, ease of maintenance and precise adjustment, ensuring optimum results with every use.
Main features
- Anti-static: Protects sensitive electronic components during soldering.
- Fast heat-up: Allows you to start work in a short time, increasing productivity.
- Removable spares: Makes parts replacement easier, extending the service life of the equipment.
- External calibration: Exact temperature adjustment for precise control during soldering.
Technical specifications
- Power supply: 220V
- Power consumption: 60W
- Temperature range: 200 - 480 ºC
- Heating element: Ceramic base
- Output voltage: 24V
- Tip-to-ground resistance: Less than 2 ohms
- Tip-to-ground potential: Less than 2mV
- Dimensions: 120 mm (width) x 80 mm (height) x 140 mm (depth)
- Approximate weight: 2.4 kg
Typical uses
This soldering station is ideal for electronic repairs, circuit assembly, precision work in workshops and laboratories, and any application that requires exact temperature control and anti-static protection.
Compatibility
Compatible with a wide variety of removable tips and resistors, making maintenance and adaptation to different types of soldering easier.
Important note
Resistors and tips are excluded from warranty.
- Anti-static protection for electronic components
- Fast heat-up for greater productivity
- Removable spares for easy maintenance
- External calibration for precise temperature adjustment
- 220V power supply and 60W consumption
- Temperature range from 200 to 480 ºC
- Ceramic base heating element
- 24V output voltage
- Compact dimensions: 120x80x140 mm
- Approximate weight of 2.4 kg
Customer Questions & Answers
What are the exact dimensions and weight of the station, and what components are included in the box on delivery?
The station measures 120 mm wide, 80 mm high and 140 mm deep, with an approximate weight of 2.4 kg. Normally, the package includes the main unit, compatible soldering iron (handpiece), soldering iron stand and cleaning sponge; however, wear parts such as tips may vary depending on the distributor.
Is this station compatible with universal tips or tips from other manufacturers, and what is the recommended operating range?
The Aoyue 936a accepts 900M-type tips, which are relatively standard and can be found as both original and generic versions. It operates in a temperature range of 200 to 480 °C, suitable for standard electronics soldering. It requires 220 V AC supply and 24 V output for the soldering iron.
What safety considerations or standards does this station comply with, especially regarding ESD discharges?
The unit is anti-static (ESD Safe), with tip-to-ground resistance below 2 ohms and tip-to-ground potential below 2 mV, significantly reducing the risk of electrostatic discharge damage to sensitive components.
Does the station require any preventive maintenance or have any known limitations for intensive use?
The main maintenance consists of regularly cleaning the tip and replacing tips and the heater as they wear, as these consumables are excluded from the warranty. Prolonged use at maximum temperature can shorten the life of the heating element. Replacing parts in line with the manufacturer’s recommendations can extend durability.
What is the temperature range of the Aoyue 936a soldering station?
The temperature range of the Aoyue 936a is 200 to 480 ºC.
Does the Aoyue 936a soldering station have anti-static protection?
Yes, it has anti-static protection to protect electronic components during soldering.
Can the tips and resistors on the Aoyue 936a be replaced?
Yes, its spares are removable to make replacement and maintenance easier.
What is the power consumption of this soldering station?
The power consumption is 60W with a 220V power supply.
Does the soldering station include a warranty for the tips and resistors?
No, the tips and resistors are excluded from warranty.
