Value FY-1H-N air conditioning vacuum pump 3.6m3/h
Brand: Value
Save 12% Was: 76.26 €
67.10€
VAT included (Ex VAT: 54.55 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 73.21 € | -4% |
| 10+ | 71.68 € | -6% |
| 20+ | 67.11 € | -12% |
Limited stock
Standard delivery
Thu, Apr 30 - Mon, May 4
Express delivery
Tue, Apr 28 - Wed, Apr 29
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only

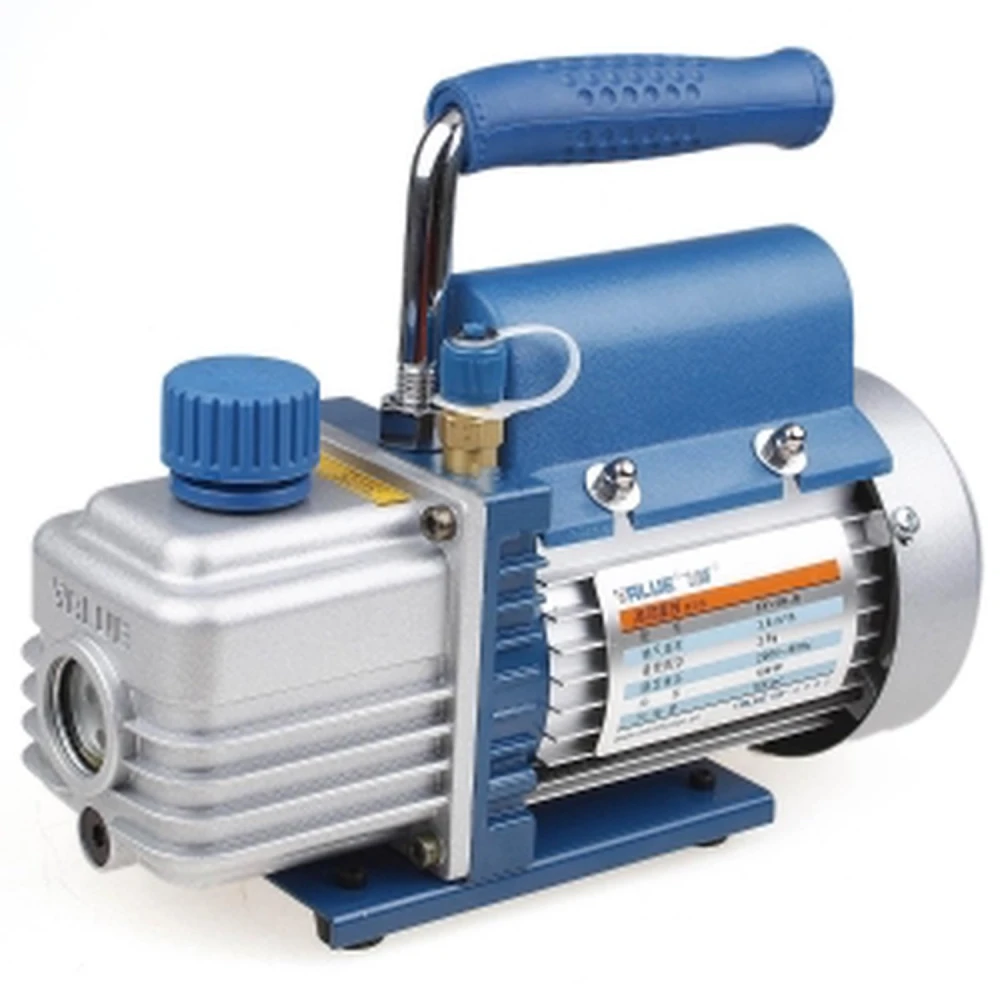

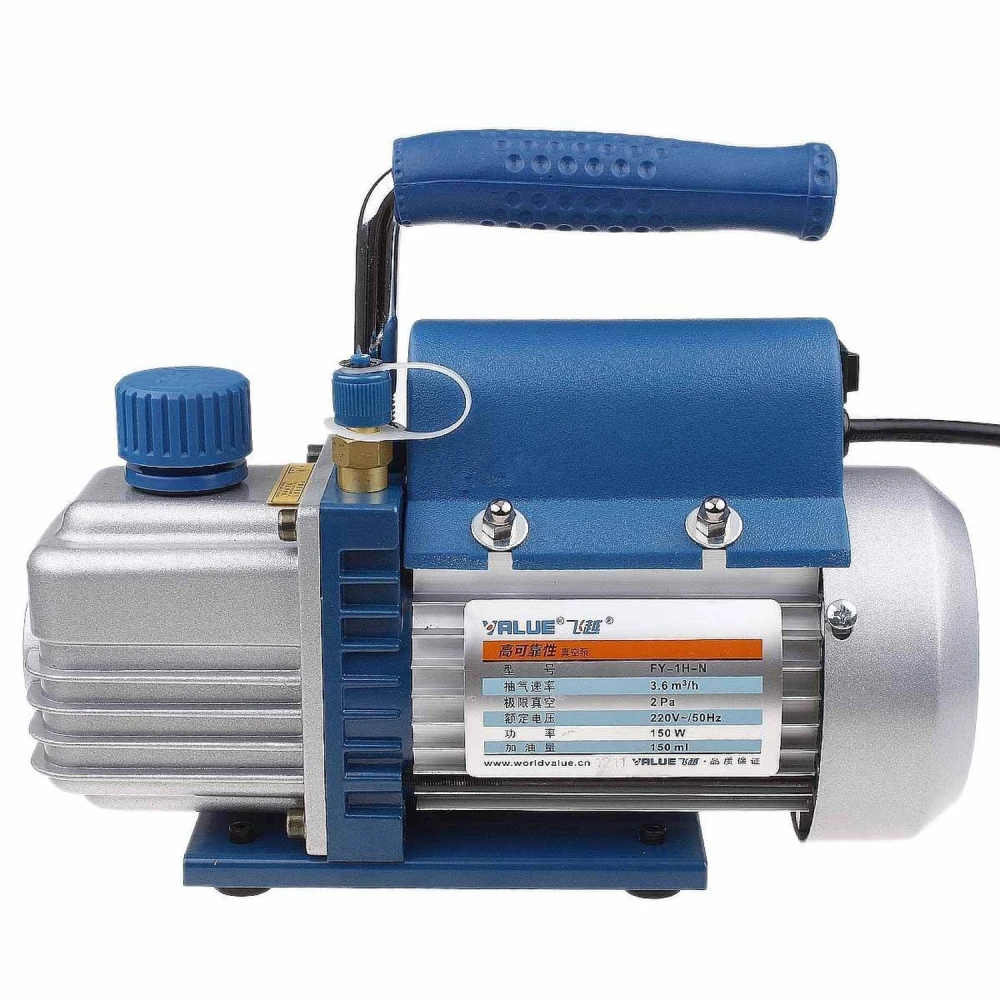

The Value FY-1H-N air conditioning vacuum pump is an essential tool for the maintenance and repair of air conditioning and refrigeration systems. With a pumping capacity of 3.6m3/h, this rotary vane pump effectively removes air and moisture, making refrigerant charging easier and helping ensure optimum system performance.
Its direct-drive motor ensures easy starting and no need for frequent maintenance. The lightweight cast aluminium construction provides durability and strength, while the high-volume internal fan keeps the pump cool during extended use, helping to extend its service life.

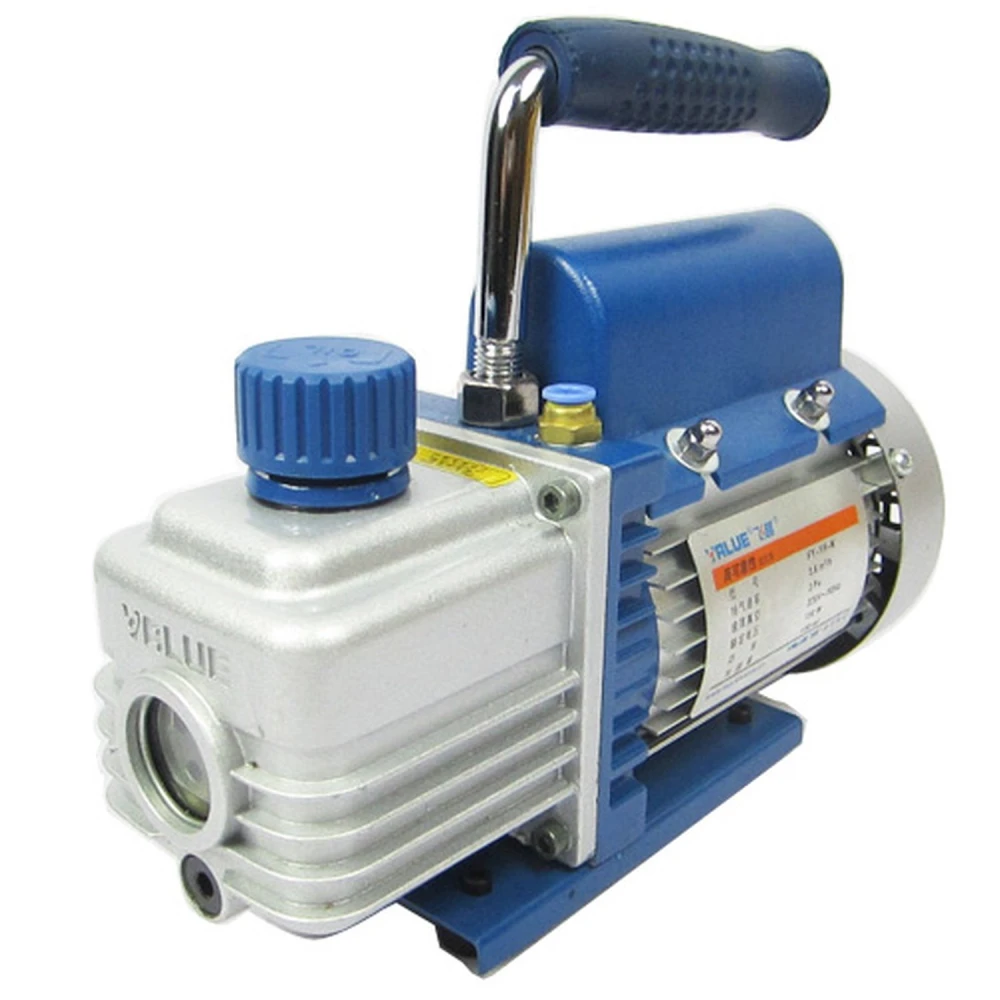

It also features an oil sight glass that allows you to monitor the oil level and quality, making preventive maintenance easier. The drain plug at the bottom of the oil reservoir simplifies the oil change process. Its design includes an ergonomic non-slip handle for easier carrying and an on/off switch for simple operation.
This pump is not only ideal for domestic and commercial air conditioning systems, but is also compatible with vacuum sealing machines for food preservation, degassing, thermofusion and LCD screen repair, among other industrial uses that require vacuum.
- Velocidad de bombeo: 3,6m3/h
- Voltaje: 220V ~ / 50Hz
- Potencia del motor: 150W
- Límite de presión: 2Pa
- Capacidad de aceite: 150ml
- Dimensiones: 255 x 105 x 202 mm
- Peso: 4,2 kg
- Rosca de entrada: 7/16"-20UNF
- Material: Carcasa de aleación de aluminio
To complement the use of this pump, we offer manifold gauges for air conditioning charging and vacuum, available separately. This vacuum pump is a reliable investment for technicians and professionals looking for efficiency and durability in their maintenance tools.
- 3.6m3/h pumping speed for fast, efficient vacuuming
- Direct-drive motor that requires no frequent maintenance
- Lightweight and durable cast aluminium construction
- Oil sight glass for easy monitoring of oil level and quality
- High-volume internal fan to help prevent overheating
- On/off switch and non-slip handle for convenience
- 150ml oil capacity with drain plug for easy maintenance
- Compatible with air conditioning, refrigeration and vacuum sealing systems
Customer Questions & Answers
What is the maximum vacuum performance and flow rate of the Value FY-1H-N pump, and which applications is it best suited to?
The Value FY-1H-N pump offers a maximum vacuum of up to 1 x 10^-6 bar and a flow rate of 3.6 m³/h. It is suitable for maintenance tasks in domestic or small commercial air conditioning and refrigeration systems, as well as in degassing equipment, vacuum sealing machines or screen repair work requiring a moderate vacuum. For large-scale industrial systems, higher-capacity models may be required.
What voltage specifications and type of electrical connector does the pump use, and is it compatible with standard mains supplies?
The Value FY-1H-N pump typically operates at 220 V, 50 Hz single-phase, using a standard European Schuko plug. It is compatible with most residential and commercial mains supplies in countries using this standard. If used in regions with a different voltage (e.g. 110 V), a transformer, ideally certified, would be required.
What materials is the pump made from, and what are its approximate dimensions and weight?
The main housing is made from cast aluminium, which provides durability and light weight. Its approximate dimensions are 290 mm long, 120 mm wide and 240 mm high, with a weight of around 7.2 kg. These values may vary slightly depending on the production batch.
What preventive maintenance does the pump require, and how do you check the oil level and condition?
It is recommended to check the oil level and condition regularly using the side inspection window; the oil should be between the indicators and appear clear. Change the oil if it is cloudy or contaminated, following the instructions in the manual. The bottom plug allows for easy draining. Clean the inlet/exhaust filter regularly to ensure optimum performance.
What objective differences does this pump have compared with two-stage models in terms of achievable vacuum and duty cycle?
The Value FY-1H-N is a single-stage pump, reaching around 1 x 10^-6 bar. By comparison, two-stage pumps usually achieve deeper vacuums (down to 1 x 10^-7 bar) and are more efficient in critical applications such as laboratories or industrial refrigeration. However, a single stage reduces complexity, maintenance and cost, and is sufficient for most HVAC applications.
What is the Value FY-1H-N vacuum pump used for?
It is used to remove air and moisture from air conditioning and refrigeration systems, making refrigerant charging and equipment maintenance easier.
What is the pumping capacity of this vacuum pump?
It has a pumping speed of 3.6 cubic metres per hour (3.6m3/h).
Is it suitable for extended use?
Yes, it has an internal fan that helps prevent overheating for extended, durable use.
What maintenance does it require?
The motor does not require frequent maintenance, and the oil sight glass makes it easy to check the oil level and quality for simple maintenance.
Can it be used for LCD screen repair?
Yes, it is compatible with screen repair machines that require a vacuum pump.
