Engine locking tool for BMW N51 N52 N53 N54 Series
Brand: TSX TOOL
66.42€
VAT included (Ex VAT: 54.00 €)
In Stock - Ships immediately
Standard delivery
Mon, May 4 - Wed, May 6
Express delivery
Thu, Apr 30 - Fri, May 1
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only

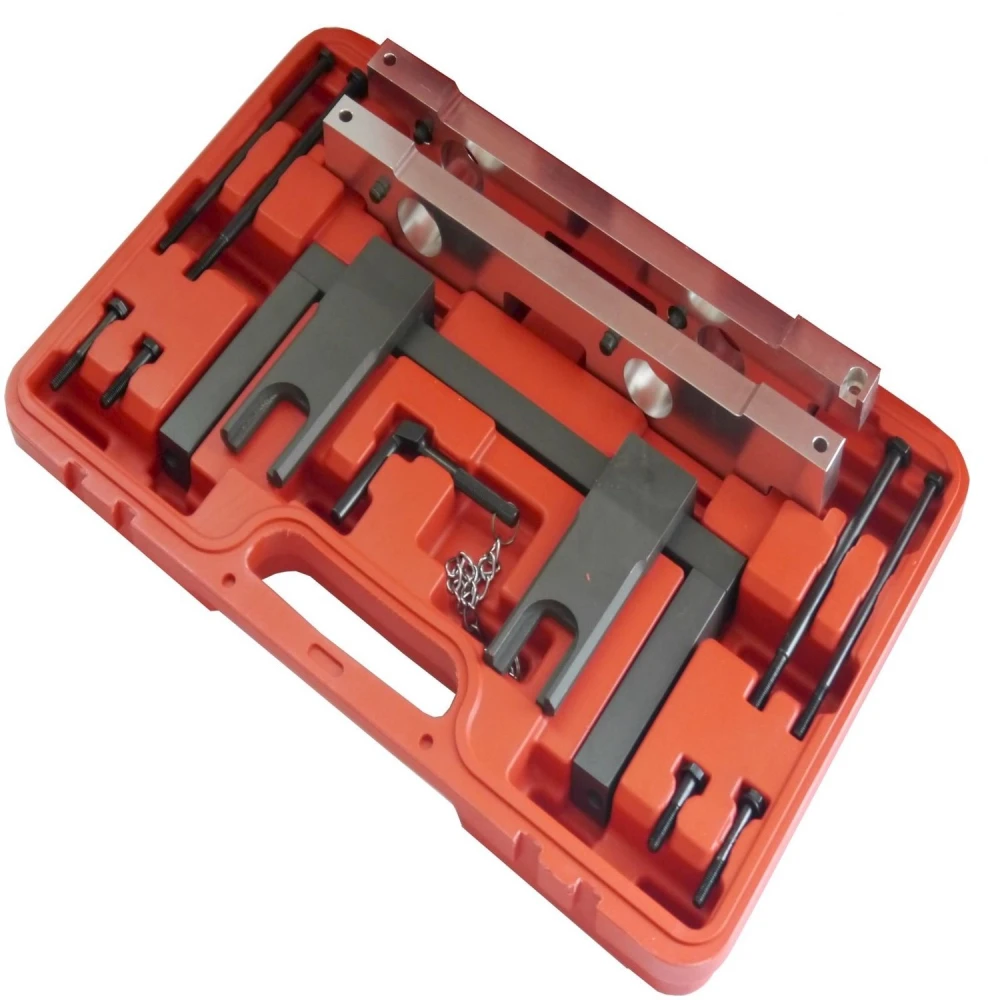

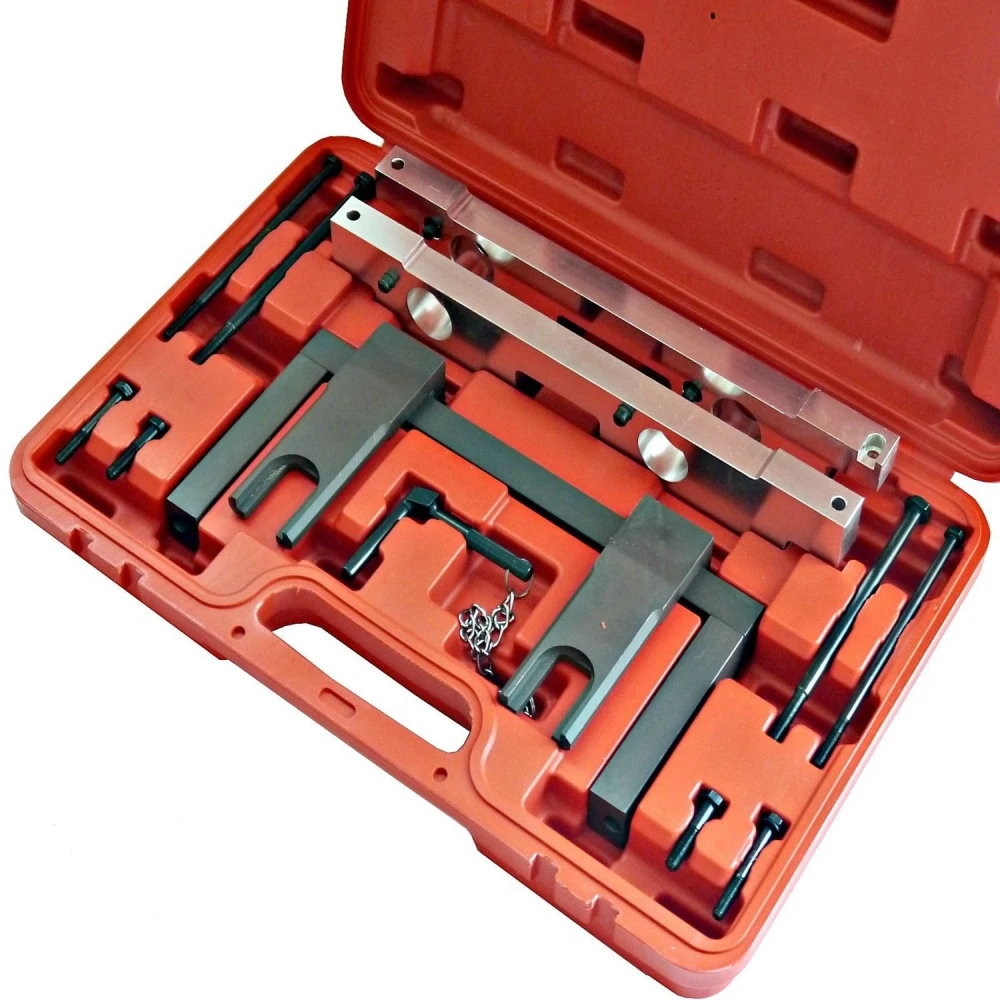

BMW N51 N52 N53 N54 1 3 5 6 7 X3 X5 Series engine locking tool with timing
This professional TSX TOOL kit is designed to make engine timing and locking easier on BMW vehicles with N51, N52, N53 and N54 engines. It is an essential tool for mechanics and specialist workshops carrying out repair and maintenance on six-cylinder petrol engines with Valvetronic technology and direct injection.
Main features:
- Camshaft locking tool (OEM equivalent 114280) to secure the correct position during timing.
- Trigger wheel locking tool (OEM equivalent 114290) to prevent unwanted movement.
- Crankshaft locking tool (OEM equivalent 110300) to lock the crankshaft and ensure precise timing.
- Compatible with 2.5 and 3.0 litre six-cylinder petrol engines, with Valvetronic systems N51, N52, N52K, N55 and direct injection engines N53 and N54.
Compatible models:
- BMW 128i, 130i, 135i - E81 / E82 / E87
- BMW 323i, 325i, 328i, 330i, 335i - E90 / E91 / E92 / E93
- BMW 523i, 525i, 528i, 530i - E60 / E61
- BMW 535i, 630i - E63 / E64
- BMW 730i - E65 / E66
- BMW X3 2.5 / 3.0 - E83
- BMW X5 3.0 - E70
- BMW Z4 2.5 / 3.0 - E85 / E86
Typical uses:
This tool is ideal for timing and alignment work on BMW N53 engines, ensuring that the camshaft, trigger wheel and crankshaft are correctly locked during maintenance or repair. It helps improve accuracy in engine timing jobs and prevents damage caused by misalignment.
Compatibility and warranty:
Made by TSX TOOL, this tool offers quality and durability for professional use. Compatible with a wide range of BMW 1, 3, 5, 6, 7 Series models, as well as X3 and X5, covering engines with advanced Valvetronic technology and direct injection.
Get this locking tool to ensure efficient and safe work on BMW N53 and related engines.
- Camshaft locking tool (OEM 114280)
- Trigger wheel locking (OEM 114290)
- Crankshaft locking (OEM 110300)
- Compatible with BMW N51, N52, N53, N54 engines
- For 2.5 and 3.0 litre six-cylinder petrol engines
- Suitable for BMW 1, 3, 5, 6, 7, X3, X5 and Z4 Series
- Ideal for engine timing and alignment with Valvetronic and direct injection
- Made by TSX TOOL with professional quality
Customer Questions & Answers
What are the dimensions and weight of the complete kit, and what exactly is included in the box?
The kit usually includes a camshaft locking tool (OEM reference 114280), a transmitter wheel locking tool (OEM 114290), and a crankshaft locking tool (OEM 110300). Total weight is around 1.2–1.8 kg depending on the manufacturer and packaging. The parts are machined from hardened steel, generally between 100 mm and 250 mm in length each. It is recommended to check the contents with the supplier before purchase due to possible slight variations.
Does it require additional tools for installation and safe use, or is the kit sufficient as supplied?
The kit covers the main locking tools, but for timing belt removal or replacement, torque wrenches, sockets and other specific hand tools not included in the kit may be required. The kit only ensures alignment or locking; the full job requires basic workshop tools.
What mechanical tolerance do the kit parts have in relation to play with engine components, and how does this affect timing accuracy?
Tools of this type are usually manufactured with fitting tolerances between 0.05 and 0.2 mm to ensure correct engagement without damaging components or allowing excessive play. This provides sufficient accuracy for timing reset or major maintenance, although it is always recommended to visually check the correct fit before tightening any component.
How does the quality of this kit compare with OEM alternatives or generic alignment tools, considering durability and precision?
This kit is designed to replicate OEM references in geometry and application, although it does not always reach the hardness or surface finish standards of original products. Compared with generic universal tools, it offers better adaptability and a lower risk of misalignment. Durability depends on the steel and treatments used; wear is low if it is used only occasionally in the workshop.
Which BMW models is this engine locking tool compatible with?
It is compatible with BMW 1, 3, 5, 6, 7, X3, X5 and Z4 Series models with N51, N52, N53 and N54 engines.
What does this tool do on the engine?
It allows the camshaft, trigger wheel and crankshaft to be locked for precise engine timing and alignment.
Is this tool suitable for Valvetronic engines?
Yes, it is compatible with petrol engines with Valvetronic technology such as the N51 and N52.
Does it include all the parts needed for engine locking?
Yes, it includes the camshaft, trigger wheel and crankshaft locking tools according to OEM specifications.
Who makes this tool?
The tool is made by TSX TOOL, recognised for its quality in automotive tools.
