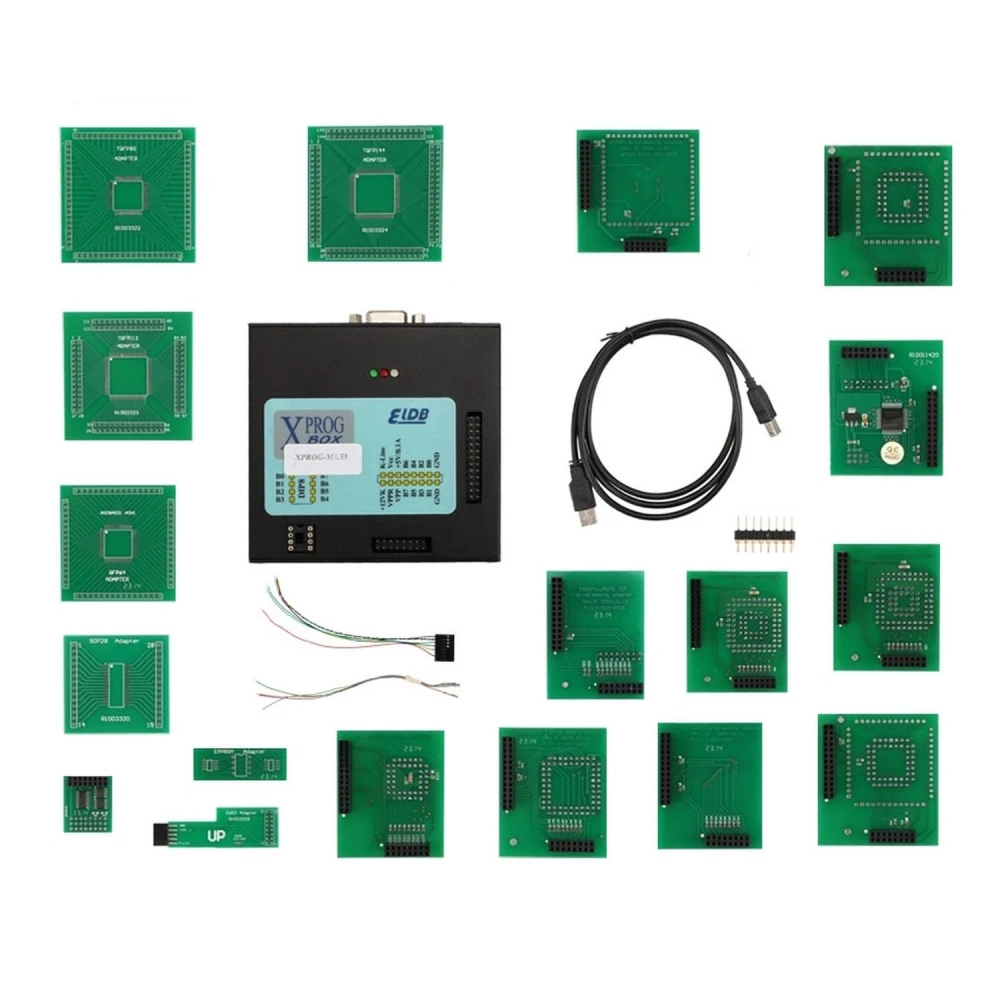

New Xprog-M 5.55 Programmer for Motorola and Texas Instruments MCU
Brand: satkit
78.73€
VAT included (Ex VAT: 64.01 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 75.57 € | -4% |
| 10+ | 74.00 € | -6% |
| 20+ | 69.27 € | -12% |
Limited stock
Standard delivery
Fri, May 1 - Tue, May 5
Express delivery
Wed, Apr 29 - Thu, Apr 30
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
Overview of the Xprog-M 5.55 Programmer
The Xprog-M 5.55 programmer is an advanced tool designed for programming microcontrollers (MCU) and serial EEPROM memories. Compatible with a wide range of devices from the Motorola and Texas Instruments families, this programmer is an ideal solution for professionals who require precision and versatility in electronic programming.
Key features:
- Programming compatible with Motorola 68HC05, 68HC08, 68HC11, 68HC(S)12 controllers and Texas Instruments TMS370/TMS374 MCU.
- Support for serial EEPROM such as 24Cxx, 25Cxx, 93Cxx, MDA2062, NVM3060, among others.
- Software authorisation licences for advanced functions, including expert option to skip the security bit and erase complete devices.
- Programming of BMW EWS3 modules via diagnostic line authorisation.
- High-speed RS232 interface compatible with USB to RS232 adapters.
- Multifunction XPROG-m connector and 8-pin DIP socket for in-circuit programming.
- Supports PLCC, QFP and LQFP adapters for in-circuit programming.
- High-speed hardware engine (PLD) and voltage regulators controlled by PWM and ADC.
Technical specifications:
- Integrated high-performance MPU.
- Serial port compatible with COM1 to COM4, speed up to 115K baud.
- Operating voltage: 5V DC (external power supply required).
- Power consumption: 300 mA.
- PC requirements: Intel Pentium 60MHz processor or higher, 32 MB RAM, 5 MB disk space, COM port or USB to RS232 adapter.
- Compatible operating systems: Windows 95/98, NT, ME, 2000, XP.
Typical use and compatibility:
This programmer is perfect for technicians and professionals working with microcontroller programming and electronic modules in automotive and industrial electronics. It is especially useful for programming and diagnosing BMW EWS3 modules and for programming Motorola and Texas Instruments MCU and EEPROM.
Highlighted compatible devices:
- Motorola MC68HC05, MC68HC08, MC68HC11 and MC68HC(S)12 family.
- Texas Instruments TMS370 and TMS374 family.
- Serial EEPROM memories 24Cxx, 25Cxx, 93Cxx, MDA2062, among others.
Important note: The Xprog-M 5.55 is not suitable for specific Motorola chips. For these, it is recommended to use specialised programmers such as Motorola 908, 705 or 912.
- Compatible with Motorola 68HC05, 68HC08, 68HC11, 68HC(S)12 MCU and Texas Instruments TMS370/TMS374
- Supports serial EEPROM programming and BMW EWS3 modules
- High-speed RS232 interface compatible with USB to RS232 adapters
- Multifunction connector and 8-pin DIP socket for in-circuit programming
- High-speed hardware engine and PWM-controlled voltage regulators with ADC
- PC requirements: Intel Pentium 60MHz, 32MB RAM, COM port or USB to RS232 adapter
- Compatible with Windows 95/98, NT, ME, 2000 and XP
- Software licences for advanced functions and expert programming option
Customer Questions & Answers
Which microcontroller and memory families are compatible with the Xprog-M 5.55, and can devices from other brands be programmed?
The Xprog-M 5.55 is compatible with microcontroller families Motorola 68HC05, 68HC08, 68HC11 and 68HC/S12, as well as Texas Instruments TMS370 and TMS374, plus serial EEPROMs such as SGS-Thomson M35080. Support is currently focused on these manufacturers; for devices from other brands, it is recommended to check the libraries and software updates before attempting programming.
What connectors and power requirements does the programmer need to work properly?
The Xprog-M 5.55 uses an RS232 communication interface (compatible with USB to RS232 adapters) for connection to the PC. The unit is usually powered directly from the port, normally at 5 V, but some external adapters may require up to 12 V DC (check the included documentation). It is essential to respect the recommended polarity and voltages to avoid damaging the unit.
What are the physical dimensions of the Xprog-M 5.55 and what accessories are included in the box?

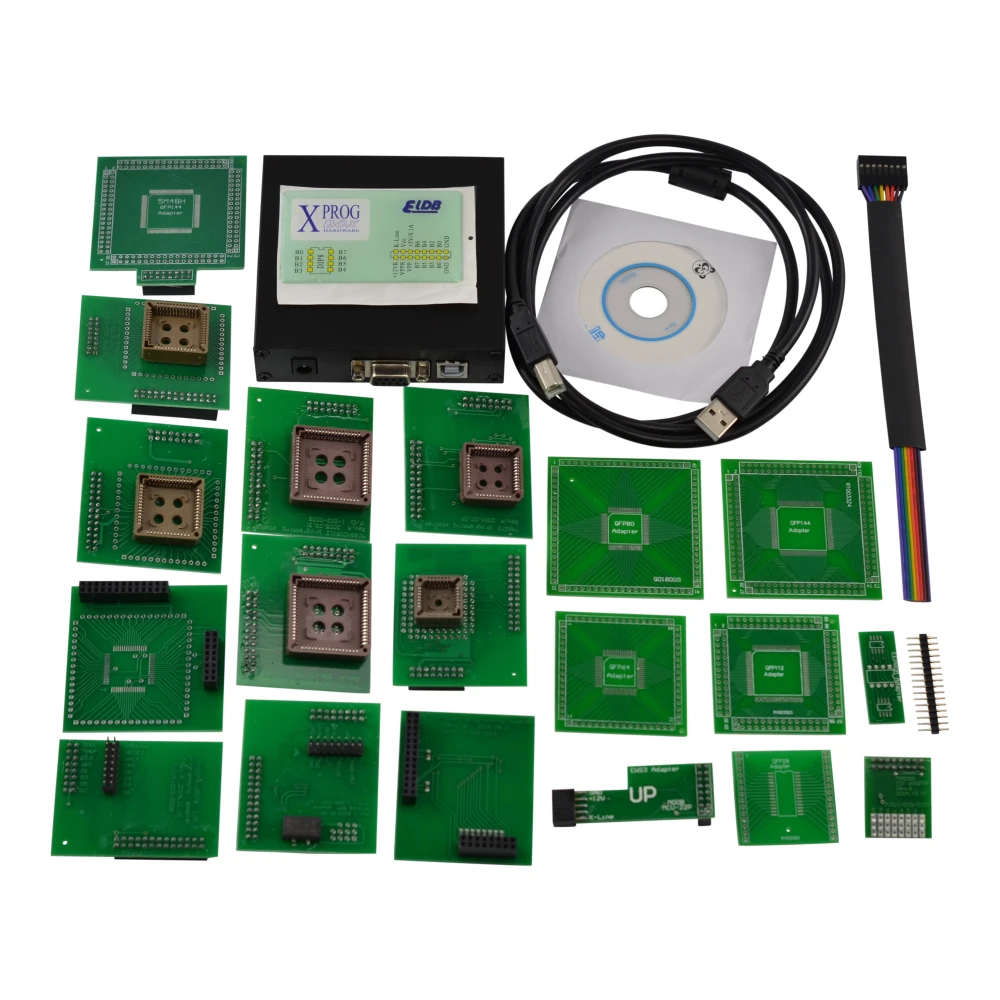

The Xprog-M 5.55 measures approximately 110 mm × 90 mm × 20 mm and weighs around 200 g. The box includes the programmer, a communication cable (RS232 or USB-RS232 adapter), several adapters for PLCC, QFP and 8-pin DIP sockets, and a CD with drivers and software. The exact contents may vary by distributor, so it is advisable to confirm at purchase.
How are the firmware and software updated on the Xprog-M 5.55, and is there any limitation regarding future compatibility?
Firmware updates for the Xprog-M 5.55 are carried out using the built-in update function in the Device Programmer Desktop software. However, updates may depend on the software licence purchased. Please note that compatibility with hardware and new devices is not guaranteed indefinitely, and some updates may not be available for generic versions.
What are the most common user errors and what are the best practices to avoid damage when programming devices with the Xprog-M 5.55?
Common mistakes include connecting the chip the wrong way round, selecting incorrect voltage settings or disconnecting during writing. To avoid problems, always check the orientation and chip type, use the correct adapters, and do not interrupt power or the connection during the process. It is advisable to consult the component datasheet and run a pre-check from the software first.
Which microcontrollers is the Xprog-M 5.55 compatible with?
It is compatible with Motorola 68HC05, 68HC08, 68HC11, 68HC(S)12 microcontrollers and Texas Instruments TMS370/TMS374.
Can I program BMW modules with this programmer?
Yes, the Xprog-M 5.55 allows programming of the BMW EWS3 module via diagnostic line authorisation.
What system requirements do I need to use this programmer?
A PC with an Intel Pentium 60MHz processor or higher, 32 MB RAM, 5 MB free disk space, and a physical COM port or USB to RS232 adapter is required. Compatible with Windows 95/98, NT, ME, 2000 and XP.
Is the Xprog-M 5.55 suitable for all Motorola chips?
No, it is not suitable for certain Motorola chips. For those cases, it is recommended to use Motorola 908, 705 or 912 programmers.
What type of connection does the programmer use?
It uses a high-speed RS232 communication interface compatible with USB to RS232 adapters.
