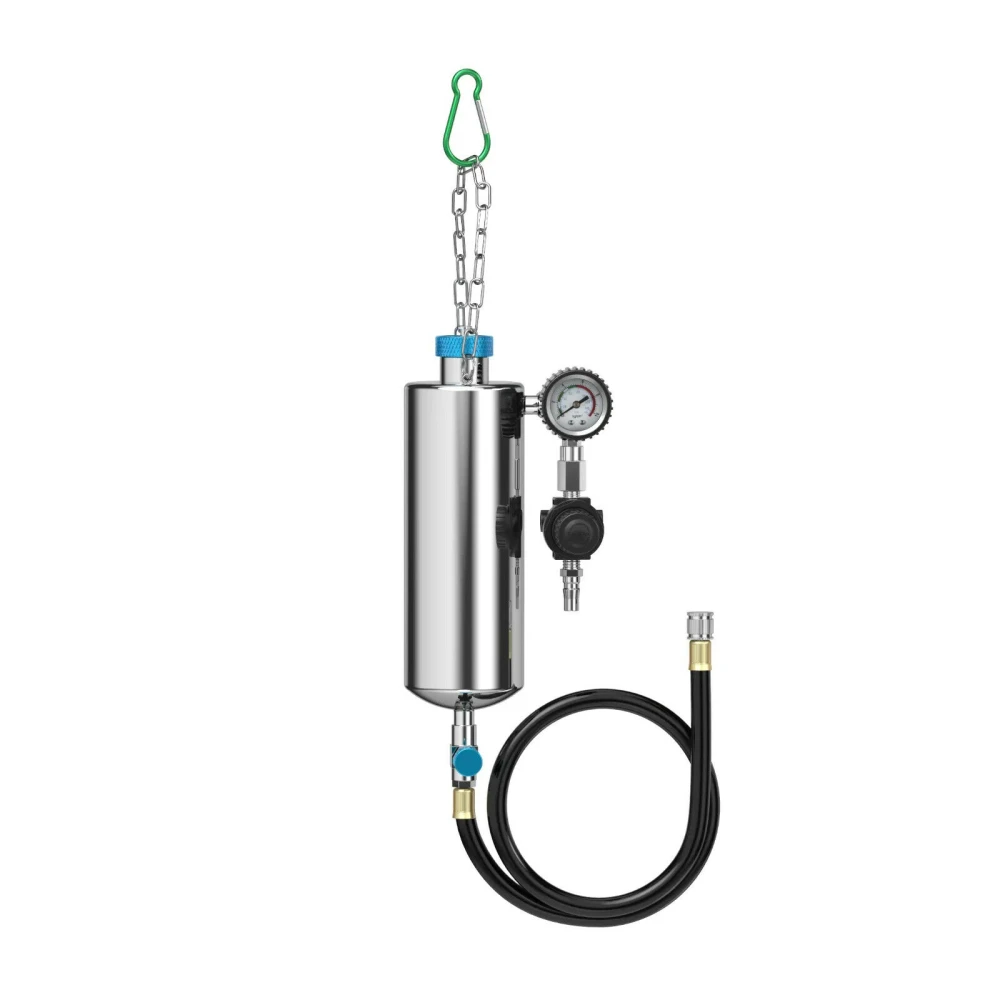

AUTOOL C100 Petrol Fuel Injector Cleaner with Adapters for Car

Product Description

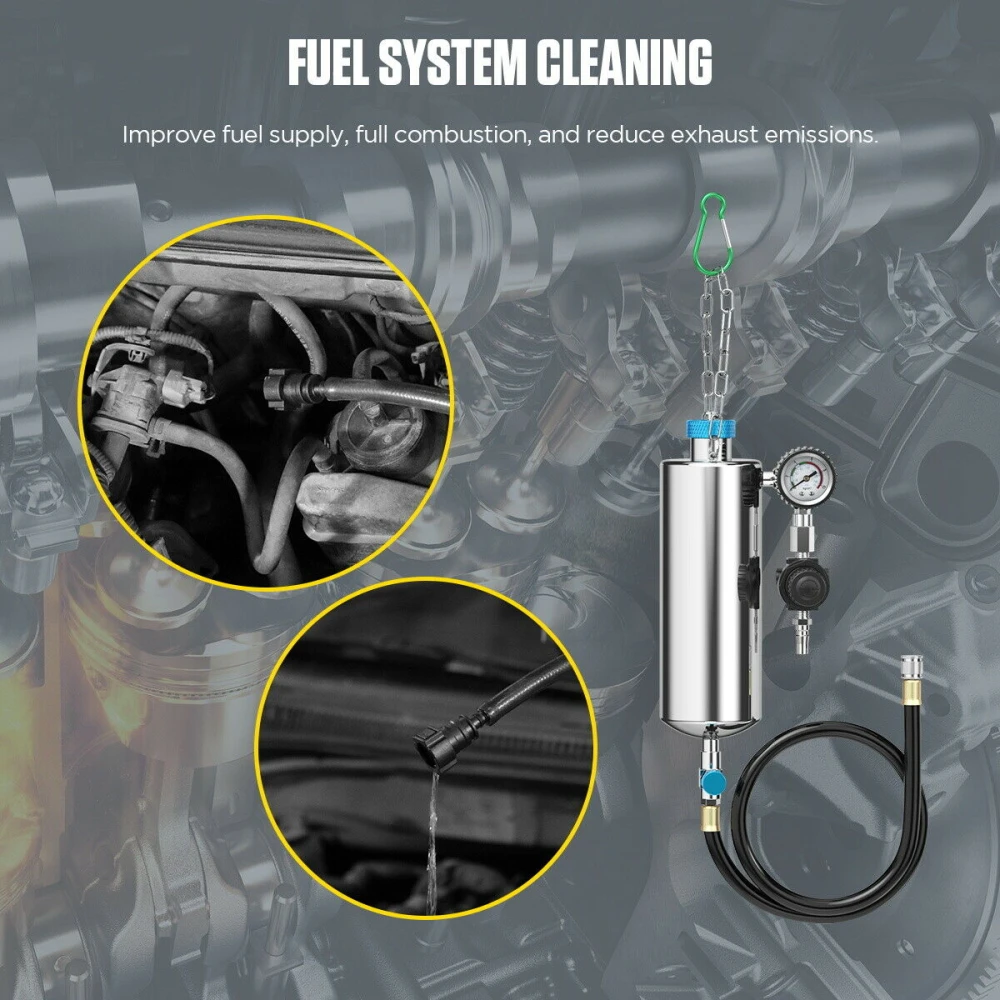

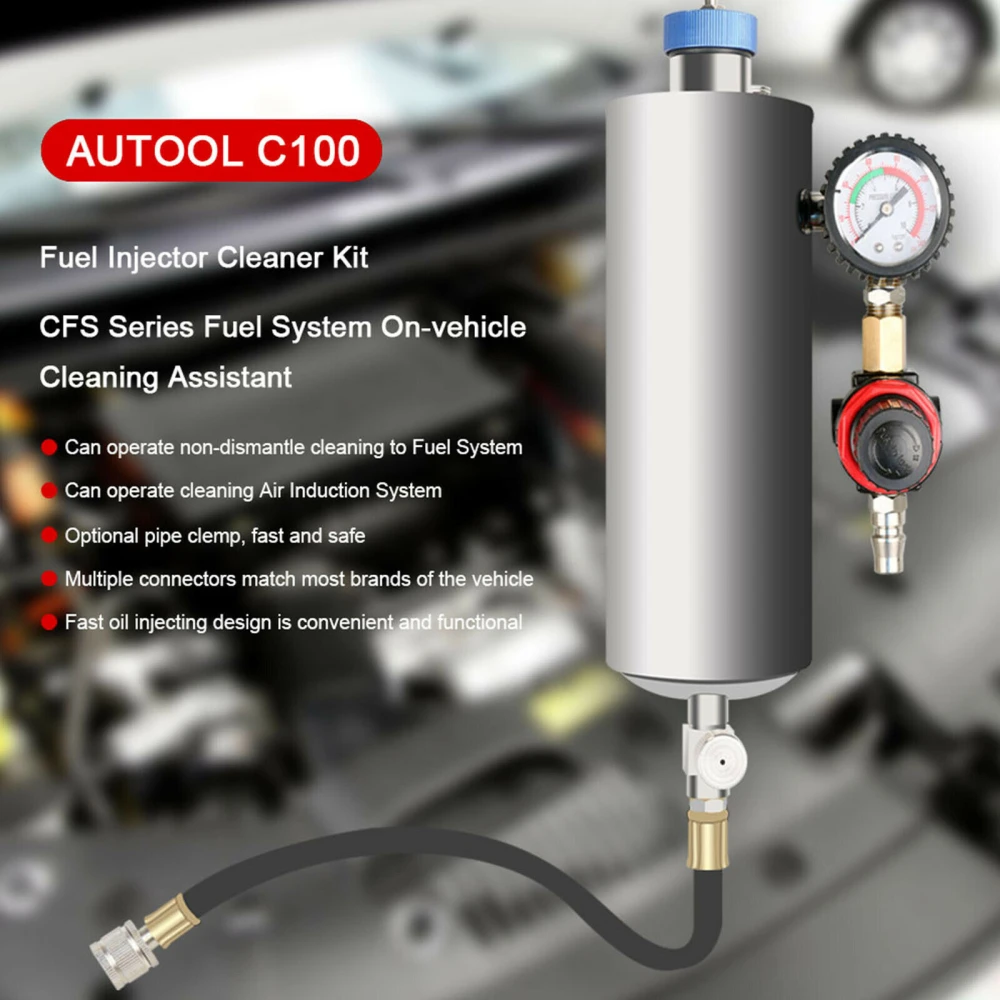

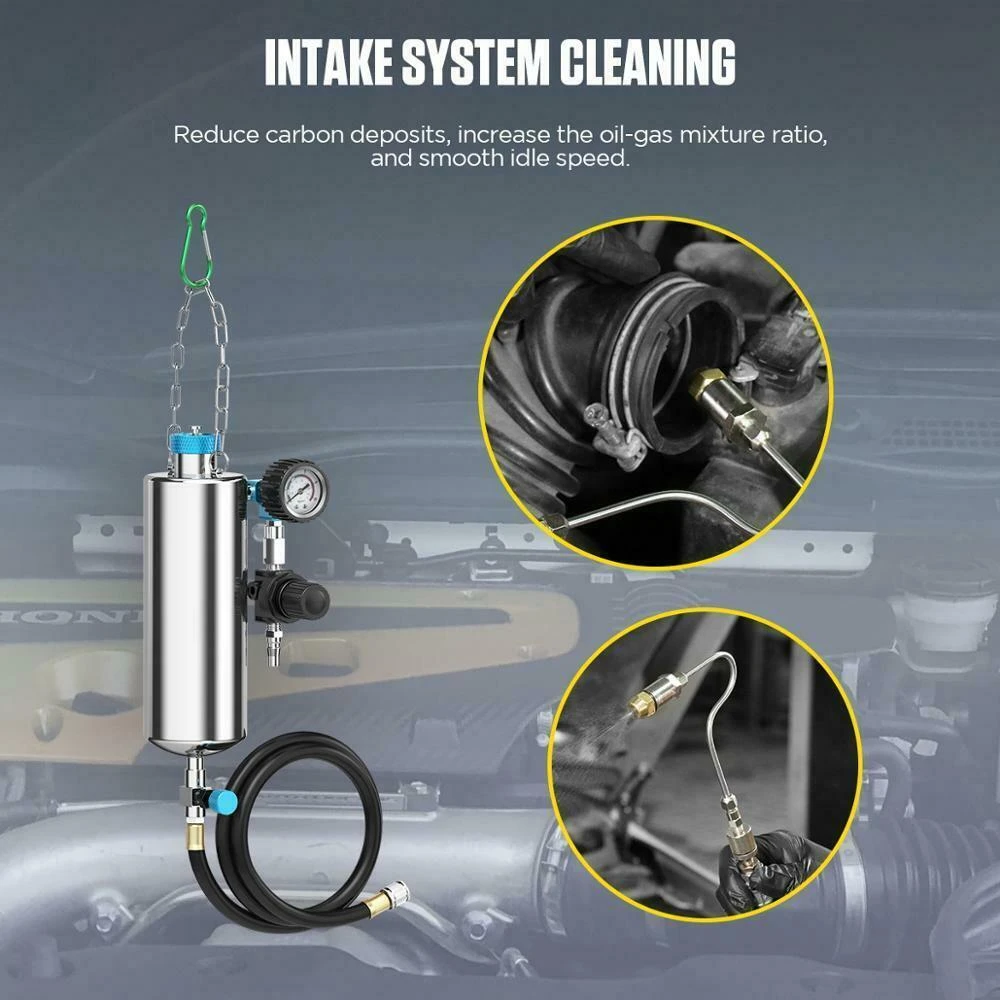

The AUTOOL C100 Petrol Fuel Injector Cleaner with Adapters for Car is a specialised tool for cleaning the fuel system without needing to remove components. Designed for petrol vehicles, this cleaner can also operate in the induction air system, ensuring a complete and efficient clean.

Main Features

• No-disassembly operation, making maintenance easier.
• Optional tube clamp for an easy and secure connection.
• Accurate fault detection in lines without damaging the rubber cover.
• Includes multiple adapters covering most cars and light trucks in the EU, Asia and the US.
• 600 ml tank for cleaning fluid (not included).

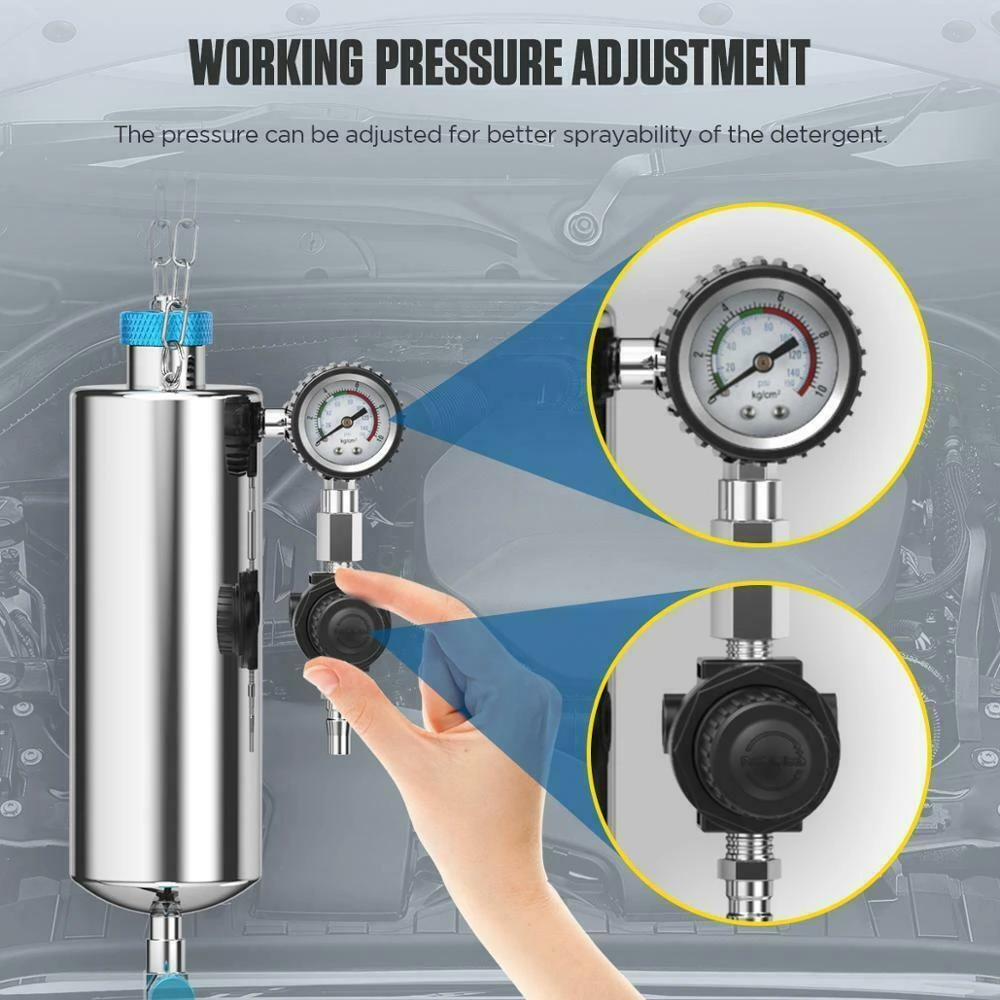

• Adjustable pressure from 0 to 140 PSI to suit different systems.
• Plastic carry case for transport and storage.

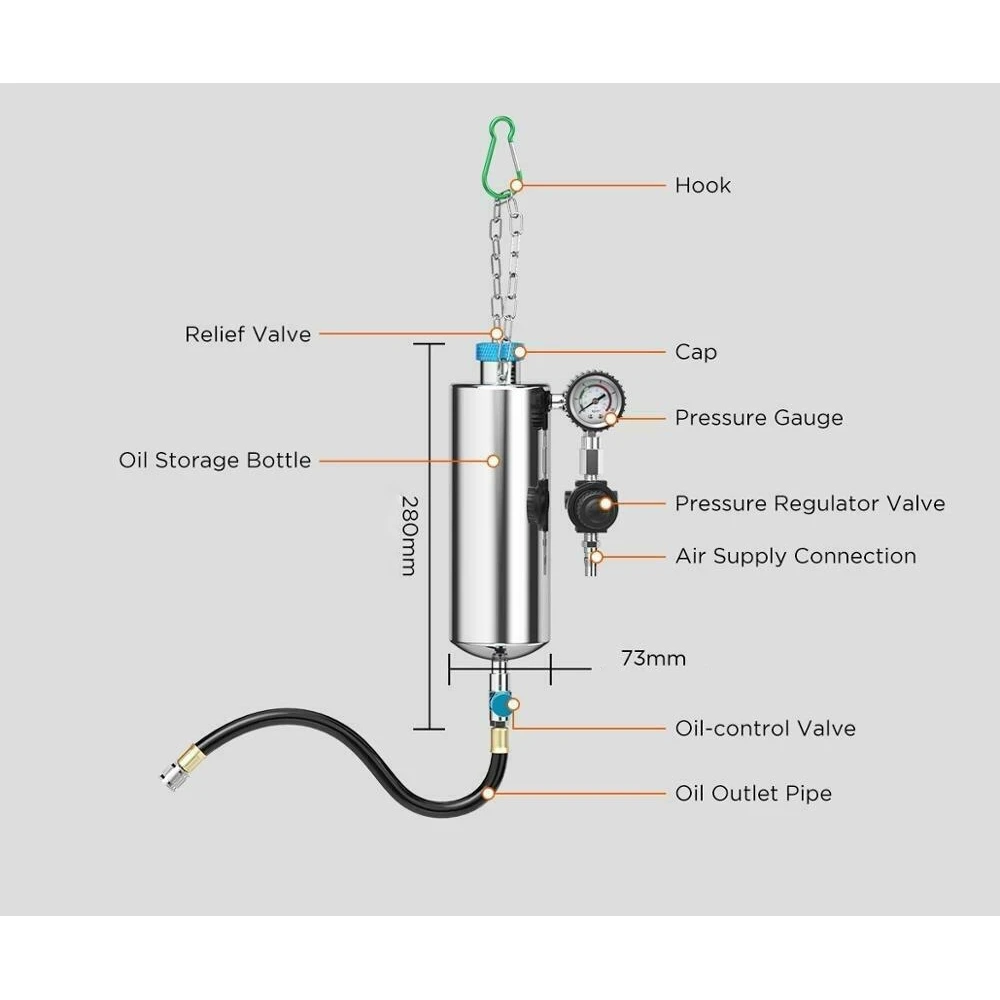

Technical Specifications

• Working pressure: 0-140 PSI
• Tank capacity: 600 ml
• Compatible only with petrol injectors, not suitable for diesel.

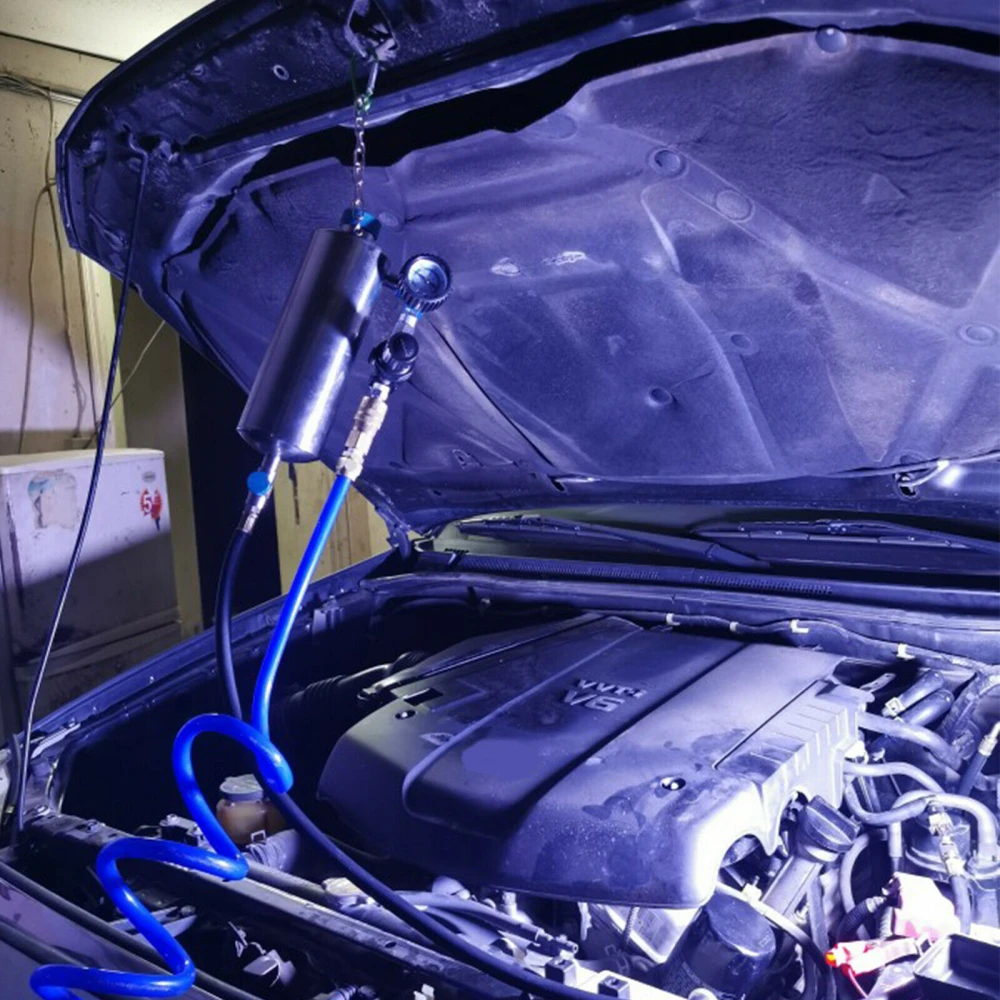

How to Use

Before using the AUTOOL C100, it is important to identify your vehicle’s fuel system type (carburettor or electronic fuel injection). For vehicles with EFI systems, follow these steps:

1. Locate and disconnect the fuel return hose, then block it with the appropriate adapter.
2. Disconnect the fuel inlet hose and connect it to the cleaner with the corresponding adapter.
3. Connect the outlet and return hose to the cleaner tank and open the tank cap. If there is no return hose, disable the fuel pump.
4. Fill the cleaner tank with cleaning fluid (fluid not included).
5. Connect the air supply to the cleaner port and adjust the pressure between 40-50 PSI.
6. Check that there are no leaks in the connections.
7. Start the engine to begin cleaning the fuel system.

For throttle-style systems, the connection is similar but the air pressure should be adjusted between 1-5 PSI.

Hose Identification

• The inlet hose is usually larger than the return hose.
• The filter is connected to the inlet hose and a damper to the return hose.
• An arrow on the hose indicates the direction of fuel flow.

Compatibility

This kit is compatible with most petrol cars and light trucks from the European Union, Asia and the United States thanks to the range of adapters included.

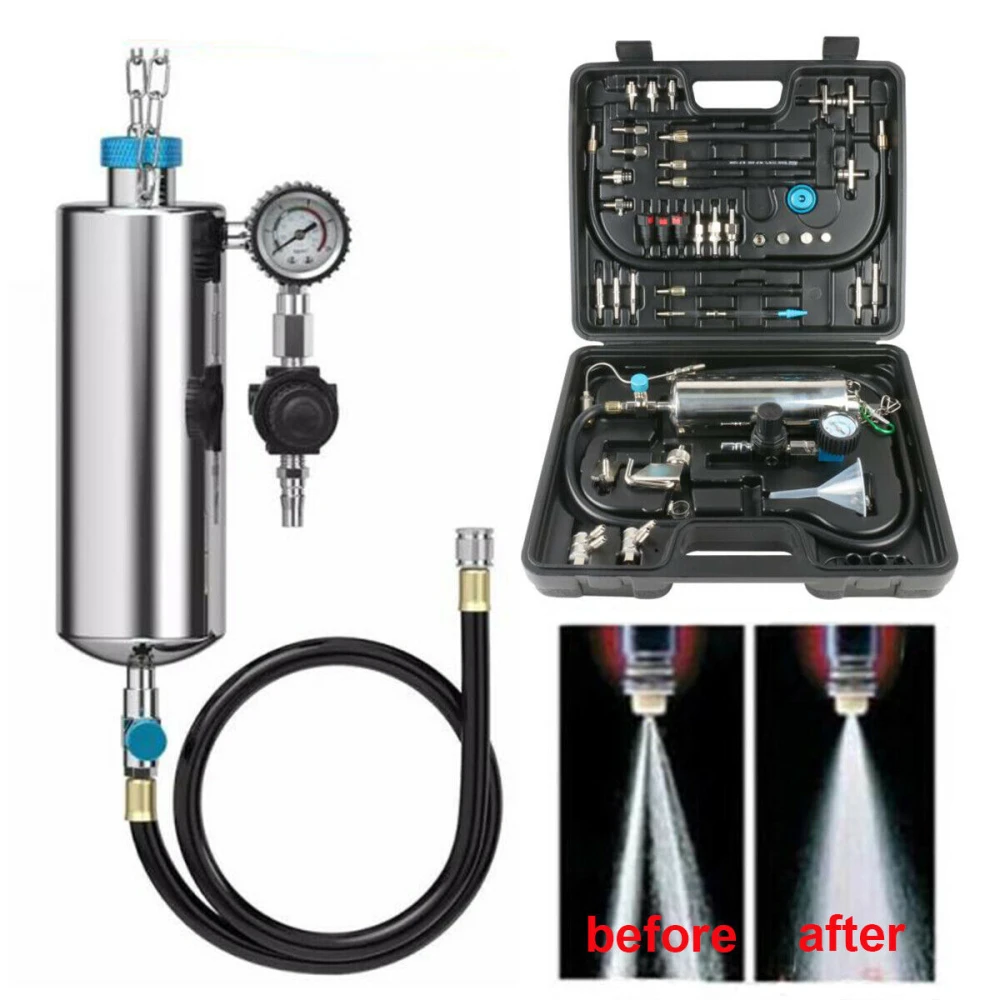

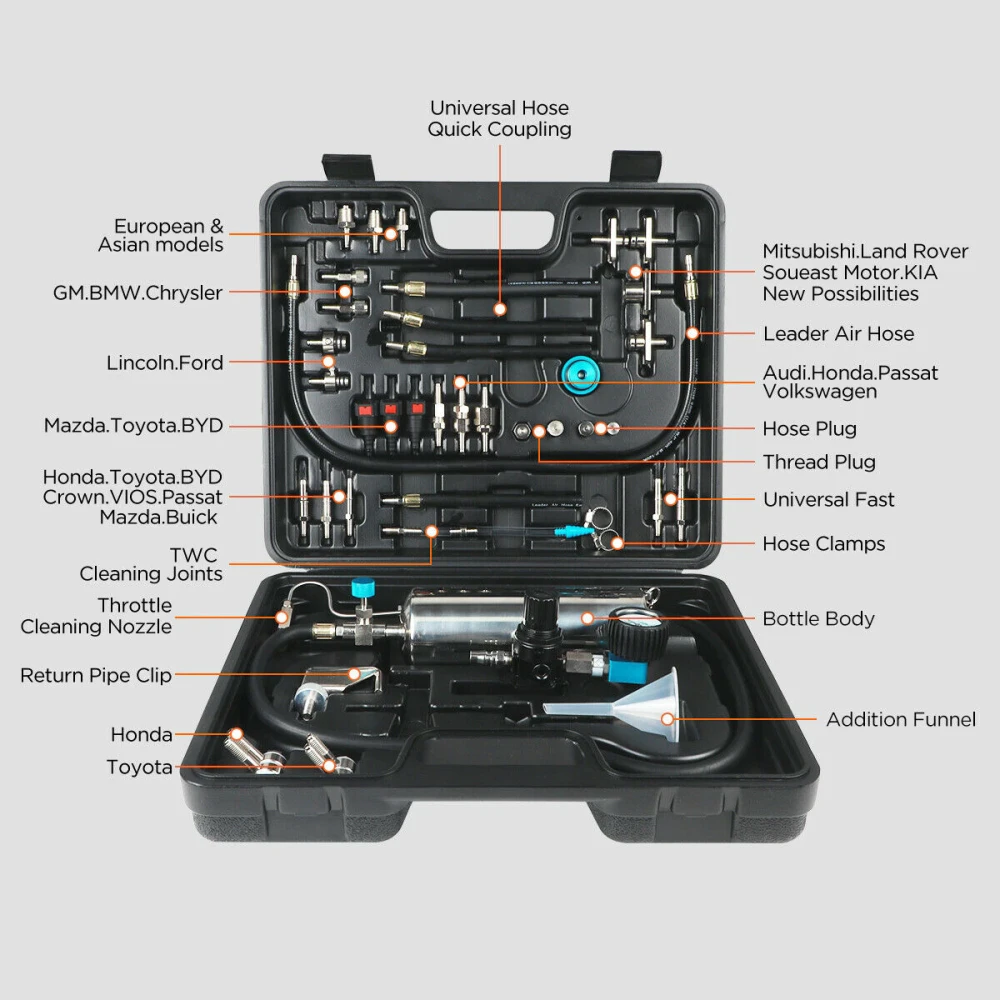

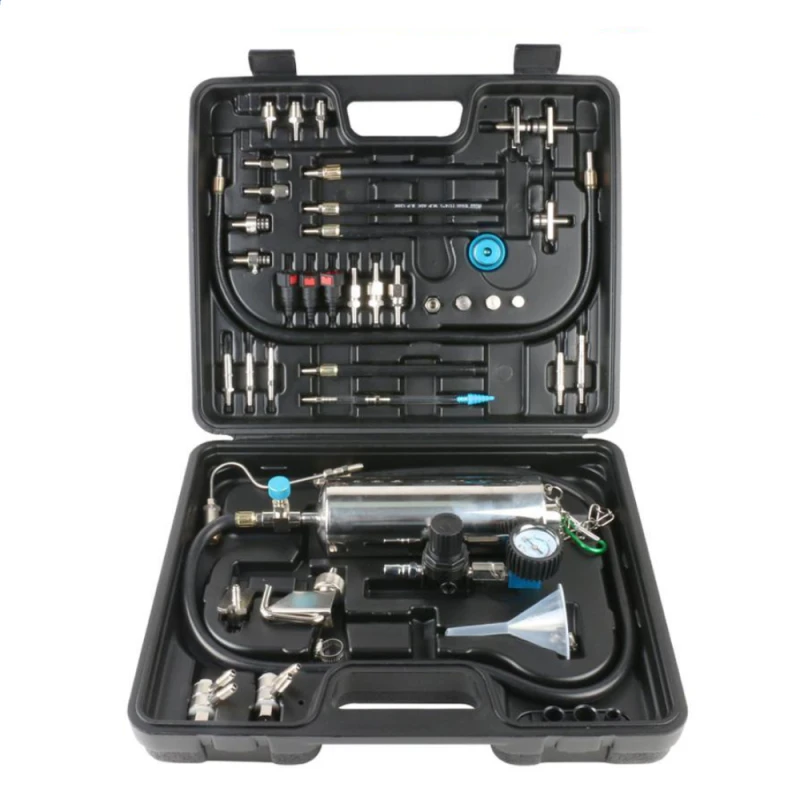

Package Contents

• 1 x AUTOOL C100 fuel injector cleaner

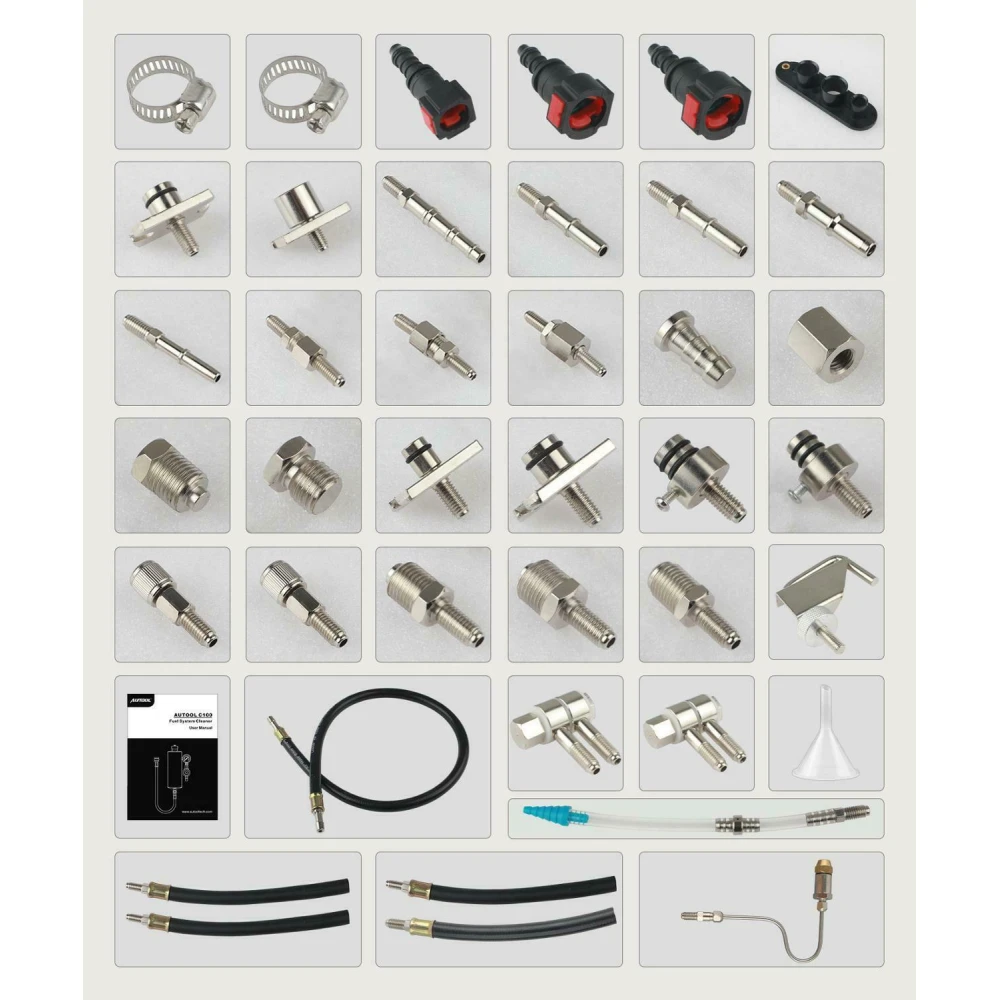

• 1 x Adapter set
• 1 x Plastic carry case

Important Notes

• Cleaning fluid is not included.
• Detailed instructions are not included; professional installation is recommended to avoid damage.
• Case colour may vary.

• No-disassembly cleaning of the fuel system and induction air system
• Optional tube clamp for a secure connection
• Adjustable pressure from 0-140 PSI
• 600 ml tank for cleaning fluid (not included)
• Compatible with petrol injectors, not diesel
• Includes adapters for cars and light trucks from the EU, Asia and the US
• Plastic carry case for easy transport and storage
