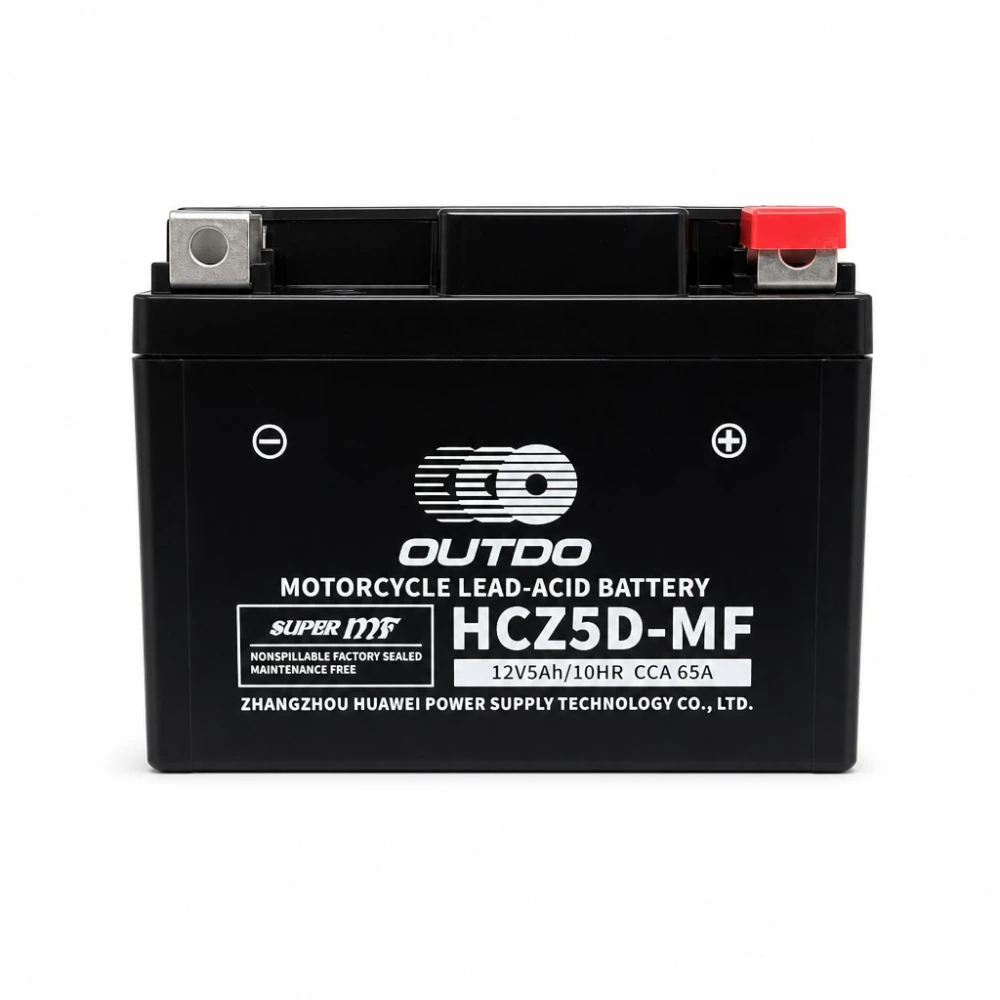

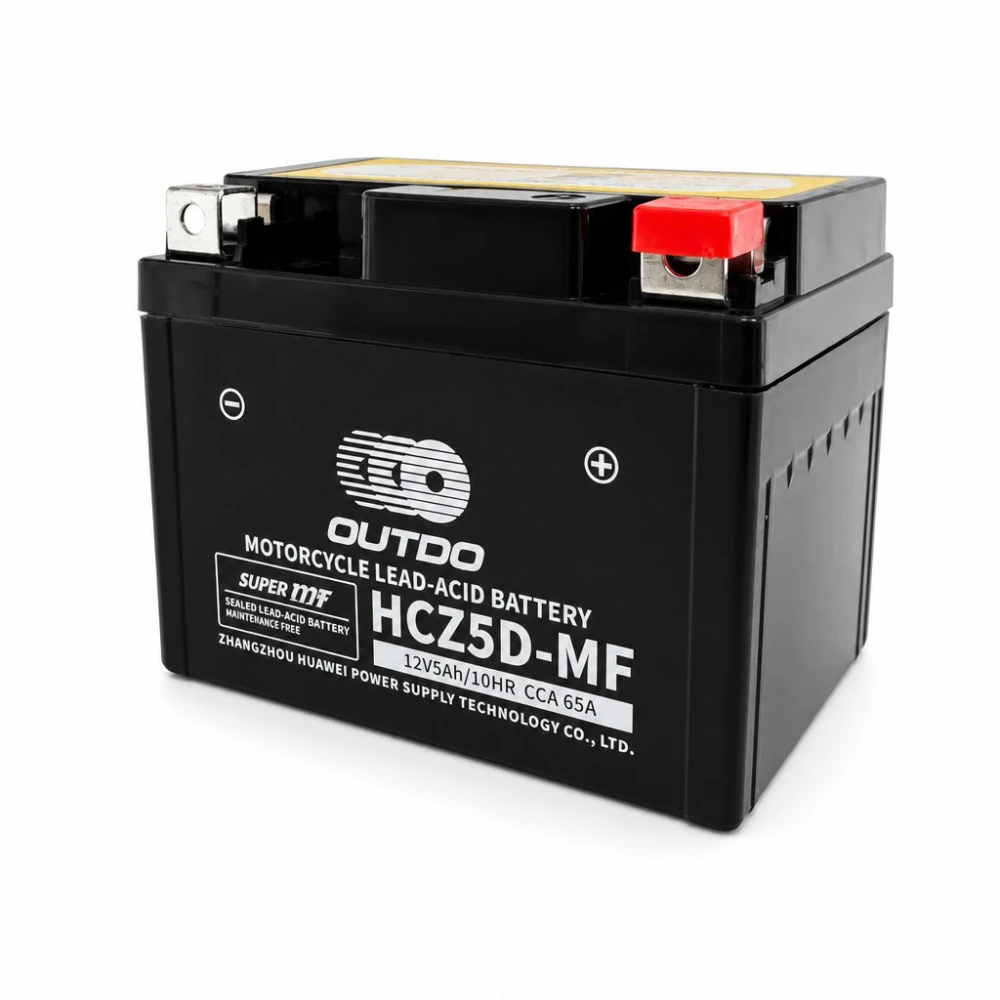

Motorcycle Battery AGM 12V 5Ah OUTDO HCZ5D-MF - Compatible Yuasa YTZ7S-BS / GTZ7S / ETZ5L-BS

OUTDO HCZ5D-MF MOTORCYCLE BATTERY - 12V 5Ah AGM

DIRECT REPLACEMENT for Yuasa YTZ7S-BS and all its equivalents

THIS BATTERY DIRECTLY REPLACES:

• YUASA: YTZ7S-BS (closest reference) (alt: YTX5L-BS (same dimensional format))
• GS BATTERY: GTZ7S
• VARTA: TTZ7S (Powersports AGM)
• BOSCH: TTZ7S
• EXIDE: ETZ5L-BS
• BANNER: TTZ7S
• MOTOBATT: MBTZ5S
• BS BATTERY: BTZ7S
• KYOTO: YTZ7S
• LUCAS: LTZ7S
• LITHIUM (Shido): LTZ7S
• LITHIUM (Skyrich): HJTZ7S-FP
• Cross with flooded: Not applicable - premium technology

If your motorcycle uses any of these references, the OUTDO HCZ5D-MF is the exact replacement: same dimensions, same capacity, same polarity, same terminal type.

TECHNOLOGY TYPE: AGM Premium High Performance (higher CCA, same size)

PREMIUM range (red casing). Same dimensions as UTX5L-BS but WITH HIGHER COLD CRANKING POWER. Ideal for enduro/cross KTM, Husqvarna where the engine demands a lot on cold starts.

FULL TECHNICAL SPECIFICATIONS

• OUTDO Model: HCZ5D-MF
• Range: High Performance AGM
• Nominal voltage: 12 V
• Nominal capacity: 5 Ah (10h rate)
• CA (Cranking Amps @25°C): 113.75 A
• CCA (Cold Cranking Amps @-18°C): 65 A
• Dimensions (L × W × H): 113 × 70 × 105 mm
• Weight: 1.65 Kg
• Polarity: - + (facing front, left → right)
• Terminal type: C12
• Technology: AGM (Absorbent Glass Mat) sealed with pressure relief valve (VRLA)
• Maintenance: NONE - sealed for life
• Delivery condition: ACTIVATED and CHARGED from the factory - ready to install

ADVANTAGES OVER THE COMPETITION

• Official battery supplier and Technical Partner of the BMW Motorrad WorldSBK team (Superbike World Championship)
• Same technical quality as Yuasa, GS, Varta or Bosch at a BETTER PRICE
• 100% pre-delivery inspection (not batch sampling - EVERY unit tested)
• Pb-Ca grids with low self-discharge and low water loss
• Minimum internal resistance for maximum cranking current
• Sealed AGM - can be mounted in any position without leaking
• Vibration resistant: fibreglass separators absorb impacts
• Operating temperature: -30°C to +55°C (suitable for any climate)
• Estimated service life: 3-5 years
• Complies with EN 50342-7, SAE J537, IEC 60095-7, JIS D5302, GB/T 23638
• Certified CE (European Union), UL (USA), ISO 9001

MOTORCYCLE MODEL COMPATIBILITY (partial)

• KTM 250/350/450/500 EXC - 250-500cc (2017-2023)
• Husqvarna FE 250/350/450/501 - 250-501cc (2017-2023)
• Beta RR 250-480 - 250-480cc (2013-2023)
• Sherco SE 250-450 - 250-450cc (2014-2023)
• KTM 690 Enduro R - 690cc (2019-2023)

(List is not exhaustive. Any motorcycle that originally uses the Yuasa YTZ7S-BS or any equivalent reference listed above can fit this OUTDO battery without modification.)

CHARGING INSTRUCTIONS

• Charging voltage: 14.4V - 14.9V
• Standard current: 0.5 A x 5-10 hours
• MAX rapid charge current: 1.5 A (do not exceed)
• Float voltage: 13.5V - 13.8V
• If storing your motorcycle for more than 30 days, connect a maintenance charger (smart charger)
• DO NOT use old unregulated chargers (they can damage the AGM)

PACKAGE CONTENTS

• 1 × OUTDO HCZ5D-MF 12V 5Ah Battery - ACTIVATED and CHARGED
• Installation instruction sheet
• Warranty card
• Original OUTDO box with BMW Motorrad WorldSBK co-branding
• Production Code: FD250504 / FD250616 (May-June 2025 batch)

WARRANTY: 24 MONTHS for manufacturing defects

Manufacturer: Zhangzhou Huawei Power Supply Technology Co., Ltd. (China) Brand: OUTDO Certifications: CE • UL • ISO 9001 • INMETRO • PS • TSE
