MK-10 dual kit universal reballing stencil set - 100 stencils
Brand: Mlink
VAT included (Ex VAT: 40.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 47.23 € | -4% |
| 10+ | 45.76 € | -7% |
| 20+ | 41.82 € | -15% |

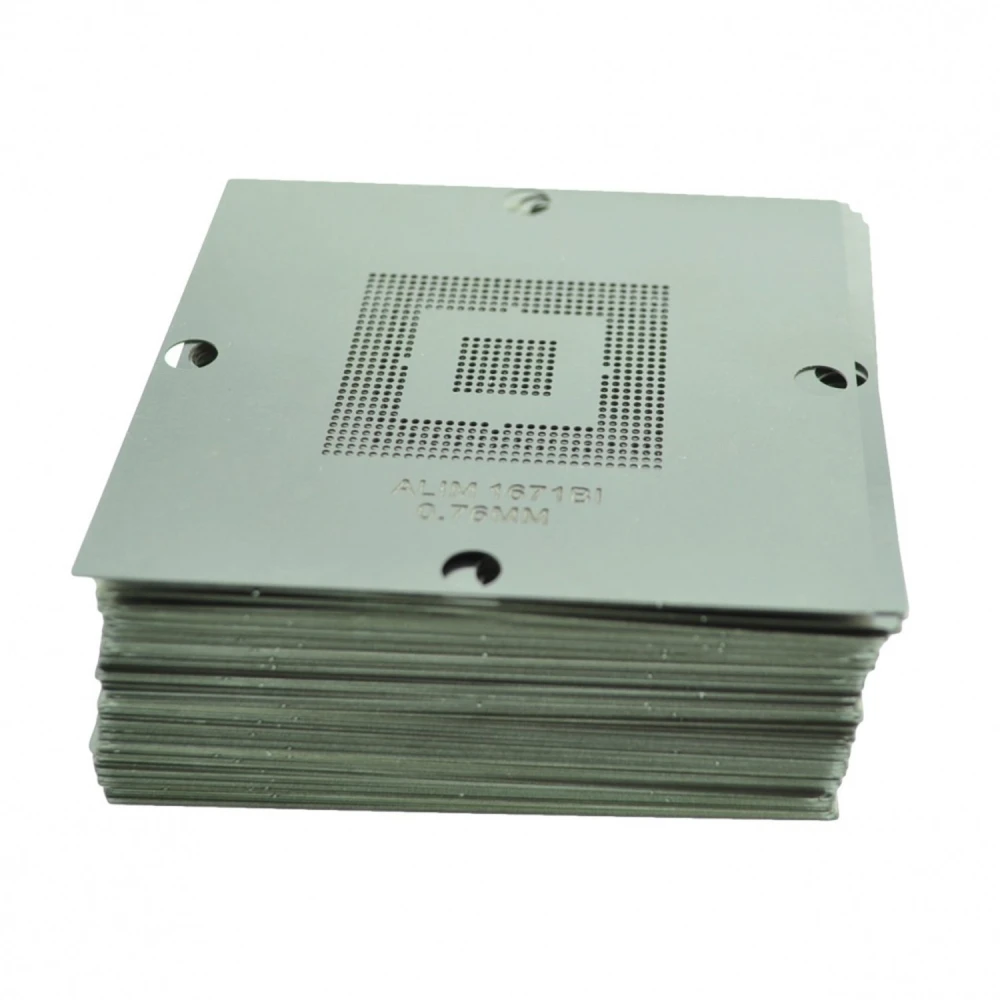

The MK-10 dual kit universal reballing stencil set is a complete solution for technicians and professionals who require high precision when soldering chips and electronic components. This kit includes 100 stencils designed to make the reballing process easier across a wide range of integrated circuits and devices.
Main features:
- Includes 100 stencils with different thicknesses: 0.45mm, 0.5mm, 0.6mm and 0.76mm to suit different chip types.
- Compatible with multiple ICs, including DDR1, DDR2, DDR3 memories, ATI, NVIDIA chips, and consoles such as Xbox 360 and PS3.
- Designed for use with MK-10 soldering stations and dual kits, optimising precision and efficiency in the reballing process.
- Durable material that ensures longevity and repeatability in professional applications.
Specifications and compatibility:
- 0.45mm (5 stencils) for DDR memories and specific chips such as AC82GM45.
- 0.5mm (28 stencils) for ATI, NVIDIA chips, and other graphics and chipset components.
- 0.6mm (57 stencils) compatible with GPUs and CPUs of Xbox 360, PS3, Wii, and various chipsets from manufacturers such as VIA, SIS and ATI.
- 0.76mm (7 stencils) for specific chips such as M1671, 845GL, and other SIS models.
Typical uses:
This set is ideal for reballing chips in video game console repairs, computer motherboards and other electronic devices. It enables precise solder application on chip pads, improving the quality and durability of repairs.
Tool compatibility:
Designed for use with MK-10 soldering stations and dual kits, this stencil set is compatible with standard reballing techniques and precision soldering.
Note: The product is currently out of stock. We recommend checking availability or alternative products in our store.
- Includes 100 universal stencils for MK-10 dual kit reballing
- Varied thicknesses: 0.45mm, 0.5mm, 0.6mm and 0.76mm for different chips
- Compatible with DDR memories, ATI and NVIDIA chips, and Xbox 360, PS3, Wii consoles
- Durable material for long-lasting professional use
- Optimised for MK-10 soldering stations and dual kits
Customer Questions & Answers
What types and sizes of integrated components are compatible with the stencils included in this set?
The set includes stencils compatible with 0.45 mm pitch ICs (DDR1, DDR2, DDR3 and various memories and chipsets), 0.5 mm (mainly ATI, Nvidia and Intel for graphics and chipsets), and 0.6 mm (CPU, GPU and Southbridge for Xbox 360, PS3 and Wii). This variety covers most common BGA components in consoles and laptops.
What material are these stencils made from, and what durability can be expected under professional use?
Stencils of this type are usually made from precision stainless steel, with a standard thickness between 0.10 and 0.15 mm. When used correctly, they withstand dozens of applications without deforming or rusting, although durability depends on cleaning and handling; the material withstands normal soldering temperatures (up to 350 °C).
Do they require any specific tools for correct fixing and alignment on chips during reballing?
It is recommended to use a dedicated fixture or holder to fix and align the stencil over the chip, especially with fine pitches (<0.65 mm), to avoid movement. Although they can be used manually, reballing accuracy improves considerably with dedicated accessories.
Are there any compatibility limitations with very recent GPU/CPU models or console versions other than those listed?
These stencils are designed for the models and chips detailed in the description (mainly DDR1-3 generations, Xbox 360, PS3 and Wii). For later-generation GPU/CPU models or newer console versions, it is recommended to check the dimensions and pitch, as they may require specific stencils not included in this set.
What good cleaning and storage practices are recommended to maximise the service life and accuracy of the stencils?
To maintain stencil accuracy, clean them after each use with isopropyl alcohol, avoiding paste residue. Dry them completely and store them in plastic sleeves or rigid cases, away from moisture and pressure. Do not use abrasive objects to remove residue, as this can damage the micro-perforations.
What is the MK-10 dual kit universal reballing stencil set used for?
This set is used to apply solder precisely to chips and electronic components during the reballing process, making repairs on consoles and motherboards easier.
Which devices is this stencil set compatible with?
It is compatible with DDR1, DDR2, DDR3 memories, ATI and NVIDIA chips, and consoles such as Xbox 360, PS3 and Wii, among other components listed in the description.
Can I use these stencils with any soldering station?
These stencils are specially designed for MK-10 stations and dual kits, ensuring better precision and fit.
How many stencils are included in the set?
The set includes 100 stencils with different thicknesses to suit multiple applications.
Is the product available for immediate purchase?
The product is currently out of stock. We recommend checking the store for availability or alternative products.
