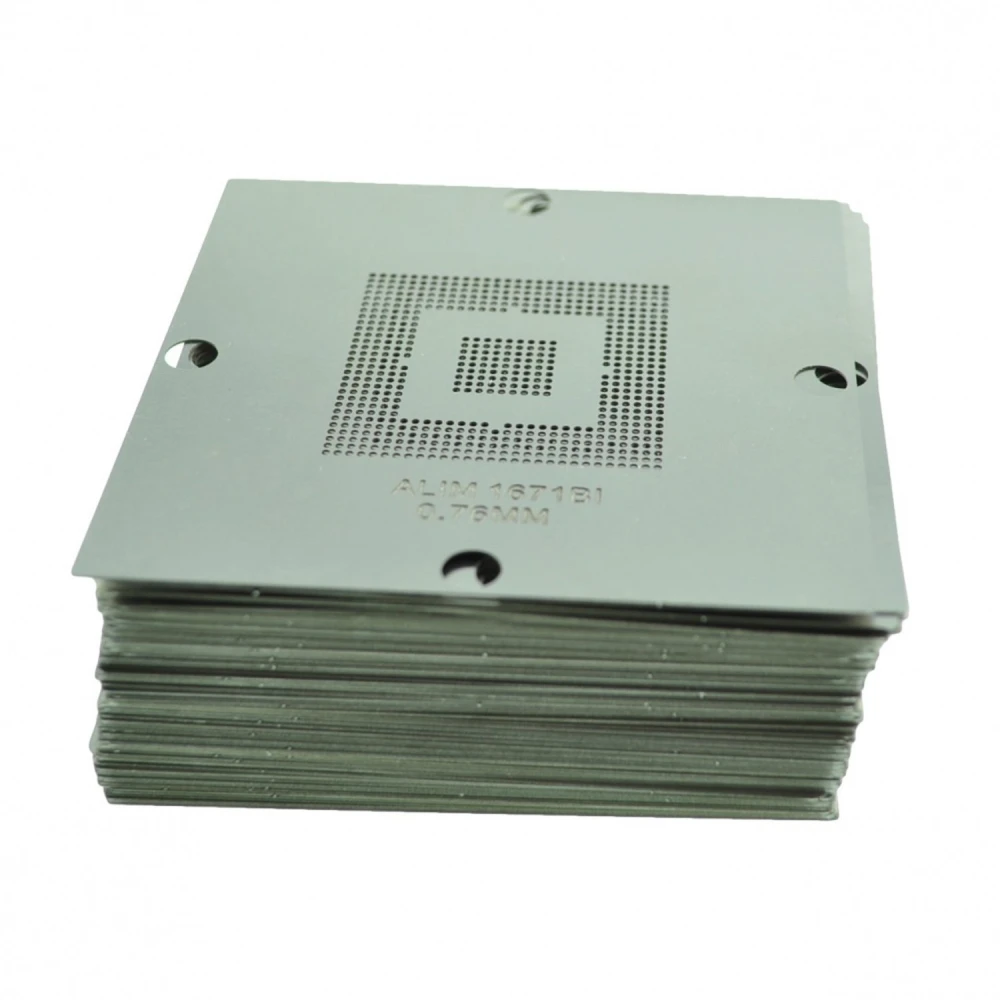

6 Universal Stencils Set 90mmx90mm Mk-15/Ht90 for Soldering
Brand: Mlink
VAT included (Ex VAT: 60.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 70.85 € | -4% |
| 10+ | 69.37 € | -6% |
| 20+ | 64.94 € | -12% |
The 6 Universal Stencils Set 90mmx90mm Mk-15/Ht90 with 100 Stencils from Mlink is a professional set designed to make electronic soldering and BGA reballing easier. This set includes high-precision templates for a wide range of integrated circuits and electronic devices, ideal for technicians and professionals in the sector.
Main features:
- Universal 90mm x 90mm dimensions, compatible with multiple ICs and chips.
- Includes 100 stencils divided into different thicknesses: 0.45mm, 0.5mm, 0.6mm and 0.76mm to suit different components.
- Compatible with DDR1, DDR2, DDR3, ATI, NVIDIA, Xbox 360 GPU and CPU, PS3 GPU and CPU, among others.
- Designed for reballing work and high-precision soldering in advanced electronics.
- Made with durable materials for long-lasting use and professional results.
Technical specifications:
- 0.45mm: 5 templates for DDR1, DDR2, DDR3, and various specific models.
- 0.5mm: 28 templates for ATI, NVIDIA, and other electronic components.
- 0.6mm: 57 templates compatible with Xbox 360, PS3, Wii, and multiple chipsets.
- 0.76mm: 7 templates for specific models such as M1671, 845GL, SIS630S, among others.
Typical uses:
This set is ideal for technicians carrying out repair and maintenance of electronic boards, especially in video game consoles such as Xbox 360, PlayStation 3 and Wii. It is also useful for soldering graphic chips and CPUs in computers and various electronic devices.
Compatibility:
Compatible with a wide range of chips and devices, including DDR, ATI, NVIDIA, and various specific console and motherboard models. Its universal design makes it easy to use in different soldering and reballing applications.
This product is an essential tool for professionals looking for precision and quality in their electronic soldering and hardware repair work.
- Set includes 100 stencils measuring 90mm x 90mm for electronic soldering.
- Compatible with DDR1, DDR2, DDR3, ATI, NVIDIA, Xbox 360, PS3 and Wii chips.
- Varied thicknesses: 0.45mm, 0.5mm, 0.6mm and 0.76mm for different components.
- Ideal for BGA reballing and electronic board repair.
- Made by Mlink with durable materials for professional use.
Customer Questions & Answers
Is special equipment required to use these stencils, and are there any installation considerations?
Yes, to use these stencils you need a hot air or infrared soldering station, suitable flux and solder balls of the corresponding diameter. It is recommended to secure the stencil over the chip using heat-resistant tape or an appropriate frame to prevent movement during application.
Which devices is this stencil set compatible with?
It is compatible with DDR, ATI, NVIDIA chips, and consoles such as Xbox 360, PlayStation 3 and Wii, among other electronic devices.
How many stencils are included in the set?
The set includes a total of 100 stencils with different thicknesses for various applications.
Can I use this set for BGA reballing work?
Yes, this set is specially designed for soldering and BGA reballing work on electronic components.
Is the product available for immediate dispatch?
Currently the product is out of stock and not available for immediate dispatch.
What size are the templates?
The templates have a universal size of 90mm x 90mm.
