MK-10 Universal Stencil Set - 50 Stencils for Reballing
Brand: Mlink
VAT included (Ex VAT: 24.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 28.34 € | -4% |
| 10+ | 27.45 € | -7% |
| 20+ | 24.50 € | -17% |

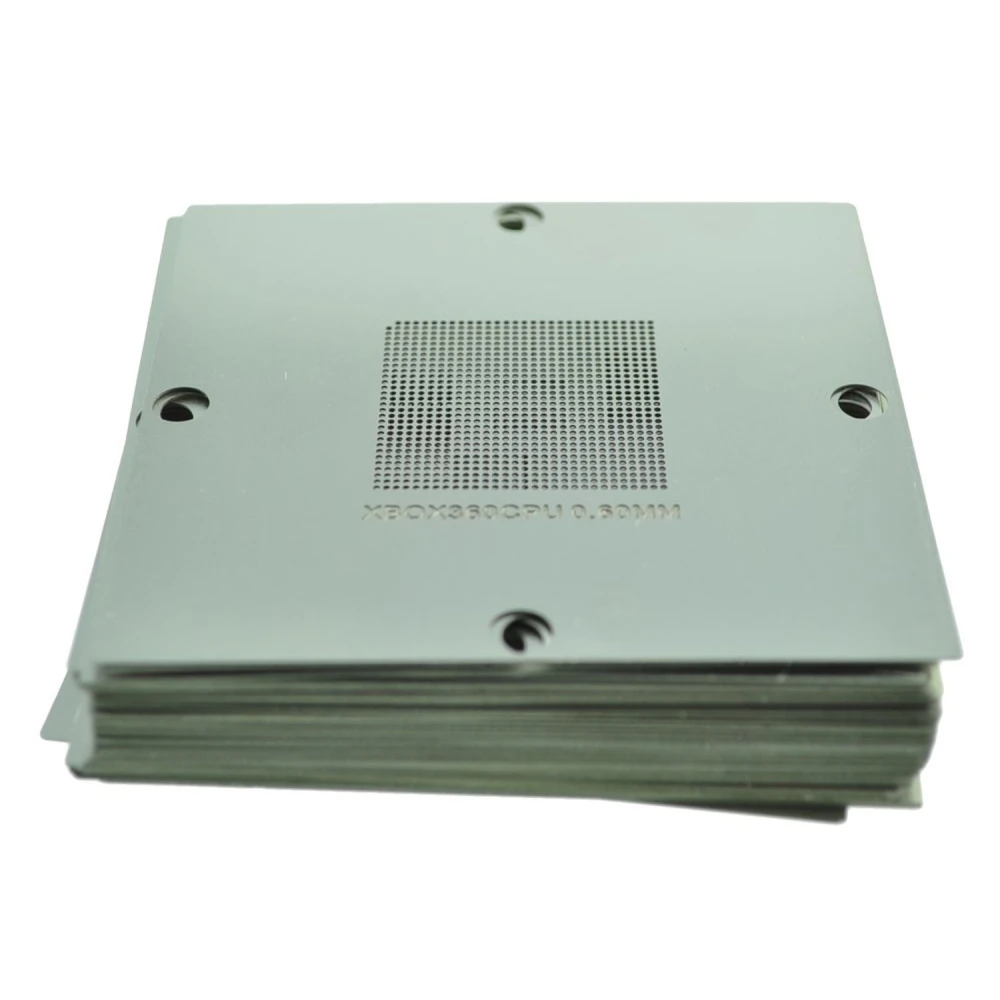

The MK-10 universal stencil set is an essential kit for technicians and hobbyists who need precision in reballing and soldering electronic components. This set includes 50 stencils designed to fit a wide variety of integrated circuits (IC) and chips, making solder application more accurate.
Main features:
- Compatibility: Includes stencils for ICs of different sizes and models, such as Xbox memory, ATI, MCP, PS3 GPU and CPU, among others.
- Size variety: Stencils with 0.45 mm, 0.5 mm, 0.6 mm and 0.76 mm pitch for different soldering needs.
- Professional quality: Made to ensure precision in solder application, improving the quality and durability of repairs.
- Universal use: Suitable for MK-10 soldering stations and compatible with various IC brands and models.
Technical specifications:
- 0.45 mm: 3 models (Xbox memory, AC82GM45, AC82P45, among others)
- 0.5 mm: 13 models (ATI1100, RS485M, MCP67MV-A2, 945GM, GF GO7200, among others)
- 0.6 mm: 28 models (XBOX GPU, PS3 GPU, VT8237, ATI9200, MX440, among others)
- 0.76 mm: 6 models (M1671, 855GME, 82801DBM, 845MP, among others)
Typical uses:
- Reballing chips for Xbox and PS3 consoles.
- Repair and maintenance of motherboards and electronic components.
- Soldering ICs on MK-10 stations.
Compatibility: This set is compatible with MK-10 soldering stations and is ideal for reballing work on chips from a range of brands and models, including components from ATI, NVIDIA, Intel and other manufacturers.
Important note: This product is currently out of stock. We recommend checking alternative products or contacting our customer service for future availability.
- Includes 50 stencils for reballing and IC soldering.
- Compatible with MK-10 stations and multiple chip models.
- Various pitch sizes: 0.45 mm, 0.5 mm, 0.6 mm and 0.76 mm.
- Ideal for Xbox, PS3 consoles and a wide range of motherboards.
- Made for precision and professional quality.
Customer Questions & Answers
Which types of components or integrated circuits is this stencil set compatible with, and what advantages does it offer over generic universal models?
The Set2 Universal Stencils for Mk-10 includes 50 stencils designed for a wide range of BGA chips, especially console GPUs and CPUs (Xbox, PS3) and PC chipsets (Intel, ATI, NVIDIA, SiS, VIA). Its advantage over generic universal stencils lies in the precise pitch and ball layout matching (0.45 mm, 0.5 mm, 0.6 mm and 0.76 mm) for specific models, which reduces alignment errors and improves reballing reliability on popular chips and well-defined series.
What materials are these stencils made from, and what is their typical thickness?
The stencils are made from stainless steel, a standard material chosen for its mechanical strength, good thermal conductivity and durability against solder paste erosion and frequent cleaning. Typical thickness ranges from 0.10 mm to 0.15 mm, providing rigidity and ensuring correct paste transfer during the reballing process.
Are there any special recommendations for cleaning and maintaining the stencils after use?
Yes, it is recommended to clean the stencils immediately after each use with isopropyl alcohol (minimum 90%) and lint-free cloths to prevent the holes from becoming blocked. Do not use abrasive materials that could damage the perforations. Complete drying prevents corrosion and extends the stencil’s service life.
What are the accuracy limitations of these stencils when used in automatic reballing stations compared with manual equipment?
Although these stencils are accurate for manual work and compatible with many semi-automatic stations, they may not fit perfectly in high-end automatic machines that require model-specific fixing and tolerances below 0.05 mm. In such cases, slight misalignment may occur with components that have custom layouts or non-standard pads. For industrial applications, exact compatibility should be checked.
Does the set include any identification to quickly select the correct stencil, and are individual spare parts available?
Each stencil is engraved with the IC designation and the corresponding pitch to make identification easier in the workshop. However, with most distributors, the set is sold as a complete pack and individual spare parts are not usually guaranteed. It is recommended to check directly with the supplier for replacement needs.
What is the MK-10 universal stencil set used for?
This set is used to make reballing and precise soldering of IC components in electronic devices easier, especially in Xbox and PS3 consoles.
Which soldering stations is it compatible with?
It is compatible with MK-10 soldering stations, allowing precise solder application on various chips.
How many stencil models are included in the set?
It includes stencils for more than 50 different models, with 0.45 mm, 0.5 mm, 0.6 mm and 0.76 mm pitch.
Is it currently available to buy?
The product is currently out of stock. We recommend checking alternative products or contacting customer service for future availability.
Can I use these stencils to repair Xbox and PS3 consoles?
Yes, the set includes specific stencils for Xbox and PS3 console chips, making the reballing process easier.
