Samsung S3 IC stencil plate for precise BGA repair and soldering
Brand: Mlink
3.69€
VAT included (Ex VAT: 3.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 3.54 € | -4% |
| 10+ | 3.36 € | -9% |
| 20+ | 2.95 € | -20% |
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only

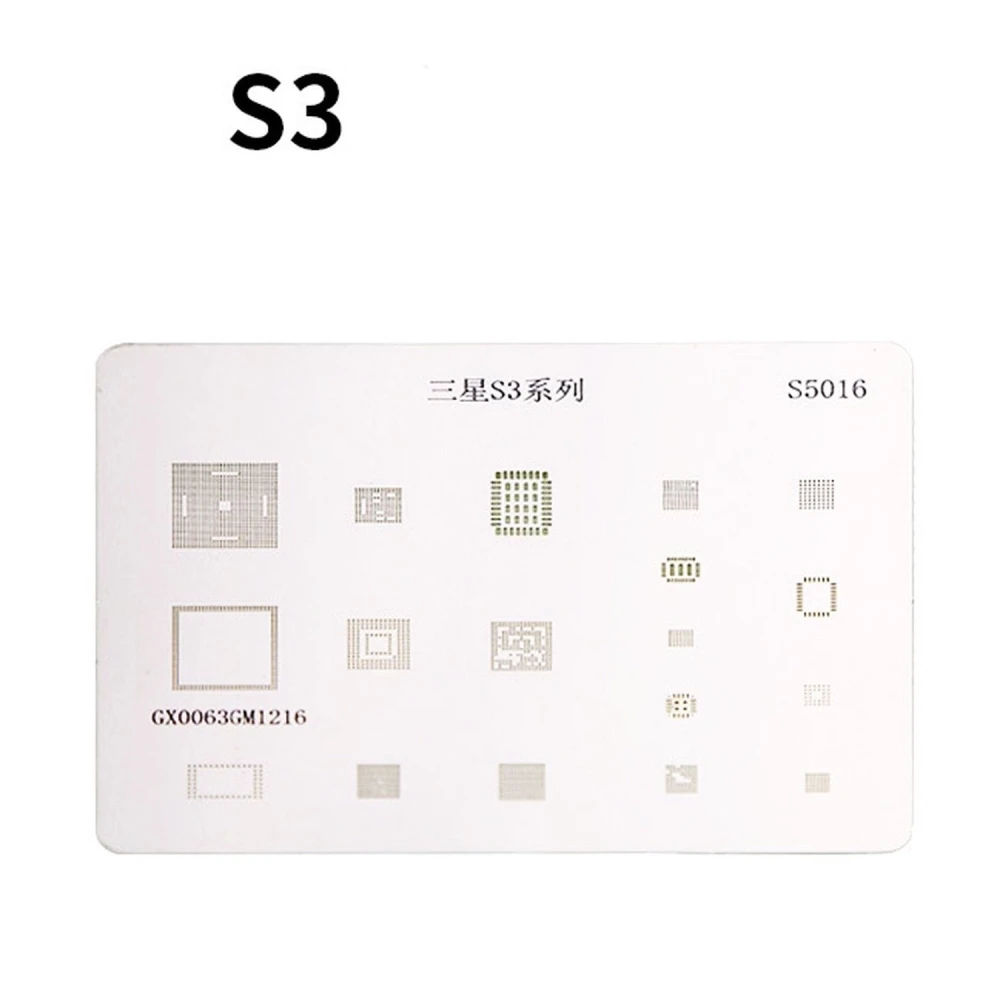

The Samsung S3 IC stencil plate is an essential tool for repairing and soldering BGA components in Samsung S3 devices. This direct heat stencil allows precise solder application, making it easier to replace or repair BGA chips with high quality and efficiency.
Main features:
- Specifically designed for Samsung S3 BGA chips.
- Allows even and precise solder application.
- Compatible with reballing and direct soldering techniques.
- Made from heat-resistant materials for repeated use.
- Ideal for technicians and professionals in mobile phone and electronics repair.
Specifications:
- Type: BGA soldering stencil template.
- Compatibility: Exclusive to Samsung S3 components.
- Use: Direct heat to make chip soldering easier.
- Brand: Mlink.
- Applications: Mobile phone repair, BGA reballing, electronics maintenance.
Typical uses:
- Repairing BGA chips on Samsung S3 boards.
- Reballing and replacing damaged or faulty chips.
- Improving soldering accuracy and quality in repair workshops.
Compatibility and recommendations:
This stencil plate is designed exclusively for the Samsung S3 model, ensuring a perfect fit and optimal results when soldering its chips. It is recommended to use it together with compatible soldering stations and reballing tools for best results.
With this template, technicians can streamline the repair process, reducing time and improving service quality.
- BGA soldering stencil template specifically for Samsung S3
- Enables precise, even solder application with direct heat
- Made from heat-resistant materials for professional use
- Ideal for reballing and repairing BGA chips in Samsung mobiles
- Helps deliver efficient, high-quality repairs in electronics workshops
Customer Questions & Answers
What materials make up the stencil plate, and how does this affect its durability during reballing?
The stencil plate is usually made from precision stainless steel, which gives it good heat resistance and a long service life. However, excessive use, abrasive cleaning or impacts can cause deformation or premature wear, especially in small holes.
Does the plate include all types of BGA used in the Samsung S3, and how do I identify each template on the sheet?
The plate includes apertures adapted for all common BGA ICs in the Samsung S3, identified by engravings or numbering next to each pattern. It is important to check the number or reference visually to avoid positioning errors.
Does it require a specific soldering station, or are there technical considerations for direct heat application with this plate?
It does not require a specific station, but we recommend using a hot air station with digital temperature control, ideally in the 280 °C to 350 °C range. The plate can withstand heat, but excessive time or heat may deform it.
What are the common issues when using this type of stencil, and how can alignment defects be avoided during reballing?
The most common errors are poor alignment of the stencil with the chip and residue blocking the cavities. We recommend cleaning the plate after each use and securing it with a support or heat-resistant tape. You should visually check pad matching before starting the process.
Compared with universal stencils, what advantages or disadvantages does using a dedicated plate like this for the Samsung S3 have?
Dedicated plates offer apertures perfectly aligned with the S3 model’s BGA chips, reducing the risk of errors and saving time. Unlike universal stencils, they are less versatile, but they guarantee high precision for that specific device.
What is the Samsung S3 IC stencil plate used for?
It is used to make soldering and repairing BGA chips in Samsung S3 devices easier using a direct heat stencil template.
Is it compatible with other Samsung models?
No, this stencil plate is designed exclusively for Samsung S3 BGA chips.
What type of soldering is done with this template?
It is used for direct heat soldering, especially in BGA reballing processes.
What benefits does this template offer for repairs?
It offers precision, even solder application and heat resistance, improving repair quality and efficiency.
Can it be used in professional workshops?
Yes, it is designed for professional use in mobile phone and electronics repair workshops.
