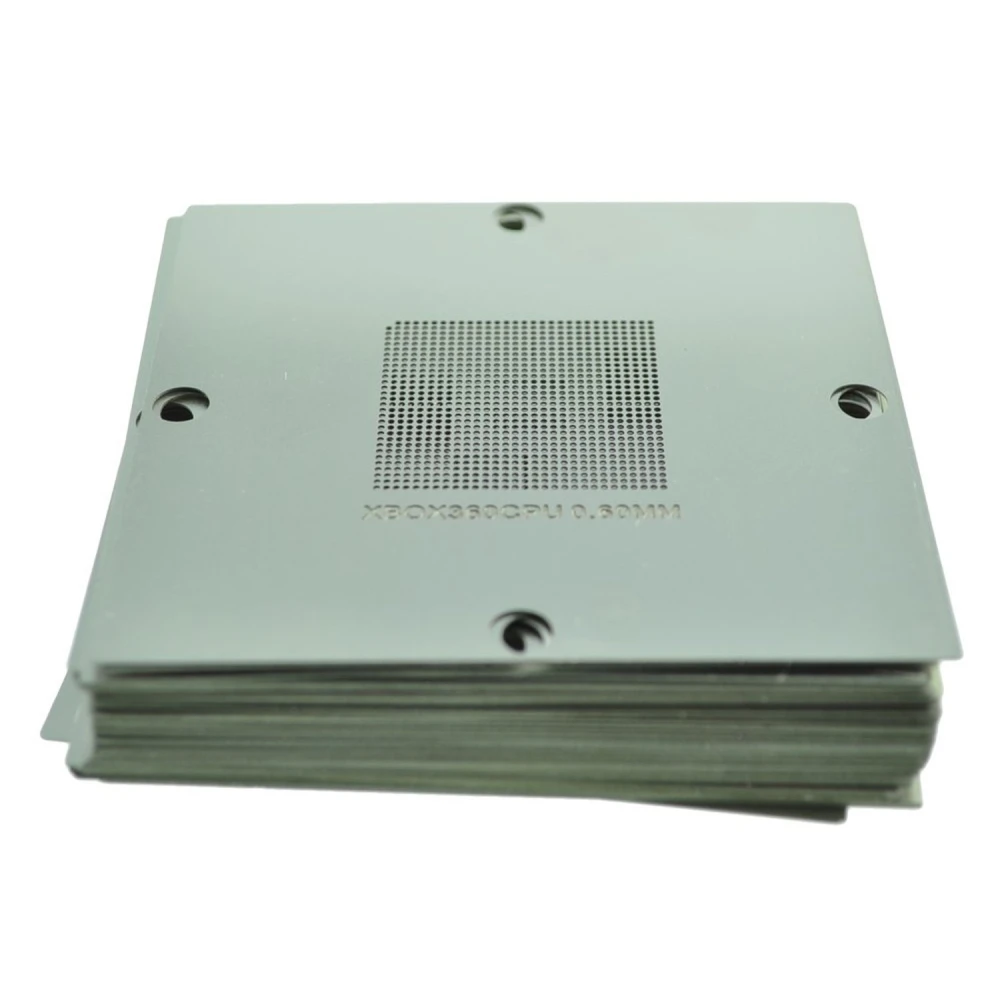

Universal reballing stencil set 90mmx90mm Mk-15/Ht90 with 50 stencils

Product description:

The universal reballing stencil set 90mmx90mm Mk-15/Ht90 with 50 stencils is an essential tool for technicians and professionals in electronics repair working with BGA chips and other components. Designed to make the soldering and reballing process easier, this set includes specific stencils for a wide range of integrated circuit models.

Main features:

• Includes 50 high-quality stencils for precise solder paste application.
• Universal 90mm x 90mm dimensions that fit multiple IC chips.
• Compatible with popular models such as Xbox memory, PS3 GPU/CPU, ATI X1300, and many more.
• Variety of pitches: 0.45mm, 0.5mm, 0.6mm and 0.76mm for different soldering needs.
• Manufactured by Mlink, a recognised brand in soldering and reballing station accessories.

Compatibility and included models:

• 0.45mm (3 models): Xbox memory, AC82GM45, 82PM45, 82GL40, AC88CTPM, AC82P45, AC82P43.
• 0.5mm (13 models): ATI1100, RS485M, ATI X1300, MCP67MV-A2, MCP77MV-A2, ATIIXP460, 82PM965, GM965, 945GM, 945PM, 945GMS, 82945P, 82945GC, GF GO7200, 7300, 7400, 6200AGP, G86-630-A2, 915GMS, NF-6100-N, 8200, 8400, 8600, plus a universal 0.5mm stencil.
• 0.6mm (28 models): Xbox GPU, Xbox CPU, Xbox CSP, PS3 GPU, PS3 CPU, NF430-N-A3, NF-410-N-A3, VT8237A, VT8237, VT8235, 82801GBM, 82801GR, 82801GB, 82801FBM, 82801HBM, 82801IBM, SIS964L, ATIX1600, RV516, X1300, X700, 82915P, ATI200M, 865PE, RC410, ATI200, NF4-N-A3, NF4-A3, GO6200, 7200, 7300, 7400, G84-303-A2, G86-771-A2, ATI7500, 9000, CSP-32, FGO5200, GO5200, GO5700, 4200GO, ATIIXP400, IXP450, ATI9200, 9600, 9700, X300, X600, MX440, 915PM, 915GM, NF-G6150-N-A2, NF-6100-A2, plus 0.6mm universal stencils with 0.9mm and 1.0mm pitch.
• 0.76mm (6 models): M1671, 855GME, 855GM, 82801DBM, 82801CAM, 82801DB, 845MP, 855PM, 82801EB, and a universal 0.76mm stencil.

Typical uses:

• Reballing and repair of BGA chips in games consoles such as Xbox and PS3.
• Precise soldering on electronic components for motherboards and graphics cards.
• Electronics projects that require stencils for high-precision solder paste application.

Compatibility: Compatible with a wide range of IC chips according to the models listed, ideal for technicians working on console repair, graphics cards and other electronic devices.

Conclusion:

This universal reballing stencil set 90mmx90mm Mk-15/Ht90 with 50 stencils is an essential accessory for professionals looking for precision and versatility in soldering and repair work. Its broad compatibility and range of sizes make it a reliable and efficient tool.

• 50 high-precision stencils for universal 90mmx90mm reballing
• Compatible with Xbox, PS3, ATI chips and more popular models
• Variety of pitches: 0.45mm, 0.5mm, 0.6mm and 0.76mm
• Manufactured by Mlink, a recognised brand in soldering accessories
• Ideal for BGA chip repair and precise electronics soldering
