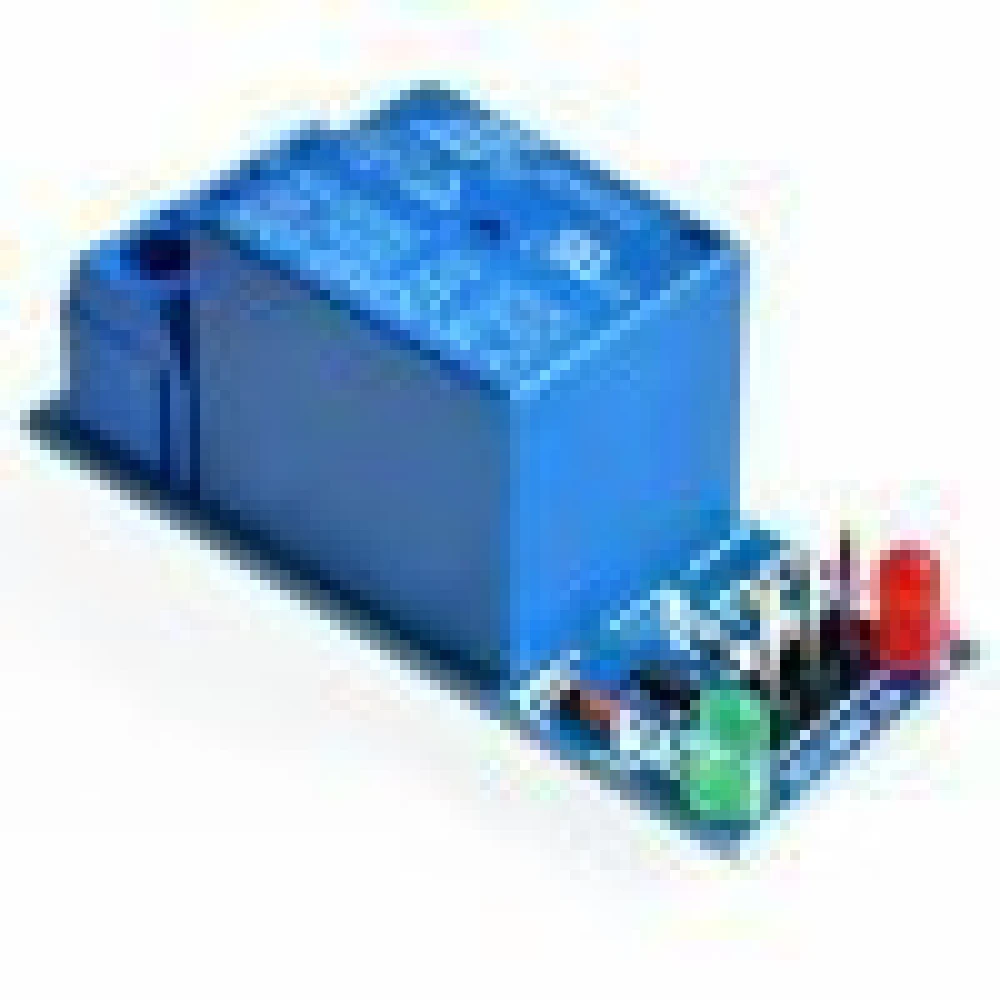

1-Channel 5V Relay Module Kit for Arduino Compatible

Name: 1-Channel 5V Relay Module Kit for Arduino Compatible
Brand: satkit
SKU: A010203-rele-arduino
Price: 2.46 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

2.46€

VAT included (Ex VAT: 2.00 €)

Volume Discounts

Quantity	Price	Save
2+	2.36 €	-4%
10+	2.24 €	-9%
20+	1.85 €	-25%

In Stock - Ships immediately

Standard delivery Wed, Apr 29 - Fri, May 1

Express delivery Mon, Apr 27 - Tue, Apr 28

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The 1-channel 5V relay module kit for Arduino compatible is a board designed to make it easy to control external loads using an Arduino board. This module lets you switch electrical devices such as bulbs, motors and other equipment that require remote control, with a maximum capacity of up to 10A at 30V DC or 10A at 220V AC.

This kit is perfect for DIY electronics projects, automation and power control with Arduino, offering a compact, lightweight and easy-to-use solution.

Main features

One relay channel for controlling an external load
Compatible with Arduino boards and other microcontrollers operating at 5V
Switching capacity: up to 10A at 30V DC or 10A at 220V AC
Screw terminal connectors for safe and easy installation
Independent contact to avoid interference and ensure precise control
Compact and lightweight design, ideal for projects with limited space

Typical uses

Lighting automation: switch bulbs on and off remotely
Control of small motors in robotics or automation projects
Educational projects for learning how to control electrical loads with Arduino
Integration into home automation and remote control systems

Compatibility

This kit is compatible with any Arduino board operating at 5V, as well as other microcontrollers that can handle 5V control signals. Its simple design makes it easy to integrate into multiple electronics and automation projects.

With this Arduino-compatible 5V relay module, you can expand the capabilities of your Arduino board and control electrical loads safely and efficiently.

1 relay channel for controlling external loads
Compatible with Arduino and 5V microcontrollers
Switching up to 10A 30V DC or 10A 220V AC
Screw terminal connectors for easy installation
Independent contact for precise control
Compact and lightweight design for DIY projects

Customer Questions & Answers

What are the physical dimensions, weight and exactly what is included in the box when buying this kit?

The relay board typically measures approximately 50 mm x 20 mm x 18 mm and weighs around 25 g. The package includes 1 x 1-channel relay module (cables and power supply are not included). Slight variations may occur depending on the production batch.

What safety measures should be considered when connecting 220 V AC loads to this module, and does it comply with electrical standards?

The module can switch up to 220 V AC, but it does not have reinforced isolation or specified CE or UL certifications for fixed mains installations. A safe distance must be maintained between high- and low-voltage tracks, an insulated enclosure should be used, and handling while energised should be avoided. It is suitable for prototyping, but not recommended for certified end-use applications without further assessment.

How many relays are included in the kit?

The kit includes a one-channel relay for controlling an external load.

What is the maximum switching capacity of the relay?

The relay can switch up to 10 amperes at 30V DC or 10 amperes at 220V AC.

Is it compatible with all Arduino boards?

Yes, it is compatible with any Arduino board operating at 5V.

What type of loads can I use this relay for?

It can be used to control bulbs, small motors and other electrical loads within the relay's capacity.

How is the relay connected to the Arduino?

The relay is connected via screw terminals and controlled with a 5V signal from the Arduino board.
