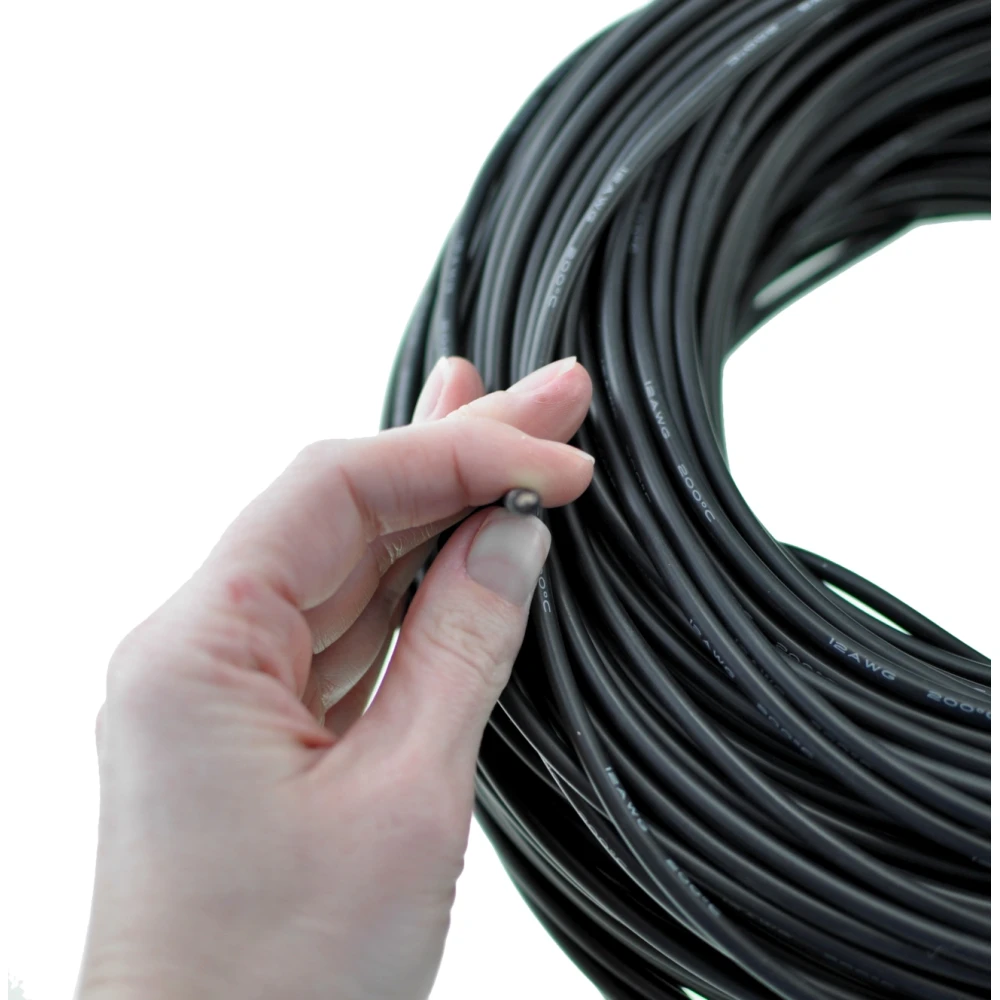

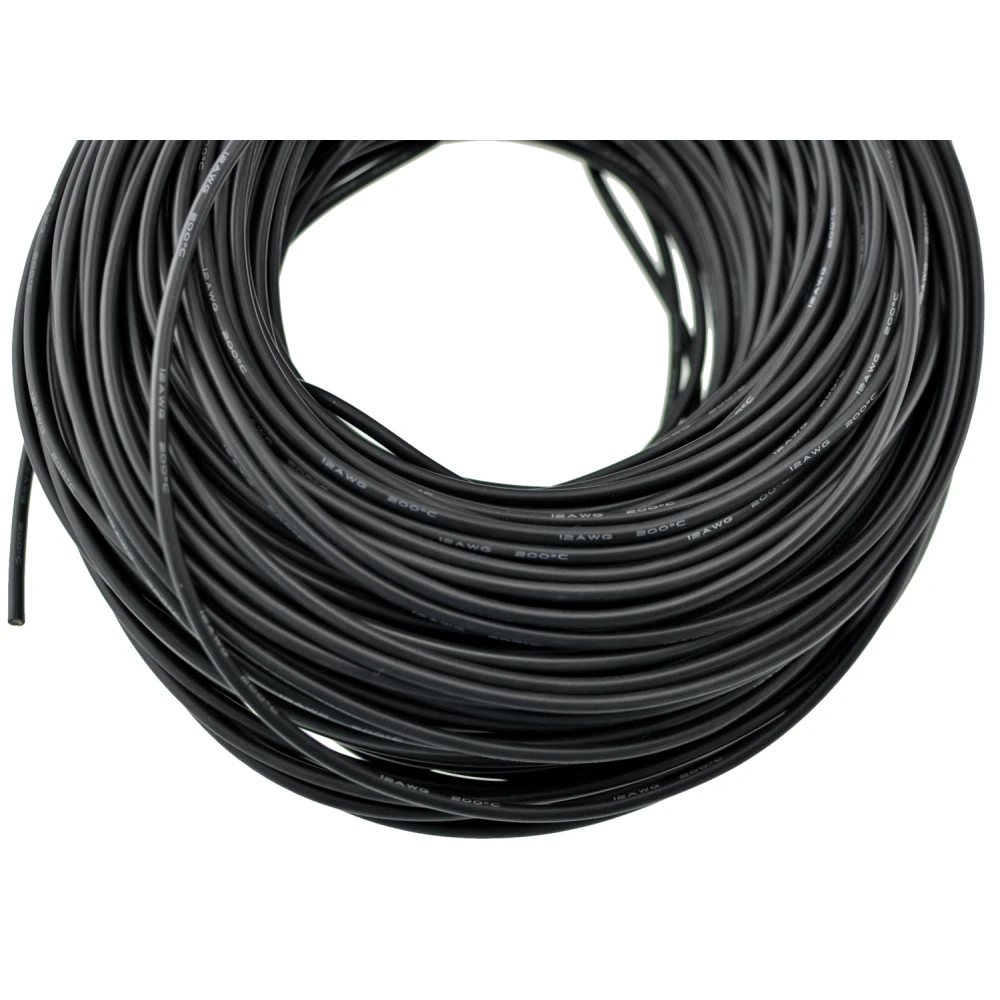

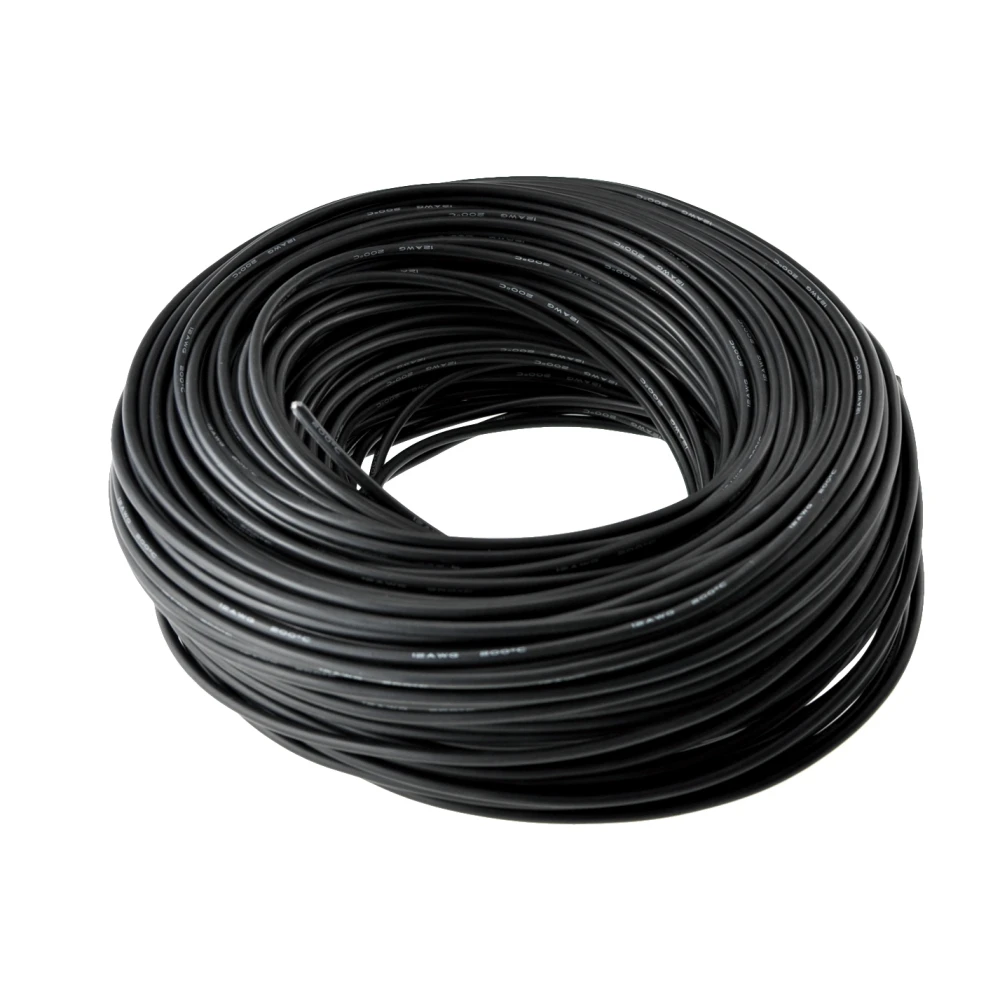

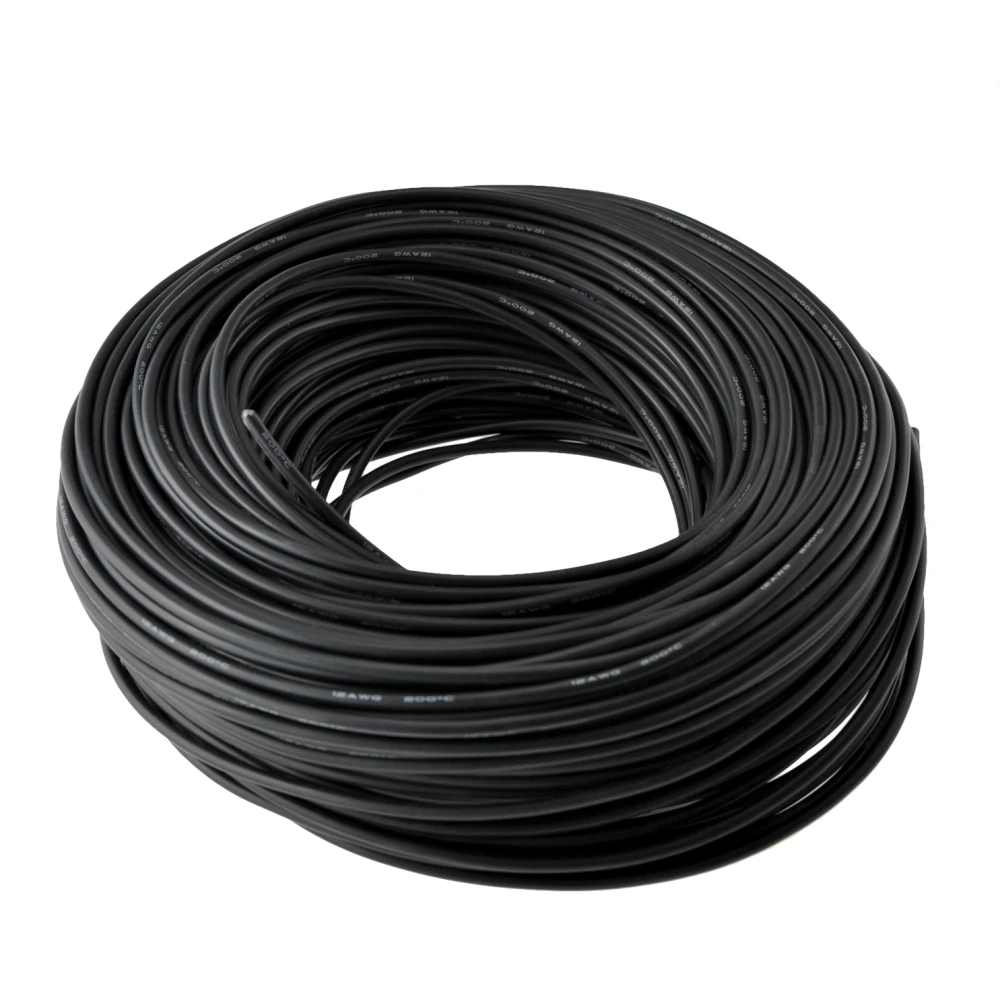

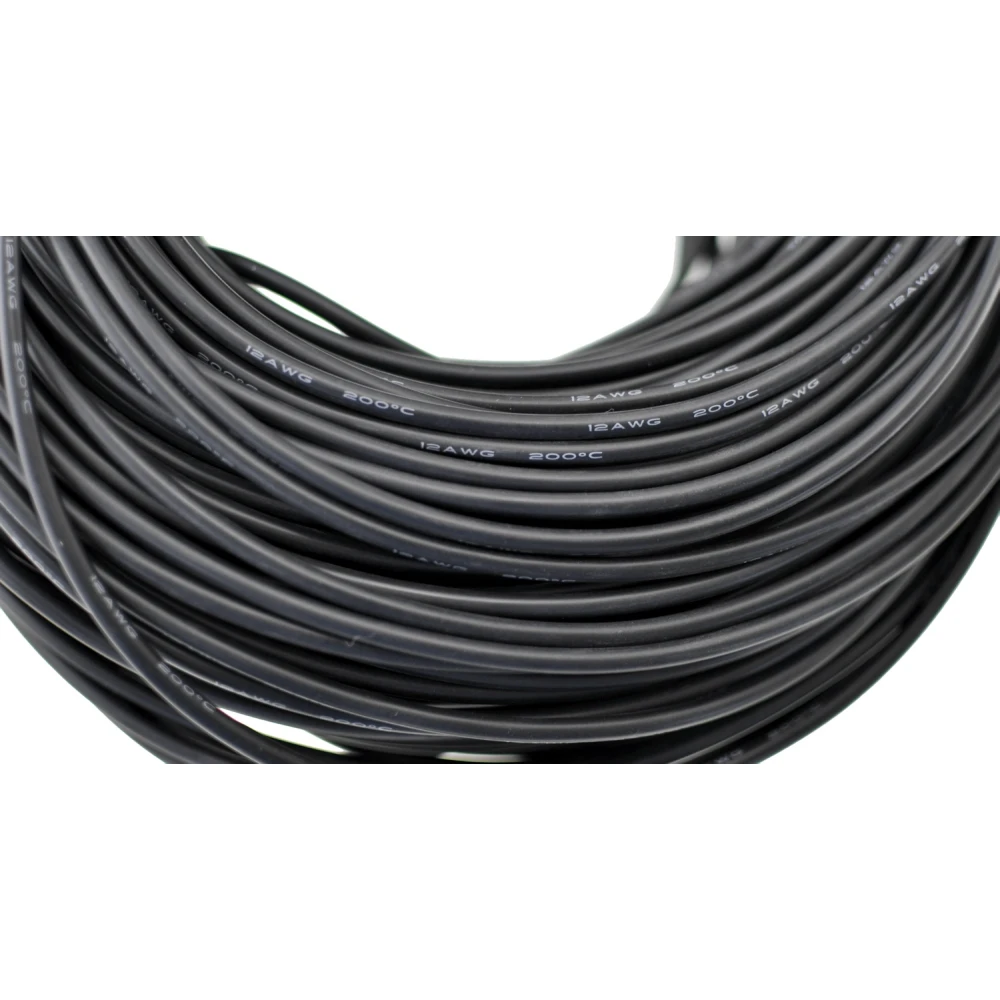

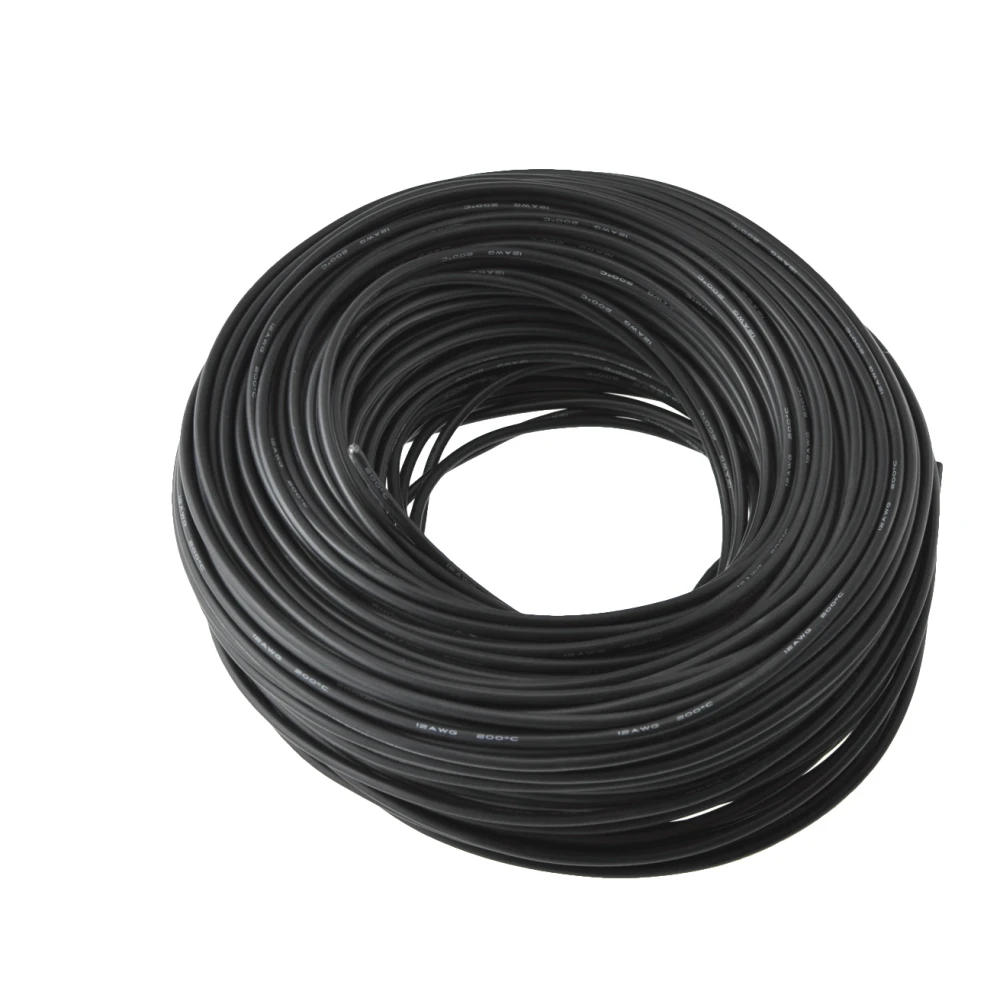

Flexible 12AWG Silicone Cable, 200°C and 600V for Professional Use
Brand: satkit
Save 5% Was: 2.09 €
1.99€
VAT included (Ex VAT: 1.62 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 2.01 € | -4% |
| 10+ | 1.90 € | -9% |
| 20+ | 1.57 € | -25% |
In Stock - Ships immediately
Standard delivery
Thu, Apr 30 - Mon, May 4
Express delivery
Tue, Apr 28 - Wed, Apr 29
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
Product description:
This flexible silicone cable with 12AWG cross-section is ideal for applications that require high thermal and electrical resistance. Designed to withstand continuous temperatures of up to 200ºC and voltages of up to 600V, this cable is perfect for demanding environments where flexibility and durability are essential.
Main features:
- Conductor size: 12AWG (3,3 mm²)
- Outer diameter: 4,5 mm
- Continuous thermal resistance up to 200ºC
- Maximum voltage: 600V
- Maximum continuous current: 45A
- High flexibility thanks to multiple fine strands
- Resistant to solvents, lubricants and chemicals
Recommended uses:
- Making test leads and multimeter leads
- Electronics projects and hobbies such as RC planes and drones
- Connections in batteries and electrical systems that require high temperature resistance
Compatibility: Compatible with electronic equipment operating in voltage ranges up to 600V and current up to 45A, ideal for professional and hobby applications.
Package contents: 1 metre of black flexible silicone cable.
- 12AWG (3,3 mm²) conductor size for high current capacity
- Resistant to temperatures up to 200ºC for continuous use
- Supports voltages up to 600V for added safety
- Extremely flexible thanks to its fine-strand construction
- Resistant to solvents, lubricants and chemicals
- Ideal for test leads, multimeters, drones and batteries
- Compact 4,5 mm outer diameter for easy handling
- Maximum continuous rating of 45A for demanding applications
Customer Questions & Answers
What are the advantages of using 12AWG silicone cable compared with standard PVC cables in high-temperature applications?
12AWG silicone cable offers greater flexibility and superior heat resistance, withstanding up to 200 °C continuously. Compared with PVC cables, it does not harden or deform under extreme heat, which improves service life and reduces the risk of failures caused by thermal fatigue in demanding applications such as RC modelling, drones or industrial systems.
What current and maximum voltage can this cable handle in continuous operation?
The 12AWG flexible silicone cable supports up to 45 A of DC current and a voltage of up to 600 V according to specification. It is important not to exceed these values to avoid overheating and possible damage to the insulation.
What are the exact dimensions of the cable and what is included in the box?
The outer diameter is 4.5 mm and the conductor cross-section is 3.3 mm (approx. 12AWG). The contents are 1 m of the selected colour, without connectors or additional accessories.
Is this cable compatible with standard LiPo battery connectors or multimeter leads?
Yes, 12AWG is commonly used for XT60, Deans T or EC5 connectors on LiPo batteries, as well as for multimeter test leads, supporting direct soldering or standard crimping. It is advisable to check mechanical compatibility with the specific connector you intend to use.
What maintenance does this type of cable require to preserve its durability?
The silicone jacket is resistant to most chemicals, lubricants and solvents, but prolonged contact with corrosive substances should be avoided. Check the insulation regularly for cuts or burns, and store the cable in dry conditions away from direct UV light for long periods.
What applications is this 12AWG silicone cable suitable for?
It is ideal for test leads, multimeters, hobby projects such as drones and RC planes, as well as connections in batteries and electrical systems that require resistance to high temperatures.
What is the maximum temperature this cable can withstand?
This cable can be used continuously at temperatures of up to 200 degrees Celsius.
What is the maximum voltage the cable can handle?
The cable is resistant to voltages of up to 600V, suitable for most professional electronic and electrical applications.
What length is included with the purchase?
Each unit includes 1 metre of black flexible silicone cable.
Is it resistant to chemicals and lubricants?
Yes, this cable is resistant to many solvents, lubricants and chemicals, which increases its durability in demanding environments.
