TB6600 Stepper Motor Driver up to 4A 9V to 40V Compatible with Arduino
Brand: satkit
9.85€
VAT included (Ex VAT: 8.01 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 9.35 € | -5% |
Limited stock
Standard delivery
Thu, Apr 30 - Mon, May 4
Express delivery
Tue, Apr 28 - Wed, Apr 29
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only

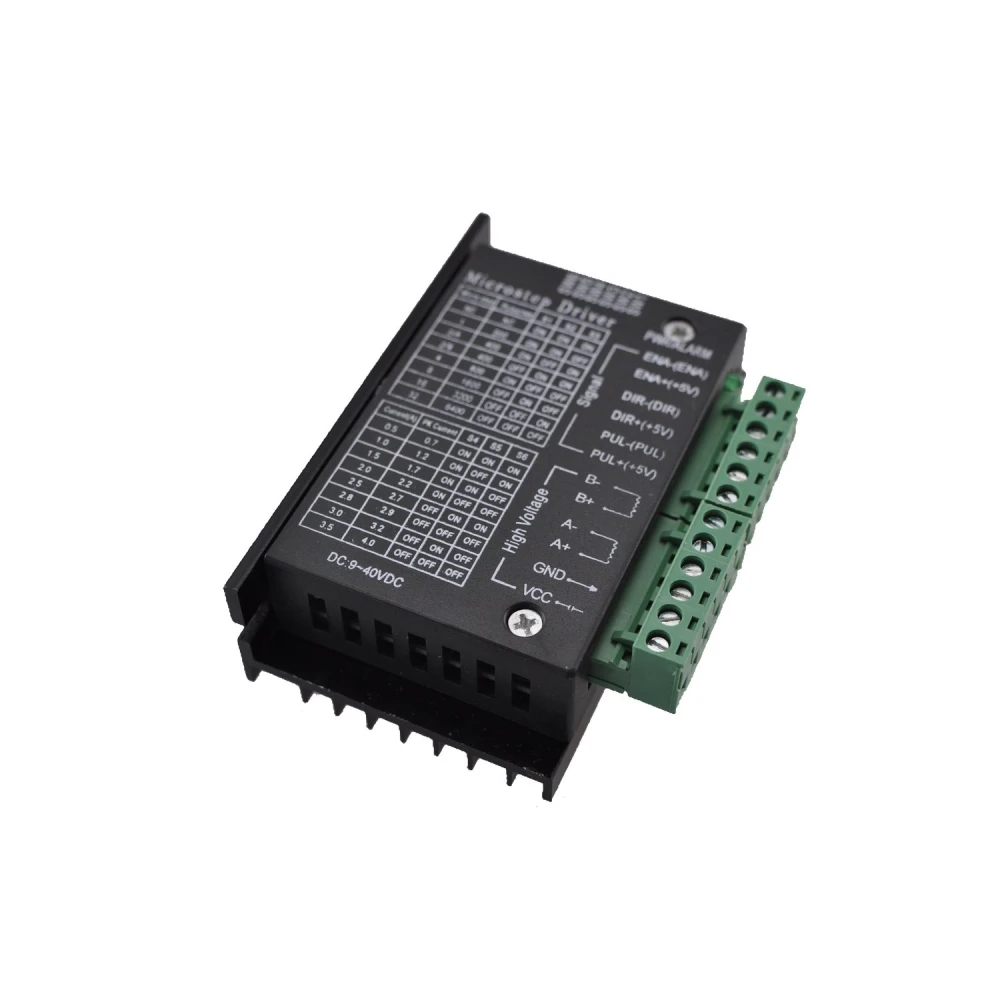

The TB6600 stepper motor driver is a bipolar controller module that allows you to control 2-phase and 4-phase stepper motors with a supply voltage of 9V to 40V and a maximum excitation current of up to 4A. This controller is widely used in applications such as CNC machines, engraving machines, packaging machinery and other equipment that require high precision and torque.
This driver uses advanced current loop subdivision control, which reduces motor torque ripple and allows smooth operation at low speeds. In addition, it offers higher torque at high speeds compared with other two-phase controllers, ensuring high-precision positioning.
Key features
- Selectable microstepping modes: 1/1, 1/2, 1/4, 1/8 and 1/16 step.
- Simple 9 to 40V DC power supply.
- Adjustable current control in 8 steps, from 0,2 A to 5 A.
- Optically isolated inputs for greater protection and stability.
- Protection against overvoltage, undervoltage, overcurrent and short circuits.
- High start-up speed and high torque at high revolutions.
- Durable black plastic housing with aluminium heatsink for optimal heat dissipation.
- Integrated mounting holes for easy installation on machine panels.
Technical specifications
- Input voltage: 8 to 50V DC (operating between 9V and 40V).
- Input current: 1 to 5 A.
- Maximum peak output current: 5,0 A (100 ms).
- Maximum operating output current: 4,5 A.
- Operating temperature: -10 to 45 °C.
- Storage temperature: -40 to 70 °C.
- Weight: 200 grams.
Compatibility and use
This controller is compatible with NEMA17, NEMA23, NEMA24 and NEMA34 stepper motors, making it an excellent choice for CNC projects and systems that require high-precision motor control. It is also compatible with Arduino and other microcontrollers that output 5V digital pulse signals, making it easy to integrate into DIY and professional projects.
Connections and setup

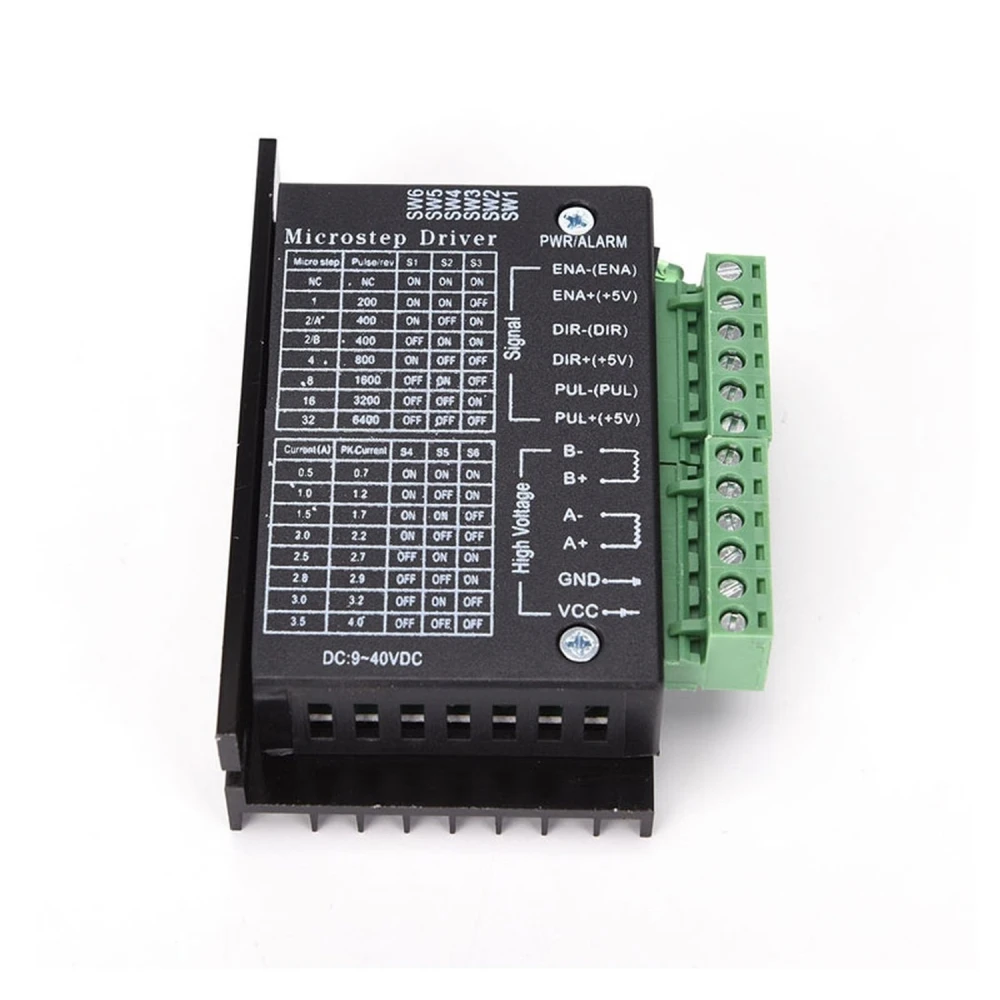

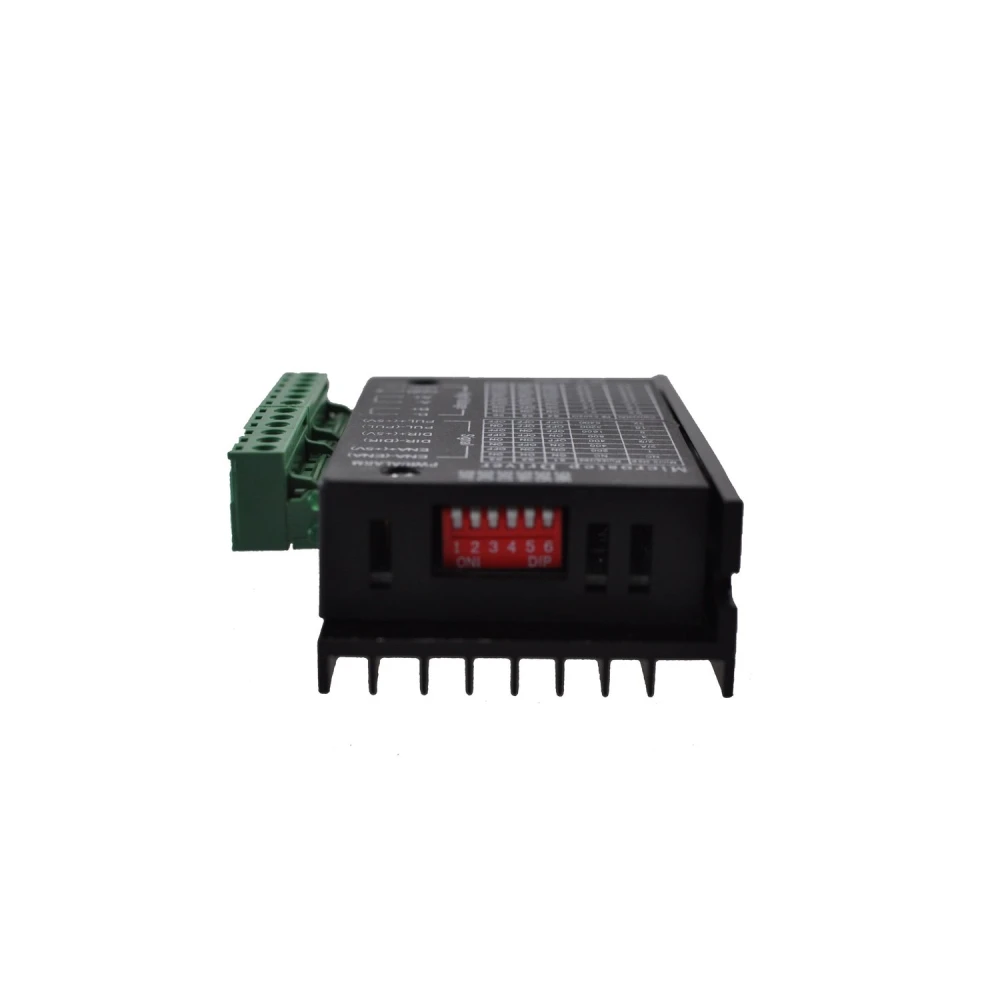

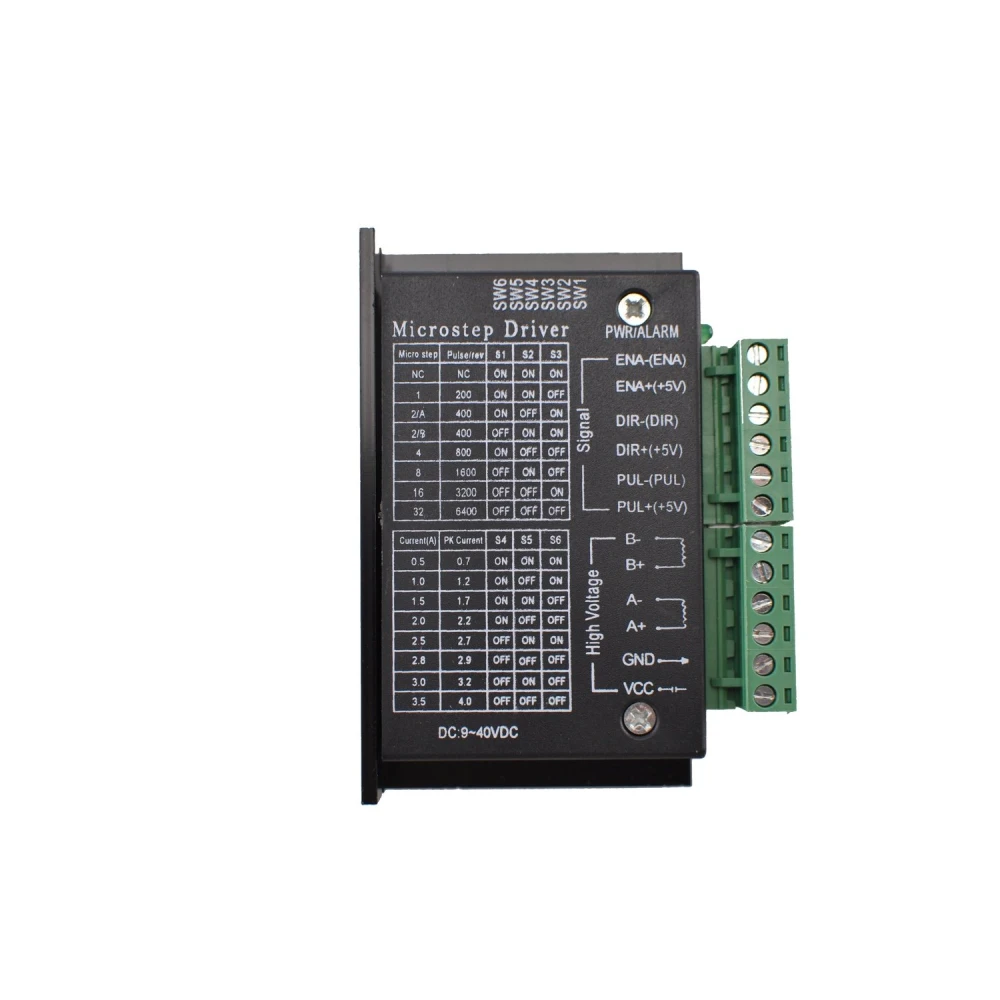

The module includes terminals for DC power, outputs for the motor phases and inputs for enable, step and direction signals, all optically isolated to prevent interference. It also features a DIP switch block to adjust the current and microstep resolution, allowing a custom configuration according to the motor and application needs.
In short, the TB6600 driver is a robust, precise and versatile controller, ideal for anyone looking for reliable performance in stepper motors for CNC, robotics and automation applications.
- Microstepping modes: 1/1, 1/2, 1/4, 1/8, 1/16.
- 9 to 40V DC power supply.
- Adjustable current from 0,2 A to 5 A.
- Protection against overvoltage, undervoltage and short circuits.
- Compatible with NEMA17, NEMA23, NEMA24 and NEMA34 motors.
- Compatible with Arduino and 5V microcontrollers.
- Durable housing with aluminium heatsink.
- High precision and torque at high speeds.
Customer Questions & Answers
What advantages does microstepping offer in the TB6600 driver compared with drivers with only full-step or half-step modes?
Using microstepping (selectable 1/1, 1/2, 1/4, 1/8, 1/16 step) in the TB6600 allows smoother motor movement and higher positioning resolution, reducing vibration and increasing accuracy. By comparison, full-step or half-step modes generate more vibration and lower resolution. This is key for tasks where smoothness and precision are priorities.
What electrical and signal requirements must my microcontroller meet to be compatible with this driver?
The TB6600 works with 5 V digital control signals on the pulse, direction and enable inputs, and also has opto-isolated inputs for isolation. It is compatible with microcontrollers such as Arduino and others that provide 5 V logic signals. The driver power supply must be in the 9–40 VDC range. It is recommended to check that the microcontroller can supply at least 5 mA per control pin.
What protection mechanisms does the TB6600 include, and how do they act in the event of a typical fault?
The TB6600 includes protection against overvoltage, undervoltage, overcurrent and short circuits. For example, if overvoltage or overcurrent is detected, the driver disables the output to protect both the motor and the internal circuit. In the event of a short circuit, it enters protection mode until power is restored. These functions improve safety against common wiring or power faults.
What voltage does the TB6600 driver support?
The TB6600 driver supports an input voltage of 9V to 40V DC, with an operating range of 8 to 50V DC.
What is the maximum current this controller can handle?
It can handle a maximum operating current of 4,5 A and a maximum peak of 5 A for 100 ms.
Is it compatible with Arduino?
Yes, it is compatible with Arduino and other microcontrollers that output 5V digital pulse signals.
Which stepper motors are compatible with this driver?
It is compatible with NEMA17, NEMA23, NEMA24 and NEMA34 2-phase and 4-phase motors.
What microstepping modes does the TB6600 offer?
It offers 1/1, 1/2, 1/4, 1/8 and 1/16 microstepping modes for precise motor control.
