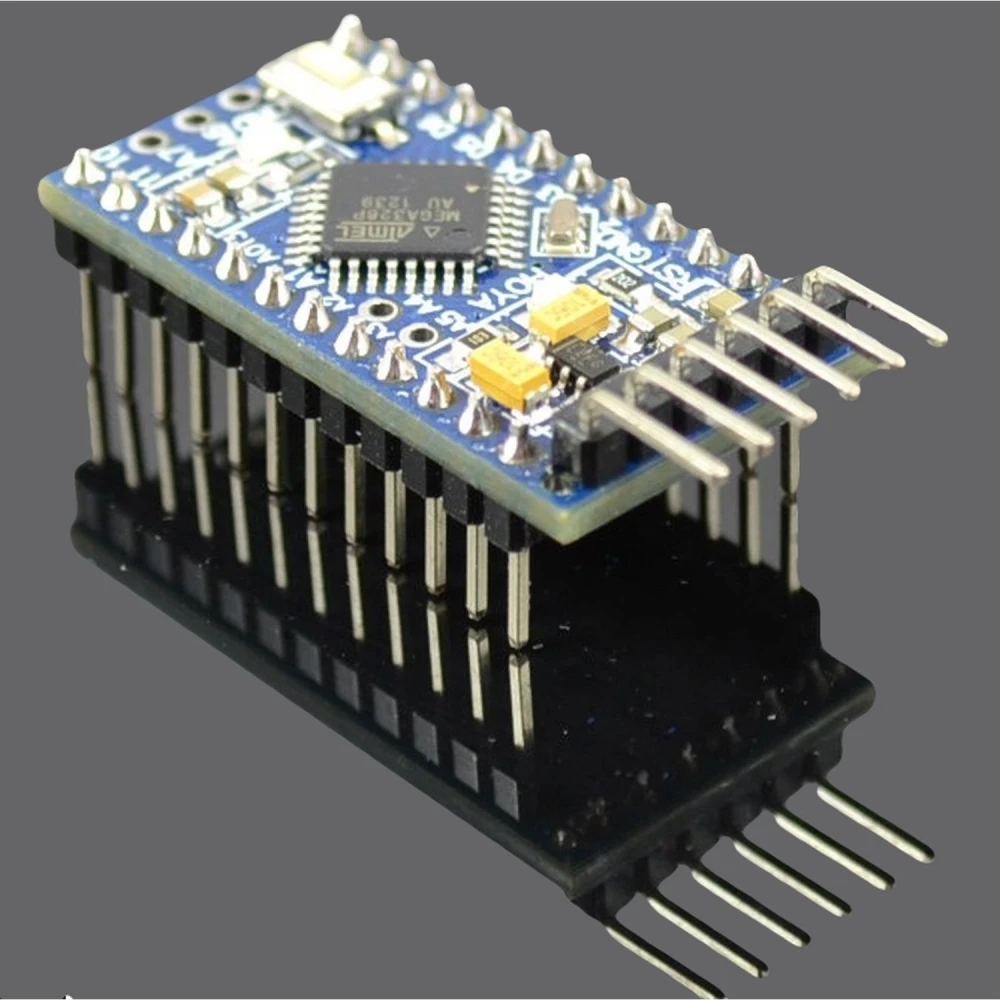

ATmega328P 5V 16MHz Compatible Arduino Pro Mini for electronic projects
Brand: satkit
Save 4% Was: 5.78 €
5.55€
VAT included (Ex VAT: 4.51 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 3.19 € | -45% |
| 10+ | 3.02 € | -48% |
| 20+ | 2.66 € | -54% |
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The ATmega328P 5V 16MHz Compatible Arduino Pro Mini is a miniaturised version compatible with Arduino Mini and Arduino Duemilanove, ideal for developers and electronics enthusiasts looking for a compact and efficient microcontroller for their projects.
This device incorporates an ATmega328 chip that runs at 16MHz with an external quartz crystal that guarantees a tolerance of 0.5%. It comes with the bootloader preloaded from the factory, making programming and rapid prototype development easier.
One of its main features is that it does not include soldered pins, allowing the user to solder only the pins needed for their project, which offers flexibility and customisation.
- Chip: ATmega328 at 16MHz with external quartz crystal
- Operating voltage: 5V with integrated regulator
- Protections: against overload and reverse polarity
- Maximum current: 150mA per output
- DC input: from 5V to 12V
- Indicators: power and status LED
- Dimensions: 18x33mm
- Weight: 2 grams
This model is perfect for digital control projects, rapid prototyping, and DIY electronics design. It is compatible with a wide range of accessories and programming tools, including FTDI cables to make connection and code uploading easier.
Thanks to its compact size and low weight, it is ideal for applications where space is limited, such as portable devices or integration into larger systems.
In addition, its open design and Arduino compatibility allow users to take advantage of the large community and resources available for this ecosystem, making it easier to learn and implement complex projects.
If you are looking for a compatible and affordable Arduino Pro Mini board for your electronic projects, this ATmega328P 5V 16MHz is an excellent choice that combines quality, functionality and versatility.
- ATmega328 chip at 16MHz with external quartz crystal (0.5% tolerance)
- Factory-loaded bootloader for easy programming
- Integrated 5V regulator with overload protection
- Reverse polarity protection for added safety
- Maximum current of 150mA per output
- DC input from 5V to 12V for flexible power supply
- Power and status indicator LEDs
- Compact 18x33mm dimensions and lightweight 2 grams
- No soldered pins included, so you can solder only the pins you need
Customer Questions & Answers
What are the exact power specifications and recommended thermal tolerances for this module?
It operates with a DC input voltage between 5 V and 12 V, regulating internally to 5 V for the microcontroller. The external crystal has a 0.5% tolerance. It supports temperatures from -40 °C to +85 °C (according to the ATmega328P datasheet), but it is recommended to keep it between 0 °C and 70 °C for prolonged use.
What methods are there to programme the Atmega328p Pro Mini if it does not include a built-in USB interface?
Programming requires an external UART-USB converter based on FTDI or similar, connected to the TX, RX, VCC and GND pins. It is recommended to use the DTR pin to allow automatic bootloader reset. It does not include soldered pins, so only the ones needed for the application can be soldered.
What are its limits in terms of current supplied by each output and what electrical protection does it include?
Each digital pin can supply up to 40 mA, but it is advisable not to exceed 20 mA per pin or 150 mA in total across all outputs, to avoid overheating or faults. It includes overload protection and reverse polarity protection on the power input.
Does the product include a warranty and is there spare parts availability or technical support in the event of faults?
This type of module usually offers a minimum warranty on receipt, but it does not come with extensive after-sales support or official spare parts, as it is a compatible DIY integration board. It is recommended to buy extra modules for critical projects.
Is this ATmega328P compatible with the original Arduino Pro Mini?
Yes, this version is 100% compatible with Arduino Pro Mini and Arduino Duemilanove, allowing you to use the same software and accessories.
Does it include soldered pins for direct connection?
No, this board does not include soldered pins so you can solder only the pins needed for your project.
What supply voltage does it support?
It supports a DC input from 5V to 12V thanks to its integrated 5V regulator.
Does it come with the bootloader pre-installed?
Yes, the bootloader comes preloaded from the factory to make programming easier from first use.
Can I use an FTDI cable to program it?
Yes, it is compatible with FTDI cables for connecting and programming the board.
