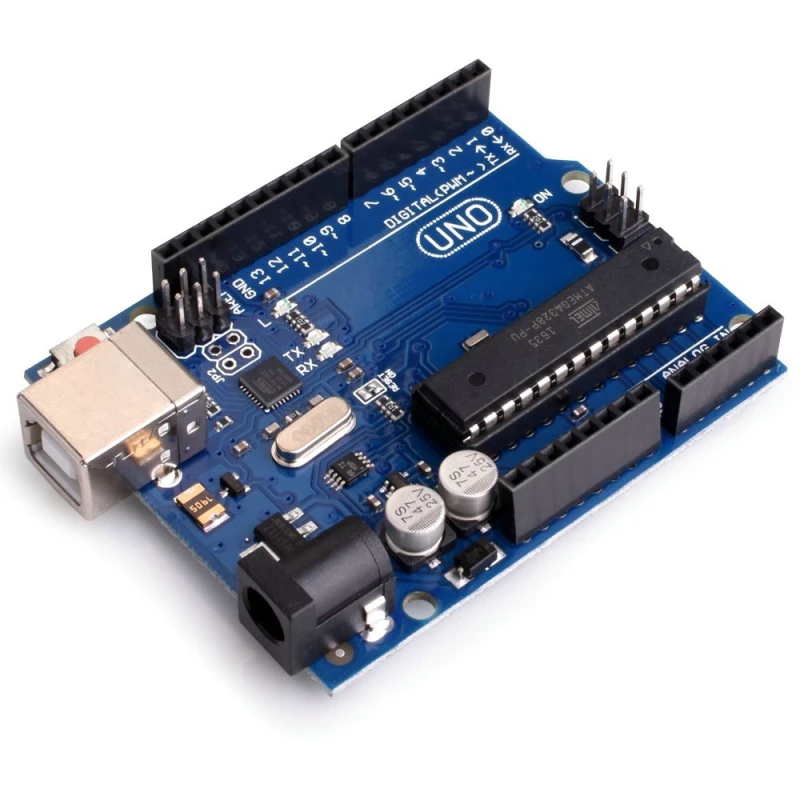

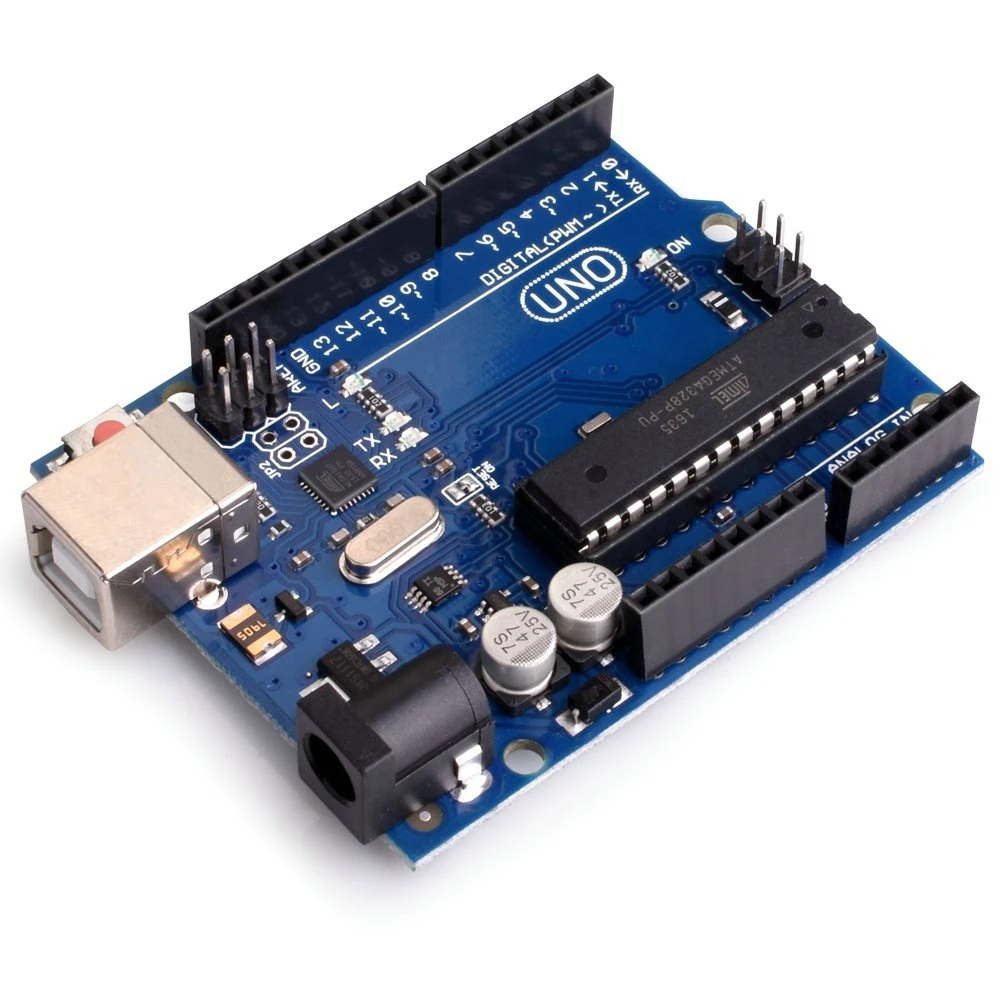

Compatible Arduino Uno Board ATmega328P-PU for Electronics Projects

Name: Compatible Arduino Uno Board ATmega328P-PU for Electronics Projects
Brand: satkit
SKU: A030202-UNO
Price: 13.54 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

13.54€

VAT included (Ex VAT: 11.01 €)

In Stock - Ships immediately

Standard delivery Wed, Apr 29 - Fri, May 1

Express delivery Mon, Apr 27 - Tue, Apr 28

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The compatible Arduino Uno board ATmega328P-PU is an ideal solution for those looking for a versatile and reliable development board for electronics projects. This board is designed to be compatible with the ATmega328 microcontroller, offering excellent performance for a wide range of applications.

Key features

ATmega328 microcontroller at 16 MHz with 32 KB Flash memory, 2 KB RAM and 1 KB EEPROM.
14 GPIO pins, 6 of which support PWM for motor control, lights and more.
6 analogue inputs for sensors and analogue devices.
Compatible with SPI and I2C serial buses for communication with other devices.
USB connector for programming and power supply.
ICSP connector for direct microcontroller programming.
Reset button for easy board restart.

Typical use and compatibility

This compatible Arduino Uno board is perfect for electronics, robotics, home automation and education projects. Its compatibility with the Arduino environment makes it easy to program with the official IDE and use a wide range of libraries and examples.

It can be powered via USB connection or external adapters, making it easy to integrate into standalone systems. In addition, its design allows easy communication with other Arduino boards or microcontrollers, expanding development possibilities.

Package contents

1x UNO r3 board ATmega328P-PU compatible Arduino Uno
1x USB cable for connection and programming

Differences from original Arduino Uno

This compatible version uses the ATmega328P microcontroller and the Atmega8U2 chip as a USB-to-serial converter, similar to the original Arduino Uno. However, it may have small differences in components or design, while maintaining functionality and compatibility with most Arduino projects and accessories.

Conclusion

The compatible Arduino Uno board ATmega328P-PU is an economical and functional option for those who want to develop electronics projects with the Arduino platform. Its compatibility and technical features make it suitable for both beginners and advanced users.

ATmega328P microcontroller at 16 MHz with 32 KB Flash
14 GPIO pins, including 6 with PWM
6 analogue inputs for sensors
Compatible with SPI and I2C buses
USB connector and reset button
USB cable included for programming

Customer Questions & Answers

What are the dimensions, weight and main materials of the board, and what exactly is included in the box?

The UNO R3 board measures approximately 68.6 mm x 53.4 mm, and weighs between 25-30 grams. It is built on an FR4 fibreglass PCB with surface-mount and through-hole electronic components. The package includes 1 x UNO R3 ATmega328P-PU board (Arduino Uno compatible) and 1 x standard Type B USB cable.

What type of power supply and electrical compatibility is required to operate the board without connecting it via USB?

The board can be powered via the DC barrel jack within a range of 7 to 12 V, with 9 V preferred for stability. Typical consumption is under 50 mA when idle. Make sure the power supply can provide at least 500 mA to avoid voltage drops when using accessories.

What limitations does the ATmega328P have in terms of memory and speed for demanding projects?

The ATmega328P offers 32 KB of flash memory (0.5 KB used by the bootloader), 2 KB of SRAM and 1 KB of EEPROM, running at 16 MHz. Projects requiring intensive processing, more memory or control of devices with many variables may find this capacity insufficient compared with boards such as the Mega or ESP32.

What are the recommended steps for installing the driver and development environment (IDE) on Windows, and how is the 'missing port' error resolved?

To install, download the Arduino IDE from the official website, connect the board via USB, and allow Windows to install the driver automatically. If the port does not appear, check that the USB cable is a data cable, try other ports, and look in Device Manager for the 'USB Serial' device. Install the CH340 or Atmega8U2 drivers if necessary, depending on the board model.

Is this board compatible with Arduino IDE software?

Yes, the compatible Arduino Uno board ATmega328P-PU is fully compatible with Arduino IDE software for programming and development.

What is included in the package when buying this board?

The package includes the UNO r3 board ATmega328P-PU compatible Arduino Uno and a USB cable for connection and programming.

Can I power the board with a battery?

Yes, the board can be powered via USB connection, AC/DC adapter or battery, making it easy to use in standalone projects.

What is the main difference between this board and the original Arduino Uno?

The main difference is that this is a compatible version that uses similar components such as the ATmega328P microcontroller and the Atmega8U2 chip, while maintaining functionality and compatibility.
