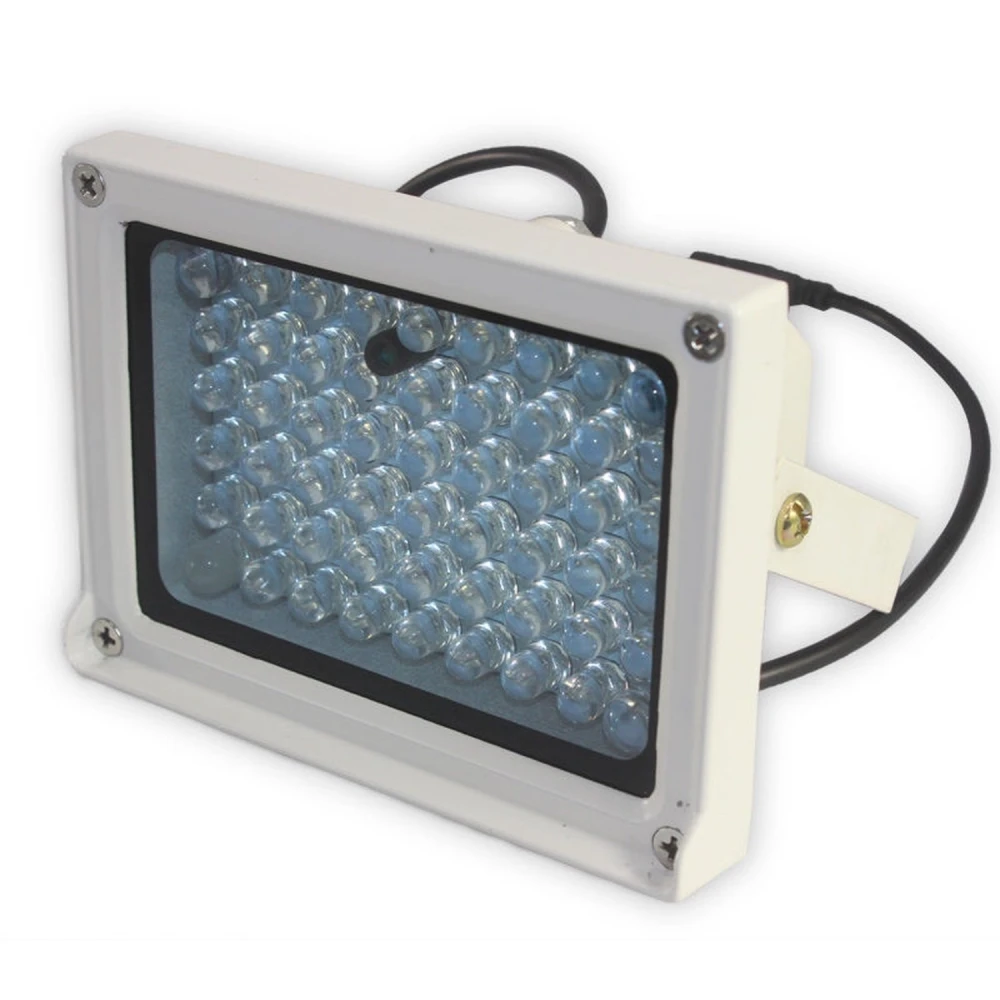

54-LED outdoor infrared illuminator for night vision up to 50 metres
Brand: YourLed
VAT included (Ex VAT: 10.00 €)
The 54-LED outdoor infrared illuminator for night vision is a device designed to improve surveillance capability in low-light or complete darkness conditions. This illuminator is compatible with standard video cameras and night vision cameras, providing infrared lighting that allows clear images to be captured up to a distance of 50 metres.
Main features:
- It has 54 infrared LEDs, each 4,2 mm in diameter, which emit IR light invisible to the human eye but detectable by compatible cameras.
- Lighting range of up to 50 metres, ideal for outdoor use and large surveillance areas.
- Automatic operation via light sensor (CDS Auto Control), which switches the LEDs on when light falls below 10 Lux and switches them off when there is sufficient light.
- Requires a 12 VDC and 2 A power supply (not included), making it easy to integrate with existing security systems.
- Water-resistant construction with IP68 protection, ensuring operation even in adverse weather conditions.
- Robust metal housing with a metal mounting bracket for secure and long-lasting installation.
- Compact dimensions: 12.5" x 8" x 9 cm, making it easy to mount in different locations.
Typical uses:
- Installation in security camera systems to improve night-time visibility outdoors.
- Accessory for surveillance cameras in homes, businesses, warehouses and public spaces.
- Applications in installations that require continuous and reliable surveillance during the night.
Compatibility: This illuminator is compatible with most standard video cameras and night vision cameras that support additional infrared lighting. It is important to check that the camera can operate with an external IR light source to make the most of this illuminator.
With its durable design and automatic functionality, this infrared illuminator is an efficient solution for improving night-time security outdoors, delivering clear and sharp images without the need for visible lighting.
- 54 infrared LEDs, 4,2 mm, for efficient lighting
- Up to 50 metres range for outdoor night vision
- Automatic switching on with light sensor (CDS Auto Control)
- IP68 waterproof protection for outdoor use
- Metal housing with metal mounting bracket
- Requires 12 VDC, 2 A power supply (not included)
- Dimensions: 12.5" x 8" x 9 cm, easy to install
Customer Questions & Answers
What advantages does this infrared light offer over similar models in terms of range and number of LEDs?
This light includes 54 x 4.2 mm LEDs, providing an effective range of up to 50 m in total darkness. Compared with typical 30-40 LED models, it achieves greater distance and more even illumination, but with higher power consumption (max. 24 W). It is suitable for perimeter surveillance or large areas where range is the priority.
What are the dimensions and weight of the product, and does it come with a mounting bracket?
The exact dimensions of the light are 125 mm x 80 mm x 90 mm. It includes a metal housing with a hook structure, making wall or ceiling mounting easier. The weight is not specified by the manufacturer, but it is estimated not to exceed 1 kg.
Which types of security cameras is it compatible with, and are there any particular installation considerations?
It is compatible with any video surveillance camera that can detect infrared light, whether analogue or digital (CCTV, AHD, CVI, TVI or IP), provided it does not have a permanent IR filter. It is recommended to install it at a height and angle that avoids direct reflections onto the lens, and to ensure electrical connections are safe and protected.
Is this infrared illuminator compatible with any security camera?
It is compatible with standard video cameras and night vision cameras that support external infrared lighting.
Does the illuminator include the power supply?
No, the 12 VDC and 2 A power supply is not included and must be purchased separately.
Is it resistant to rain and outdoor conditions?
Yes, it has IP68 protection, which makes it water-resistant and suitable for outdoor use.
How does the illuminator's light sensor work?
The CDS Auto Control sensor automatically switches the LEDs on when light drops below 10 Lux and switches them off when there is sufficient light.
What is the maximum lighting range of the illuminator?
The illuminator can light up to a maximum distance of 50 metres in darkness conditions.
