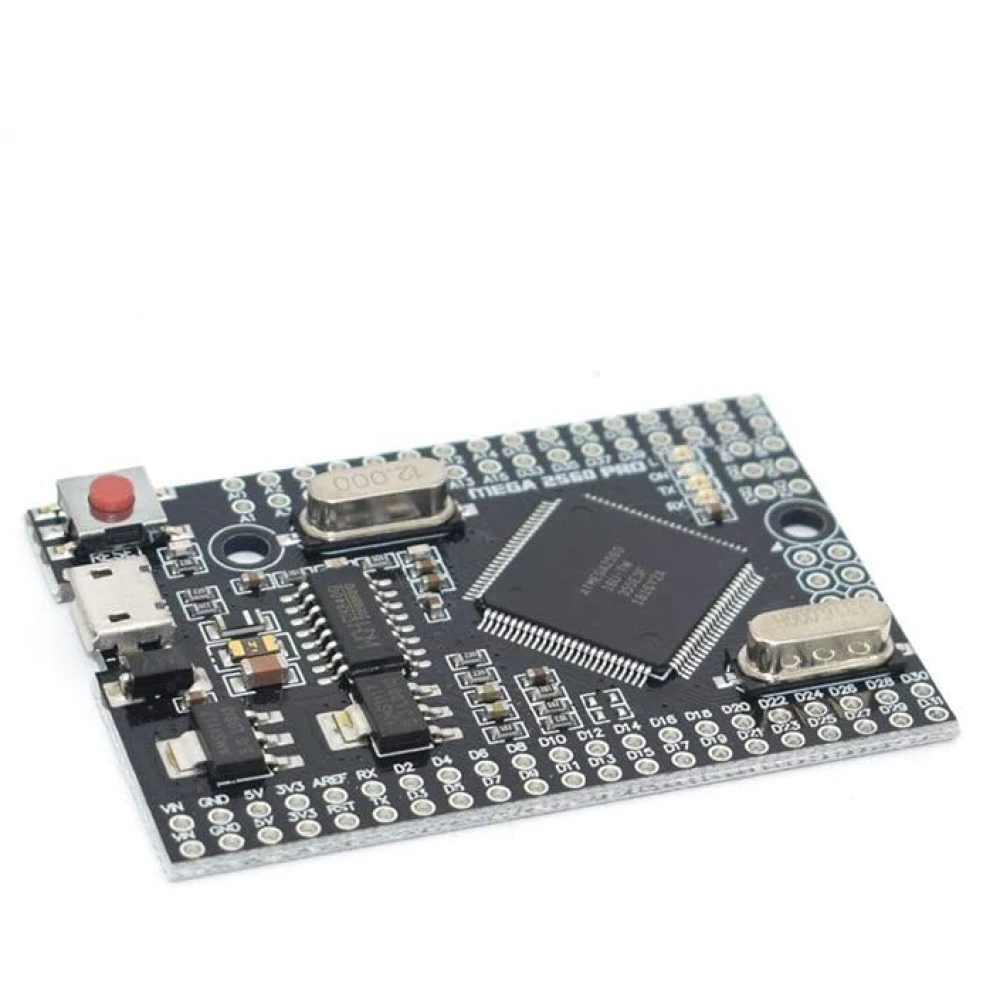

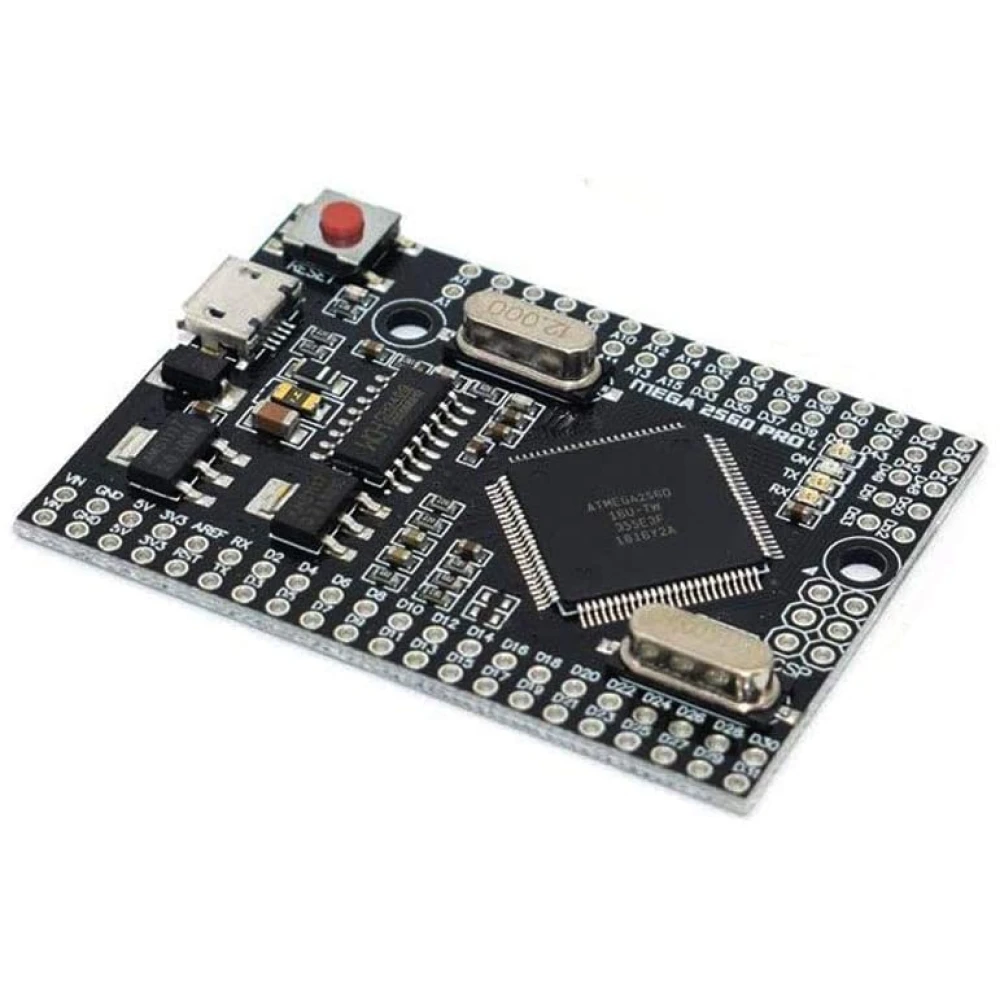

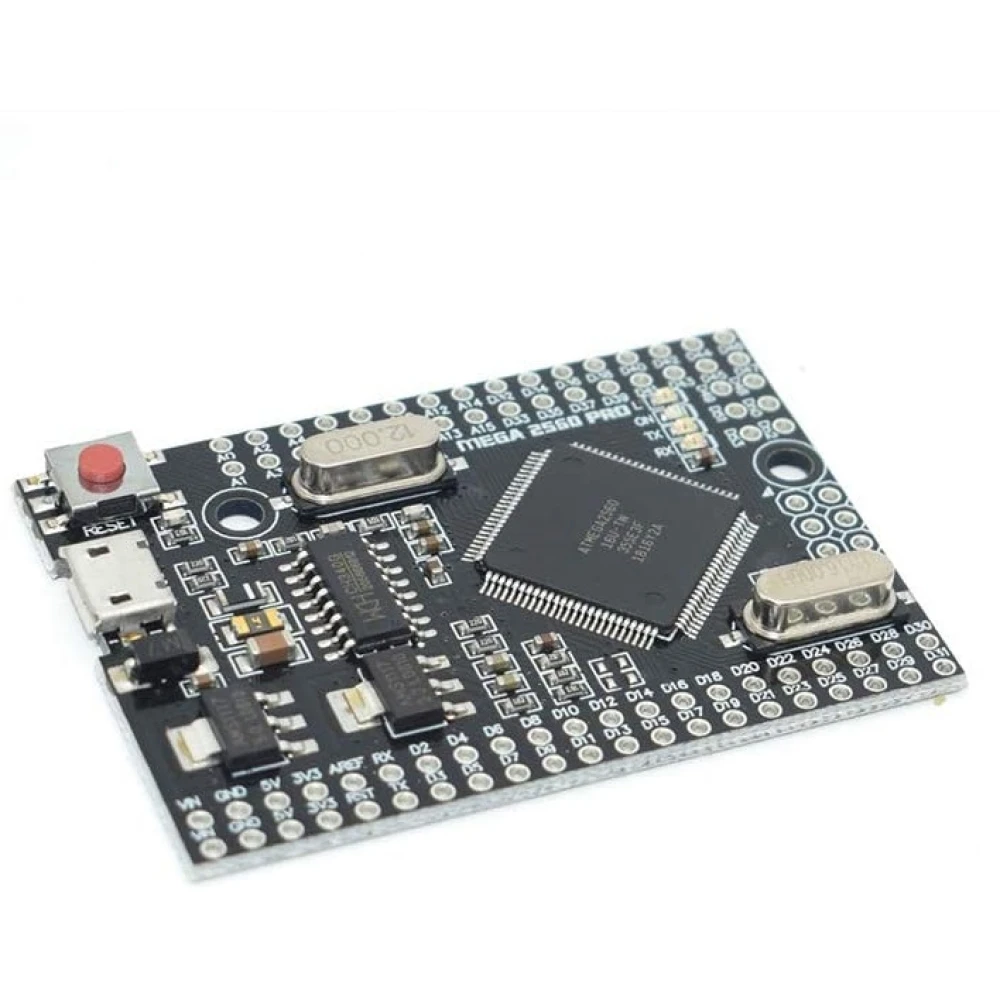

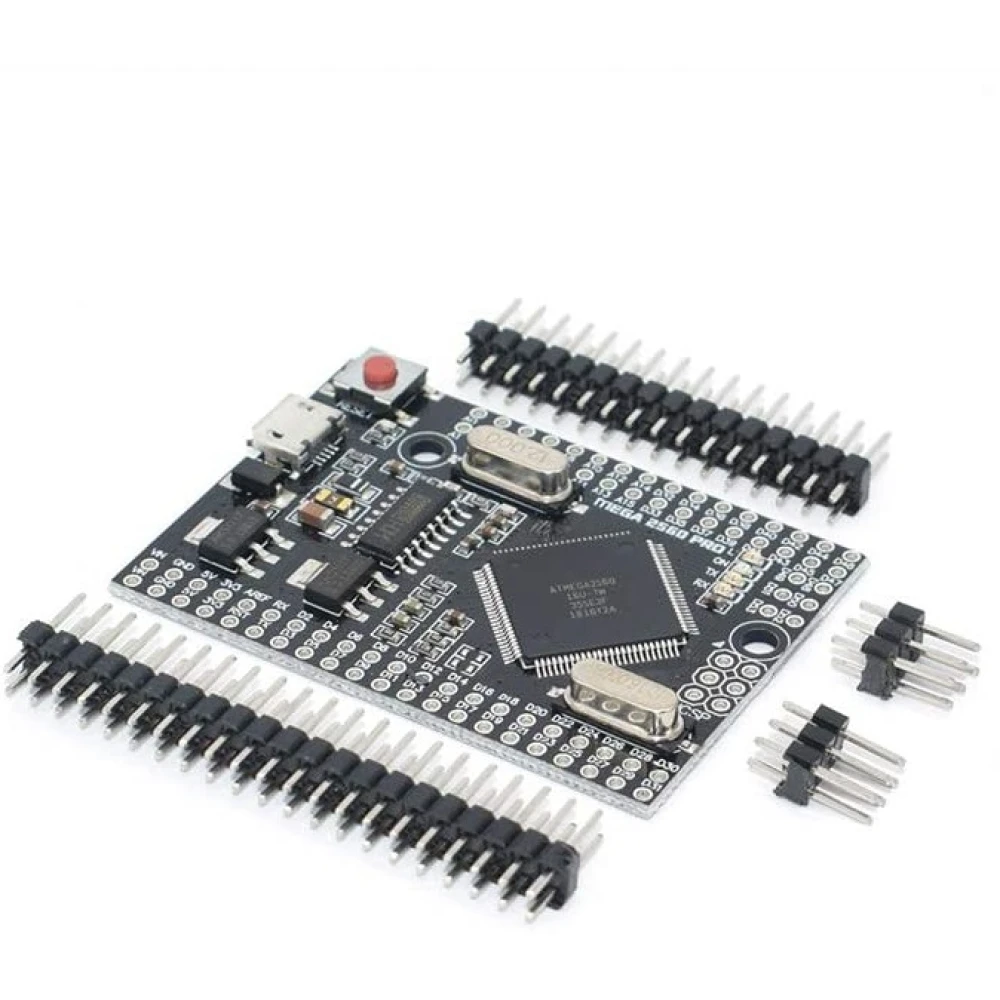

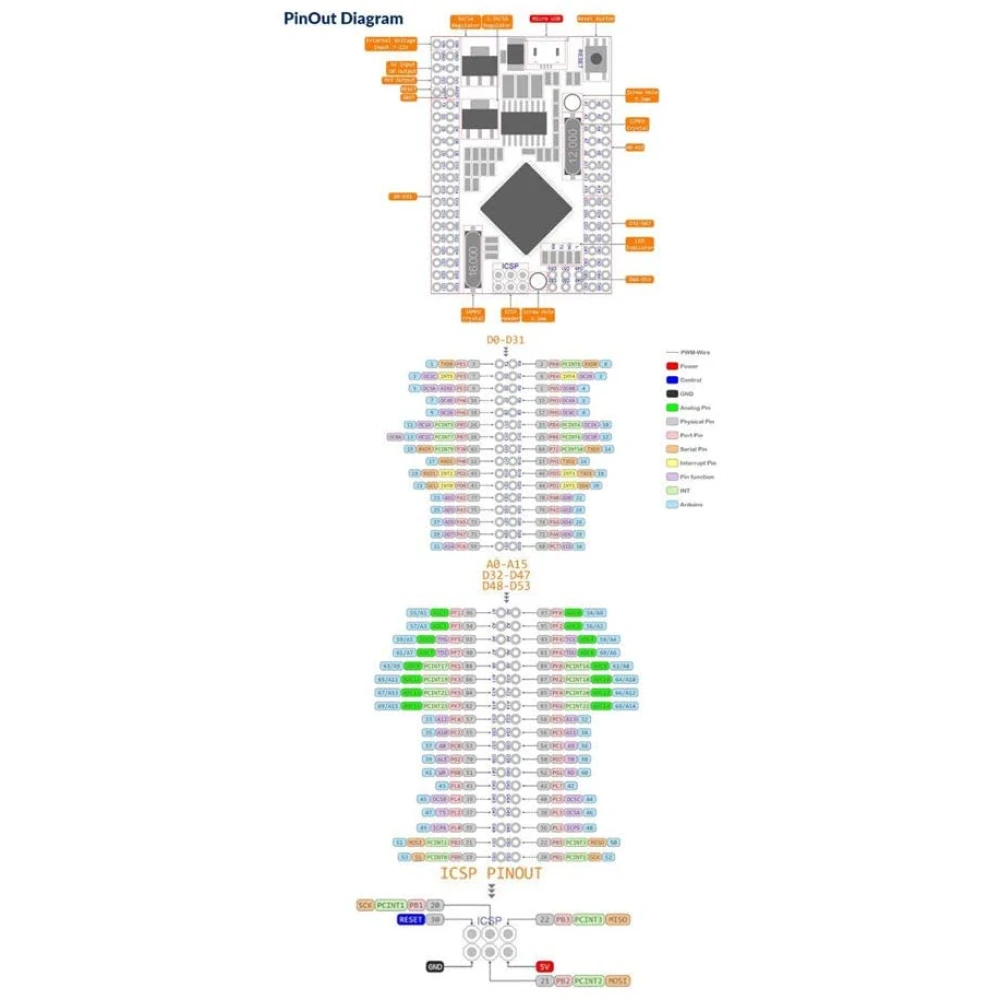

MEGA 2560 PRO Embed CH340G ATMEGA2560 Arduino Mega2560-compatible board
Brand: satkit
VAT included (Ex VAT: 14.50 €)
The MEGA 2560 PRO Embed CH340G ATMEGA2560 is an embedded board designed to offer a compact and efficient solution compatible with the popular Arduino Mega 2560 board. Built with the Atmel ATmega2560 microcontroller and the CH340G USB-UART interface chip, this board is perfect for those looking to develop DIY projects with reliable and stable hardware.
- Compatibility: Compatible with Arduino Mega 2560, allowing you to use existing libraries and projects without issues.
- Compact size: With dimensions of 38x55mm, it is ideal for projects with limited space or for solderless breadboard mounting.
- Microcontroller: Equipped with the original ATmega2560 chip operating at 16 MHz, ensuring stable and efficient performance.

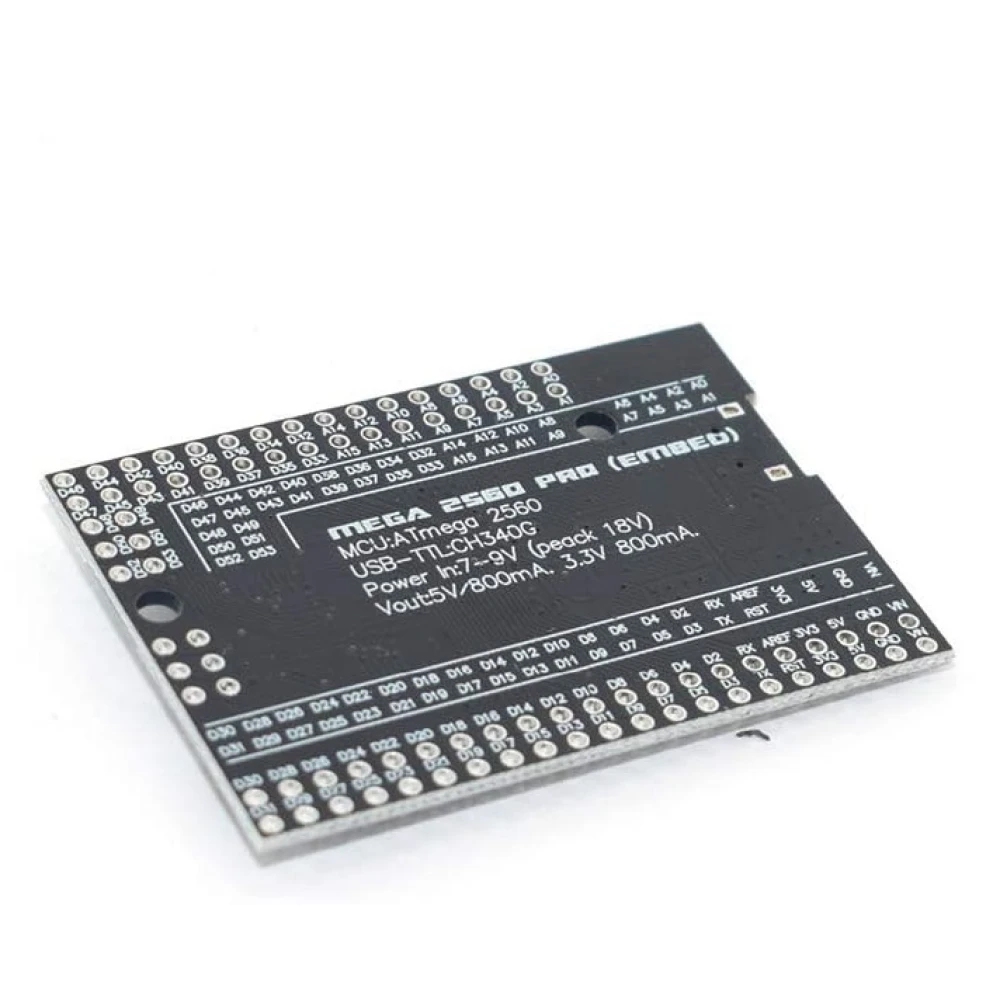

- USB interface: Uses the CH340G chip as a UART-USB converter, making it easy to connect to a computer using a microUSB cable, common in Android smartphones.
- Power supply: Can be powered via the MicroUSB connector or power headers, with an LDO voltage regulator that supports 6V to 9V DC input (peak up to 18V).
- Output current: Provides up to 800mA for 5V and 3,3V, enough for most starter projects.
This board is ideal for developers and hobbyists looking for a compact and affordable alternative to the traditional Arduino Mega 2560, especially useful in DIY projects where space and integration are crucial.
Typical use cases:
- Robotics and automation projects.
- Electronic prototyping in confined spaces.
- Educational applications for learning microcontrollers.
- Integration into custom devices requiring advanced control.
Compatibility and requirements: For optimal operation, it is necessary to install the CH340G drivers on the computer. The board connects via a standard microUSB cable and is compatible with most Arduino development environments.
- Compatible with Arduino Mega 2560 for DIY projects.
- Atmel ATmega2560 microcontroller at 16 MHz for stable performance.
- CH340G USB-UART interface for easy connection to a PC.
- Compact 38x55mm size, ideal for breadboards and space-limited projects.
- Flexible power via MicroUSB or headers, with LDO regulator for 6V-9V DC.
- Output current up to 800mA for 5V and 3,3V, suitable for most projects.
Customer Questions & Answers
What are the key differences between the MEGA 2560 PRO Embed and the standard Arduino Mega 2560 board?
The MEGA 2560 PRO Embed offers the same functionality and microcontroller (ATmega2560) as the standard Arduino Mega 2560, but in a much more compact format (38 x 55 mm) and without large USB connectors or the classic power jack. It also uses the CH340G chip for the USB-UART interface, which requires specific drivers to be installed. This makes it ideal for embedded projects or limited spaces, but it may be less beginner-friendly or less convenient for rapid prototyping.
What is included in the box when buying the product, and what are the exact weight and dimensions of the board?
In general, the package includes the MEGA 2560 PRO Embed board with the male pins soldered on. It usually does not include a MicroUSB cable or additional accessories. The official board dimensions are 38 mm x 55 mm and the approximate weight is 11 grams.
Is IDE and operating system compatibility the same as a traditional Arduino Mega?
It works with the standard Arduino IDE and is programmed in the same way as a conventional Mega 2560. However, it uses the CH340G chip for USB communication, so you need to install the CH340G driver on Windows, Mac or Linux before use. This is an extra step compared with models using an FTDI or ATmega16U2 chip.
What are the main precautions to ensure the MEGA 2560 PRO Embed lasts in a permanent installation?
It is recommended to protect the board against short circuits and static electricity, ensure adequate ventilation to prevent the regulator from overheating in high-demand applications, and avoid exposure to moisture or extreme vibration. Soldering the pins carefully and using secure connectors can extend its service life.
Is the MEGA 2560 PRO Embed compatible with Arduino Mega 2560?
Yes, this board is compatible with Arduino Mega 2560, allowing you to use the same projects and libraries.
What type of USB connection does it use?
It uses a standard microUSB cable to connect the board to a computer via the CH340G converter chip.
What power voltage does it support?
It can be powered with a 6V to 9V DC input via the MicroUSB connector or headers, with a maximum peak of 18V.
Do I need to install any drivers to use it?
Yes, it is necessary to install the CH340G drivers on the computer for the board to work correctly.
What is the maximum output current?
The board provides up to 800mA for the 5V and 3,3V outputs, suitable for most starter projects.
