0.62 €
In Stock

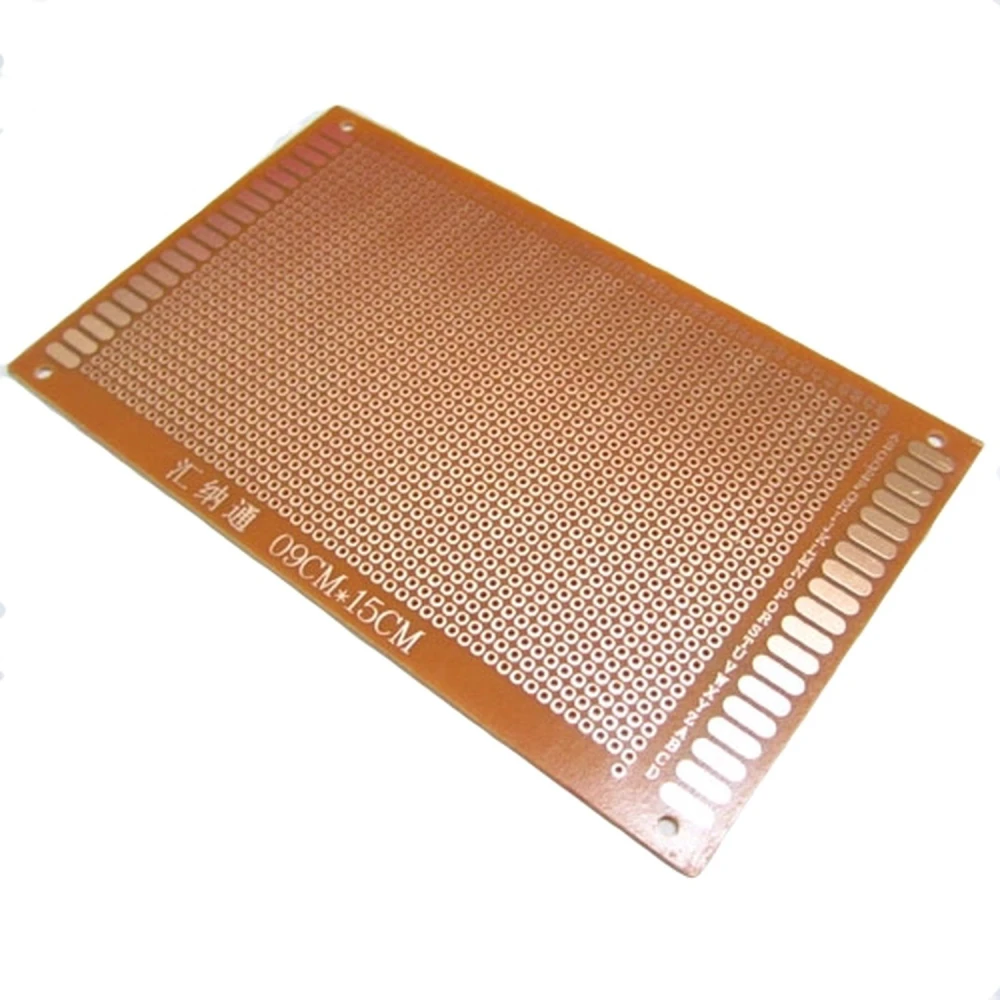

15x9 Bakelite Prototype Board for Quality Electronics Projects
Brand: satkit
0.62€
VAT included (Ex VAT: 0.50 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 0.58 € | -5% |
| 10+ | 0.55 € | -10% |
| 20+ | 0.46 € | -25% |
In Stock - Ships immediately
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The 15x9 bakelite prototype board is an essential component for anyone developing electronic projects and needing a strong, reliable base for mounting circuits. Made from a bakelite plastic sheet, this board offers durability and stability for prototypes and testing.
Key features:
- Size: 9 x 15 cm, ideal for medium and small projects.
- Thickness: 1.2 mm, providing rigidity and mechanical strength.
- Hole spacing: 2,54 mm, standard for electronic components and compatible with most pins and connectors.
- Hole diameter: 1.0 mm, suitable for soldering and component mounting.
- Material: Bakelite plastic sheet, known for electrical insulation and heat resistance.
Typical uses:
- Mounting custom electronic circuits for development and testing.
- Rapid prototyping in DIY electronics and education projects.
- Base for soldering electronic components in repair or build work.
Compatibility: This board is compatible with standard electronic components that use a 2,54 mm pin spacing, such as resistors, capacitors, integrated circuits and Arduino modules.
Thanks to its design and features, the 15x9 bakelite prototype board is a versatile and practical tool for engineers, technicians and electronics hobbyists looking for a solid base for their projects.
- Compact 9x15 cm size for electronic projects.
- 1.2 mm thickness for added rigidity and durability.
- 1.0 mm holes for easy component mounting.
- Standard 2,54 mm hole spacing compatible with common components.
- Bakelite material offering electrical insulation and heat resistance.
Customer Questions & Answers
What is the main material of the board and what advantages does it offer over fibreglass (FR4) boards?
The board is made from bakelite, a phenolic plastic, which makes it lightweight and economical. Although it is less mechanically and thermally resistant than FR4, its ease of cutting and low cost make it suitable for low- to medium-demand prototypes where extreme durability is not the main factor.
What are the exact dimensions, thickness and hole diameter of the board?
The board measures exactly 15 cm x 9 cm, with a thickness of 1.2 mm. The holes have a diameter of 1.0 mm and are spaced 2.54 mm apart (standard 0.1-inch pitch), suitable for most through-hole components.
Does the board support SMD component mounting, or is it only suitable for through-hole (THT) components?
This board is designed exclusively for THT (through-hole) component mounting. It does not have the pads, layout or dimensions suitable for soldering SMD components safely or efficiently.
What are the thermal limits and soldering recommendations to avoid damaging the bakelite?
Bakelite can degrade if exposed to temperatures above 250°C for prolonged periods; it is recommended to use soldering irons between 320°C and 370°C and limit soldering time on each pad to less than 3 seconds to avoid delamination or burning.
Are there any electrical safety standards or restrictions for using this board in high-voltage applications?
This board is not certified under international high-voltage standards (such as IEC or UL for critical applications). It is recommended only for low-voltage applications and educational or prototyping use, not for final installations connected to the mains supply.
What is the 15x9 bakelite prototype board used for?
It is used to mount and solder custom electronic circuits in prototype and testing projects.
What are the size and thickness of this board?
The board measures 9 x 15 cm and has a thickness of 1.2 mm.
Is it compatible with standard electronic components?
Yes, the hole spacing is 2,54 mm, compatible with most standard electronic components.
What material is the board made from?
It is made from a bakelite plastic sheet, which provides electrical insulation and heat resistance.
