DPS5005-USB Programmable Power Supply Module with Constant Voltage and LCD Display
Brand: satkit
47.97€
VAT included (Ex VAT: 39.00 €)
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
Product description
The DPS5005-USB programmable power supply module is an adjustable power supply that combines analogue integration and digital control to deliver constant voltage and current with high precision. Equipped with an LCD display, it provides a clear view of parameters such as voltage, current and output power, making real-time control and monitoring easier.
Main features:
- Adjustable output voltage range from 0 to 50.00V with 0.01V resolution.
- Adjustable current range from 0 to 5.000A with 0.001A resolution.
- Stores up to 10 groups of preset values for quick setup.

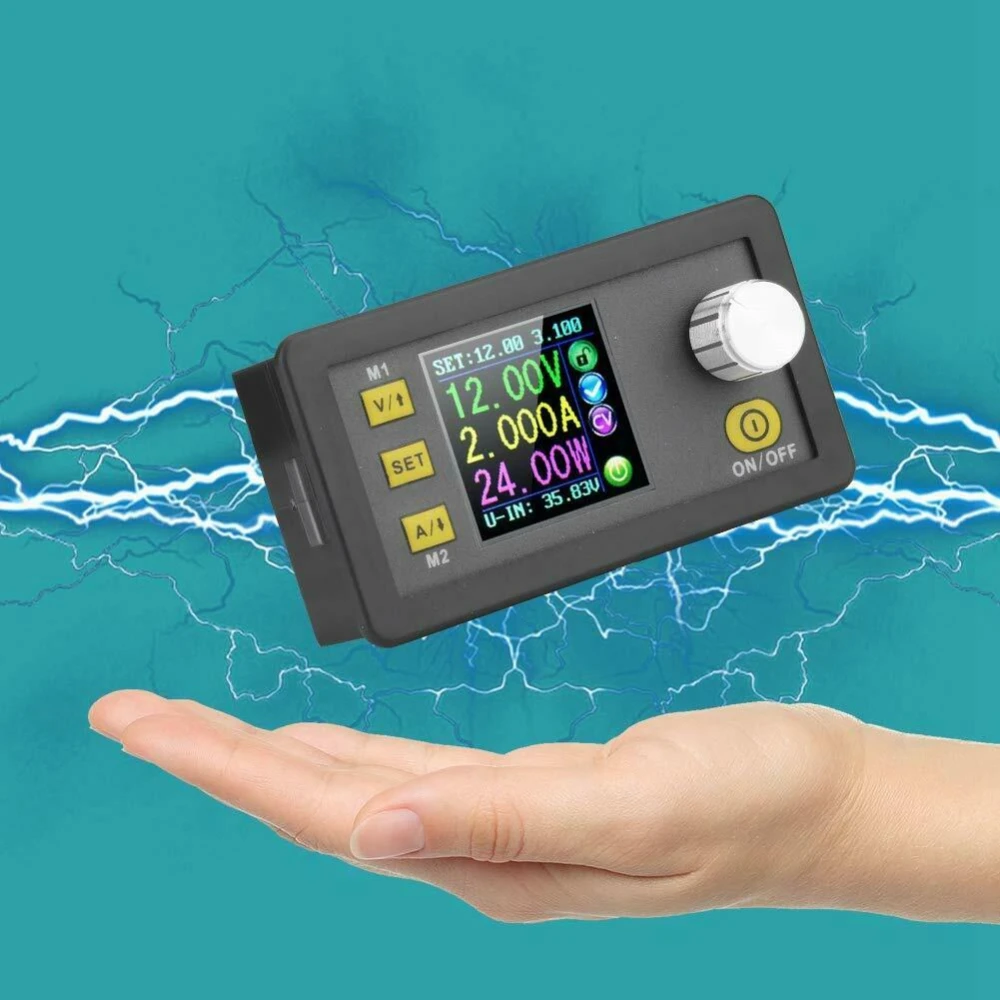

- LCD display showing preset voltage, input and output voltage, preset and output current, as well as output power.
- Output status indicators to show whether the power supply is active and in constant voltage or constant current mode.
- High accuracy in voltage (±0,5% + 1 digit) and current (±0,5% + 2 digits).
- Compact dimensions: approximately 79 x 43 x 48 mm (L x W x H).
Technical specifications:
- Model: DPS5005
- Input voltage range: 6.00-55.00V
- Output voltage range: 0-50.00V
- Output current: 0-5.000A
- Output power: 0.00-250.0W
- Output voltage resolution: 0.01V
- Output current resolution: 0.001A
- Output voltage accuracy: ±(0,5% + 1 digit)
- Output current accuracy: ±(0,5% + 2 digits)

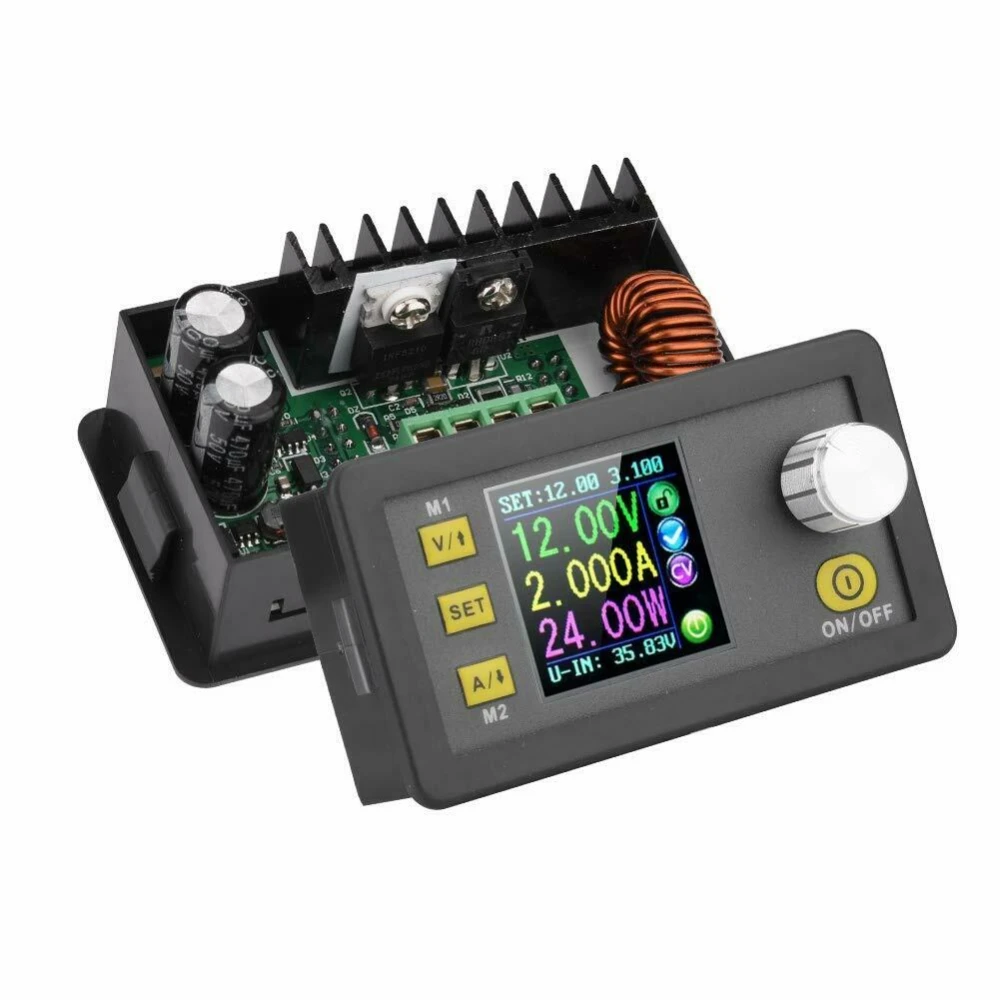

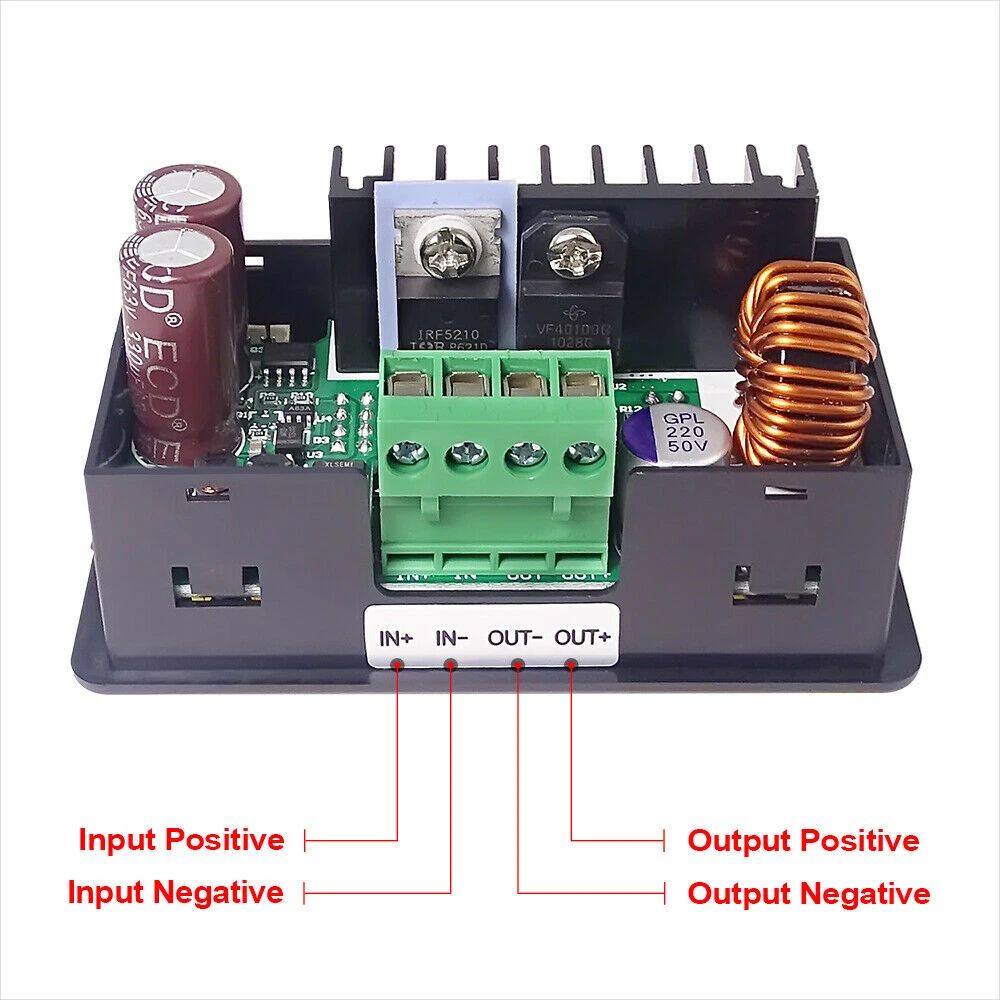

- Inputs and outputs: IN+, IN-, OUT+, OUT-
Typical uses:
This module is ideal for electronics projects that require a precise and programmable power supply. It is useful for circuit testing, prototype development, electronic soldering equipment and power supply for video game consoles, among others.
Compatibility:
Compatible with input voltage sources between 6 and 55V. It requires the input voltage to be at least 1,1 times higher than the output voltage for optimal operation.

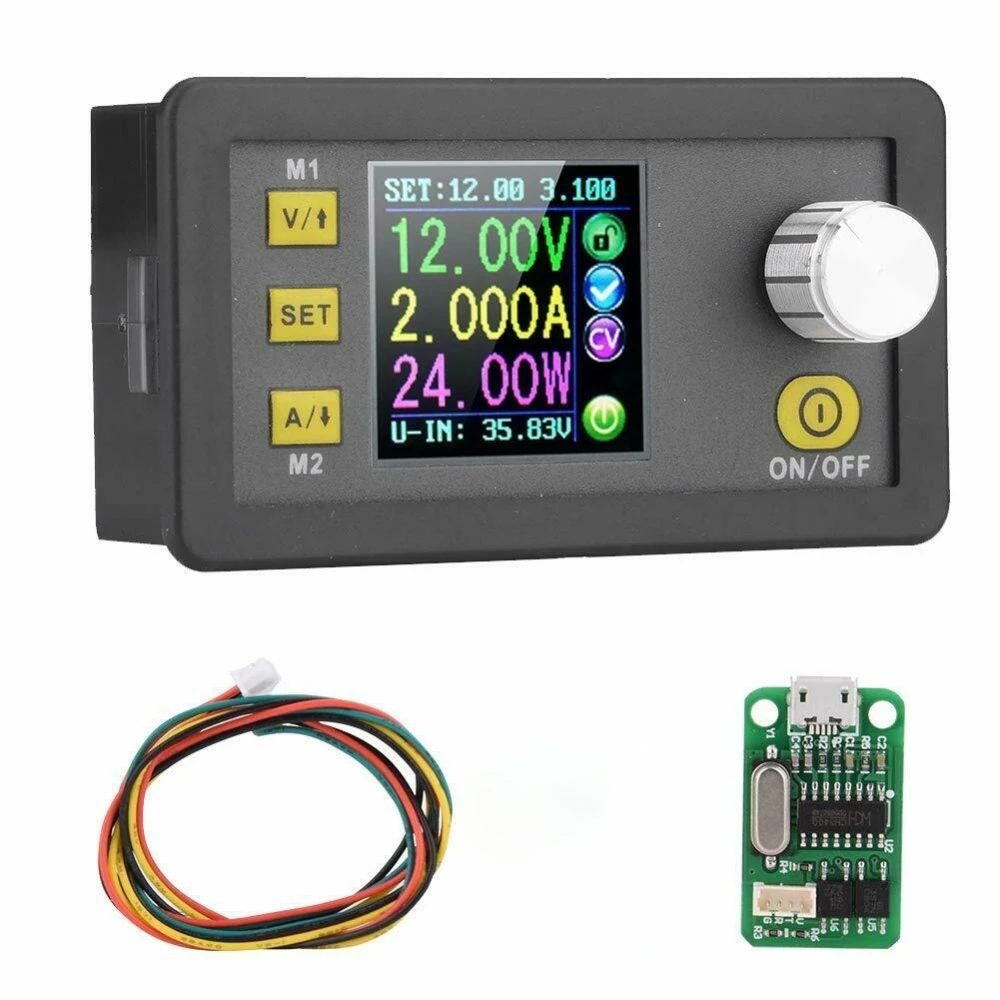

Package contents:
- 1 x DPS5005-USB programmable power supply

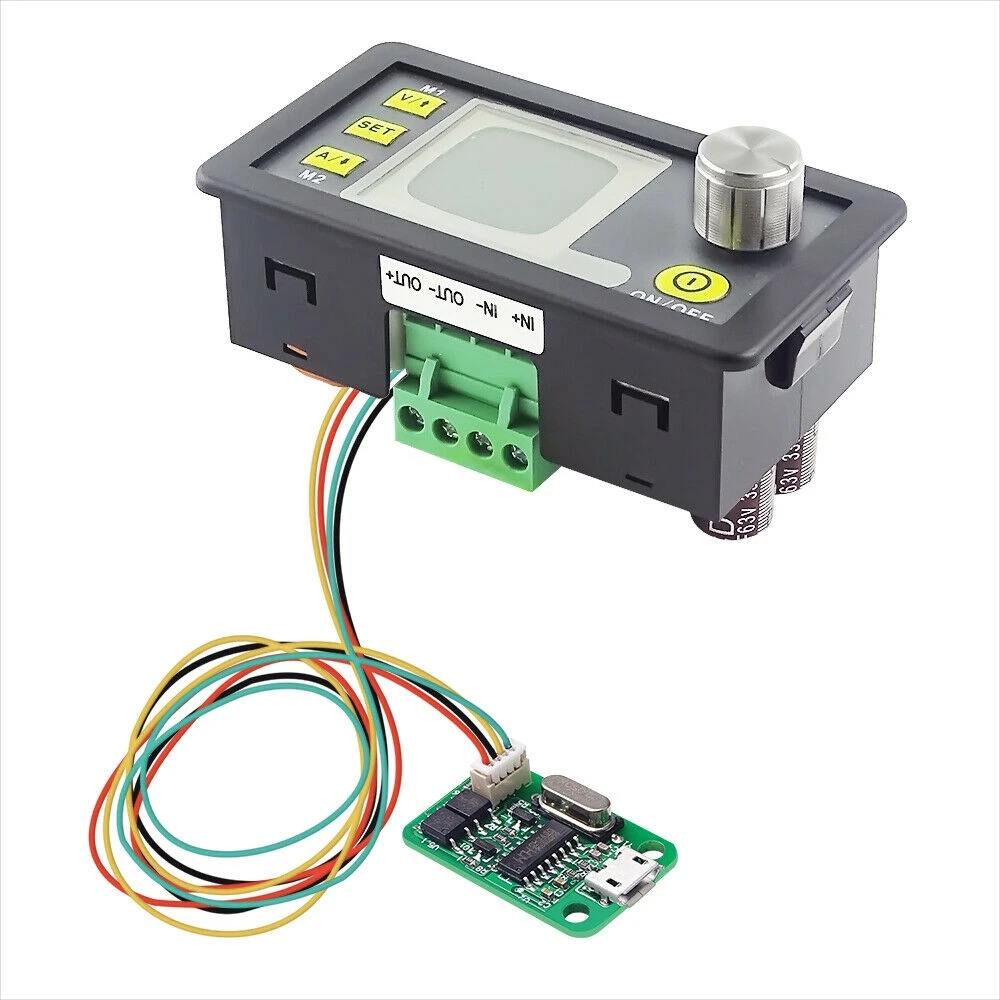

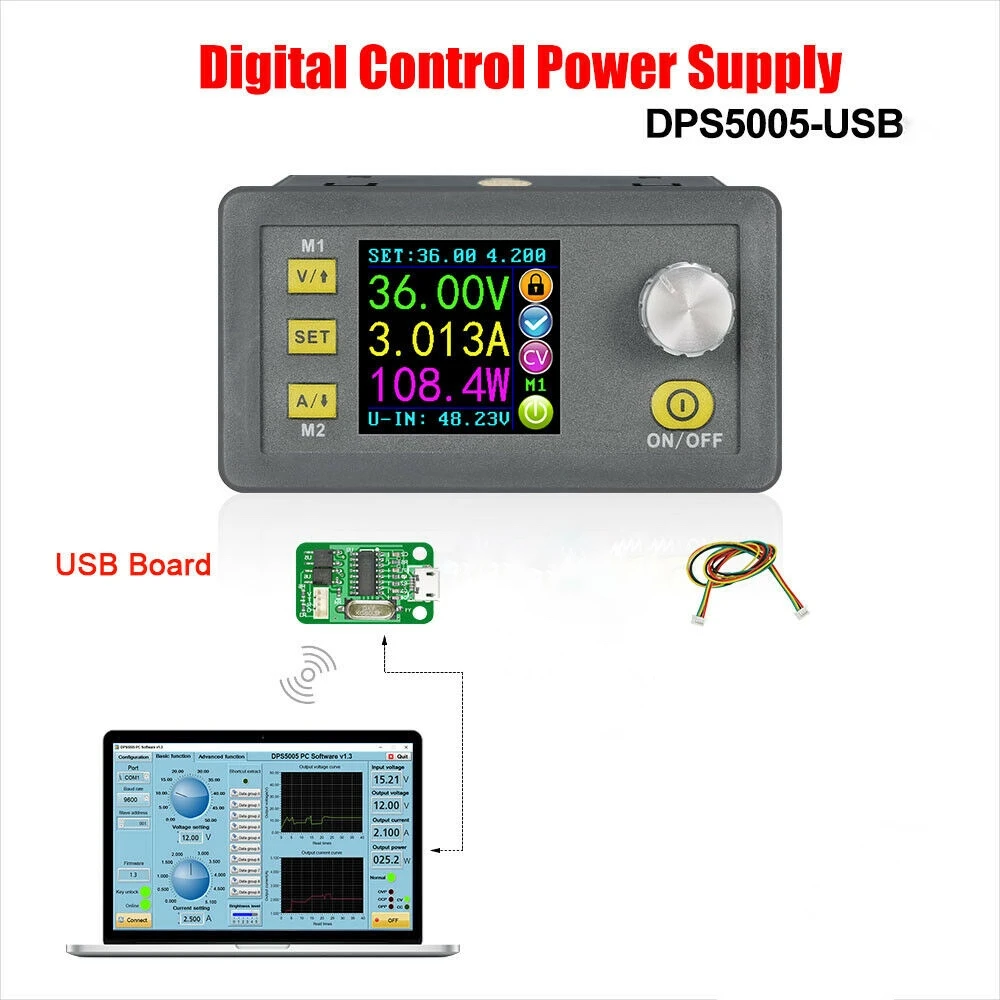

- 1 x USB control card
- 1 x User manual
Important notes:
- Avoid touching electronic components when receiving the product to prevent damage from static electricity.
- In high-current applications, adequate heat dissipation is required.
This programmable power supply module is an advanced and practical tool for professionals and hobbyists looking for precision and versatility in their electronics projects.
- Adjustable output voltage from 0 to 50.00V in 0.01V steps
- Adjustable output current from 0 to 5.000A in 0.001A steps
- LCD display showing output voltage, current and power
- Stores 10 groups of preset values for quick setup
- High accuracy in voltage (±0,5% + 1 digit) and current (±0,5% + 2 digits)
- Compact dimensions: 79 x 43 x 48 mm (L x W x H)
- Includes USB control card and user manual
Customer Questions & Answers
What are the physical dimensions and weight of the module? Does it include all accessories needed for operation?
The DPS5005-USB measures approximately 79 mm x 43 mm x 48 mm (Length x Width x Height). The specific weight usually does not exceed 200 g. The package normally contains only the module; the input power supply (6–55 V DC) and cables are usually purchased separately.
Which power sources or adapters is the DPS5005-USB compatible with? Can it be powered directly from the domestic mains supply?
The DPS5005-USB requires a 6.00–55.00 V DC input, so it cannot be connected directly to 220 V or 110 V AC. It is recommended to use a power supply with at least 1.1 times the expected maximum output voltage and current, to maintain stability and safety of the module.
What protection measures and safety certifications does the module include to prevent damage to the user or connected equipment?
The DPS5005-USB includes overcurrent, overvoltage and short-circuit protection. Most of these modules do not come with factory international certifications (such as CE or UL), so they are recommended only for controlled and supervised environments. Always check voltage and connection compatibility to maximise safety.
What real accuracy can be expected when adjusting voltage and current in laboratory applications? Are there any stability limitations at full load?
The specified accuracy is ±0.5% +1 digit for voltage and ±0.5% +2 digits for current. In critical applications, stability depends on the power supply used and thermal dissipation. At maximum loads (250 W or 5 A), slight fluctuations may occur if ventilation or the input supply is insufficient. It is recommended to operate at 80% of maximum load for the highest reliability.
What is the output voltage range of the DPS5005-USB?
The adjustable output voltage range is 0 to 50.00V with a resolution of 0.01V.
What is the maximum current this module can deliver?
It can deliver an adjustable output current between 0 and 5.000A with a resolution of 0.001A.
What is included in the package when buying the DPS5005-USB?
The package includes a programmable power supply, a USB control card and a user manual.
How are the output parameters displayed?
The module has an LCD display that shows preset voltage, input and output voltage, preset and output current, and output power.
What precautions should I take when using this module?
Do not touch the components when receiving the product to avoid damage from static electricity and make sure the input voltage is at least 1,1 times higher than the output voltage. Heat dissipation should also be considered in high-current applications.
