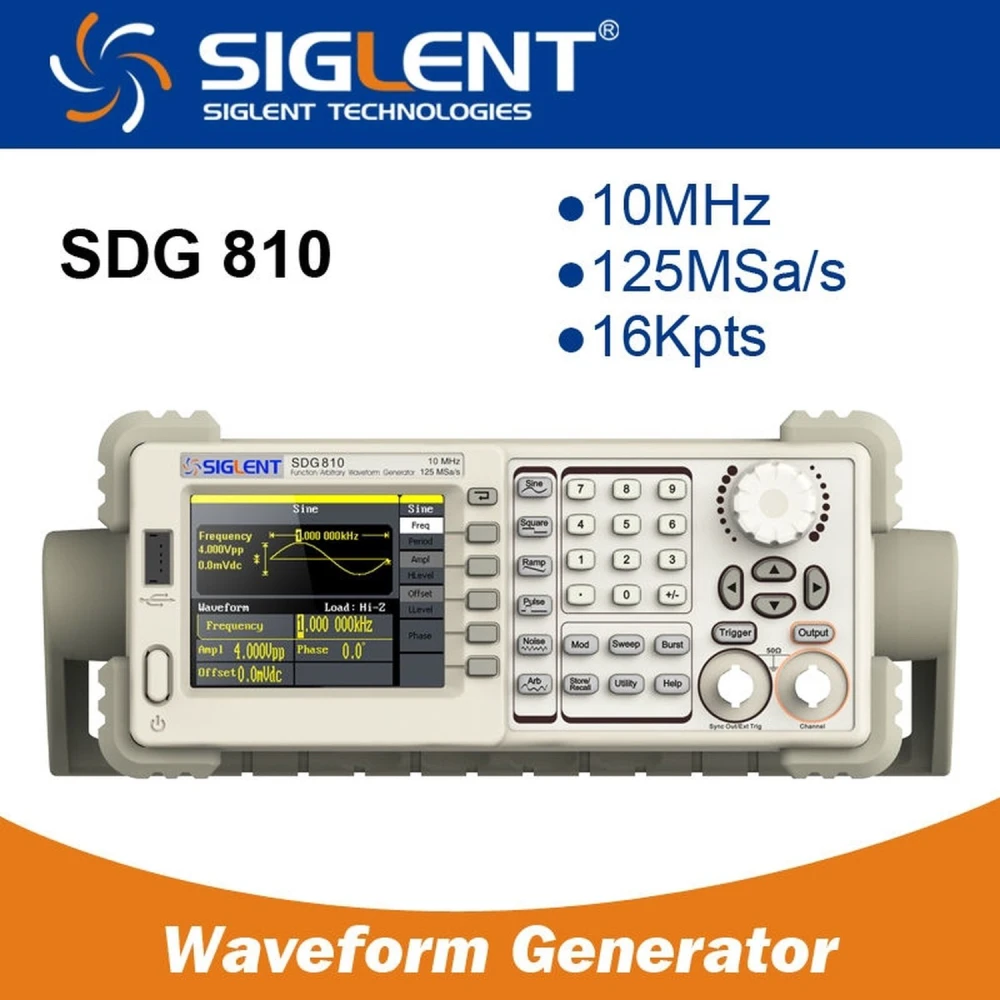

Siglent SDG810 10MHz arbitrary function generator for electronics
Brand: Siglent
VAT included (Ex VAT: 177.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 209.00 € | -4% |
| 10+ | 204.65 € | -6% |
| 20+ | 195.94 € | -10% |
The Siglent SDG810 10MHz arbitrary function generator is an advanced instrument designed to deliver precise and versatile signals in professional and educational electronics applications. Equipped with advanced DDS technology, it provides a maximum output frequency of 10MHz and a sampling rate of 125 MSa/s, ensuring high signal quality and resolution.
This generator features a single output channel and supports five standard waveform types, plus 46 built-in arbitrary waveforms, including DC. Its innovative EasyPulse technology allows the generation of pulses with low jitter and fast edges, precisely adjusting duty cycle, edge and pulse width.
Key features:
- Advanced DDS technology with 14-bit vertical resolution for sharp, accurate signals.
- Single-channel output with standard waveforms: sine, square, ramp, pulse and Gaussian white noise.
- 46 built-in arbitrary waveforms for maximum flexibility.
- Full modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst.
- USB Host and USB device interface for storage and software updates.
- Ability to store up to 10 custom arbitrary waveforms in non-volatile memory.
- Compatible with SIGLENT digital storage oscilloscopes for advanced lab integration.
- EasyWave software for simple editing and configuration of arbitrary waveforms.
Technical specifications:
- Model: SDG810
- Maximum output frequency: 10MHz
- Output channels: 1
- Sampling rate: 125 MSa/s
- Waveform length: 16 kpts
- Frequency resolution: 1 µHz
- Vertical resolution: 14 bits
- Waveforms: Sine, square, ramp, pulse, Gaussian white noise, and arbitrary waveforms.
- Frequency range by waveform:
- Sine wave: 1 µHz to 10 MHz
- Square wave: 1 µHz to 10 MHz
- Pulse: 500 µHz to 5 MHz
- Ramp/Triangle: 1 µHz to 300 kHz
- Gaussian white noise: >10 MHz bandwidth (-3dB)
- Arbitrary waveform: 1 µHz to 5 MHz
- Modulation: AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst
- Amplitude: 4 mVpp to 20 Vpp (HighZ), 2 mVpp to 10 Vpp (50 ohm)
Typical uses:
- Signal generation for testing and calibration of electronic circuits.
- Signal simulation for communication system development and testing.
- Education and training in electronics and telecommunications.
- Integration with digital oscilloscopes for advanced signal analysis.
Compatibility: Compatible with EasyWave software for advanced editing and with SIGLENT digital oscilloscopes, providing an integrated working environment for professionals and technicians.
Note: This product is currently out of stock. Please check our store for alternative options or to receive availability notifications.
- Advanced DDS technology with 125 MSa/s and 14-bit vertical resolution
- Maximum output frequency of 10MHz with 1 output channel
- 46 built-in arbitrary waveforms and 5 standard waveforms
- AM, FM, PM, PWM and other modulation functions
- USB Host and USB device interface for storage and updates
- Non-volatile memory for 10 user arbitrary waveforms
- Compatible with SIGLENT digital oscilloscopes for integration
- EasyWave software for editing arbitrary waveforms
Customer Questions & Answers
What are the dimensions, weight, and what is included in the generator box?
The SDG810 generator measures approximately 261 mm x 112 mm x 295 mm and weighs around 2.6 kg. The box includes the generator, power cable, user manual, USB cable and, depending on the supplier, at least one BNC cable and a CD with software.
Does it require any additional software or hardware to connect to a computer or use all its functions?
It can be connected to a PC via USB. For advanced editing of arbitrary waveforms, it is recommended to install Siglent EasyWave software (free download). No special additional hardware is required, but the PC must run Windows (check exact compatibility depending on the version).
What tolerance does the unit have to voltage variations, and what is its typical power consumption?
It operates on standard AC voltages (100–240 V, 50/60 Hz) and is designed to tolerate slight fluctuations within that range. The maximum reported consumption is 25 W. To ensure stability and durability, it is recommended to use it on a regulated electrical installation and avoid surges above those values.
In what technical aspects is the SDG810 superior to other similar DDS generators?
The SDG810 stands out for its EasyPulse technology, which provides pulses with fast rise/fall times and low jitter, regardless of frequency or duty cycle, offering better signal quality and control than most conventional DDS generators in its price range.
What is the maximum output frequency of the Siglent SDG810 generator?
The maximum output frequency is 10 MHz.
How many output channels does this function generator have?
It has a single output channel.
What types of waveforms can it generate?
It can generate standard waveforms such as sine, square, ramp, pulse, Gaussian white noise and 46 built-in arbitrary waveforms.
Can custom waveforms be stored?
Yes, it has 10 non-volatile storage slots for user arbitrary waveforms.
Which devices is the Siglent SDG810 compatible with?
It is compatible with SIGLENT digital storage oscilloscopes and can connect via USB for storage and updates.
