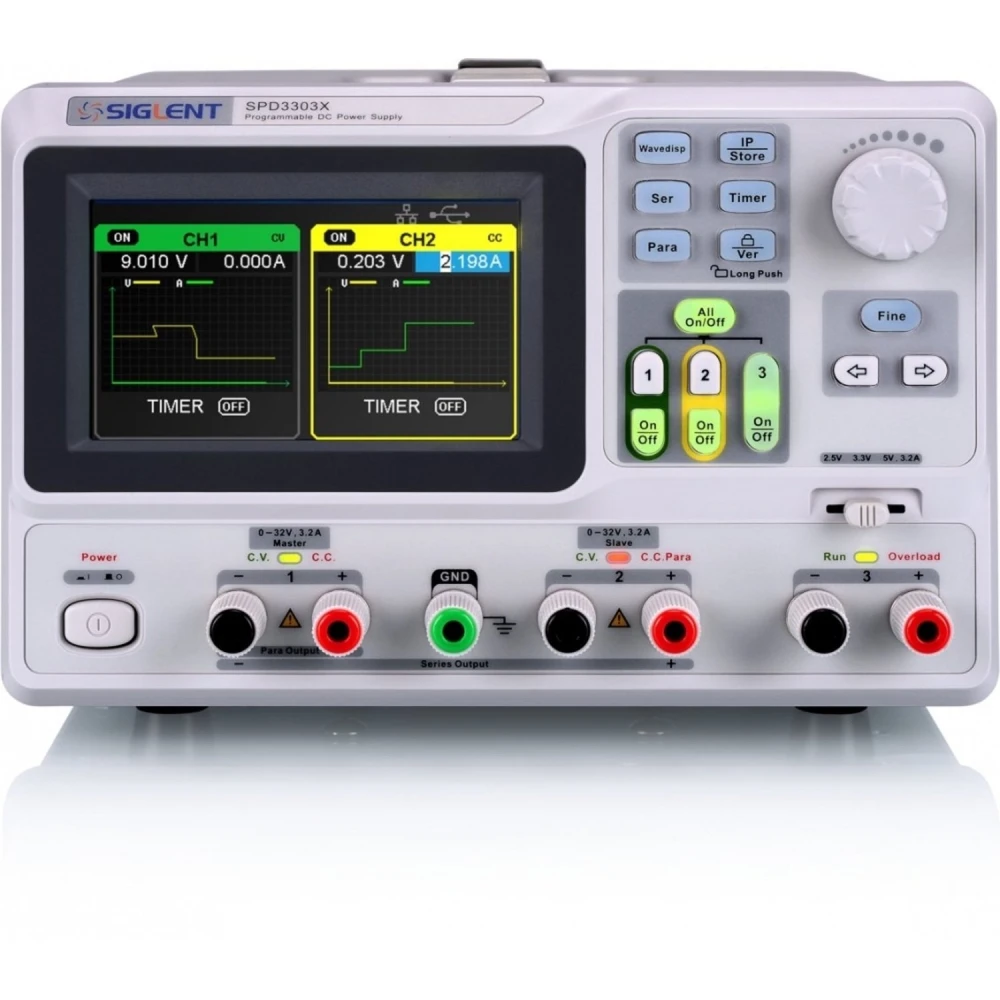

Siglent SPD3303X-E Triple Output Programmable Bench Power Supply
Brand: Siglent
VAT included (Ex VAT: 360.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 425.09 € | -4% |
| 10+ | 416.23 € | -6% |
| 20+ | 398.52 € | -10% |
The Siglent SPD3303X-E bench power supply is a programmable linear DC power supply, designed to deliver precision and flexibility in professional and electronics development environments.
This model features a 4.3-inch colour TFT LCD display that lets you view waveforms and output parameters in real time, making control and monitoring easier.
Key features
- Three independent and isolated outputs: two adjustable channels of 0-32V and 0-3.2A, and one fixed channel selectable between 2.5V, 3.3V or 5V with 3.2A.
- Maximum total power of 220W to cover a wide range of power needs.
- Resolution and accuracy: 5 digits for voltage, 4 digits for current, with minimum resolution of 1mV and 1mA. Voltage accuracy ±(0,03% reading + 10mV) and current accuracy ±(0,3% reading + 10mA).
- Output modes: independent, series and parallel, allowing channels to be combined for greater power or voltage.
- Built-in protection: against short circuits and overloads to help ensure equipment and user safety.
- Fan with intelligent temperature control to minimise operating noise.
- Parameter storage: capacity to save and recall up to 5 groups of internal settings, with support for external expansion.
- Connectivity and software: includes EasyPower PC software, compatible with SCPI and LabVIEW driver for integration into automated test systems.
Typical uses
This bench power supply is ideal for research, development, testing and production in electronics. Its programmable triple output and operating modes make it suitable for powering complex circuits, component testing, and simulating real operating conditions.
Compatibility and accessories
Compatible with 100V, 120V, 220V and 230V mains, adapting to different environments. Includes USB cable, test leads, 220V EU power cable, product and calibration certificate, quick manual and CD with documentation and software.
With its clear graphical interface and advanced functions, the Siglent SPD3303X-E is an essential tool for professionals who need precision and versatility in programmable power supplies.
- Three independent outputs: two adjustable channels 0-32V/3.2A and one fixed 2.5/3.3/5V 3.2A
- 4.3-inch colour TFT LCD display with waveform viewing
- Output modes: independent, series and parallel for greater flexibility
- Short-circuit and overload protection for safety
- Internal storage for 5 parameter groups and external expansion
- EasyPower software for PC control and programming
- Fan with intelligent temperature control for low noise
- Compatible with 100V/120V/220V/230V mains
Customer Questions & Answers
What is included in the box, and what are the exact dimensions of the unit?
The box includes the SPD3303X-E power supply, a mains cable, two sets of test leads (banana to crocodile clip), a USB cable, CD with software and the manual. The approximate dimensions of the unit are 245 mm × 158 mm × 315 mm and the weight is around 7.0 kg.
What are the main limitations for continuous use regarding overload, ventilation or accuracy?
The unit has overcurrent and overload protection; however, it must always be operated within the maximum specifications: up to 32 V and 3.2 A per adjustable channel, with a combined total power of 220 W. The intelligent fan regulates temperature, but it is important not to block the ventilation grilles. Typical output accuracy: ±0.03% +10 mV for voltage and ±0.3% + 10 mA for current.
Does this power supply comply with safety standards, and what type of warranty does the manufacturer offer?
The SPD3303X-E complies with international electrical safety standards (IEC61010) and electromagnetic compatibility requirements. It offers a standard 3-year warranty under normal use conditions, covering manufacturing defects. After-sales support includes spare parts and calibration through authorised distributors.
What type of outputs does the Siglent SPD3303X-E power supply have?
It has three independent outputs: two adjustable channels of 0-32V and 0-3.2A, and one fixed channel selectable between 2.5V, 3.3V or 5V with 3.2A.
Can I control the power supply from a computer?
Yes, it includes EasyPower PC software and is compatible with SCPI and LabVIEW driver for programming and remote control.
What protection does this bench power supply offer?
It has short-circuit and overload protection to protect both the equipment and connected devices.
Is it compatible with different mains voltages?
Yes, it is designed to work with 100V, 120V, 220V and 230V mains.
What accessories are included when I buy it?
It includes a USB cable, two output test leads, a 220V EU power cable, product and calibration certificate, quick manual and a CD with documentation and software.
