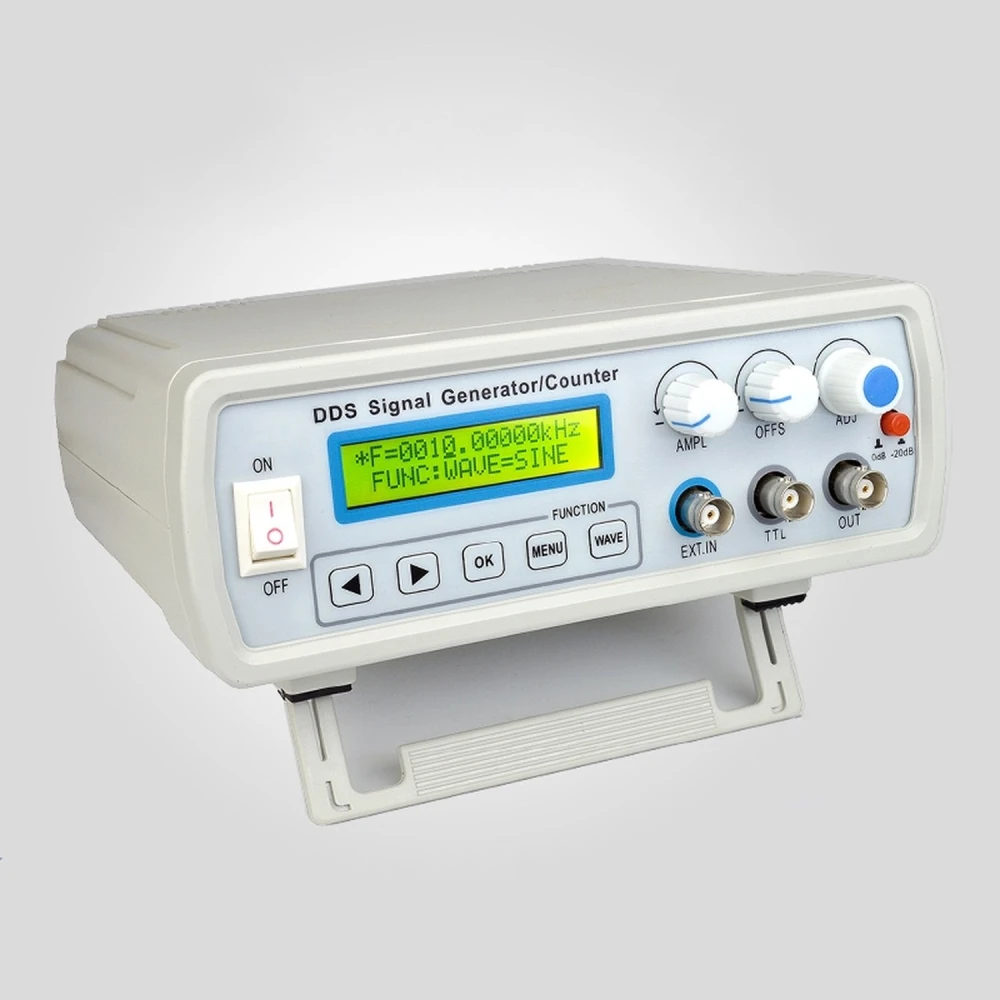

FY2102S DDS Function Generator 2 MHz with Frequency Counter up to 60 MHz
Brand: FeelTech
VAT included (Ex VAT: 49.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 57.86 € | -4% |
| 10+ | 56.05 € | -7% |
| 20+ | 51.23 € | -15% |
The FY2102S DDS Function Generator 2 MHz is an advanced direct digital synthesis (DDS) instrument designed to generate electrical signals with high precision and stability. Featuring an FPGA design, this generator produces sine, square, triangle and sawtooth waves with a frequency range from 0,01 Hz to 2 MHz and a resolution of 10 mHz.
It also includes a frequency counter capable of measuring frequencies up to 60 MHz, making it easier to measure internal and external signals for a wide range of electronic applications.
Main features:
- Maximum effective output of 9 Vpp no load.
- Adjustable waveforms: sine, square (duty cycle adjustable between 1% and 99%), triangle, rising sawtooth and falling sawtooth.
- High frequency accuracy with stability of ±2×10⁻⁶ and sine wave distortion ≤0.8% at 1 kHz.
- Frequency resolution of 0,01 Hz (10 mHz).
- Integrated frequency counter with measurement range from 1 Hz to 60 MHz.
- Linear sweep function with configurable start and end points and adjustable readout speed.
- Memory for storing up to 10 custom parameter settings.
- LCD1602 display in English for easy operation and clear viewing.
- Powered by AC220V to DC5V 1A adapter.
- Compact, portable design with dimensions 200 mm x 190 mm x 90 mm.
Typical uses:
- Testing and calibration in electronic laboratories.
- Development and diagnosis of electronic circuits.
- Teaching projects and technical training.
- Production and quality control in electronic assembly lines.
Compatibility: Compatible with a wide range of electronic devices that require precise test signals and reliable frequency measurements.
This generator is ideal for hobbyists, technicians and professionals looking for a multifunctional, reliable and easy-to-use unit for their electronic signal generation and measurement needs.
- DDS function generator with frequency range from 0,01 Hz to 2 MHz
- Integrated frequency counter measuring up to 60 MHz
- Waveforms: sine, square (adjustable), triangle, sawtooth
- Output amplitude ≥9 Vpp no load
- 10 mHz frequency resolution and high accuracy
- LCD1602 display for clear viewing
- Memory for 10 user settings
- Linear sweep function with adjustable start and end points
- DC5V power supply via AC220V adapter
- Compact, portable design, ideal for lab and teaching
Customer Questions & Answers
What is the frequency range of the FY2102S DDS function generator?
The generator can produce signals from 0,01 Hz to 2 MHz in different waveforms.
What types of waveforms can this unit generate?
It generates sine, square with adjustable duty cycle, triangle, and rising and falling sawtooth waves.
What frequency range can the integrated frequency counter measure?
The frequency counter can measure frequencies from 1 Hz to 60 MHz.
Can custom settings be stored in the generator?
Yes, the unit allows storage of up to 10 user-configured parameter groups for quick recall.
What type of display does the generator have?
It has an LCD1602 display in English for easy operation and clear parameter viewing.
