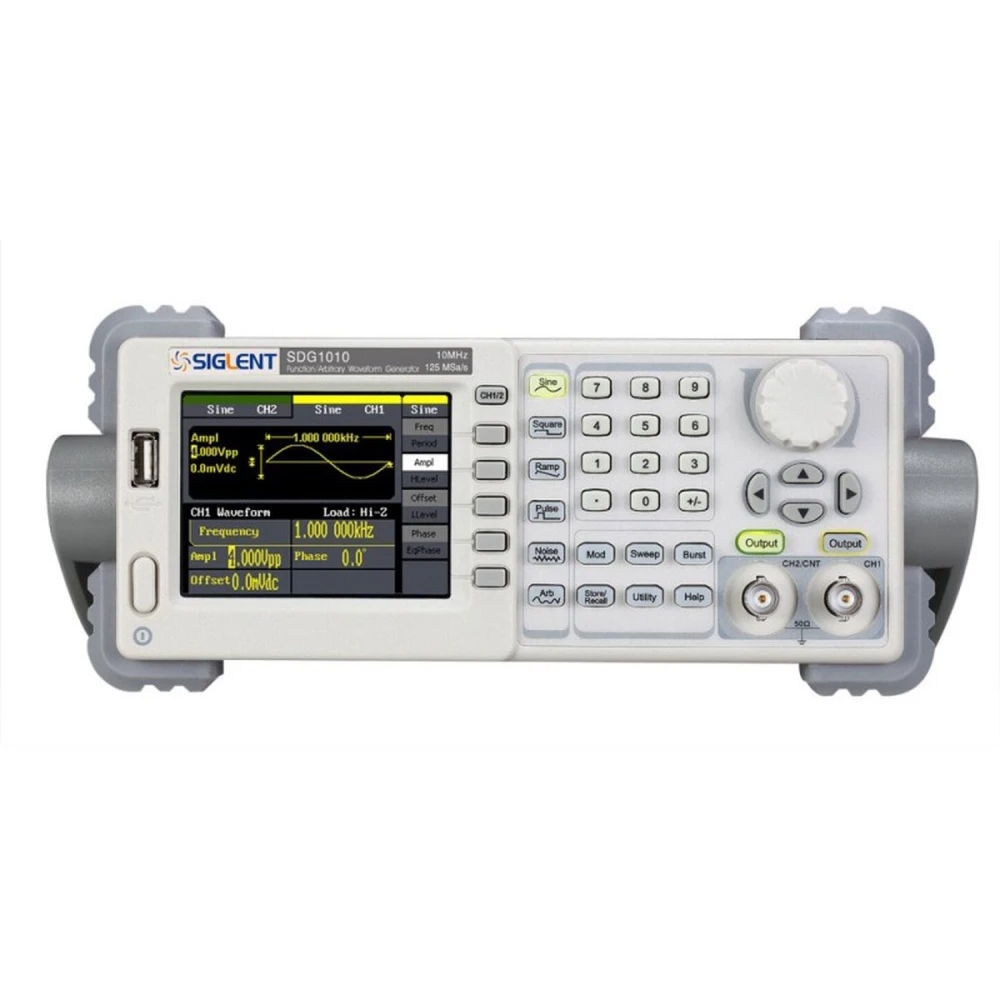

Siglent SDG1010 10MHz arbitrary function generator for electronics labs
Brand: Siglent
VAT included (Ex VAT: 189.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 223.17 € | -4% |
| 10+ | 218.52 € | -6% |
| 20+ | 209.22 € | -10% |
Siglent SDG1010 10MHz arbitrary function generator is an essential instrument for electronics labs and engineering projects that require precise and varied signals. This generator uses DDS (Direct Digital Synthesis) technology to provide a maximum output frequency of 10MHz with a frequency resolution of 1 µHz and a vertical resolution of 14 bits, ensuring clean and accurate signals.
Key features:
- Maximum output frequency: 10MHz.
- Output channels: 2, allowing simultaneous signal generation.
- Sampling rate: 125 MSa/s for high waveform fidelity.
- Waveform length: 16 kpts, ideal for complex waveforms.
- Standard waveforms: sine, square, ramp, pulse, Gaussian white noise and 48 built-in arbitrary waveform types.
- Modulation functions: AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep and Burst for advanced applications.
- Frequency counter: built in with a range of 100 mHz to 200 MHz.
- Connectivity: standard USB Host and Device, with optional USB-GPIB port for remote control.
- Compatibility: connects seamlessly with SDS1000 series digital oscilloscopes and supports remote control.
Typical uses: This generator is ideal for testing and development in electronics, including circuit design, component testing, signal simulation and technical education. Its ability to generate multiple signal types makes it versatile for a wide range of lab applications.
Technical specifications:
- Model: SDG1010
- Maximum frequency: 10MHz
- Channels: 2
- Sampling rate: 125 MSa/s
- Waveform length: 16 kpts
- Frequency resolution: 1 µHz
- Vertical resolution: 14 bits
- Waveforms: Sine, square, ramp, pulse, Gaussian white noise, 48 arbitrary waveforms
- Modulation functions: AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst
- Frequency counter: 100 mHz - 200 MHz
- Connectivity: USB Host & Device, optional USB-GPIB port
- Size: 229mm x 105mm x 281mm
Availability note: This product is currently out of stock. We recommend checking alternatives or signing up for restock notifications.
- DDS technology with dual outputs and adjustable phase for precise signals
- 10MHz maximum frequency with 1 µHz resolution
- High 125 MSa/s sampling rate and 14-bit vertical resolution
- 48 internal arbitrary waveforms and 5 standard types
- Advanced modulation functions: AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst
- Built-in frequency counter up to 200 MHz
- USB Host & Device connectivity and optional USB-GPIB port
- Compatible with SDS1000 digital oscilloscopes and remote control
Customer Questions & Answers
What external connections and storage supports does the device support for loading and updating arbitrary waveforms?
The SDG1010 has USB ports (Device and Host), allowing direct connection to a PC and the use of USB memory sticks to load arbitrary waveforms or update the firmware. GPIB support is optional and requires an additional module.
What are the frequency limits and waveform types it can generate on each channel, and what is the typical distortion for sine waves?
Sine and square waves cover from 1 µHz to 10 MHz, while pulses reach from 500 µHz to 5 MHz, ramps from 1 µHz to 300 kHz and arbitrary waveforms from 1 µHz to 5 MHz. The generator specifies total harmonic distortion (THD) of <0.04% typically for sine waves in the 1 kHz to 10 kHz range at maximum amplitude.
Does the generator include modulation functions and can it be synchronised with Siglent instruments such as SDS1000 oscilloscopes?
Yes, it includes extensive modulation functions (AM, FM, PM, PWM), frequency sweep and pulse trains. It can be connected and synchronised directly with Siglent SDS1000 series oscilloscopes, making remote-controlled automated testing easier.
What accessories are included in the box and what options are there for spares or after-sales service?
Generally, the SDG1010 includes a power cable, user manual, USB cable and two BNC-to-BNC cables. Spares (cables, fuses) and after-sales service are available through authorised Siglent distributors and the brand itself; the standard warranty is usually 3 years, although this should be confirmed with the specific seller.
What is the maximum output frequency of the Siglent SDG1010 generator?
The maximum output frequency is 10 MHz.
How many output channels does the generator have?
The generator has 2 output channels for simultaneous signals.
What waveforms can this unit generate?
It can generate sine, square, ramp, pulse, Gaussian white noise and 48 types of internal arbitrary waveforms.
Is it compatible with other measuring instruments?
Yes, it is compatible with SDS1000 series digital oscilloscopes and supports remote control.
What type of connectivity does the generator offer?
It has standard USB Host and Device, and offers an optional USB-GPIB port for remote control.
