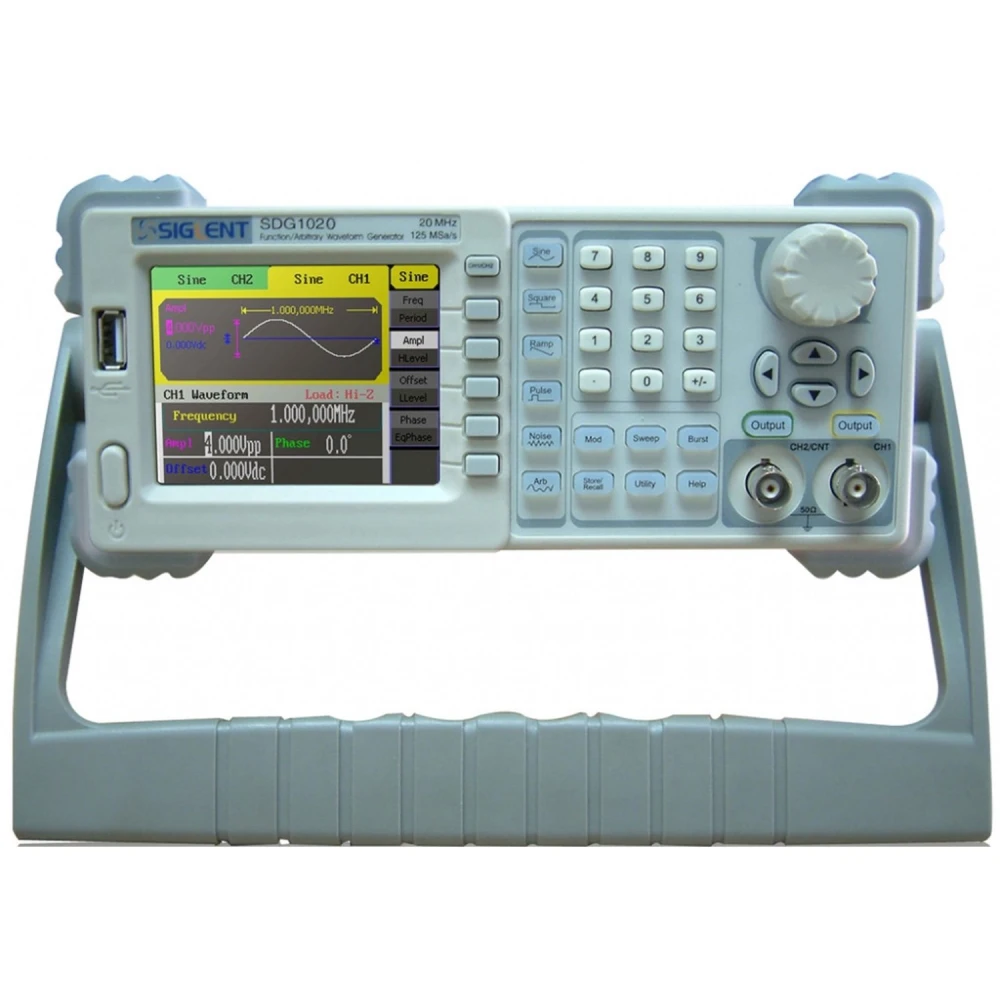

Siglent SDG1020 20MHz Arbitrary Function Generator for Electronics
Brand: Siglent
VAT included (Ex VAT: 239.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 282.21 € | -4% |
| 10+ | 276.33 € | -6% |
| 20+ | 264.57 € | -10% |
Siglent SDG1020 20MHz arbitrary function generator is an advanced measurement instrument designed for electronic applications that require precise and varied signals. This generator uses DDS (Direct Digital Synthesis) technology to deliver a maximum output frequency of 20MHz with high resolution and stability.
Key features:
- Maximum output frequency: 20MHz, suitable for a wide range of electronic tests.
- Dual output channel: Allows two signals to be generated simultaneously, making comparisons and complex tests easier.
- Sampling rate: 125 MSa/s with 14-bit vertical resolution for precise, detailed signals.
- Wave length: 16 kpts that ensures detailed and configurable waveforms.
- Standard and arbitrary waveforms: Includes 5 standard waveforms (sine, square, ramp, pulse, Gaussian white noise) and 48 built-in arbitrary waveforms for maximum flexibility.
- Modulation functions: AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep and Burst for complex and varied simulations.
- Frequency counter: Range from 100 mHz to 200 MHz for accurate measurements.
- Connectivity: USB Host and Device for storage and control, with an optional USB-GPIB port for advanced integration.
- Compatibility: Compatible with SDS1000 series digital oscilloscopes and remote control for an integrated lab environment.
Typical applications:
- Testing and development of electronic circuits.
- Signal simulation for analysis and diagnostics.
- Education and training in electronics and telecommunications.
- Research and development in technical laboratories.
Technical specifications:
- Model: SDG1020
- Maximum output frequency: 20MHz
- Output channels: 2
- Sampling rate: 125 MSa/s
- Wave length: 16 kpts
- Frequency resolution: 1 μHz
- Vertical resolution: 14 bits
- Waveforms: sine, square, ramp, pulse, Gaussian white noise, 48 arbitrary waveforms
- Sine and square wave range: 1 μHz to 20MHz
- Pulse range: 500 μHz to 5MHz
- Ramp range: 1 μHz to 300 KHz
- Gaussian white noise bandwidth: 20MHz (-3dB)
- Modulation functions: AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst
- Frequency counter: 100 mHz to 200 MHz
- Standard connections: USB Host and Device
- Optional port: USB-GPIB adapter
- Size: 229mm × 105mm × 281mm
Availability note: This product is currently out of stock. We recommend contacting our team for restock information or alternatives.
- DDS technology for precise, stable signals
- Dual output channels for greater versatility
- 125 MSa/s sampling rate and 14-bit resolution
- 48 built-in arbitrary waveforms plus 5 standard waveforms
- Advanced modulation functions: AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst
- Integrated frequency counter up to 200 MHz
- USB Host and Device connectivity, USB-GPIB option
- Compatible with SDS1000 digital oscilloscopes and remote control
Customer Questions & Answers
What types of connectors and ports are available for connecting and controlling the generator?
The SDG1020 includes front-panel BNC outputs for signals and sync input/output connections. For communication and control, it offers USB Device and USB Host ports as standard, allowing connection to a PC and external storage. The GPIB port is available as an optional extra.
What accuracy and resolution does the generator have in both frequency and output amplitude?
Frequency resolution is 1 μHz and vertical amplitude resolution is 14 bits, allowing signals to be generated with high precision in both the time and amplitude domains. The actual output accuracy depends on calibration and the operating environment, but these figures are representative of the hardware.
What maintenance does the equipment require and what is its expected durability under intensive use?
Basic maintenance consists of keeping the vents free of dust and periodically checking connections and cables. The generator is designed for continuous use in a laboratory environment; expected durability exceeds 5 years under proper use, without excessive humidity or impacts, although service life may vary depending on specific conditions.
What is the maximum output frequency of the Siglent SDG1020 generator?
The maximum output frequency is 20MHz.
How many output channels does this function generator have?
It has 2 output channels for generating simultaneous signals.
What waveforms does the generator include?
It includes standard waveforms such as sine, square, ramp, pulse and Gaussian white noise, plus 48 built-in arbitrary waveforms.
Is it available for immediate purchase?
The product is currently out of stock, so it is not available for immediate purchase.
What types of modulation does it support?
It supports AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep and Burst modulation.
