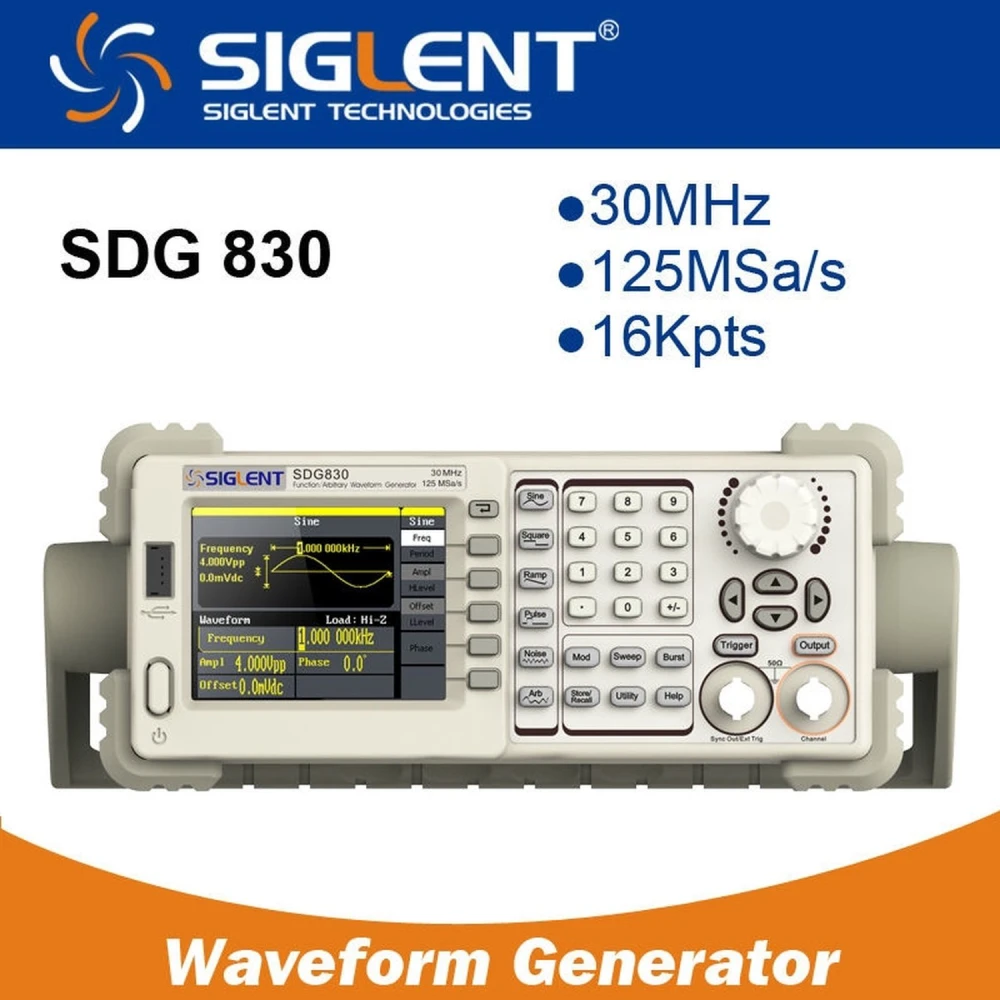

Siglent SDG830 30MHz Arbitrary Function Generator for Electronics
Brand: Siglent
VAT included (Ex VAT: 207.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 244.43 € | -4% |
| 10+ | 239.33 € | -6% |
| 20+ | 229.15 € | -10% |
The Siglent SDG830 30MHz arbitrary function generator is an advanced measurement instrument designed to deliver precise and versatile signals for electronic applications. This device features a maximum output frequency of 30MHz and a sampling rate of 125 MSa/s, ensuring high-quality signal generation.
Equipped with innovative EasyPulse technology, the SDG830 can generate pulses with low jitter and fast rising and falling edges, regardless of operating frequency. It also allows wide and precise adjustment of duty cycle, edge and pulse width, outperforming similar DDS signal generators.
Key features
- Advanced DDS technology with a sampling rate of 125 MSa/s and 14-bit vertical resolution.
- Single-channel output with 5 standard waveforms and 46 built-in arbitrary waveforms, including DC.
- Complete modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst.
- Innovative EasyPulse technology for low-jitter pulses and fast edges.
- Standard USB interfaces for connection and storage, compatible with software updates.
- 10 non-volatile storage slots for custom arbitrary waveforms.
- Compatible with SIGLENT digital oscilloscopes for integration and advanced analysis.
- EasyWave software for powerful arbitrary waveform editing.
Technical specifications
- Model: SDG830
- Maximum output frequency: 30MHz
- Output channels: 1
- Sampling rate: 125 MSa/s
- Waveform length: 16 kpts
- Frequency resolution: 1 µHz
- Vertical resolution: 14 bits
- Available waveforms: Sine, square, ramp, pulse, Gaussian, Gaussian white noise, arbitrary waveforms
- Waveform frequency range: Sine and square from 1 µHz to 30 MHz, pulse from 500 µHz to 5 MHz, ramp/triangle up to 300 kHz, white noise with bandwidth >30 MHz
- Modulation functions: AM, FM, PM, DSB-AM, FSK, ASK, PWM, sweep and burst
- Standard configuration: USB Host and USB device
- Amplitude: 4 mVpp to 20 Vpp (high impedance), 2 mVpp to 10 Vpp (50 ohms)
Typical uses
This generator is ideal for electronics laboratories, circuit development and testing, technical education and any application that requires precise and modulated signals. Its ability to generate a wide range of waveforms and modulations makes it suitable for experimentation and diagnostics in analogue and digital electronics.
Compatibility
The Siglent SDG830 integrates easily with SIGLENT digital oscilloscopes, making combined signal analysis straightforward. In addition, its USB interface allows connection to computers for control and updates via specialised software.
- 30MHz maximum output frequency with high precision
- EasyPulse technology for low-jitter pulses and fast edges
- 125 MSa/s sampling rate and 14-bit vertical resolution
- 5 standard waveforms and 46 built-in arbitrary waveforms
- Complete modulation functions: AM, FM, PM, DSB-AM, FSK, ASK, PWM, sweep and burst
- USB interface for storage and software updates
- 10 non-volatile storage slots for custom waveforms
- Compatible with SIGLENT digital oscilloscopes
- EasyWave software for advanced waveform editing
Customer Questions & Answers
What standard and arbitrary waveform types can the Siglent SDG830 generate, and what is its resolution?
The Siglent SDG830 can generate 5 standard waveforms (sine, square, triangle, pulse and noise) and includes 46 internal arbitrary waveforms, including DC. All signals are generated with 14-bit vertical resolution, allowing very good waveform fidelity.
What is included in the SDG830 box in terms of cables, power supplies and manuals?
Typically, the SDG830 box contains the function generator, a power cable, a USB cable, a printed manual or CD, and at least one BNC-BNC cable for connection. It usually does not include physical software, but EasyWave can be downloaded from the manufacturer. It is advisable to confirm the exact contents with the seller, as the package may vary by region.
What interface and synchronisation compatibility does the SDG830 have for integration with other instruments, such as oscilloscopes?
The SDG830 has USB-Host and USB-Device interfaces for data transfer, updates and remote control from a PC. It does not include LAN or GPIB connectivity, but it is fully compatible with Siglent oscilloscopes via USB port synchronisation, making it easier to analyse signals together in the lab.
What are the operating limits and key tolerances of the SDG830 in terms of frequency, amplitude and accuracy?
The maximum output frequency is 30 MHz for sine waves and lower for other waveforms (see manual). The maximum output amplitude is 20 Vpp into open circuit and 10 Vpp into a 50 Ω load. Standard frequency accuracy is ±1 ppm and total harmonic distortion for sine wave is below 0.075% at 1 kHz, 20 Vpp. Values may vary depending on operating mode.
What warranty and after-sales service options does Siglent offer for the SDG830, and are spare parts or firmware update support available?
Siglent generally offers a standard 3-year warranty for the SDG830, covering manufacturing defects. Technical support, online manuals and free firmware downloads are available. Spare parts and repairs are handled through official distributors or the Siglent website. It is recommended to register the product to activate the warranty and make future updates easier.
What is the maximum output frequency of the Siglent SDG830 generator?
The maximum output frequency is 30MHz.
What types of waveforms can the Siglent SDG830 generate?
It can generate sine, square, ramp, pulse, Gaussian, Gaussian white noise and arbitrary waveforms.
Does the generator have modulation functions?
Yes, it includes AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst modulation functions.
Is it compatible with other test equipment?
Yes, it is compatible with SIGLENT digital oscilloscopes and can be connected via USB for storage and updates.
How many output channels does this generator have?
It has a single output channel.
