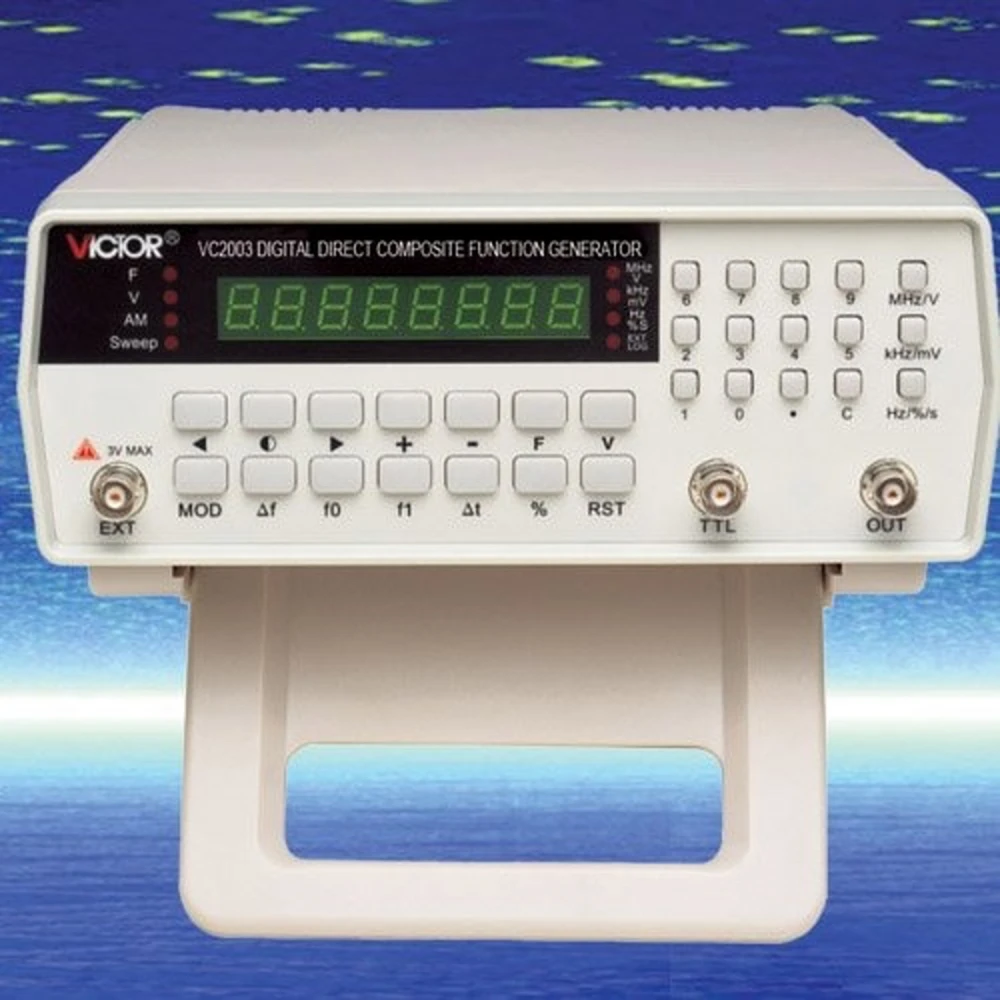

Victor VC2003 function generator: precise, versatile signal up to 3MHz
Brand: Victor
VAT included (Ex VAT: 107.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 126.35 € | -4% |
| 10+ | 123.71 € | -6% |
| 20+ | 118.45 € | -10% |
Victor VC2003 function generator is a professional unit designed to generate precise and versatile electrical signals, ideal for electronics applications, circuit testing and project development. With the ability to generate sine and square waves, this generator offers a wide frequency range and advanced features that make it an essential tool for technicians and hobbyists.
Key features:
- Waveforms: Sine wave and square wave with 10-bit amplitude resolution.
- Total harmonic distortion (THD): Less than 1% on sine wave, ensuring clean and accurate signals.
- Square wave rise time: Less than 20 nanoseconds, ideal for high-speed testing.
- Frequency range: From 1 Hz to 3 MHz, with 0.01 Hz resolution for frequencies below 1 MHz and 0.1 Hz for higher frequencies.
- Output amplitude: 10 mVpp to 16 Vpp in high impedance and 5 mVpp to 8 Vpp with 50 Ohm load.
- Output impedance: 50 Ohm with ±10% tolerance.
- AM modulation: Amplitude-modulated wave with 400 Hz and 1 kHz frequencies, with adjustable modulation depth from 1% to 100%.
- Frequency sweep mode: Linear and logarithmic, with sweep range from 0.02 seconds to 5 seconds per step.
- Display: 3-digit screen for easy parameter viewing.
- Power supply: AC 220V/110V, 50Hz/60Hz.
- Dimensions: 270 x 215 x 100 mm.
- Weight: 2.1 kg.
Typical uses:
- Testing and calibration of electronic circuits.
- Signal generation for development and diagnostics in laboratories.
- Signal simulation for electronics training and teaching.
- Applications in telecommunications and audio systems.
Compatibility: Compatible with standard measuring equipment and systems that require stable and accurate test signals. Ideal for professional and educational use.
This Victor VC2003 function generator is a reliable tool for anyone looking for quality and precision in electrical signal generation. Although it is currently out of stock, we recommend checking other signal generators available in our store to meet your needs.
- Waveforms: sine and square with 10-bit resolution
- Frequency range: 1 Hz to 3 MHz with high resolution
- Output amplitude: 10 mVpp to 16 Vpp (high impedance)
- AM modulation with 400 Hz and 1 kHz frequencies
- Linear and logarithmic sweep mode, range 0.02 to 5 seconds
- Output impedance: 50 Ohm ±10%
- 3-digit display for easy reading
- Compact dimensions: 270 x 215 x 100 mm, weight 2.1 kg
Customer Questions & Answers
What waveforms can the Victor VC2003 generate, and with what precision?
The Victor VC2003 can generate sine and square waves. It offers 10-bit waveform amplitude resolution, with total harmonic distortion (THD) below 1% on the sine wave and a rise time of less than 20 ns on the square wave. Frequency resolution is 0.01 Hz for values below 1 MHz and 0.1 Hz above 1 MHz.
What are the output amplitude ranges and the generator impedance?
With a high-impedance load, the range is from 10 mVpp to 16 Vpp. For a 50 Ω load, the range is from 5 mVpp to 8 Vpp. The output impedance is 50 Ω with a tolerance of ±10%.
Does this generator work with 110 V and 220 V mains sockets?
Yes, it supports power input at both voltages: AC 110 V or 220 V at 50 Hz or 60 Hz, making it suitable for use in different countries.
What stands out about the sweep function on the VC2003?
It offers frequency sweep in both linear and logarithmic modes, with sweep ranges from 0.02 seconds to 5 seconds per step. This makes frequency response analysis in electronic circuits easier.
Is any specific maintenance required to ensure the equipment lasts?
It does not require complex maintenance, but it is recommended to keep it away from dust and moisture, and to avoid overloading the connectors. Periodic calibration can ensure accurate readings over the long term.
What is the frequency range of the Victor VC2003 function generator?
The frequency range is from 1 Hz to 3 MHz, with 0.01 Hz resolution for frequencies below 1 MHz and 0.1 Hz for higher frequencies.
What types of waveforms can the Victor VC2003 generate?
It can generate sine waves and square waves with high precision and low harmonic distortion.
What is the output amplitude of the generator?
The output amplitude ranges from 10 mVpp to 16 Vpp in high impedance, and from 5 mVpp to 8 Vpp with a 50 Ohm load.
What type of modulation does the Victor VC2003 support?
It supports amplitude modulation (AM) with 400 Hz and 1 kHz frequencies, and adjustable modulation depth from 1% to 100%.
Is the Victor VC2003 available to buy now?
The product is currently out of stock. We recommend checking other generators available in our store.
