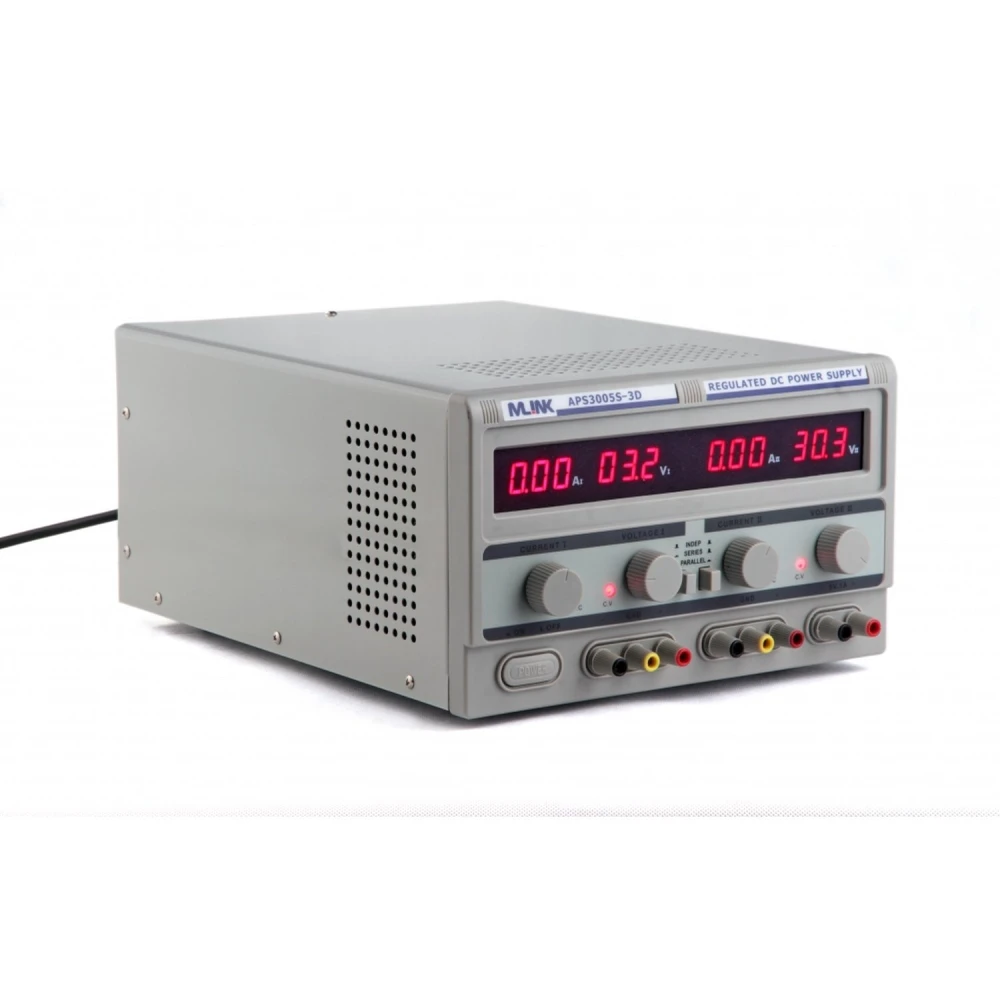

Triple output adjustable power supply with digital display Mlink APS3005S-3D
Brand: Mlink
127.21€
VAT included (Ex VAT: 103.42 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 116.85 € | -8% |
| 3+ | 114.39 € | -10% |
| 10+ | 111.93 € | -12% |
| 15+ | 109.47 € | -14% |
| 20+ | 108.24 € | -15% |
Only 1 left in stock - order soon!
Standard delivery
Fri, May 1 - Tue, May 5
Express delivery
Wed, Apr 29 - Thu, Apr 30
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The triple output adjustable power supply with digital display Mlink APS3005S-3D is designed to provide stable and precise power for electronics projects, laboratories, educational centres and repair workshops. Its design includes three output channels, two adjustable and one fixed, with built-in protection and a ventilation system for safe and reliable operation.
Main features:
- Three output channels: Channels 1 and 2 allow an adjustable voltage from 0 to 30V and an adjustable current from 0 to 5A each. The third channel provides a fixed 5V output with a maximum current of 1A.
- Operating modes: Channels 1 and 2 can be set in series mode for a combined output of 0-60V and 5 amperes, or in parallel mode for 0-30V and 10 amperes, adapting to different needs.
- Digital display: Large 3 1/2-digit LED display that accurately shows voltage and current values, with a resolution of 0,1V and 0,01A respectively.
- Built-in protections: Includes overload, short circuit and overtemperature protection to ensure the safety of the equipment and the user.
- Low ripple and noise: Output signal with ripple below 3mVRMS, ensuring a constant and stable current for sensitive applications.
- Ventilation system: Internal fan to maintain an optimum operating temperature between 0 and 40 °C.
Technical specifications:
- Input voltage: 220V ±10%
- Frequency: 50Hz
- Output voltage channels 1 and 2: 0-30V
- Output current channels 1 and 2: 0-5A
- Output voltage channel 3: 5V
- Output current channel 3: 1A
- Total maximum power: 305W
- Load regulation: <0,3% + 5 mV (30V / 3A)
- Synchronised errors: <0,5% + 10 mV (dual channel)
- Dimensions: 360x260x160 mm
- Weight: 9 kg
Typical uses:
Ideal for use in laboratories, universities, educational centres, repair workshops and the electronics industry in general. Perfect for testing, development and maintenance of electronic circuits, as well as soldering stations and projects that require a reliable and adjustable power supply.
Compatibility: Compatible with a wide range of electronic devices and components that require regulated power of up to 30V and 5A on two channels, and 5V on an additional channel.
Important note: Test leads are not included with the product.
- Triple output adjustable power supply: two adjustable channels and one fixed 5V channel.
- 3 1/2-digit LED digital display for highly accurate voltage and current readings.
- Channels 1 and 2 configurable in series mode (0-60V, 5A) or parallel mode (0-30V, 10A).
- Protection against overload, short circuit and overtemperature for added safety.
- Low ripple and noise on the output signal, ideal for sensitive applications.
- Ventilation system with internal fan to maintain a stable temperature.
- Total maximum power of 305W, suitable for laboratories and workshops.
- Compact dimensions and 9 kg weight, easy to fit into workspaces.
Customer Questions & Answers
What is included in the box when buying the Mlink APS3005S-3D power supply, and what are its approximate dimensions and weight?
The box typically includes the power supply, power cable, user manual and a set of basic test leads. The unit’s approximate dimensions are 350 mm x 265 mm x 165 mm, with a weight of around 8 kg. The contents may vary by distributor, so it is recommended to check before purchase.
Is this equipment compatible with 110 V mains, or does it only work with 220 V?
The Mlink APS3005S-3D is designed to operate at an input voltage of 220 V ±10% and a frequency of 50 Hz. It is not natively compatible with 110 V mains. For use in countries with 110 V, a suitable external transformer would be required.
What preventive maintenance does the power supply require, and what signs of wear should be monitored?
Maintenance is mainly limited to regular cleaning of the vents and cooling system to prevent overheating, and checking that there are no loose connections or excessive dust build-up. The internal fan and the display’s visual condition should be monitored; unusual noises or unstable readings may indicate the need for a more thorough inspection.
How does the accuracy and electrical noise level of the Mlink APS3005S-3D compare with professional laboratory power supplies?
This power supply offers load stability of <0.3% + 5 mV and ripple below 3 mV RMS under 30 V / 3 A conditions. These values place it in a suitable range for most educational work, repairs and general testing, although high-end laboratory power supplies can achieve even lower ripple (<1 mV RMS) and better tolerances, which are only relevant in very sensitive applications.
What voltages and currents can I adjust on this power supply?
Channels 1 and 2 allow adjustable voltages from 0 to 30V and currents from 0 to 5A each. Channel 3 provides a fixed 5V output with a maximum current of 1A.
Does the power supply have short circuit and overtemperature protection?
Yes, it includes built-in overload, short circuit and overtemperature protection to ensure safe and reliable use.
Can I use channels 1 and 2 in series or parallel mode?
Yes, channels 1 and 2 can be set in series mode to obtain up to 60V and 5A, or in parallel mode for 30V and 10A, depending on the user's needs.
Are test leads included?
No, test leads are not included with the product and must be purchased separately.
What applications is this power supply recommended for?
It is ideal for laboratories, educational centres, repair workshops and electronics projects that require a stable and adjustable power supply.
