Citroen Peugeot Fiat Lancia PSA HDi Injector Puller

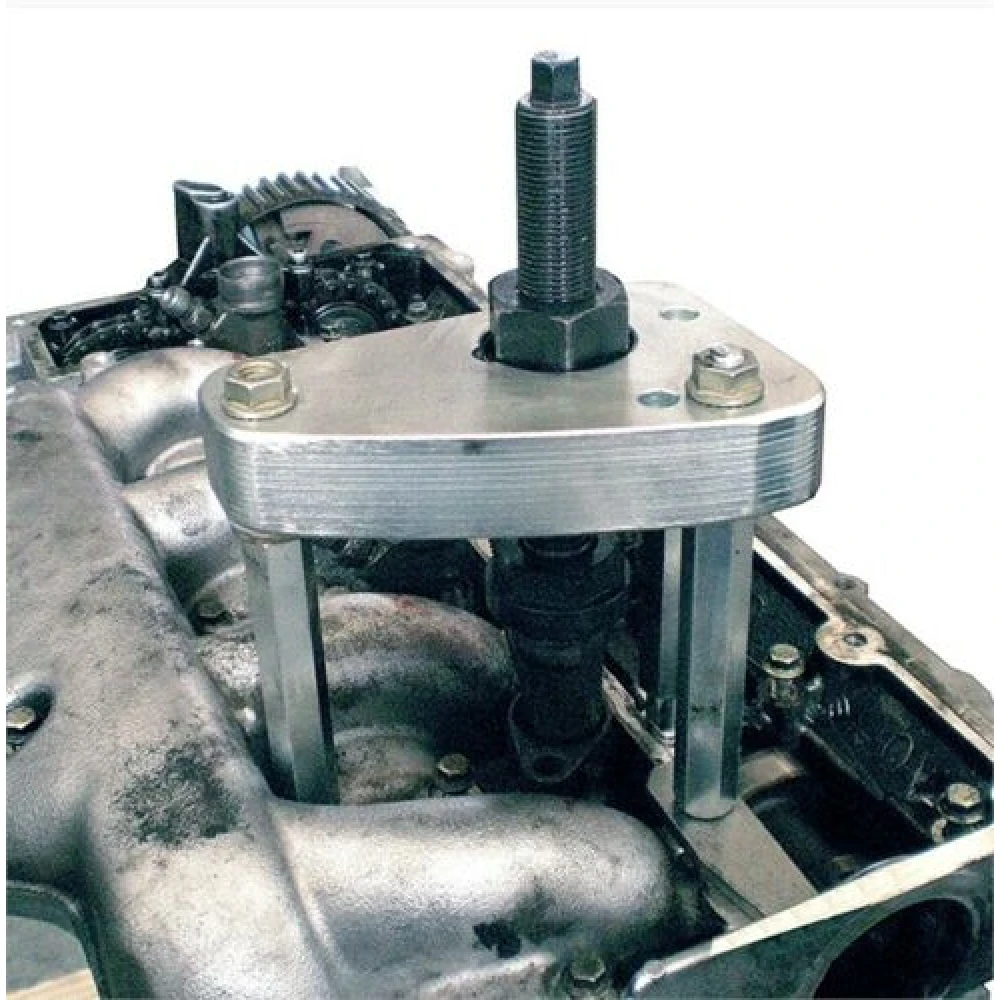

This professional TSX TOOL puller is specifically designed to make injector removal on 2.0 and 2.2 HDi 16V engines easier without the need to remove the cylinder head, saving time and effort in the workshop.
Main features:
- Design that surrounds the injector to avoid damage to the cylinder head.
- Special screw system that allows easy, fast and safe removal.
- Includes bridge with thrust bearing for better manoeuvrability.
- Several puller bolts and nuts with different threads to suit different injector types.
- Hex key and injector sockets for 25 mm and 29 mm included for versatile use.

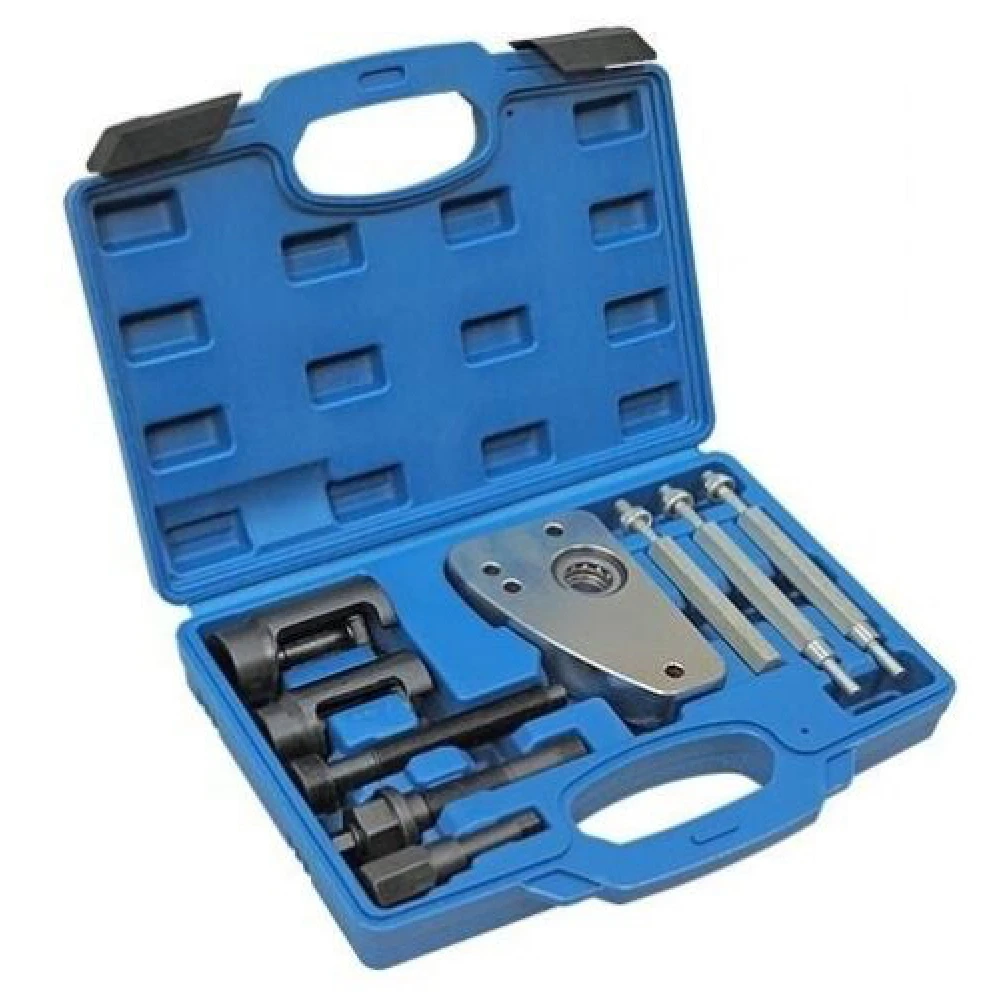

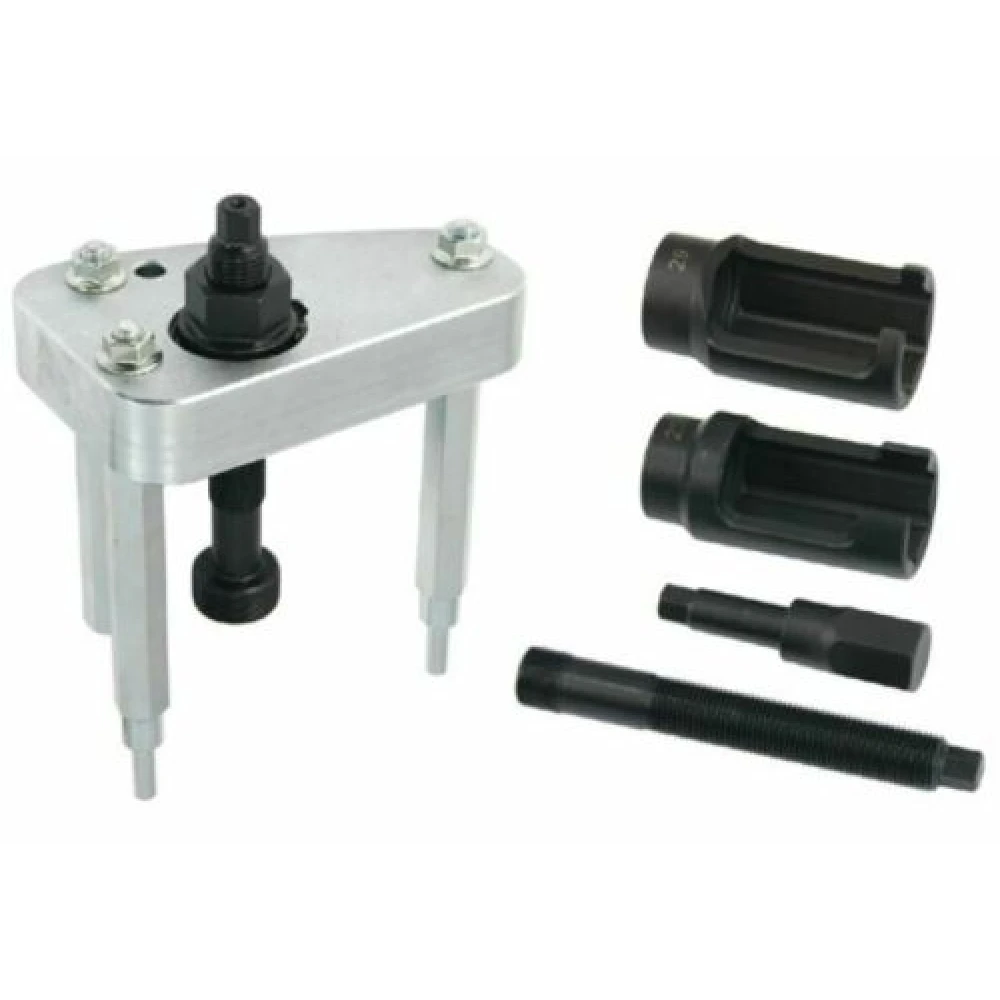

Kit contents:
- 1 x bridge with thrust bearing
- 2 x separating bolts with 150 mm thread
- 1 x separating bolt with 120 mm thread
- 1 x puller nut with M25 pitch
- 1 x spindle with M17 thread
- 1 x spindle with M25 thread
- 1 x hex key with 10 mm recess
- 1 x 25 mm injector socket
- 1 x 29 mm injector socket
Compatibility:
- Citroën and Peugeot 2.0 and 2.2 HDi models
- Fiat and Lancia 2.0 JTD models
- Suzuki 2.0 and 2.2 HDi models
Compatible injectors: Bosch and Siemens.
Compatible engine codes:
- DW10ATED4 (RHM)
- DW10ATED4/L (RHT)
- DW10JATED4 (RHW)
- DW12ATED4/L4 (4HW)
This puller is an essential tool for garages working with HDi engines, making injection system repair and maintenance straightforward.
- Designed for 2.0 and 2.2 HDi 16V engines from Citroën, Peugeot, Fiat, Lancia and Suzuki
- Removes Bosch and Siemens injectors without damaging the cylinder head
- Special screw system for easy and fast removal
- Includes bridge with thrust bearing and bolts with different threads
- Complete kit with hex key and 25 mm and 29 mm injector sockets
Customer Questions & Answers
What advantages does this extractor offer compared with traditional methods, such as using universal tools or manual extraction?
The extractor is specifically designed for Bosch and Siemens injectors in PSA HDi engines, allowing removal without taking the cylinder head off and minimising the risk of damaging the injector head or the engine. Unlike universal methods, it reduces physical effort, intervention time and improves safety during the operation. It is not suitable for injectors of other types or brands not mentioned.
What are the main materials of the kit, and what is the approximate total weight of all components?
The kit is mainly made from hardened steel and wear-resistant alloys, suitable for withstanding high extraction forces. The approximate total weight of the set is 3.2 kg, including the bridge, bolts, nuts and sockets.

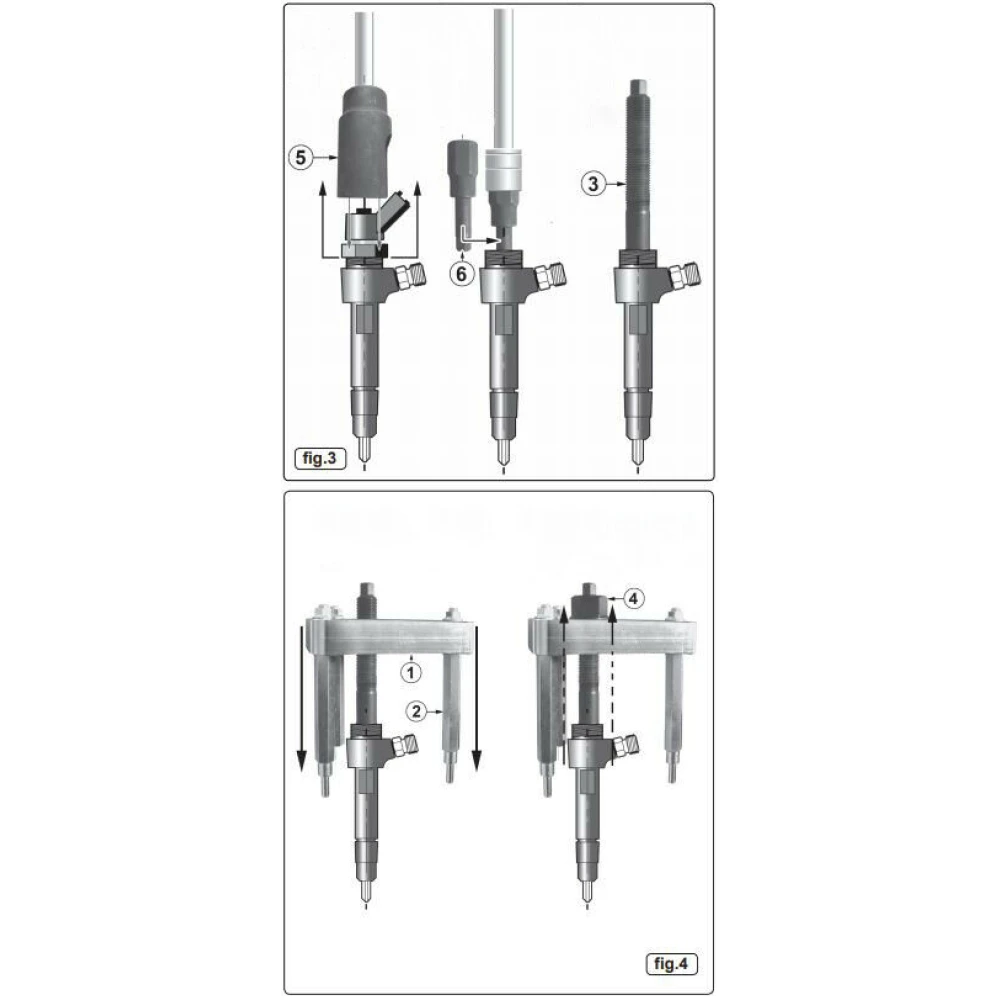

What are the main steps for correct installation and use of the extractor during injector removal?
Installation involves fitting the bridge over the injector, selecting the correct spindle and bolts (M17 or M25 thread, depending on the injector), and tightening carefully until the injector moves progressively. It is important to apply force gradually and ensure correct alignment to avoid damage. We recommend consulting the user manual for torque details and the assembly sequence.
What maintenance does this extractor require, and what is its estimated service life under frequent workshop use?
The extractor should be cleaned after each use to prevent residue build-up, and the threads should be lightly lubricated. Moving parts, such as the thrust bearing, should be checked periodically. With proper maintenance and correct use, the estimated service life is several years under moderate to heavy professional use.
Which engines is this injector puller compatible with?
It is compatible with 2.0 and 2.2 HDi 16V engines from Citroën, Peugeot, Fiat, Lancia and Suzuki, including DW10ATED4, DW10JATED4 and DW12ATED4 codes.
Which injector brands can be removed with this tool?
This puller is compatible with Bosch and Siemens injectors.
Do I need to remove the cylinder head to use this puller?
No, the puller allows injectors to be removed without needing to take off the cylinder head, making the job easier.
What does the injector puller kit include?
It includes a bridge with thrust bearing, separating bolts with different threads, puller nut, spindles, hex key and 25 mm and 29 mm injector sockets.
