Hantek 6022BL USB Digital Oscilloscope 16 Channels 20 MHz for PC

The Hantek 6022BL Oscilloscope is a USB digital device designed for professionals and electronics enthusiasts who need a compact, portable and powerful unit for signal analysis and measurement. This oscilloscope combines digital storage functions and a 16-channel logic analyser, making diagnosis and development in electronic and digital systems easier.

Its anodised aluminium case offers durability and protection, while its standard USB 2.0 interface allows simple connection without the need for additional power cables, working directly with laptops or desktop computers.

Main features

• Channels: 2 channels for oscilloscope and 16 channels for logic analyser.
• Bandwidth: 20 MHz, suitable for a wide range of electronic applications.
• Sampling rate: 48 MS/s in real time, ensuring accurate signal capture.
• Vertical resolution: 8 bits for a clear and detailed waveform display.
• Gain range: 20 mV to 5 V in 8 steps, adaptable to different signal levels.
• Input impedance: 1 MΩ with 25 pF, standard for accurate measurements.
• Input protection: Diode clamping to protect the unit against overloads.
• Trigger modes: Auto, Normal and Single with level and slope (+/-) adjustment for full capture control.
• Compatibility: Compatible with Windows 2000, NT, XP, Vista and Windows 7 systems.
• Math functions: FFT, addition, subtraction, multiplication and division for advanced signal analysis.
• Display: Shows waveforms with averaging, persistence and intensity options.
• Included software: CD with software and drivers, user manual and USB cable for immediate connection.

Typical uses

This oscilloscope is ideal for technicians, engineers and students working with electronic circuits, hardware development, repair and diagnosis of digital and analogue systems. Its 16-channel logic analyser allows complex digital signals to be examined, while its digital storage capability makes detailed analysis and documentation easier.

Compatibility and portability

The Hantek 6022BL is designed to operate with Windows PCs, allowing use in laboratory or field environments thanks to its compact size and light weight. Its USB connection removes the need for external power supplies, increasing convenience and flexibility of use.

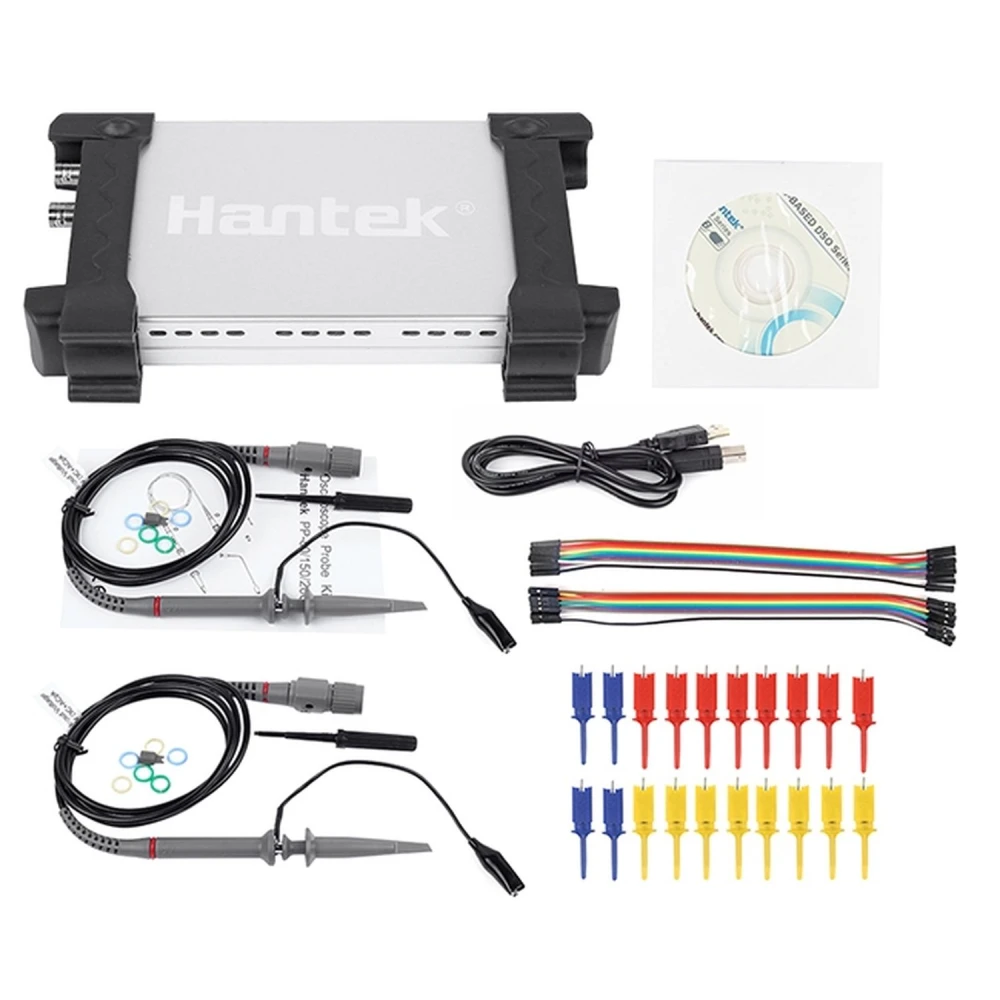

Package contents

• Hantek USB PC-based digital oscilloscope
• Software and drivers on CD
• 2 clip probes
• USB connection cable

This unit is a professional and affordable solution for anyone looking for a reliable USB digital oscilloscope and logic analyser, with advanced functions and ease of use.

• 2 oscilloscope channels and 16 logic analyser channels
• 20 MHz bandwidth for accurate signals
• 48 MS/s real-time sampling rate
• 8-bit vertical resolution for clear detail
• 20mV to 5V gain range in 8 steps
• 1 MΩ input impedance and 25 pF
• Auto, Normal and Single trigger modes with level adjustment
• Math functions: FFT, addition, subtraction, multiplication and division
• Compatible with Windows 2000/NT/XP/Vista/7
• Includes software, manual, probes and USB cable
