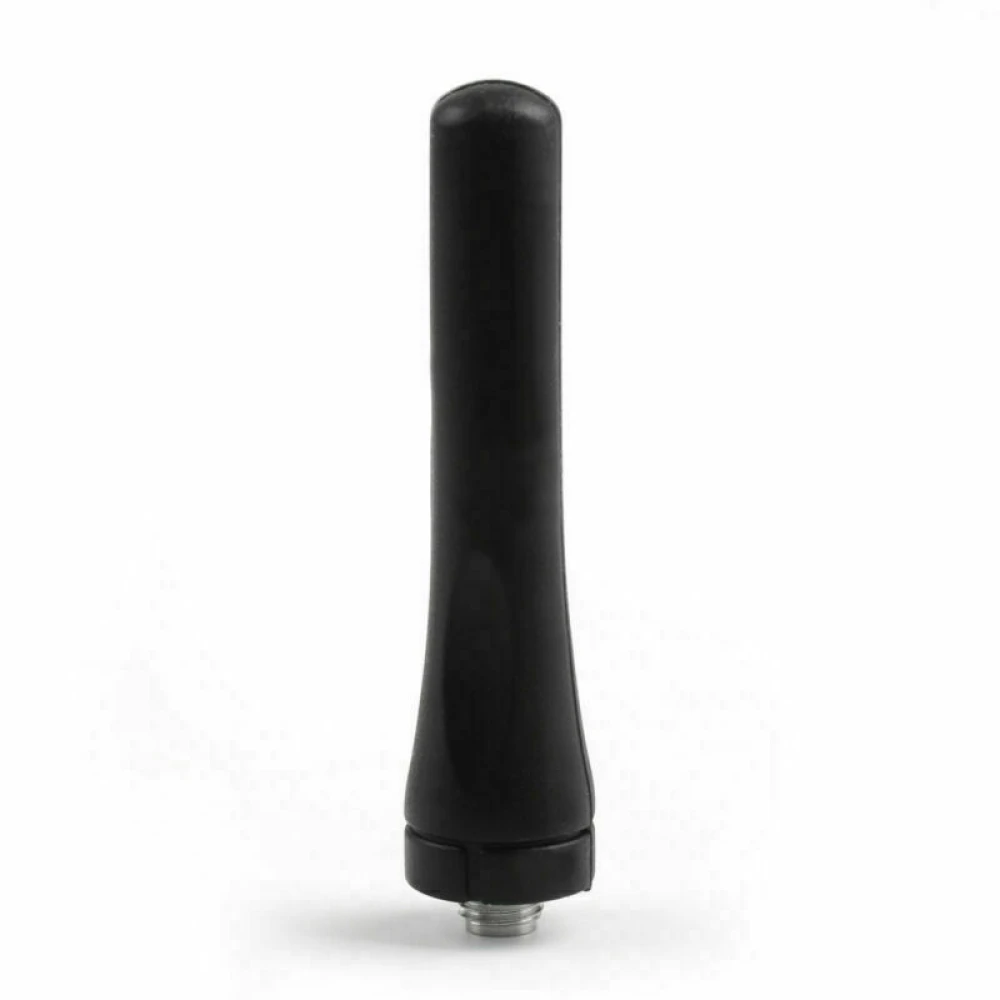

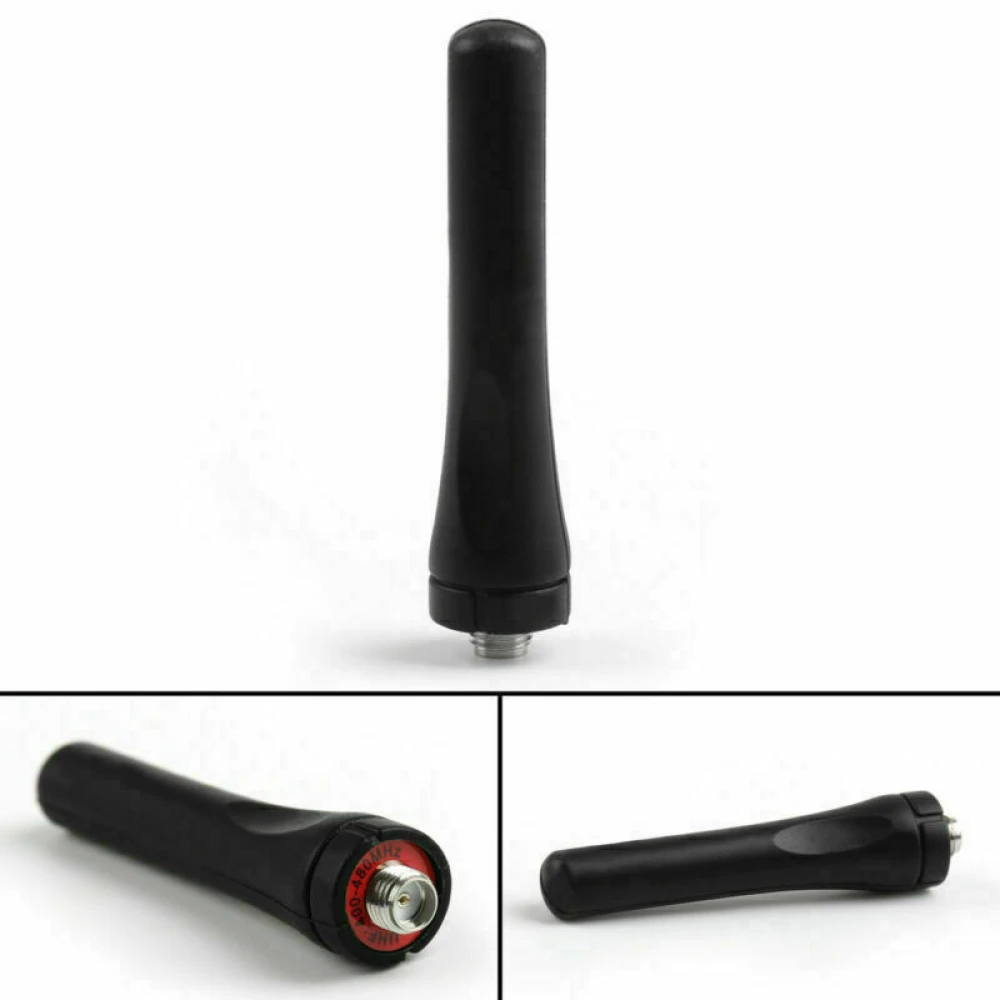

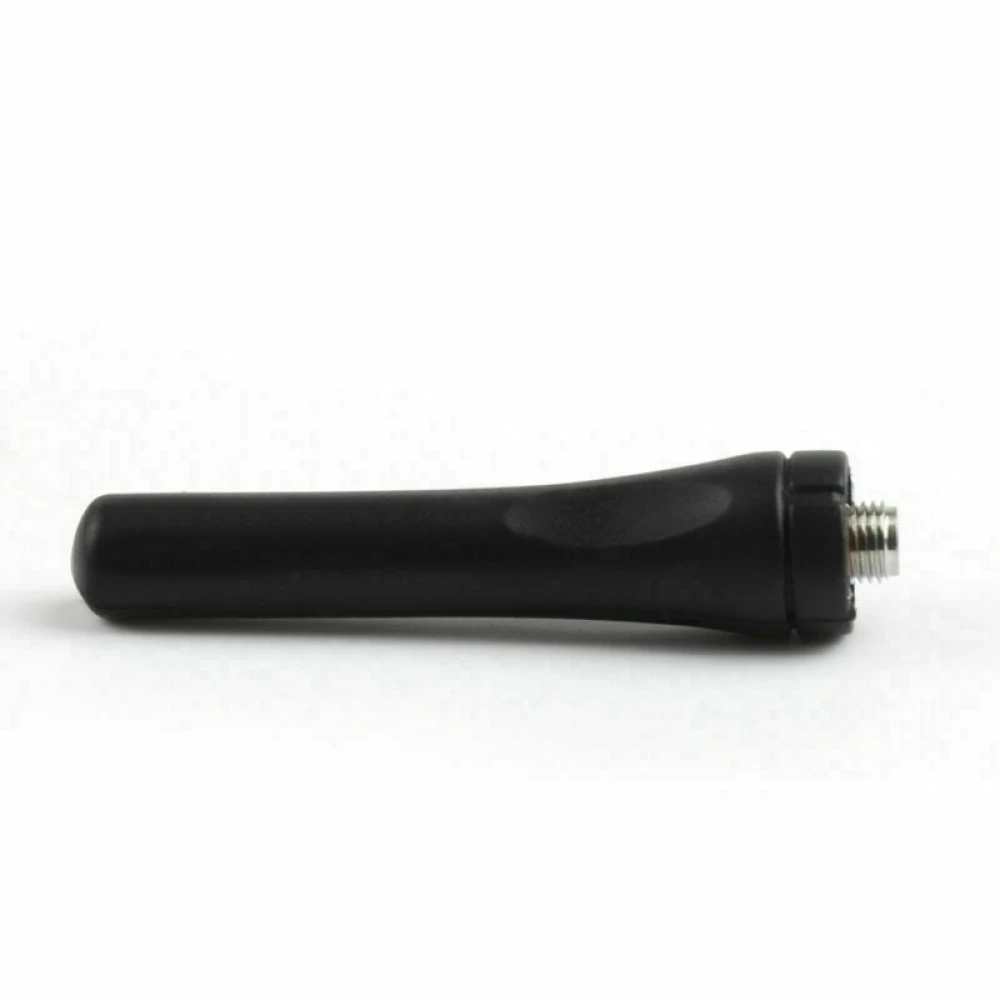

6cm Walkie Talkie Antenna for Baofeng 888s UV-5R UV-B5
Brand: Baofeng
VAT included (Ex VAT: 3.20 €)
The 6cm antenna for Baofeng 888s UV-5R UV-B5 walkie talkie is an essential accessory for anyone looking to improve communication quality on their two-way radio devices. Designed to deliver optimum performance, this high-quality antenna is compatible with a wide range of Baofeng models and other well-known brands.
Main features:
- Transmission frequency (TX): 144 / 430 MHz
- Reception frequency (RX): 120/150/300/450 / 900 MHz
- Impedance: 50 ohmios
- Band: dual band for greater versatility

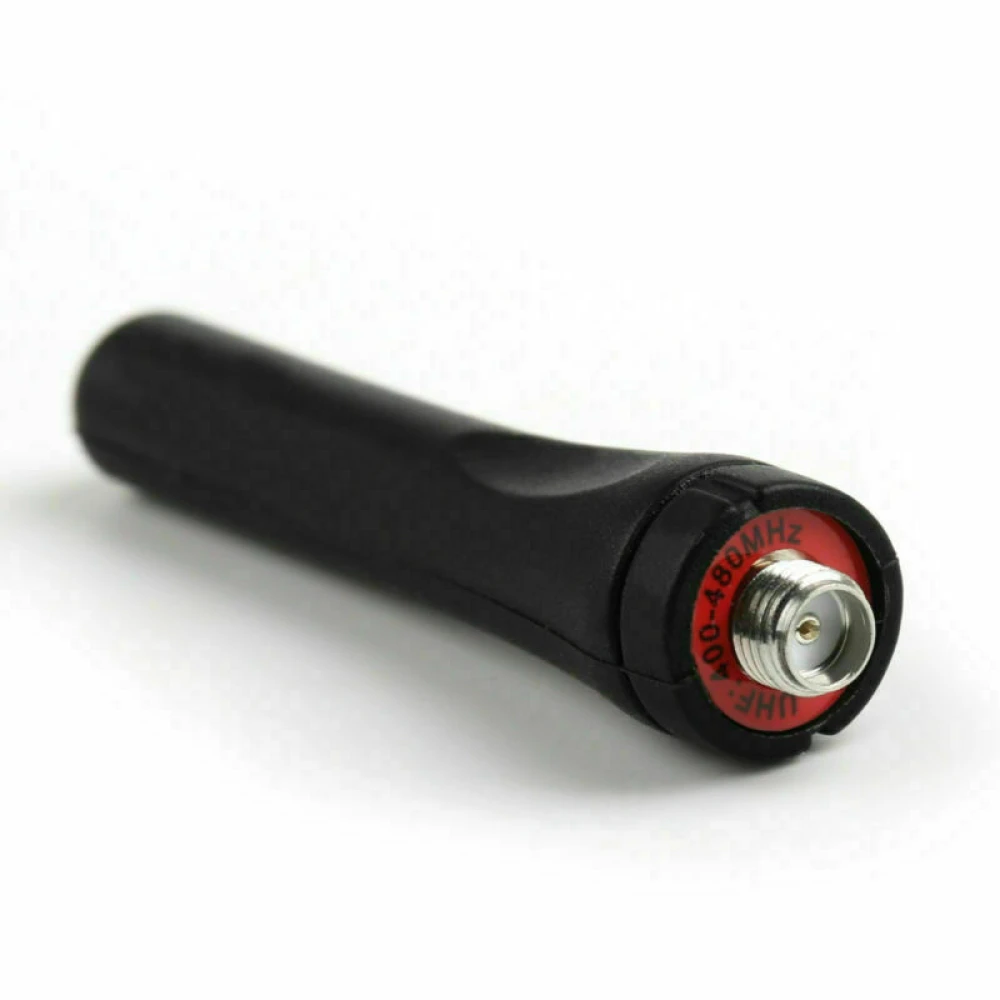

- Connector: SMA male

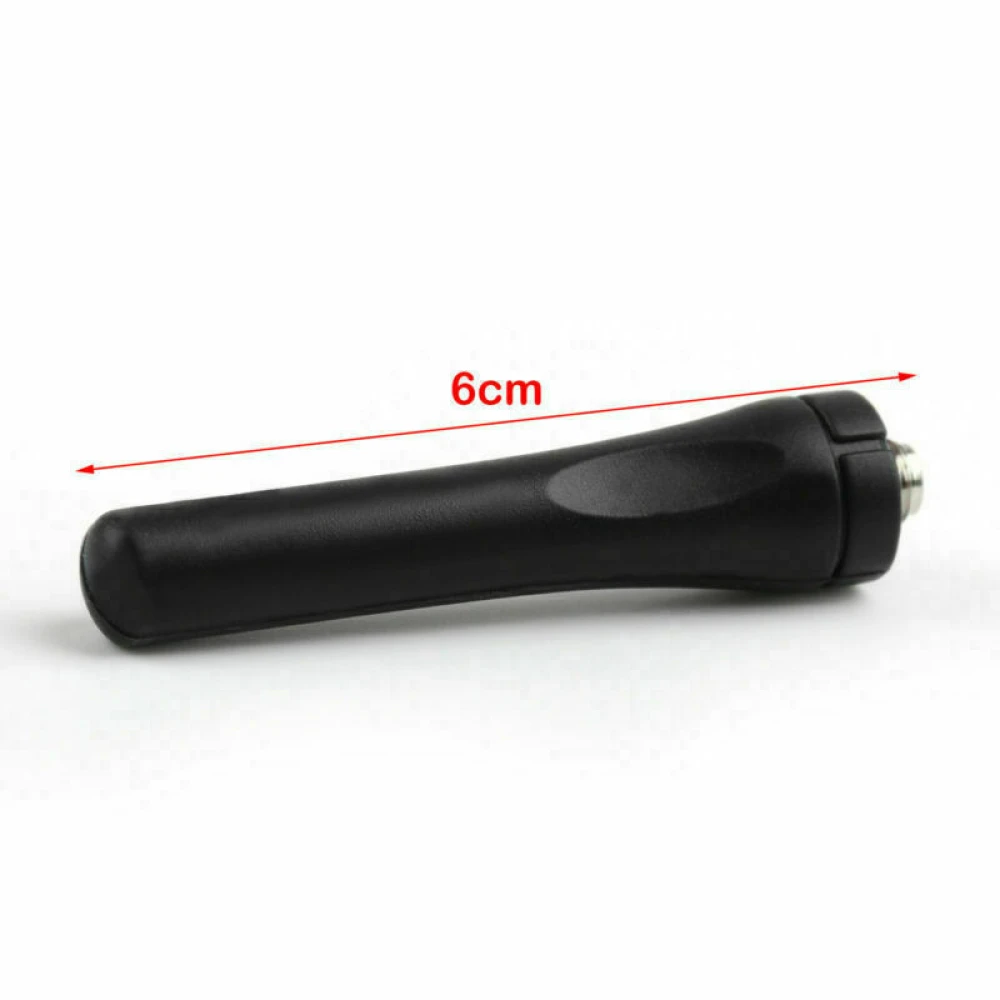

- Compact size: 6 cm
Compatibility:
This antenna is suitable for Baofeng models such as 888S, UV-5R and UV-B5, and is also compatible with radios from brands such as Kenwood (TH-28A, TH-48A, TK100, TK200, TK210, TK220, TK300, TK310, TK320, among others), Icom (IC-V8, IC-V80, IC-V82, IC-U82, IC-W32), Yaesu / Vertex Standard, Marantz (C150, C450, HX260, HX270), Puxing, Weierwei, Quansheng, Wouxun, HYT and TYT.
Typical uses:
- Replacement for the original antenna to improve the signal and range of your walkie talkie.
- Improving communication for outdoor activities, team work or emergencies.
- Compatibility with multiple models makes it easy to use across different devices.
Important note: The product is currently out of stock. It is shipped without a box, in a bag to protect the antenna.
Includes:
- 1 x 6 cm walkie talkie antenna
- High-quality antenna for Baofeng 888s, UV-5R and UV-B5 walkie talkies
- Dual band: transmission 144/430 MHz and reception 120/150/300/450/900 MHz
- 50 ohm impedance for optimum signal
- SMA male connector compatible with multiple radios
- Compact 6 cm size, easy to carry
- Compatible with brands such as Kenwood, Icom, Yaesu, Marantz, Puxing, Weierwei, Quansheng, Wouxun, HYT and TYT
- Temporarily out of stock, shipped in a bag without a box
Customer Questions & Answers
What is the main advantage of using a 6 cm antenna on my Baofeng UV-5R walkie-talkie compared with the standard factory antenna?
The 6 cm antenna is more compact, which makes it easier to carry and reduces the risk of physical damage from snagging. However, it may lose some gain compared with longer antennas, which can limit effective range, especially in urban areas or indoors. It is a practical choice for short-range use where portability is the priority.
What frequencies can this antenna operate on, and are there performance limitations depending on the band used?
It operates in TX on 144 MHz and 430 MHz, and RX from 120 to 900 MHz. Optimal performance is guaranteed on the 2 m (VHF) and 70 cm (UHF) bands. Outside these main bands, reception and transmission efficiency may drop noticeably due to the antenna's limited resonance at non-central frequencies.
Does it require any special maintenance, or is it prone to failure with frequent use?
The antenna requires no maintenance beyond occasional cleaning and checking the mechanical integrity of the SMA male connector. If the connector is forced or subjected to repeated bending, there is a risk of premature wear or internal breakage, so it is recommended not to bend it forcibly and to remove it if it suffers any impact.
What range or gain differences does it have compared with telescopic or longer antennas?
In general, longer or telescopic antennas offer higher gain, which translates into better range, especially in open areas. The 6 cm antenna prioritises portability and discretion, but typically offers lower gain (around 0-2 dBi), which limits range compared with 15-20 cm options that can reach 3-5 dBi. The choice depends on the balance between required range and ease of use.
Which walkie talkie models is this antenna compatible with?
It is compatible with Baofeng 888S, UV-5R, UV-B5 and also with the Kenwood, Icom, Yaesu, Marantz, Puxing, Weierwei, Quansheng, Wouxun, HYT and TYT models listed in the description.
What size is the antenna?
The antenna measures 6 cm in length, ideal for portability and comfortable use.
What type of connector does this antenna have?
It has an SMA male connector, compatible with most of the radios mentioned.
Is it available to buy now?
The product is currently out of stock, but it may be reserved or future availability checked.
Does it come in a box?
No, the product is shipped in a bag to protect the antenna, without a box.
