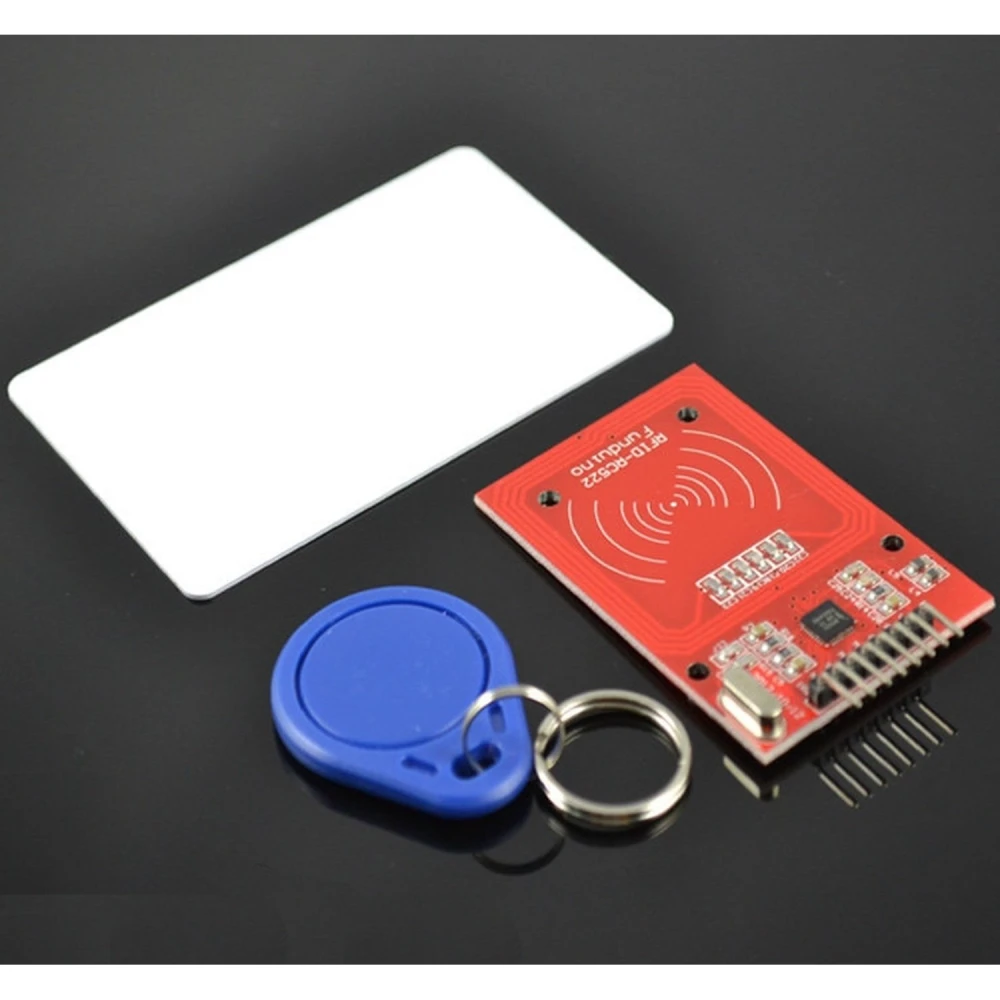

RC522 RFID Reader Module for Arduino with antenna for card reading and writing
Brand: satkit
7.23€
VAT included (Ex VAT: 5.88 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 6.94 € | -4% |
| 10+ | 6.39 € | -12% |
| 20+ | 5.93 € | -18% |
In Stock - Ships immediately
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The RC522 RFID Reader Module for Arduino is an advanced proximity card reading and writing module operating at a frequency of 13.56MHz. It uses the NXP MFRC522 chip, known for its high integration, low voltage and low cost, making it an ideal choice for electronics projects and Arduino-based access control systems.
This module supports multiple RFID card types including S50, S70, Ultralight, Pro and DESFire, ensuring broad compatibility for a variety of applications. Communication with the microcontroller is via SPI interface, which makes connection easier and reduces board space.
Main features
- Operating frequency: 13.56MHz
- Integrated MFRC522 chip with high integration
- Compatible with S50, S70, Ultralight, Pro and DESFire RFID cards
- SPI interface for direct communication with Arduino and other microcontrollers
- Current consumption: 13-26mA in operation, 10-13mA in standby, less than 80uA in sleep mode
- Maximum data transfer speed: 10Mbit/s
- Compact dimensions: 40mm x 60mm
- Operating temperature range: -20 to 80 degrees Celsius
- Storage range: -40 to 85 degrees Celsius
- Operating relative humidity: 5% - 95%
- Includes blank S50 IC card and special key fob-shaped card
Typical uses
This module is ideal for developers and hobbyists who want to implement radio frequency identification systems in their Arduino projects. It can be used in access control systems, inventory, asset tracking, and automation applications where reading and writing data on RFID cards is required.
Compatibility
The RC522 Module is designed to integrate easily with Arduino boards and other microcontrollers that support SPI communication. Its low operating voltage (3.3V) and compact size make it suitable for portable devices and embedded systems.
Package contents
- 1x RFID-RC522 module
- 1x blank standard S50 IC card
- 1x special S50 key fob-shaped card
- 1x straight and angled pin header for connection
- Operating frequency: 13.56MHz for contactless communication
- Compatible with S50, S70, Ultralight, Pro and DESFire RFID cards
- SPI interface for direct connection to Arduino and microcontrollers
- Efficient power use: 13-26mA in operation, less than 80uA in sleep mode
- Compact dimensions: 40mm x 60mm, easy to integrate into projects
- Includes RFID cards for testing and immediate development
- Wide temperature and humidity range for use in different conditions
Customer Questions & Answers
What components are included in the RC522 module box and what are its physical dimensions?
The standard package includes the RC522 module, an integrated antenna, an RFID tag (key fob), a proximity card and male pins for connection. The module dimensions are 40 mm x 60 mm x approximately 5 mm in height.
What compatibility does the RC522 module have with microcontrollers and what are its electrical requirements?
The RC522 module is compatible with Arduino, Raspberry Pi and other microcontrollers with an SPI (Serial Peripheral Interface) interface. It requires a 3.3 V DC supply with a typical consumption between 13 mA and 26 mA during normal operation. It is not recommended to power the module directly at 5 V, as it may be damaged.
What communication protocols does the RC522 support and what are the common connection issues?
The RC522 communicates mainly via SPI, although it can be adapted to other protocols through modifications. The most common issues include errors caused by connecting it to 5 V, cables longer than 25 cm causing signal noise, and incorrect SPI pin configuration on the host. It is essential to use short cables and respect the power polarity.
What safety and regulatory considerations does the RC522 meet when used in access control applications?
The RC522 implements CRYPTO1 encryption for managing data with MIFARE cards, but this algorithm is vulnerable to known attacks, so it is not recommended for high-security applications. The module complies with ISO/IEC 14443A and operates in the 13.56 MHz ISM band, subject to local electromagnetic emissions regulations.
Is the RC522 Module compatible with Arduino boards?
Yes, the RC522 Module is fully compatible with Arduino boards via the SPI interface to make communication and project development easier.
What type of RFID cards does this module support?
It supports S50, S70, Ultralight, Pro and DESFire RFID cards at 13.56MHz.
What is the operating voltage of the RC522 Module?
The module operates at 3.3V DC.
What is included in the package when buying the RC522 Module?
The package includes the RFID-RC522 module, a blank standard S50 IC card, a special key fob-shaped card and a straight and angled pin header for connection.
What is the maximum data transfer speed?
The maximum data transfer speed is up to 10Mbit/s via the SPI interface.
