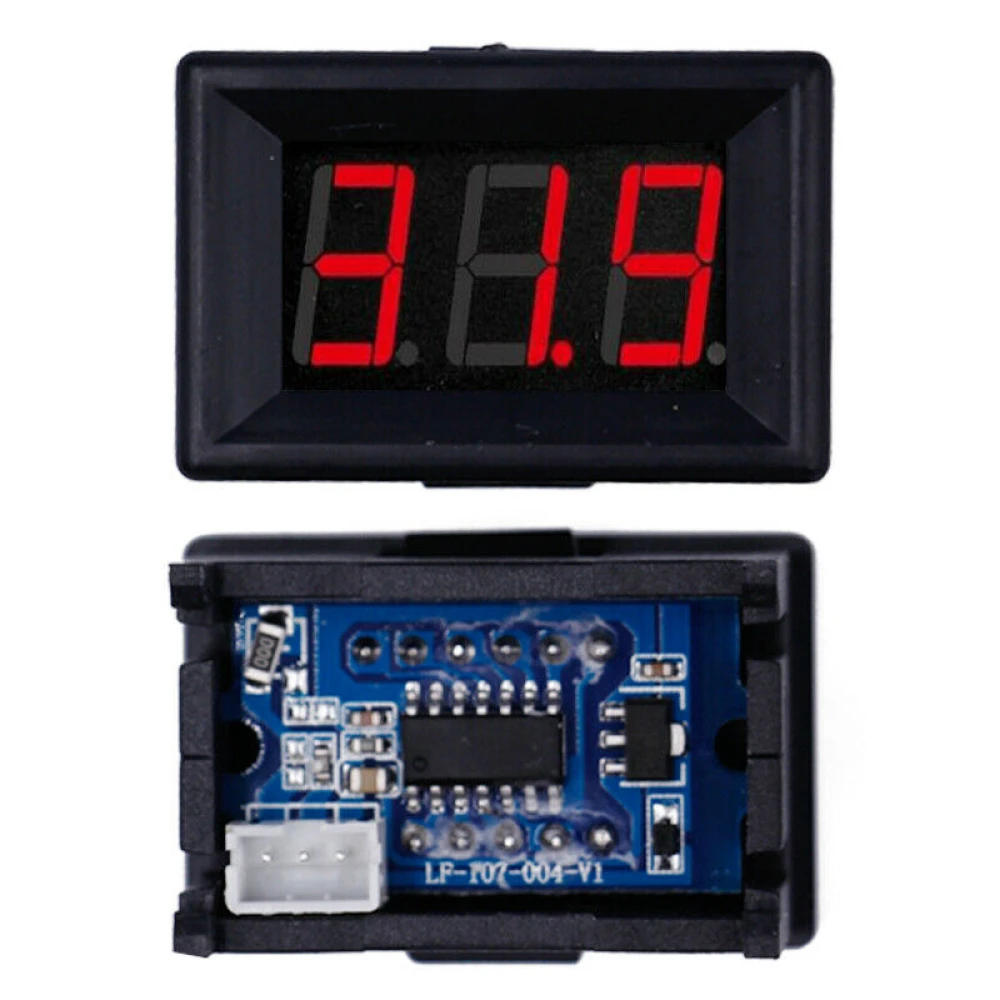

Mini Digital Voltmeter 3.5V - 30V with Red LED Battery Indicator, Panel Mount
Brand: satkit
VAT included (Ex VAT: 1.35 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 3.19 € | |
| 10+ | 3.02 € | |
| 20+ | 2.66 € |
Mini Red Digital Voltmeter 3.5V - 30V Battery Voltage LED Panel Meter
This mini digital voltmeter is a compact and practical device designed to continuously measure the voltage of batteries and other electrical systems within the range of 3.5 VDC to 30 VDC with an accuracy of ±1%.
Main features:
- Measurement range: 3.5 V to 30 V DC, ideal for batteries and low-voltage electrical systems.
- Display: LCD with red LED backlight, making it easy to read even in low-light environments.
- Reverse polarity protection: Ensures device safety and prevents damage from incorrect connection.
- Power consumption: Operating current below 60 mA, with an approximate consumption of 15 mA, making it efficient for long-term use.
- Display dimensions: 23 x 12 mm, compact and easy to integrate into panels or enclosures.
- Cable length: 190 mm, providing flexibility for installation.
- Colour and design: Black housing, discreet and elegant for any application.
- Operating temperature: From -10ºC to 65ºC, suitable for different working environments.
- No battery required: Powered directly by the voltage it measures, simplifying use and maintenance.
Typical uses:
- Continuous measurement of voltage in vehicle batteries, solar systems, and electronic equipment.
- Visual indicator for monitoring battery charge status via its red LED display.
- Integration into control panels or panel-mount enclosures for electrical monitoring.
Compatibility: Compatible with any electrical system operating within the 3.5 to 30 V DC range, ideal for automotive, electronics, and DIY applications.
This mini digital voltmeter is an essential tool for technicians and hobbyists who need accurate and reliable voltage measurement without complications and with simple installation.
- Measurement range: 3.5 V to 30 V DC with ±1% accuracy
- LCD display with red LED for easy viewing
- Reverse polarity protection to help prevent damage
- Low power draw: less than 60 mA operating current
- Compact size: 23 x 12 mm display

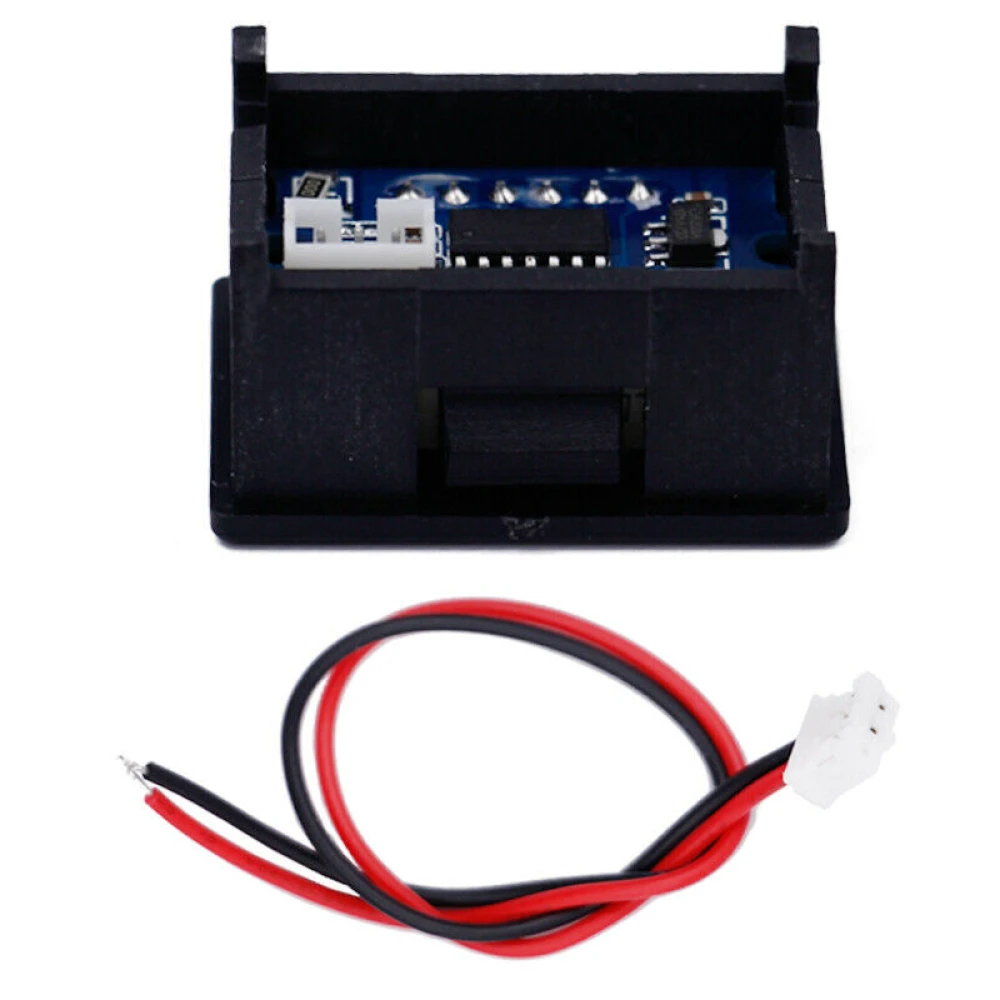

- 190 mm cables for easy installation
- Black colour, discreet panel-mount design
- Operating temperature from -10ºC to 65ºC
- No battery required, powered by the measured voltage
Customer Questions & Answers
What are the materials and exact dimensions of the device and the display size of the LED screen?
The housing is made of black plastic, with approximate dimensions of 23 mm x 12 mm for the display and a cable length of 190 mm. The module is usually easy to panel-mount thanks to its compact size. It does not include a sealed housing or metal reinforcement materials.
How does the device respond to reverse polarity connection and what is its typical current consumption?
The voltmeter includes reverse polarity protection, preventing damage if the wires are connected the wrong way round. Typical consumption is 15 mA, with a maximum of 60 mA under normal operating conditions. This allows it to be installed in battery-powered systems without significantly affecting runtime.
What is the measurement accuracy tolerance and what margin of error can be expected under standard conditions?
Measurement accuracy is ±1% within the specified operating range. For example, when measuring 12.0 V, the margin of error may be ±0.12 V. Factors such as extreme temperature or interference could slightly affect accuracy, but the stated margin is maintained in most common scenarios.
What voltage range does this mini digital voltmeter measure?
This mini voltmeter measures voltages from 3.5 V to 30 V DC with an accuracy of ±1%.
Does it need batteries to work?
No, the mini voltmeter is powered directly by the voltage it is measuring, so it does not require a battery.
Does it have reverse connection protection?
Yes, it includes reverse polarity protection to prevent damage if connected incorrectly.
What applications is this voltmeter suitable for?
It is ideal for measuring the voltage of vehicle batteries, solar systems, and other electrical equipment within the specified range.
How is the mini digital voltmeter installed?
It can be easily panel mounted in panels or enclosures thanks to its compact design and 190 mm cables for connection.
