L-Shaped 4-Pin 10mm 5050 RGB LED Connector YourLed
Brand: YourLed
0.31€
VAT included (Ex VAT: 0.25 €)
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
Overview:

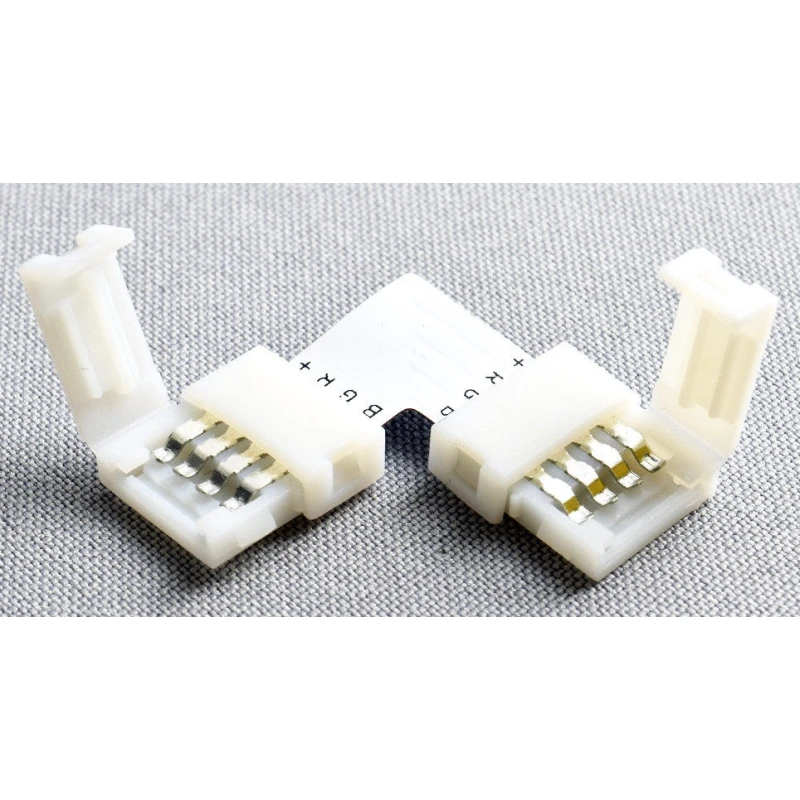

The L-shaped 4-Pin 10mm 5050 RGB LED connector from YourLed is an accessory designed to make it easy to connect RGB LED strips at a 90-degree angle without soldering. This connector is compatible with 10mm-wide LED strips using 5050 and 5630 chips, allowing a quick and secure join for decorative or functional lighting projects.
Key features:

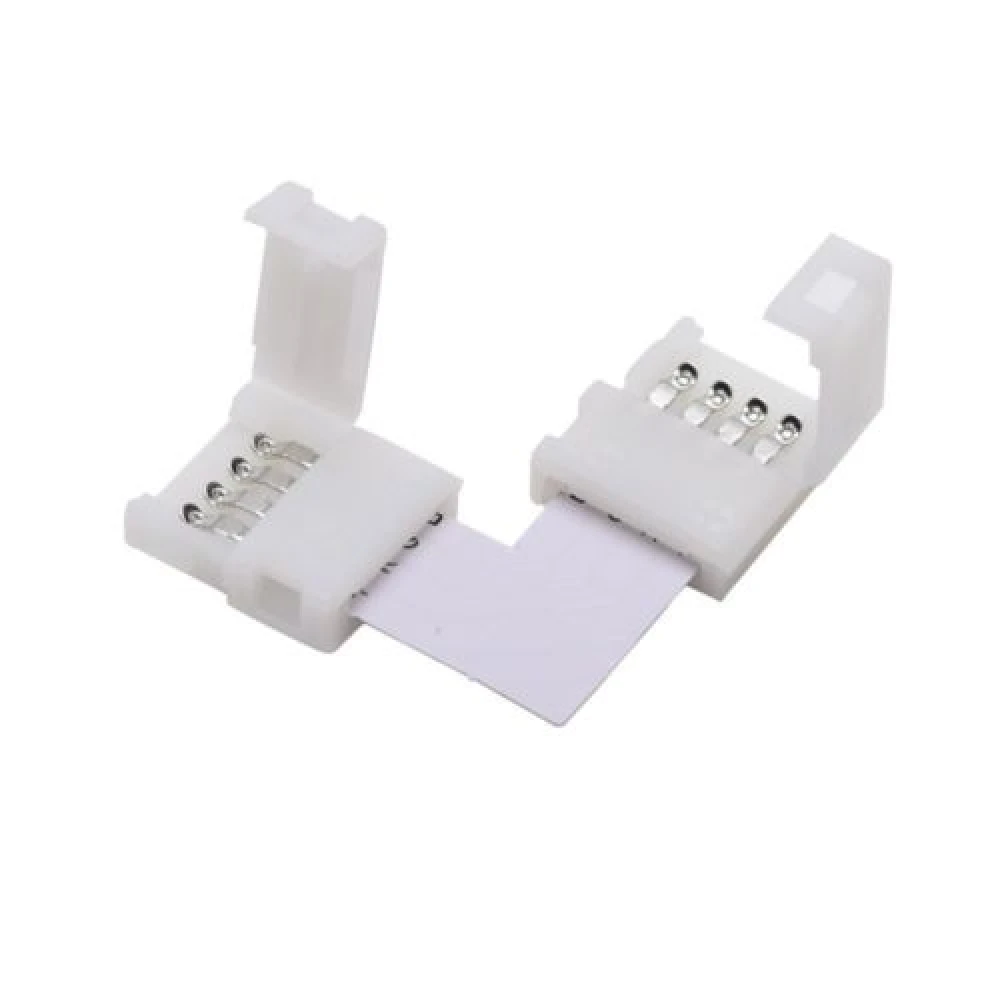

- L-shaped connector for joining RGB LED strips at corners or right angles.

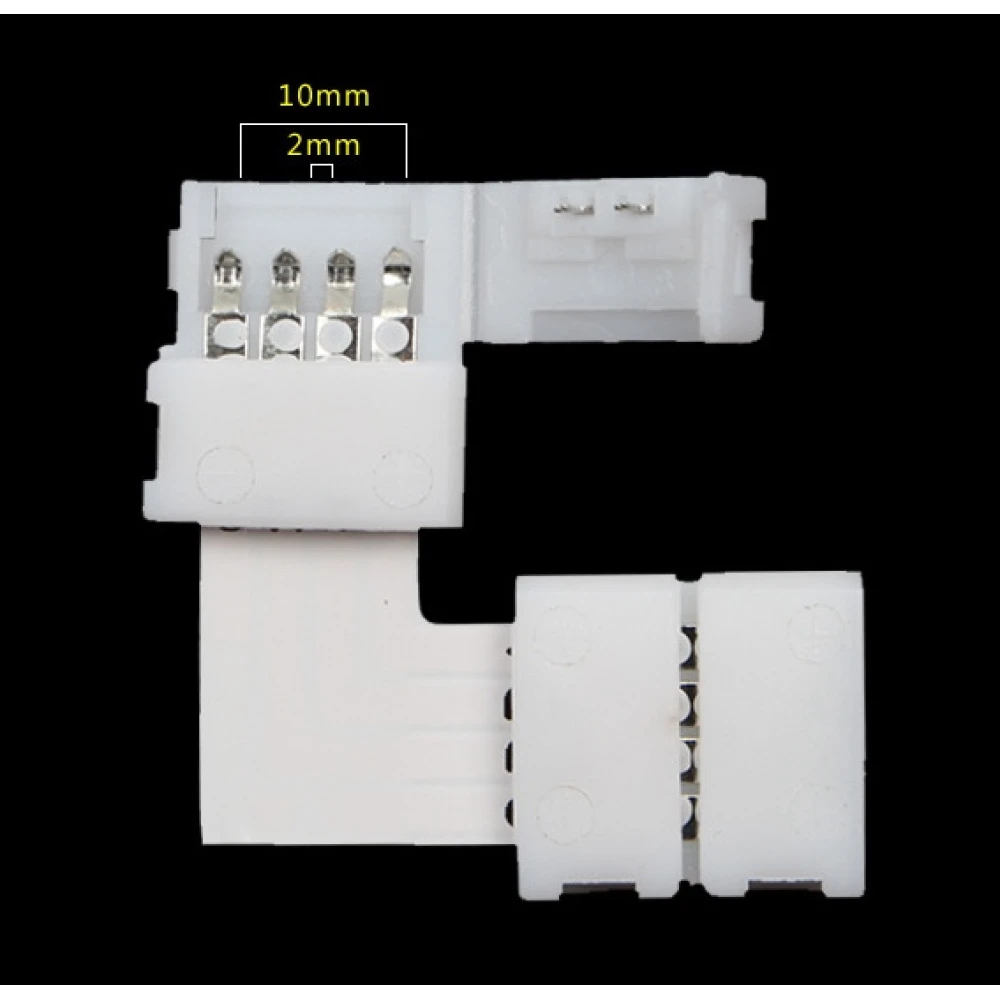

- Compatible with 10mm-wide LED strips with a 4-pin (RGB) configuration.
- Compatible with 5050 and 5630 RGB LED strips.
- Simple installation with no soldering required, just insert the strip into the connector.
- Reliable connection that ensures electrical continuity and correct colour transmission.
- Not waterproof, suitable for indoor use or dry environments.
Typical uses:

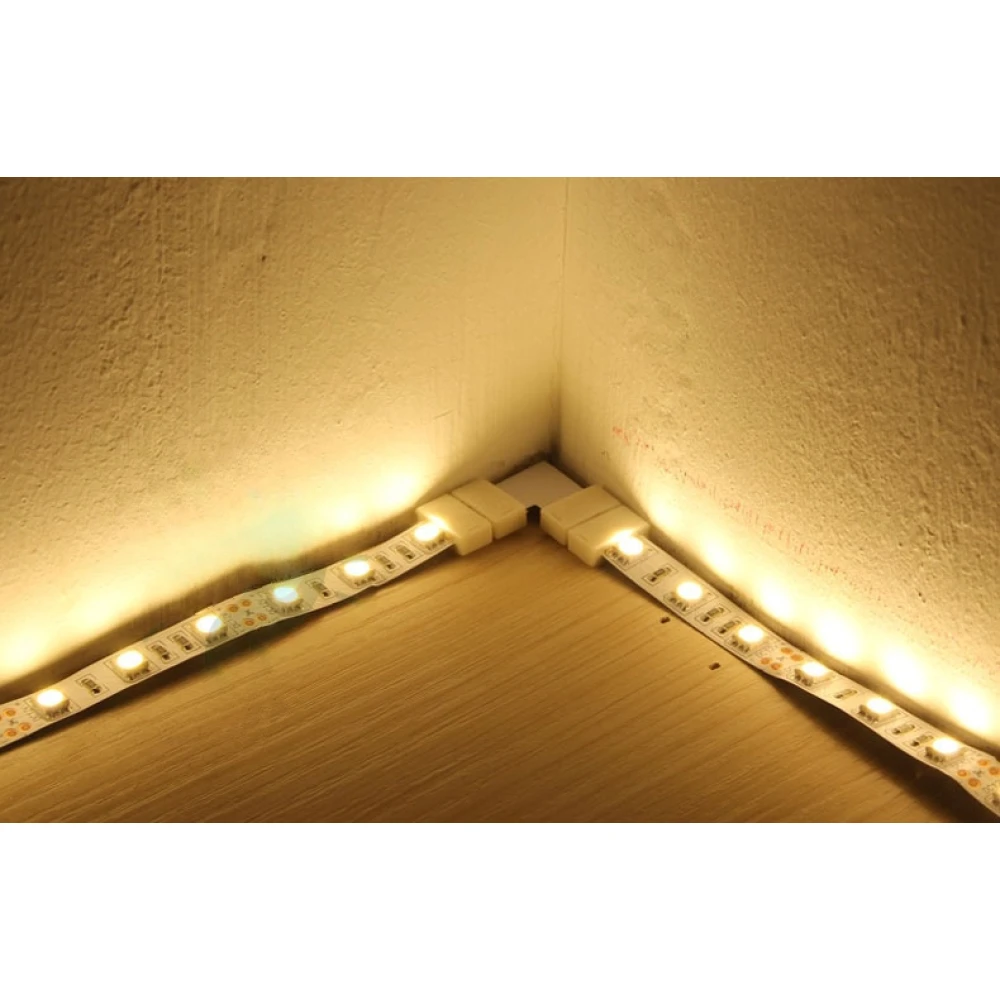

- Joining RGB LED strips around corners for furniture, shelving or ceiling lighting.
- DIY lighting projects where flexibility in design is needed without soldering tools.
- Repairing or extending 5050/5630 RGB LED strips without hassle.
Compatibility:
- For 10mm RGB LED strips with 4 pins only.
- Compatible with 5050 and 5630 LED chips.
- Not suitable for single-colour LED strips or strips with a different pin configuration.
Assembly instructions:
- Open the connector clip.
- Insert the LED strip, making sure the contacts are aligned with the connector pins.
- Close the clip to secure the connection.
- Check that the connection is firm before switching on.
Warning: This connector is not waterproof, so it should not be used outdoors or in damp environments.
With this YourLed L-shaped 4-pin 10mm 5050 RGB LED connector, joining LED strips at an angle is quick, secure and hassle-free, ideal for customised and professional lighting projects.
- L-shaped connector for joining RGB LED strips at corners.
- Compatible with 10mm 4-pin RGB 5050 and 5630 LED strips.
- Easy fitting with no soldering required.
- Reliable, secure connection for electrical continuity.
- Not waterproof, for indoor use.
- Ideal for DIY projects and quick repairs.
Customer Questions & Answers
What advantages does it offer over direct soldering when joining LED strips at corners or angles?
The connector allows a quick, tool-free join between two LED strip sections at a right angle, eliminating the need for soldering. This reduces the risk of heat damage to the PCB and makes changes or maintenance easier. However, the electrical resistance of the contact may be slightly higher than soldering if it is not fitted correctly.
How is it installed correctly and what mistakes should be avoided?
To install it, open the connector cover, carefully insert the strip while aligning the contacts, and close the cover until you hear a click. It is important to make sure the copper tracks on the strip make even contact. A common mistake is not fully inserting the strip or bending the pins, which causes malfunction.
What current or power limitations does this connector have for RGB LED strips?
The connector supports a recommended maximum current of 5 A (at 12 V or 24 V depending on the strip), making it suitable for most domestic strips of up to 60 W per section. It is not recommended for high-power installations (>5 A per channel), where voltage drop across the contacts could be significant.
Which LED strips is this connector compatible with?
It is compatible only with 10mm-wide RGB LED strips with 4 pins, specifically for 5050 and 5630 chips.
Do I need to solder to install the connector?
No, the connector allows quick and secure installation without soldering; just insert the strip into the clip.
Is this connector waterproof?
No, this connector is not waterproof and should be used only indoors or in dry environments.
Can I use this connector to join LED strips at an angle?
Yes, it is specifically designed to join RGB LED strips at a 90-degree angle in an L shape.
Is it compatible with single-colour LED strips?
No, this connector is only for 4-pin RGB LED strips and is not compatible with single-colour strips.
