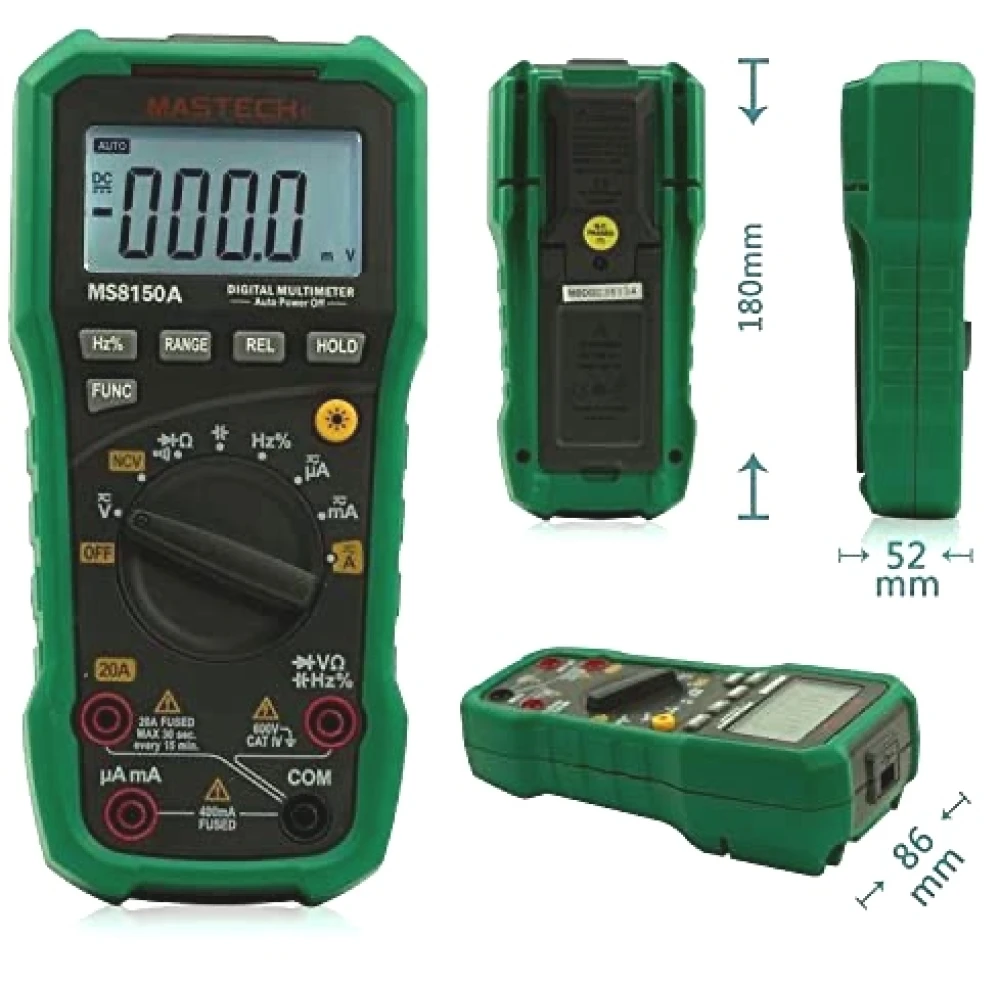

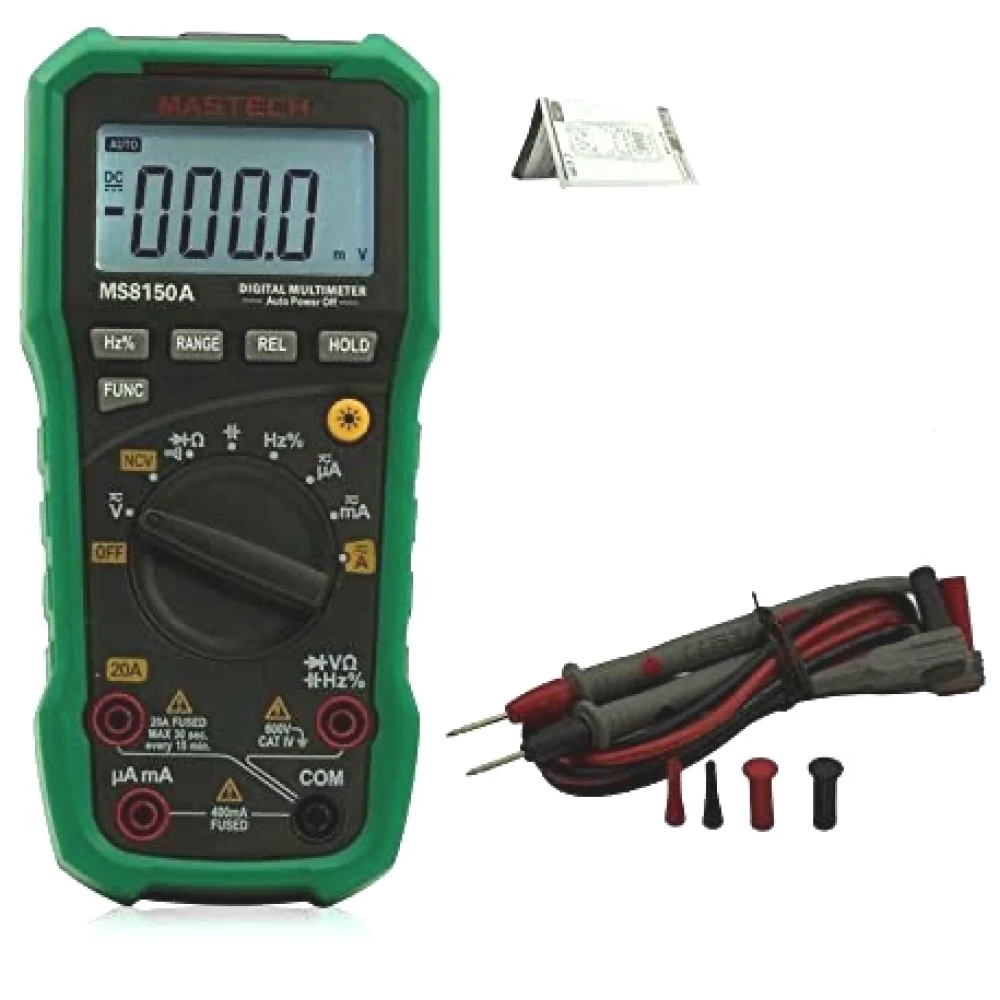

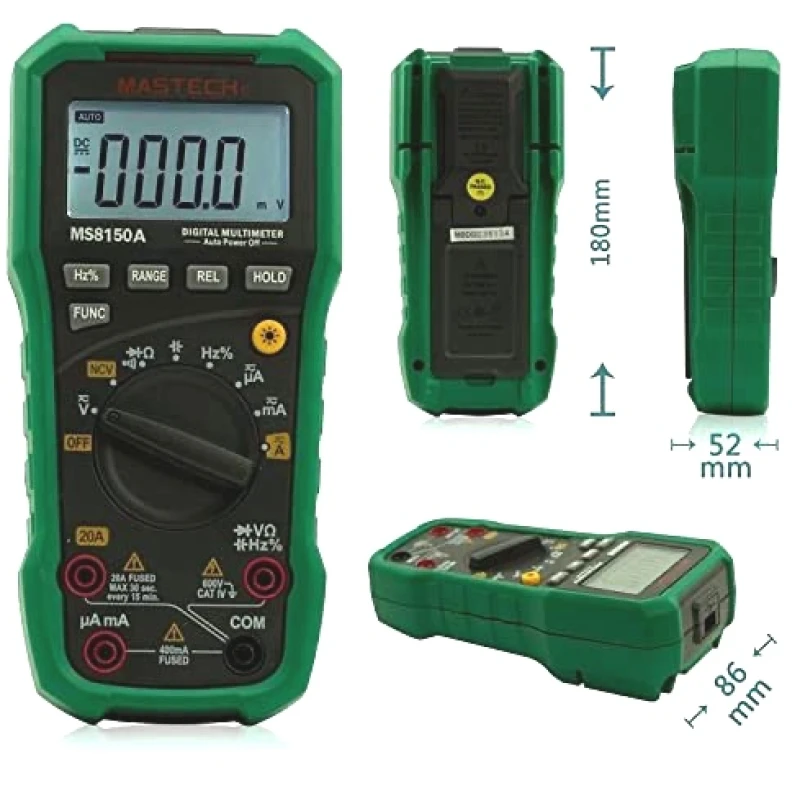

Mastech MS8150A digital multimeter with frequency and capacitance
Brand: Mastech
VAT included (Ex VAT: 32.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 37.79 € | -4% |
| 10+ | 36.60 € | -7% |
| 20+ | 33.46 € | -15% |
The Mastech MS8150A digital multimeter is a professional portable instrument designed to deliver accurate and reliable measurements across a wide range of electrical and electronic applications. Equipped with a high-contrast illuminated LCD display, it allows clear reading of data even in low-light conditions.
This multimeter stands out for its ergonomic design, which makes one-handed operation easy, including a simple-to-use range switch. It also features overload protection and a low battery indication to ensure safe and efficient use.
Main features:
- Large LCD display with backlight for optimal viewing.
- Built-in non-contact voltage detector, ideal for identifying voltage without direct contact.
- CAT IV 600V rating that ensures safety in high-voltage measurements.
- Multiple measurements: DC and AC voltage, DC and AC current, resistance, capacitance, frequency and duty cycle.
- Additional functions: diode test, continuity test with buzzer, data hold, max and min values, and relative measurement.
- Auto power off to save battery.
Technical specifications:
| Parameter | Range | Accuracy |
|---|---|---|
| DC Voltage | 400mV/4V/40V/400V/1000V | ±(0.5% +2) |
| AC Voltage | 400mV/4V/40V/400V/750V | ±(0.8% +2) |
| DC Current | 400µA/4000µA/40mA/400mA/4A/10A | ±(0.8% +2) a ±(1.2% +2) |
| AC Current | 400µA/4000µA/40mA/400mA/4A/10A | ±(1.5% +2) a ±(3.0% +2) |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1.2% +2) |
| Capacitance | 50nF/500nF/5µF/50µF/100µF | ±(3% +5) |
| Frequency | 0~5MHz | ±(0.5% +2) |
| Duty cycle | 5%~95% | ±(2% +2) |
Typical uses:
This multimeter is ideal for electrical and electronic professionals, maintenance technicians, students and hobbyists who need a multifunctional instrument to measure different electrical parameters accurately and safely. It is suitable for use in workshops, laboratories, schools and for home jobs.
Compatibility:
The Mastech MS8150A is compatible with Windows systems via its USB interface, allowing data transfer for analysis or logging.
- Large backlit LCD display for easy reading.
- Built-in non-contact voltage detector for added safety.
- CAT IV 600V rating for high protection in measurements.
- DC/AC voltage, DC/AC current, resistance, capacitance and frequency measurements.
- Diode test, continuity buzzer and data hold functions.
- Auto power off for battery saving and low battery warning.
- Windows-compatible USB interface for data transfer.
Customer Questions & Answers
What measurement ranges does the multimeter cover, and what level of accuracy does it offer for current and voltage?
The Mastech MS8150A covers DC/AC voltage measurement (up to 600 V), DC/AC current (up to 10 A), resistance (up to 60 MΩ), frequency, capacitance, diode test and continuity. For DC voltage it achieves a typical accuracy of ±0.5%+2 digits and for AC ±0.8%+5, depending on the selected range. Auto-ranging helps avoid scale errors.
What are the multimeter's dimensions, weight and main materials, and what is included in the box?
The unit measures approximately 180 mm x 90 mm x 40 mm and weighs around 330 g including batteries. It is made from impact-resistant ABS. The box includes: multimeter, standard test leads, protective case, manual and, in most cases, AA batteries (please confirm whether they are included in each shipment).
What type of protection and safety rating does it have? Does it comply with any recognised standard?
The MS8150A has a CAT III 1000V and CAT IV 600V rating, with an internal fuse and non-contact voltage detection (NCV). It complies with IEC61010, suitable for work on residential and industrial electrical installations. Periodic checks of the fuse and test leads are recommended in line with local regulations.
Is it compatible with plugs or power systems outside America? What voltage does it need to operate?
It does not depend on the plug type, as it runs on two AA batteries (1.5 V each); it does not require direct mains connection. It is fully portable and can be used in any country, provided standard AA batteries are used.
Are replacement parts, such as fuses or test leads, easily available? What warranty does it have?
The internal fuses and test leads are standard and easy to find in electrical shops. The usual manufacturer warranty is around 1 to 2 years depending on the distributor, covering manufacturing defects (not damage caused by misuse or overloads outside specification). It is recommended to keep the receipt and original packaging for after-sales claims.
What measurements can the Mastech MS8150A multimeter perform?
It can measure DC and AC voltage, DC and AC current, resistance, capacitance, frequency, duty cycle, as well as diode and continuity tests.
Does the multimeter have overload protection?
Yes, it has overload protection to ensure safe use.
Can the display be read in low light conditions?
Yes, it has a backlit LCD display that makes reading easier in dark environments.
Is the multimeter suitable for professional use?
Yes, it is a multifunction instrument ideal for professionals, workshops, schools and home use.
Can the multimeter be connected to a computer?
Yes, it includes a USB interface compatible with Windows systems for data transfer.
