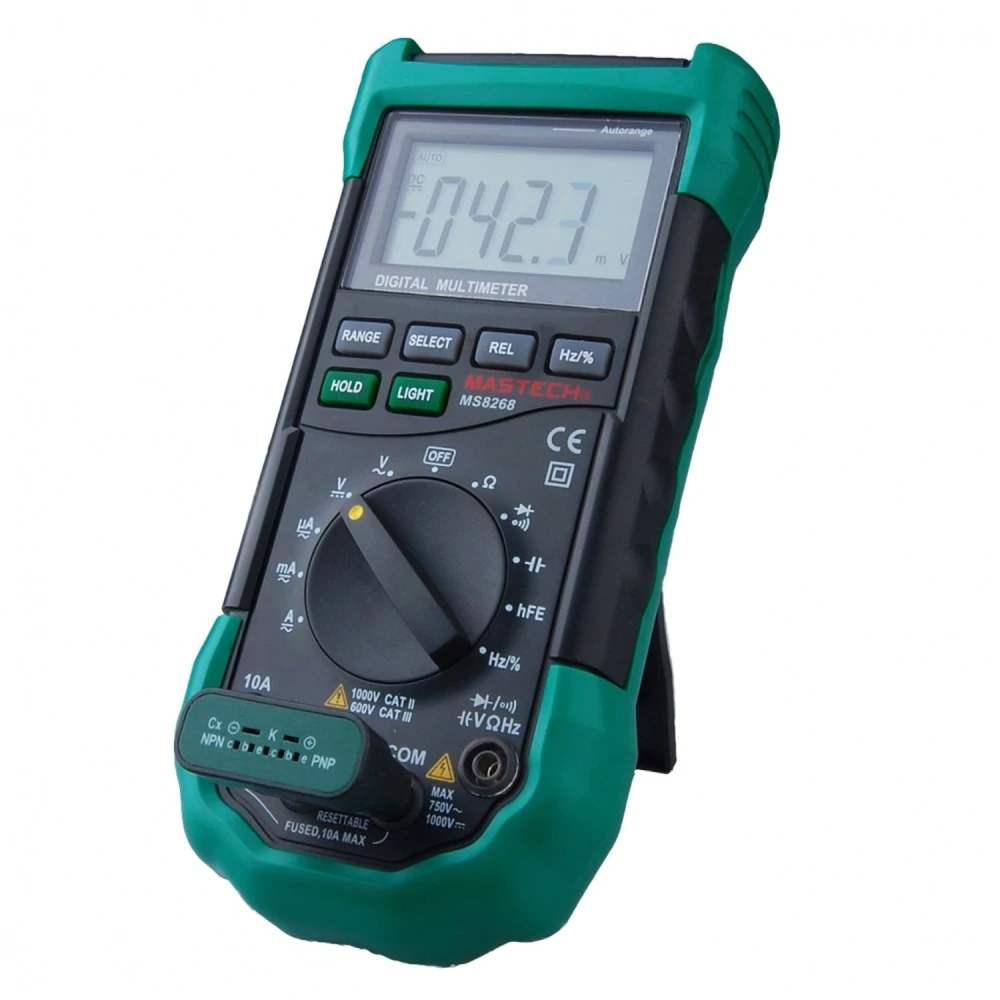

Mastech MS8268 auto-ranging digital multimeter with backlit LCD display

Product overview

The Mastech MS8268 is an auto-ranging digital multimeter designed to deliver accurate and reliable measurements across a wide range of electronic and electrical applications. This model features a 3/4-digit LCD display with blue backlight, making it easy to read in low-light conditions. It is ideal for technicians and hobbyists who need a versatile and easy-to-use instrument.

Main features

• AC/DC measurements up to 1000 V and current up to 10 A.
• Capacitance measurement up to 200 µF and frequency up to 200 kHz.
• Resistance measurement up to 40 MΩ with high accuracy.
• Diode test, continuity test with audible alert and hFE test for transistors.
• Automatic range selection with manual option for frequencies.
• Protection against incorrect connections with audible and visual (LED) alert.
• Configurable auto power off for battery saving.
• Includes test leads and user manual for quick setup.
• Powered by three AAA batteries for longer runtime.
• Rubber-coated housing for impact protection and greater durability.

Technical specifications

• LCD display with maximum 3999 counts.
• Insulation class CAT III 600 V and CAT II 1000 V.
• DC voltage: 400 mV / 4 V / 40 V / 400 V ±0,7%, up to 1000 V ±0,8%.
• AC voltage: 400 mV ±3,0% ±0,8 V, 4 V / 40 V / 400 V, up to 750 V ±1,0%.
• DC current: 400 µA / 4000 µA / 40 mA / 400 mA ±1,2%, up to 10 A ±2,0%.
• AC current: 400 µA / 4000 µA / 40 mA / 400 mA ±1,5%, up to 10 A ±3,0%.
• Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ ±1,2%, up to 40 MΩ ±2,0%.
• Capacitance: 4 nF ±5,0%, 40 nF / 400 nF / 4 µF / 40 µF / 200 µF ±3,0%.
• Frequency: 10 Hz / 100 Hz / 1 kHz / 10 kHz / 200 kHz ±2,0%.
• Dimensions: 195 x 92 x 55 mm.
• Weight: 380 g.

Typical uses

This multimeter is perfect for measuring and diagnosing electrical and electronic circuits, repairing household appliances, testing components such as diodes and transistors, as well as industrial and educational maintenance work. Its auto-ranging function makes it easy to use even for less experienced users.

Compatibility and accessories

The Mastech MS8268 includes test leads and a detailed user manual. It runs on three standard AAA batteries, which are easy to replace. Its robust design and protection against incorrect connections ensure a long service life and safe operation.

• AC/DC measurements up to 1000 V and current up to 10 A
• Capacitance measurement up to 200 µF and frequency up to 200 kHz
• Diode, continuity and hFE transistor testing
• Blue backlit LCD display for easy reading
• Automatic range selection with manual option
• Configurable auto power off for battery saving
• Protection against incorrect connections with audible and visual alert
• Includes test leads and user manual
• Rubber-coated housing for impact protection
• Powered by three AAA batteries
