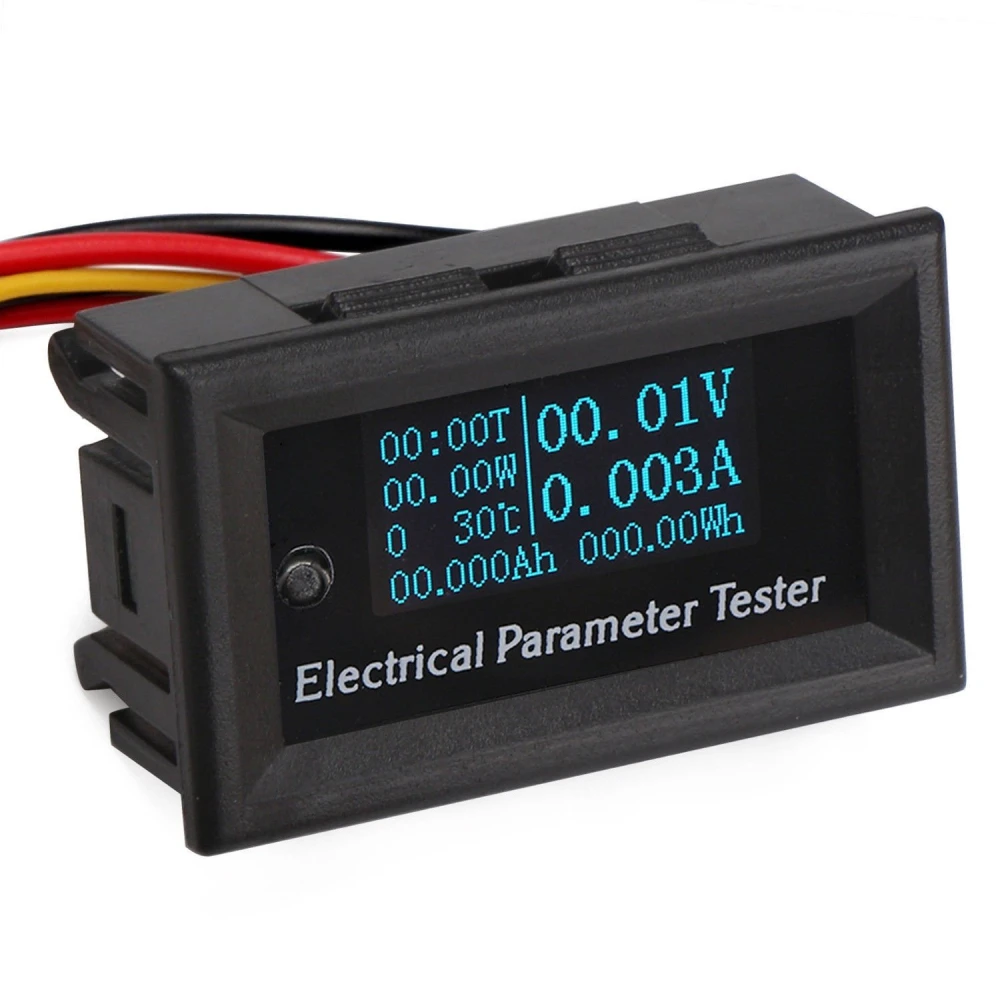

7-in-1 Energy Meter with OLED Display DC 33V 3A
This electrical parameter meter from satkit is a versatile and accurate tool for measuring multiple electrical variables in a single compact device. With the ability to measure voltage, current, power, capacity, energy, temperature and time, it is ideal for electronics professionals and hobbyists who need reliable, easy-to-read data.

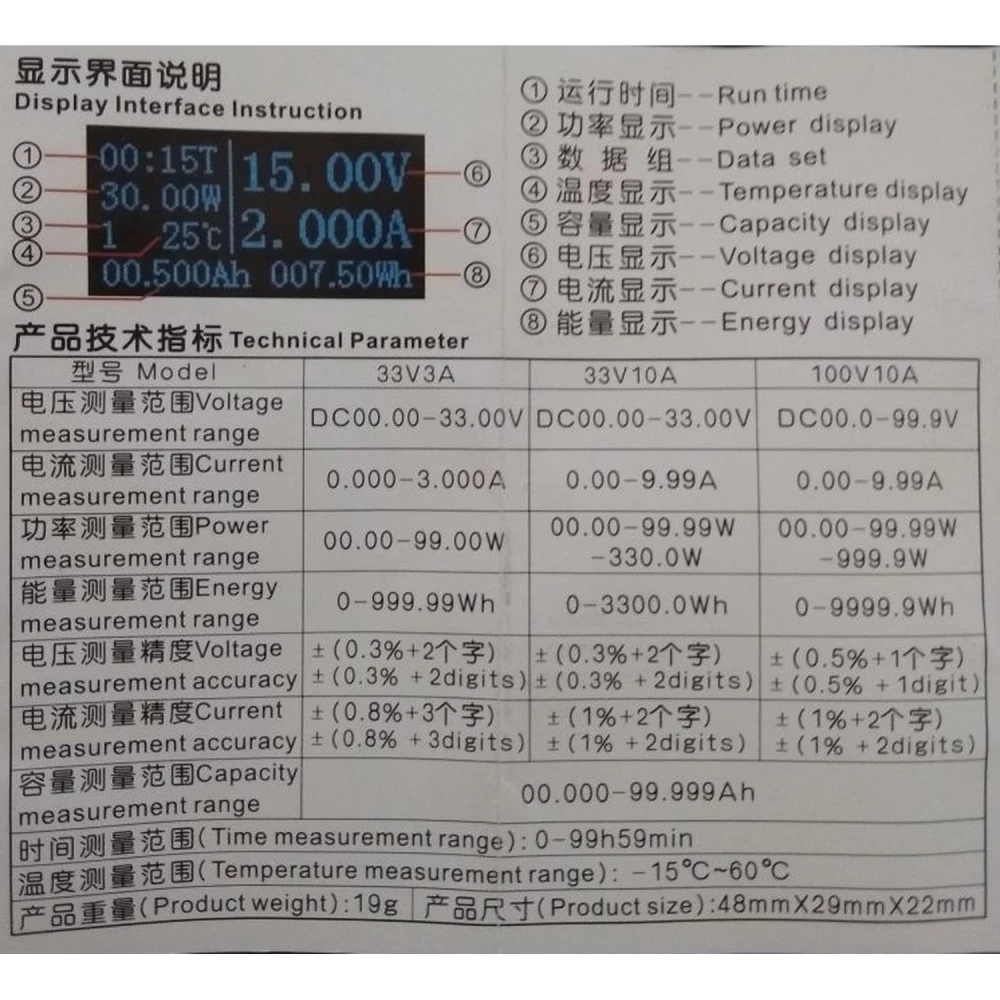

Key features:
- Voltage: Measurement range DC 0.00 to 33.00V with an accuracy of ±(0.3% + 2 digits).
- Current: DC range 0.000 to 3.000A with accuracy of ±(0.8% + 3 digits).
- Power: Measurement from 0 to 99.00W to assess electrical consumption.
- Capacity: Up to 99.999Ah to monitor charge accumulation.
- Energy: Range from 0 to 999.99Wh to measure total consumption.
- Temperature: Measurement from -15 °C to 60 °C, useful for thermal control.
- Time: Built-in stopwatch from 0 to 99 hours and 59 minutes.
- OLED display: Clear, sharp display of all parameters in real time.
Typical use:
This meter is perfect for measuring and monitoring electrical consumption and status in electronics projects, power supply testing, equipment diagnostics and electrical maintenance. Its OLED display makes readings easy in different lighting conditions.

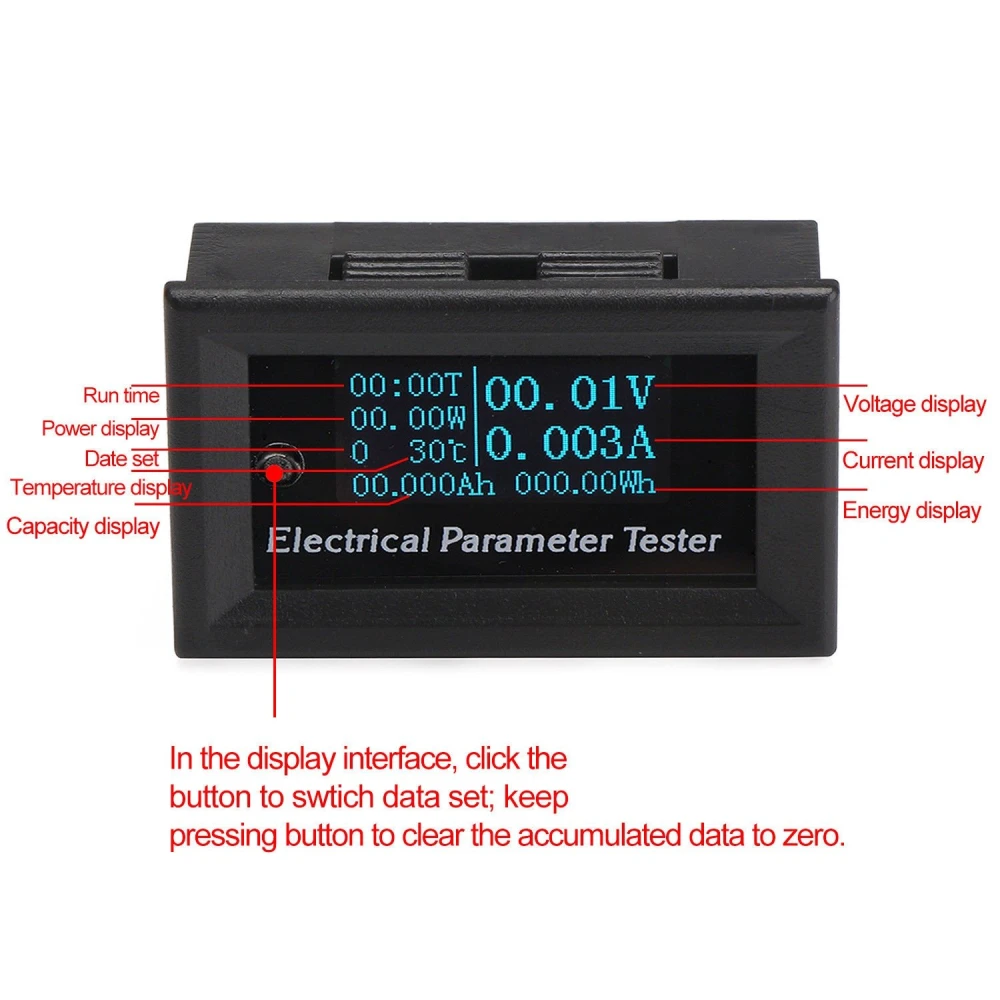

Operation:
- Press the button on the interface to switch between displayed parameters.
- Press and hold the button to reset accumulated data to zero.
- To correct errors in small current measurements, unplug the cable, press the button until "AAA" appears, then release it.
Compatibility and installation:

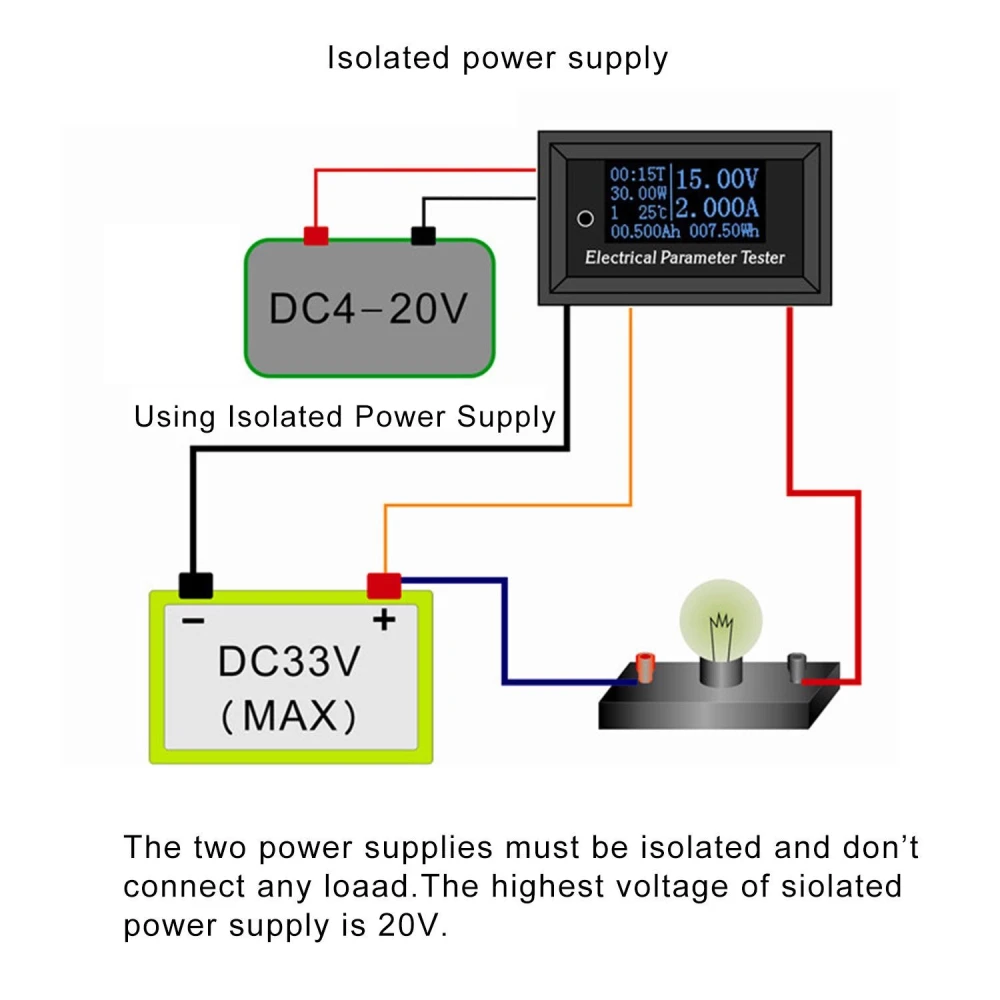

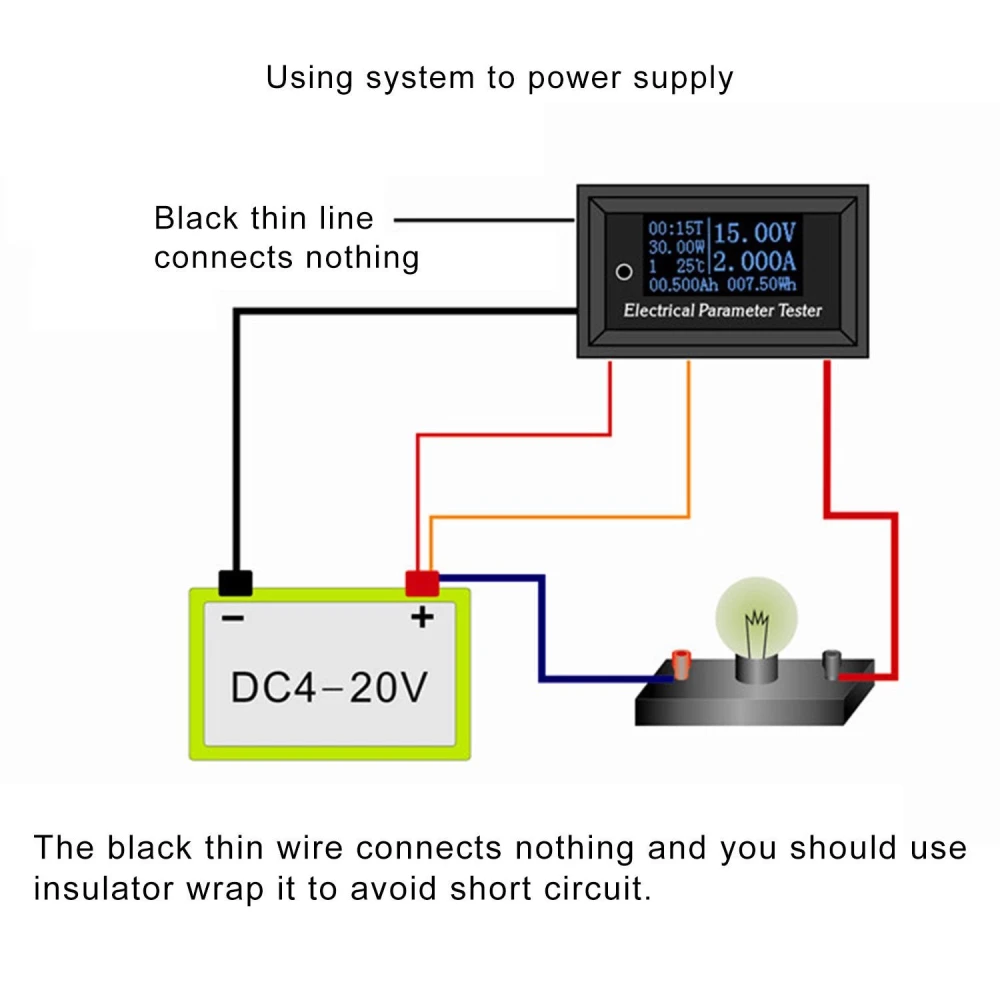

It is essential to follow the wiring diagram and installation instructions to ensure accurate measurements and avoid damage. The device is compatible with DC power systems within the specified range.
Package contents:
- 1x 7-in-1 Energy Meter with OLED Display DC 33V 3A
- 1x Assembly manual and instructions in English
This satkit meter is an affordable, complete solution for anyone who needs a multifunction electrical tester with high accuracy and ease of use.
- 7-in-1 meter for voltage, current, power, capacity, energy, temperature and time
- Clear, easy-to-read OLED display
- DC voltage range 0.00-33.00V with high accuracy
- DC current 0.000-3.000A, ideal for electronics
- Measures power up to 99.00W and energy up to 999.99Wh
- Guaranteed accuracy for voltage and current
- Easy operation with button to switch data and reset
- Includes assembly manual and instructions in English
Customer Questions & Answers
What electrical parameters can the 7-in-1 measure, and with what accuracy?
It can measure voltage (DC 0.00-33.00 V, accuracy ±0.3% + 2 digits), current (DC 0.000-3.000 A, accuracy ±0.8% + 3 digits), power (0-99.00 W), energy (0-999.99 Wh), capacity (0-99.999 Ah), temperature (-15 ℃ to 60 ℃) and time (0-99 h 59 min).
Is it compatible with AC power supplies or only DC, and what installation requirements does it have?
This meter is compatible only with DC power supplies of up to 33 V and 3 A. It is not suitable for AC. It is essential to follow the included wiring diagram to avoid damage.
How do you reset the accumulated data, and what should be done if readings become inaccurate after prolonged use?
To reset the accumulated data, press and hold the button while it is displayed on screen. If you notice errors after prolonged use with small currents, disconnect the power cable, press and hold the button until the display shows 'AAA', then release to recalibrate.
Does it include a warranty or spare parts, and how does it compare with other similar meters in terms of range and functions?
The description does not mention a warranty or spare parts, so it is recommended to confirm with the seller. Compared with basic models, this one offers higher energy and capacity ranges, and an OLED display. Its measurement range covers most hobby and laboratory applications, although there are alternatives with higher ranges or digital communication in more advanced product lines.
What voltage range does this meter measure?
The meter can measure direct current (DC) voltages from 0.00 to 33.00 volts.
What is the current measurement accuracy?
The current measurement accuracy is ±(0.8% + 3 digits).
Can I measure temperature with this device?
Yes, the meter includes a temperature measurement range from -15 °C to 60 °C.
How do I reset the accumulated data?
Pressing and holding the button on the display interface clears the accumulated data and resets it to zero.
What is included in the package when I buy this meter?
The package includes the 7-in-1 meter with OLED display and an assembly manual with instructions in English.
