Amass BS4571 4mm Female Banana Surface Mount Connector for PCB Boards
Brand: Amass
1.97€
VAT included (Ex VAT: 1.60 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 1.89 € | -4% |
| 10+ | 1.79 € | -9% |
| 20+ | 1.48 € | -25% |
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only

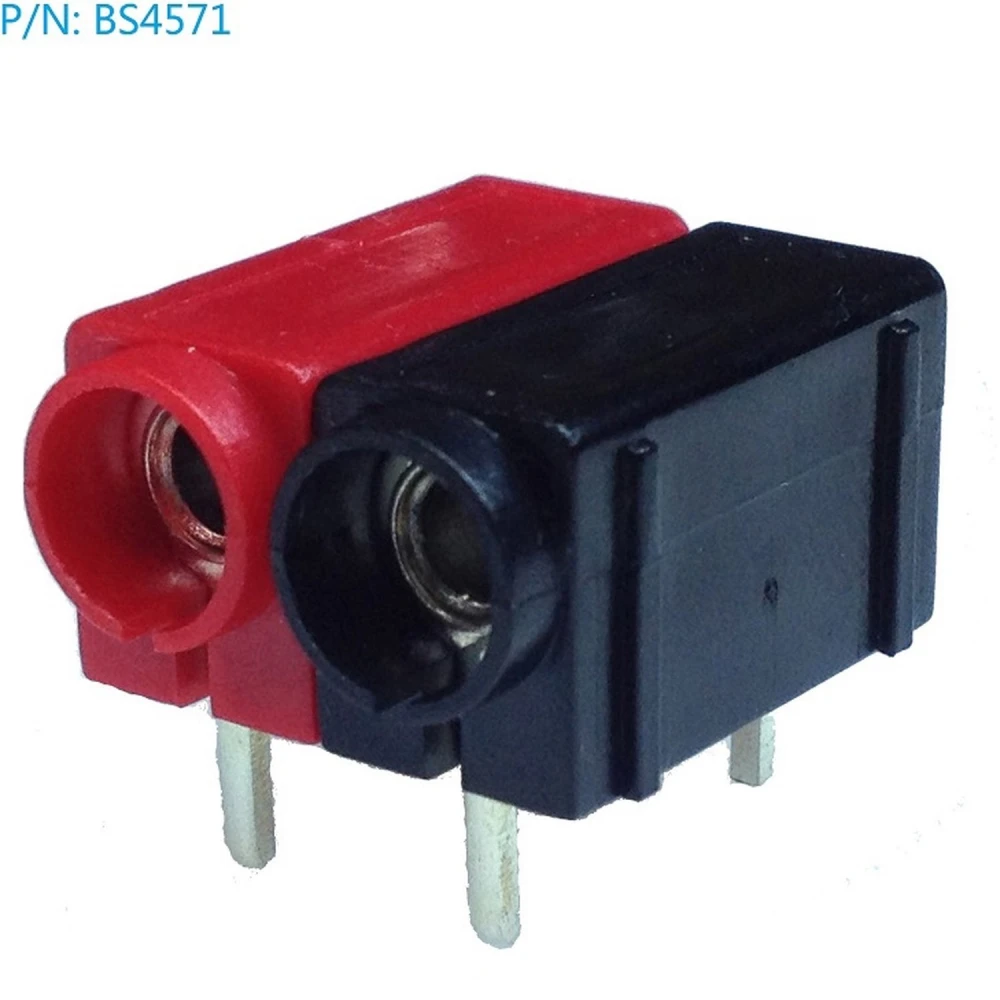

The 4mm female banana surface mount connector model BS4571, manufactured by Amass, is an essential component for secure and efficient connection on printed circuit boards (PCB). Designed for direct mounting on boards, this insulated connector provides a reliable and stable connection with 4mm banana plugs, commonly used in electronic and measuring equipment.
Main features:
- Insulated 4mm female banana connector.
- Surface mount design for printed circuit boards (PCB).
- Manufactured by Amass, a recognised manufacturer of electronic components.
- Compatible with measuring instruments, multimeters and oscilloscopes.
- Ideal for electronic laboratory applications and precision projects.
Specifications and use:
This connector is designed to make it easy to connect and disconnect 4mm banana plugs on PCB boards, ensuring safe and stable electrical transmission. Its surface mount design allows simple and efficient installation in electronic circuits, and it is compatible with a wide range of measuring instruments and electronic equipment.
Typical applications:
- Connection in multimeters and oscilloscopes.
- Electronic projects that require reliable banana connections.
- Electronics laboratories for testing and measurements.
- Mounting on printed circuit boards for measuring equipment.
This connector is an essential accessory for technicians and professionals who work with measuring instruments and require high-quality, durable banana connections on their PCB boards.
- Insulated 4mm female banana connector
- Surface mount for printed circuit boards
- Compatible with measuring instruments and electronic equipment
- Manufactured by Amass, quality assured
- Ideal for electronic projects and laboratories
Customer Questions & Answers
What is the main function of this 4 mm female connector and in which situations is it especially useful?
The 4 mm female connector is designed to allow secure, removable connection of standard banana cables, making testing and measurements on printed circuit boards easier. Its main use is in prototyping, laboratories and environments where test instruments such as oscilloscopes and multimeters need to be connected and disconnected frequently.
What are the manufacturing materials, dimensions and weight of the BS4571 connector?

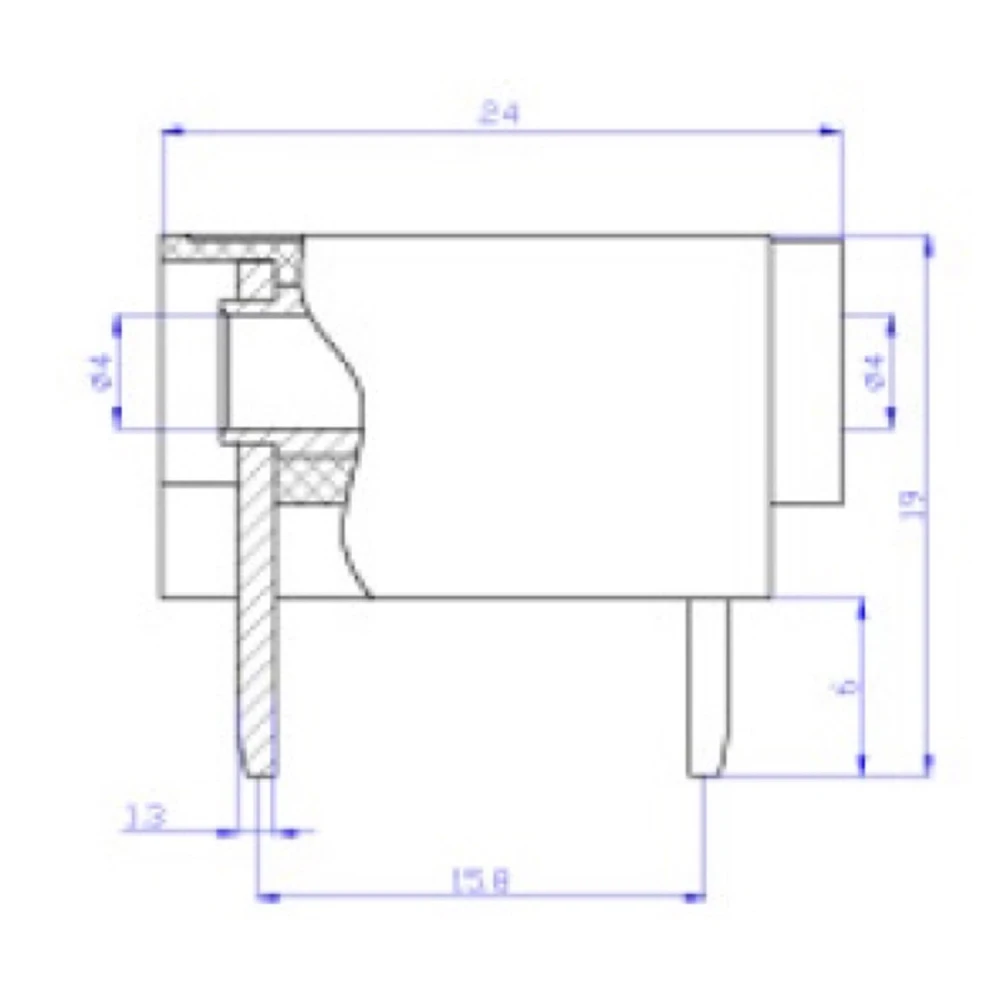

The BS4571 is made with a plastic insulating body (usually polyamide or ABS, depending on the batch), and a nickel-plated brass metal terminal. Its approximate dimensions are: total length 23 mm, outer insulating diameter 8 mm, and 4 mm connection opening diameter. Unit weight is 4.2 g.
What operating voltage and current limits do these connectors support, and what is the maximum safe operating temperature?
The BS4571 connectors support a maximum voltage of 30 V AC/DC and currents of up to 16 A under nominal conditions. The recommended maximum operating temperature is 70°C, and current tolerance may decrease if this value is exceeded.
Do they require any special tools or procedures for soldering to the PCB, and what practices are recommended to avoid damage?
No special tools are required other than a conventional soldering iron. It is recommended to set the soldering iron temperature between 320–350°C and limit contact to less than 5 seconds to avoid damaging the plastic insulation. It is advisable to clean the area before and after soldering to ensure good conductivity and durability.
Are they compatible with banana connectors from any brand and do they comply with any safety standard?
These 4 mm female connectors are compatible with most standard IEC 61010 4 mm banana connectors, regardless of brand. However, it is recommended to check tolerances if the male connector is non-standard. The design follows IEC 61010 guidelines for low voltage and basic safety.
What type of cable is this connector compatible with?
It is compatible with 4mm banana plugs, commonly used in measuring instruments.
Can it be mounted directly on printed circuit boards?
Yes, it is designed for surface mounting on PCB boards, making a secure connection easier.
What is the brand of the BS4571 connector?
The BS4571 connector is manufactured by the Amass brand.
Is this connector suitable for measuring instruments?
Yes, it is ideal for connections in multimeters, oscilloscopes and other measuring instruments.
