Quartz crystal tester and meter (30 kHz to 20 MHz)
Brand: satkit
VAT included (Ex VAT: 29.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 33.89 € | -5% |

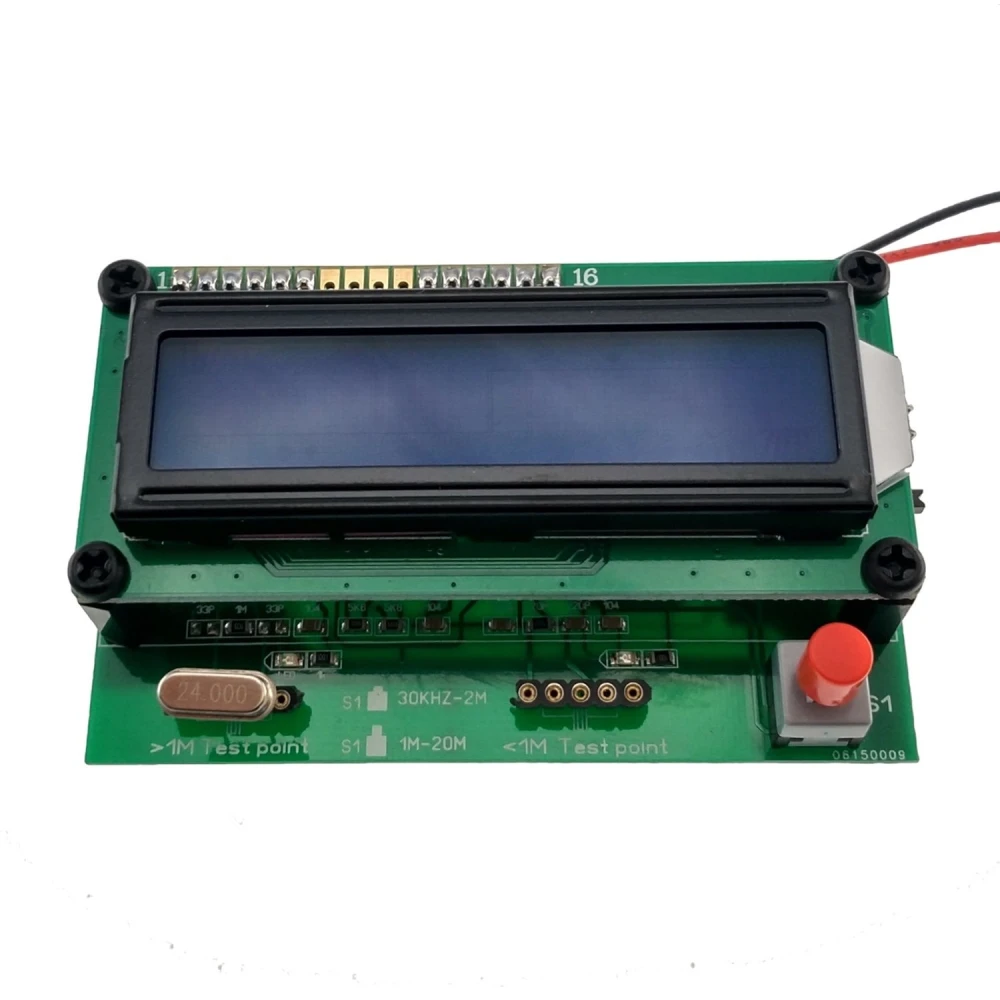

Quartz crystal tester and meter (oscillators) from 30 kHz to 20 MHz
This device is an essential tool for technicians and hobbyists who need to check the condition and value of quartz crystals and electronic oscillators. Its measurement range covers frequencies from 30 kHz to 20 MHz, covering a wide variety of electronic components used in projects and repairs.
Main features:
- Low frequency measurement range: 30 kHz to 2 MHz (with red switch pressed)
- High frequency measurement range: 3 MHz to 20 MHz (with red switch not pressed)
- Compatible crystal type: cylindrical 49S

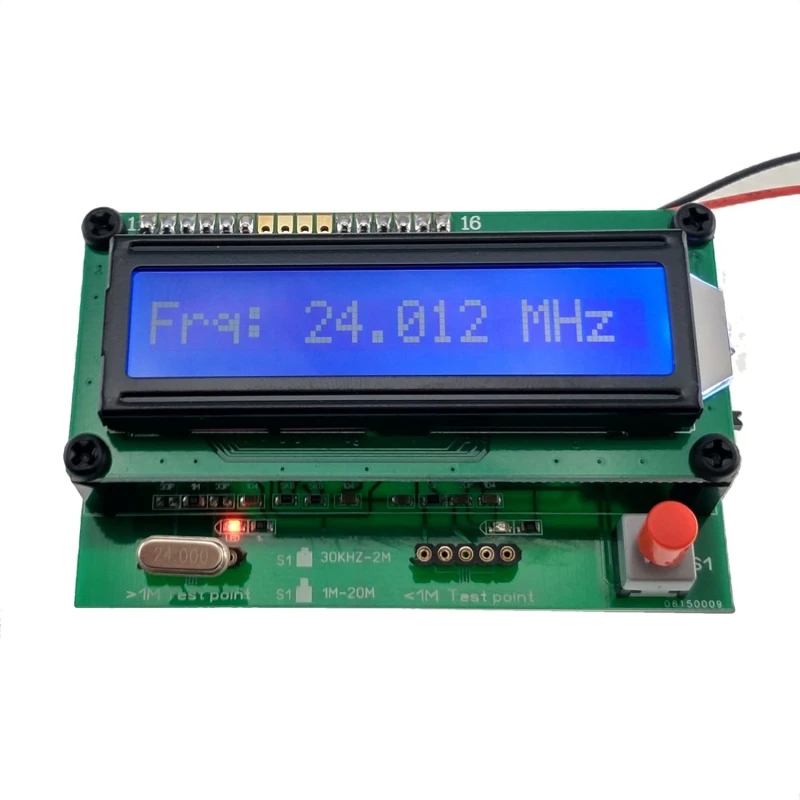

- LCD display showing the crystal value clearly
- Low frequency accuracy: error of 10 kHz + 0.005 kHz
- High frequency accuracy: error of 1 MHz + 0.010 MHz
- Powered by a 9V battery (not included)
- Compact dimensions: 81 x 49 x 22 mm
- Two connection points for easy measurement
Typical use:
To check a crystal or oscillator, first switch off the meter. Place the crystal on the appropriate side according to the frequency you want to measure: for frequencies between 30 kHz and 2 MHz, place the crystal on the left side with the red button pressed; for frequencies between 3 MHz and 20 MHz, place it on the right side without pressing the red button. Switch on the device and observe the value shown on the LCD screen. If you do not know the crystal value, try one range first and then the other to obtain the correct reading.
This tester is ideal for diagnosing whether an oscillator is faulty or for identifying the value of unmarked crystals. Its compact design and simple operation make it an economical and practical tool for electronics workshops and users who require frequency measurement accuracy.
Compatibility and accessories:
Compatible with cylindrical 49S oscillator crystals. Works with a 9V battery (not included), making it easy to use portably in the field or workshop.
Note: The product is currently out of stock. We recommend checking alternatives or contacting our service team for future availability.
- Measurement range: 30 kHz to 20 MHz
- LCD display for clear value reading
- Compatible with cylindrical 49S crystals
- Powered by a 9V battery (not included)
- Compact and easy to use
- High measurement accuracy
- Two connection points for different frequency ranges
Customer Questions & Answers
What frequency range can this tester measure?
This unit can measure quartz crystals and oscillators from 30 kHz to 20 MHz.
What type of crystal is compatible with this meter?
It is compatible with cylindrical 49S oscillator crystals.
What power supply does the device require?
It works with a 9V battery, which is not included with the product.
How do you use the tester to measure a crystal?
Place the crystal on the left side with the red button pressed for frequencies between 30 kHz and 2 MHz, or on the right side without pressing the button for frequencies from 3 MHz to 20 MHz. Then switch on the device and read the value on the LCD display.
Is the product currently available?
The product is out of stock at the moment. Please check with the seller for future availability or look for alternatives.
