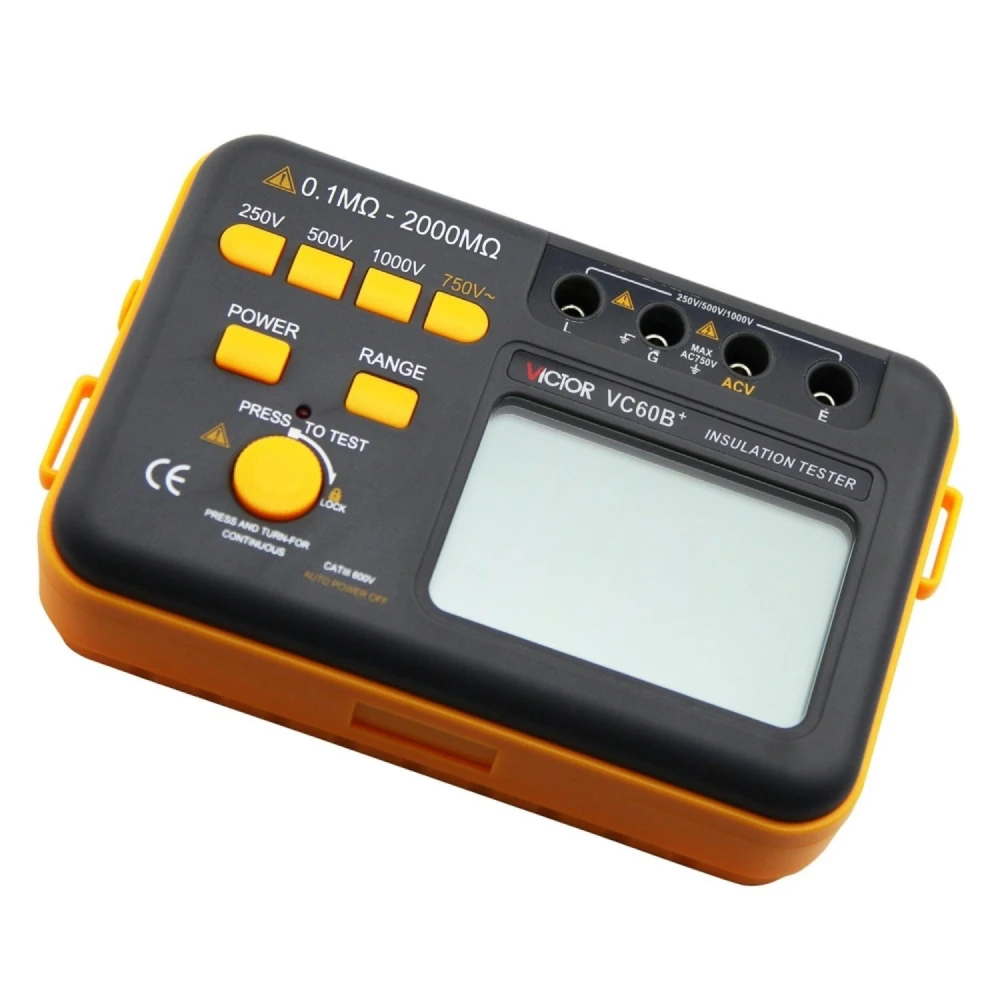

Victor VC60B+ CAT III 1000 V Insulation Tester for up to 2000 MΩ
Brand: Victor
VAT included (Ex VAT: 38.01 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 44.87 € | -4% |
| 10+ | 43.47 € | -7% |
| 20+ | 39.73 € | -15% |
The Victor VC60B+ is an insulation tester designed for professionals who require precision and reliability in their electrical measurements. This instrument is certified to CAT III 1000 V, ensuring safety and performance in industrial and electrical maintenance environments.
Main features:
- Large backlit display for clear reading in low-light conditions.
- "LOCK" function that allows spot and continuous measurements without needing to keep the button pressed.
- Overrange and battery status indicator for safe and efficient use.
- Automatic shut-off to protect battery life.
Technical specifications:
| Measurement ranges | AC: 0-750 V DC: 0-1000 V Resistance: 0-200 Ω / 200-2000 Ω Insulation resistance: 0-200 MΩ / 200-2000 MΩ |
| Resolution | AC: 1 V DC: 1 V Resistance: 0,1 Ω / 1 Ω Insulation resistance: 100 kΩ - 1 MΩ |
| Accuracy | AC: ±1,2 % ±10 digits DC: ±0,8 % ±3 digits Resistance: ±1,0 % ±2 digits Insulation resistance: ±3,5 % ±5 digits |
| Test voltages | 250 V - 200 MΩ 500 V - 200 MΩ 1000 V - 2000 MΩ |
| Continuity test | Buzzer at ≤ 40 Ω, test current 200 mA |
| Power supply | 6 x 1,5 V AA batteries |
| Environmental conditions | 0 to 40 °C / relative humidity < 80 % |
| Dimensions | 200 mm x 92 mm x 50 mm |
| Weight | 700 g |
| Standards | IEC10101, CAT III 1000 V |
Typical uses:
- Insulation testing in industrial and commercial electrical installations.
- Checking the integrity of cables and electrical equipment.
- Quality control in electronic manufacturing processes.
- Diagnosis and preventive maintenance in electrical systems.
Compatibility: Compatible with insulation resistances up to 2000 MΩ and test voltages up to 1000 V, ideal for electricians, engineers and electronics technicians.
Package contents:
- 1 Victor VC60B+ insulation tester
- 1 set of test leads
This tester is an essential tool for ensuring the safety and proper operation of electrical installations, offering accurate and reliable measurements in a compact, easy-to-use design.
- Large backlit display for clear reading
- Spot and continuous measurements with "LOCK" key
- Overrange and battery status indicator
- Automatic shut-off to protect the battery
- Measurement ranges: AC 0-750 V, DC 0-1000 V, resistance up to 2000 Ω, insulation up to 2000 MΩ
- Accuracy: AC ±1,2 %, DC ±0,8 %, resistance ±1,0 %, insulation ±3,5 %
- Test voltages: 250 V, 500 V, 1000 V
- Powered by 6 x 1,5 V AA batteries
- Compact dimensions: 200 x 92 x 50 mm, weight 700 g
- IEC10101, CAT III 1000 V standard
Customer Questions & Answers
What is the Victor VC60B+ used for?
It is used to measure insulation resistance in electrical installations, ensuring the safety and functionality of systems.
What voltage ranges can it measure?
It can measure AC voltages up to 750 V and DC voltages up to 1000 V.
What is the meter's accuracy?
The accuracy is ±1,2 % for AC, ±0,8 % for DC, ±1,0 % for resistance and ±3,5 % for insulation resistance.
What type of batteries does it use?
It uses 6 x 1,5 V AA batteries for power.
Does it include test leads?
Yes, the package includes a set of test leads.
